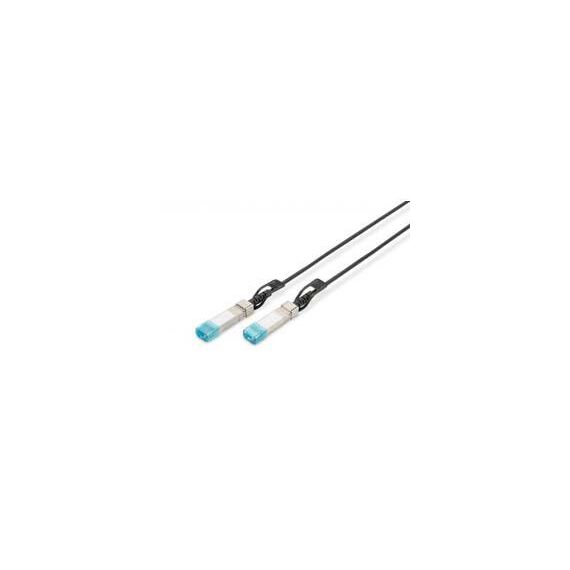

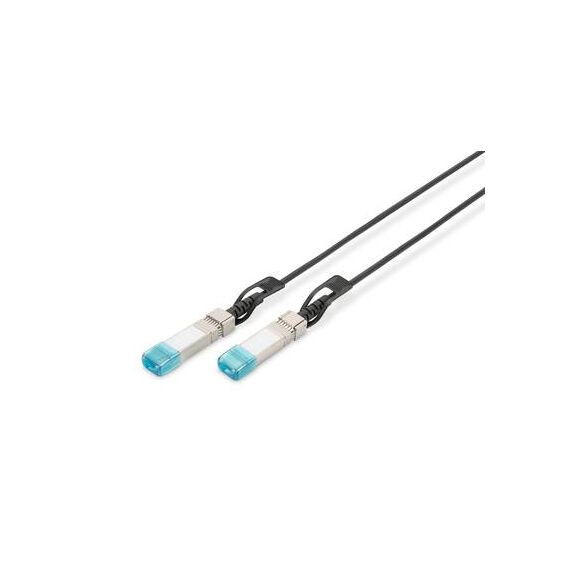

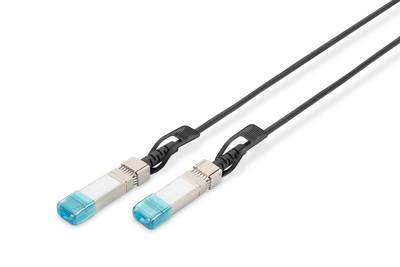

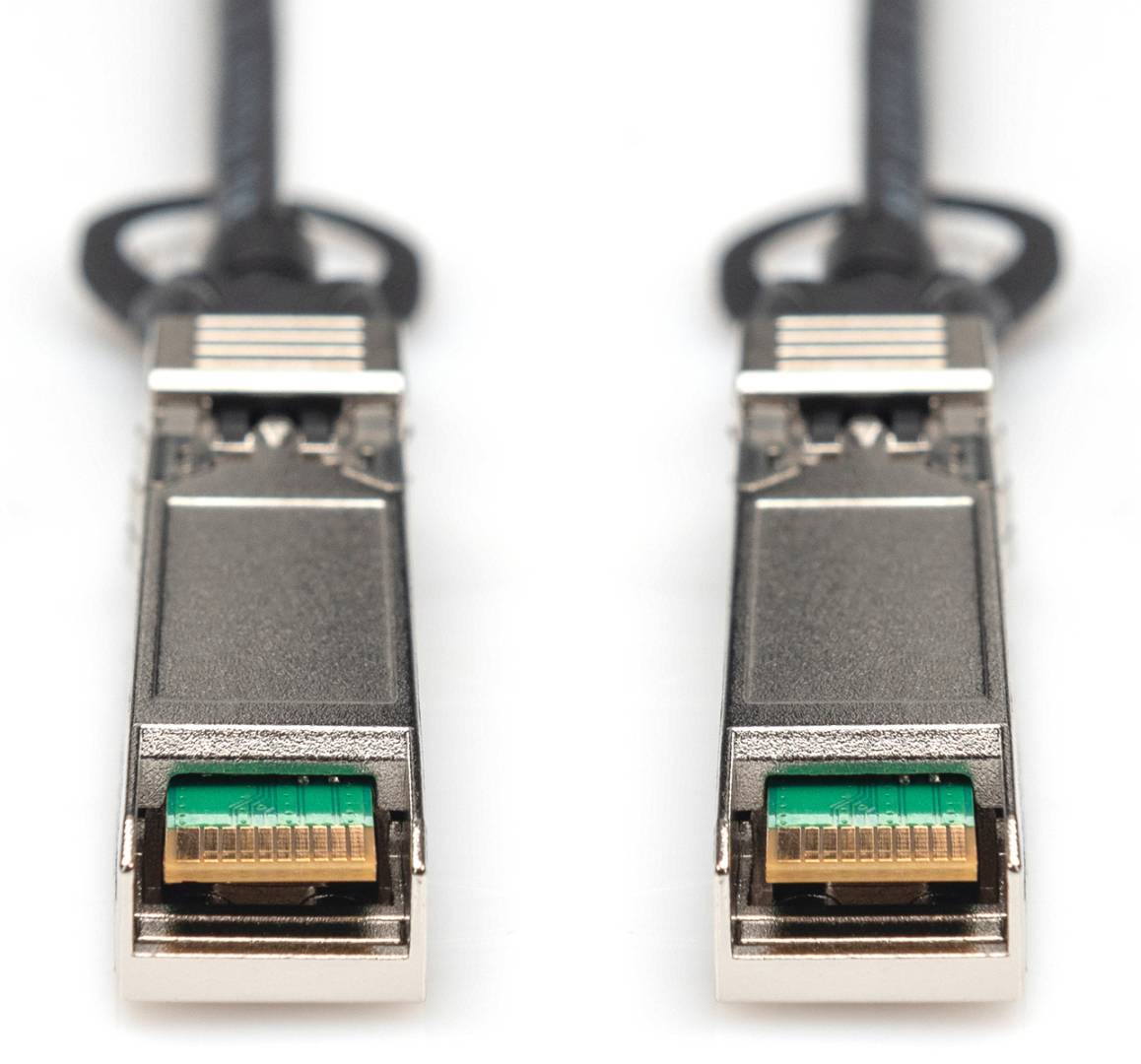

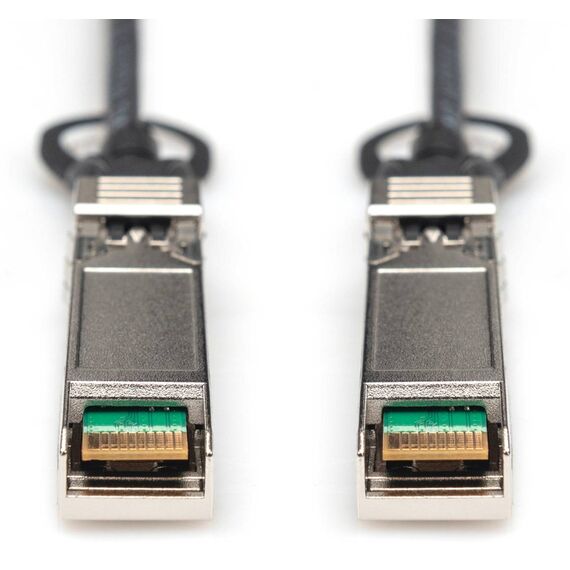

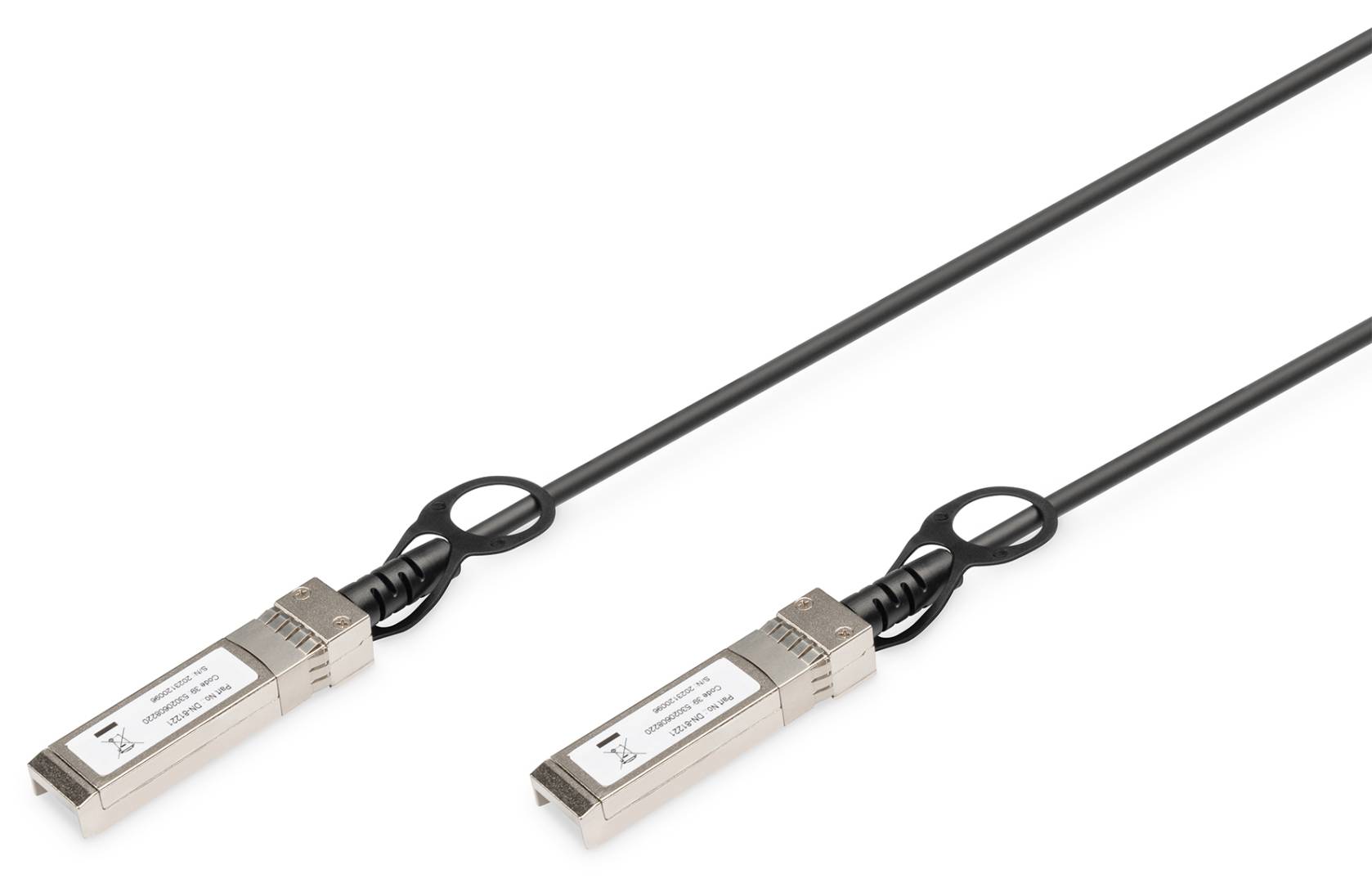

DIGITUS Professional / 10GBase direct attach cable / SFP+ to SFP+ / 1 m / twinaxial | DN-81221
Please sign in so that we can notify you about a reply
Product Features
· AWG 30 Twinax cable· 1 m maximum distance
· 1.0625-10.52Gbps supported data rate
· Supported applications: 10G Ethernet (10.21 Gbps), 10G fiber channel (10.52 Gbps), 8G fiber channel (8.5 Gbps), 4G fiber channel (4.25 Gbps), 2G fiber channel (2.125 Gbps), 1G fiber channel (1.0625 Gbps), Gigabit Ethernet (1.25 Gbit/s), CPRI option 2,3,5,6,7,8, OBSAI RP3 x 2, RP3 x 4, RP x 8
· Compatible with the following manuafacturers: Allnet, CISCO, 3COM, D-LINK, Dell, Edimax, Etherwan, ENTERASYS, EXTREME, FINISAR, FORCE 10, Fortinet, HUAWEI, IBM, JUNIPER, LINKSYS, NETGEAR, NORTEL, RIVERSTONE, ZTE, ZYXEL
· DDM / DOM support
· Temperature range: 0 ~ 70 °C
· Ports: SFP +
· Power: + 3.3V supply voltage
· Power consumption: 0.5W
· Transceiver type: DAC
Special Features
· SFP+ 10G 1m DAC cable· AWG 30 Twinax cable
· 1.0625-10.52Gbps supported data rate
Product Specification
| Network Cable Type | 10GBase direct attach cable |
| Technology | Twinaxial |
| American Wire Gauge (AWG) | 30 |
| Length | 1 m |
| Connectivity | Connectivity |
| Connector | SFP+ |
| Connector (Second End) | SFP+ |
| Environmental Parameters | Environmental Parameters |
| Min Operating Temperature | 0 °C |
| Max Operating Temperature | 70 °C |
Features - Digitus - DN-81221
Length
1.0m
More Details
Product Code
04:365368
EAN Code
4016032445944
Manufacturer
Digitus
