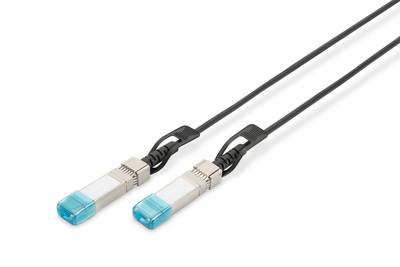

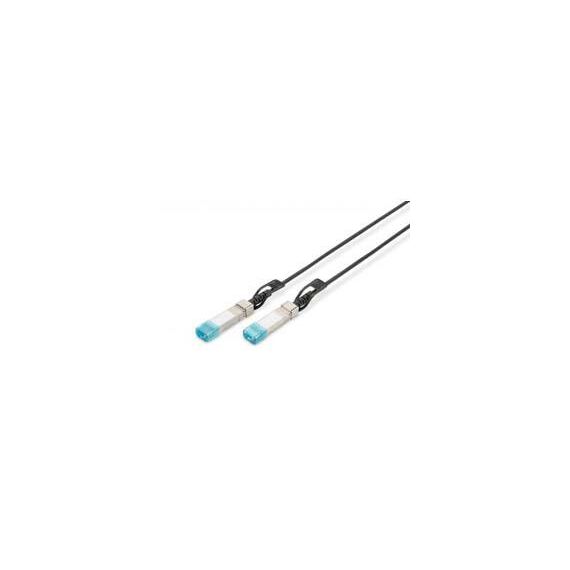

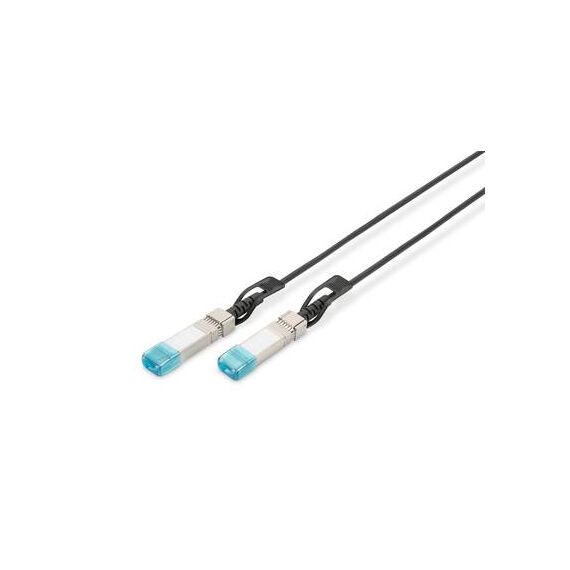

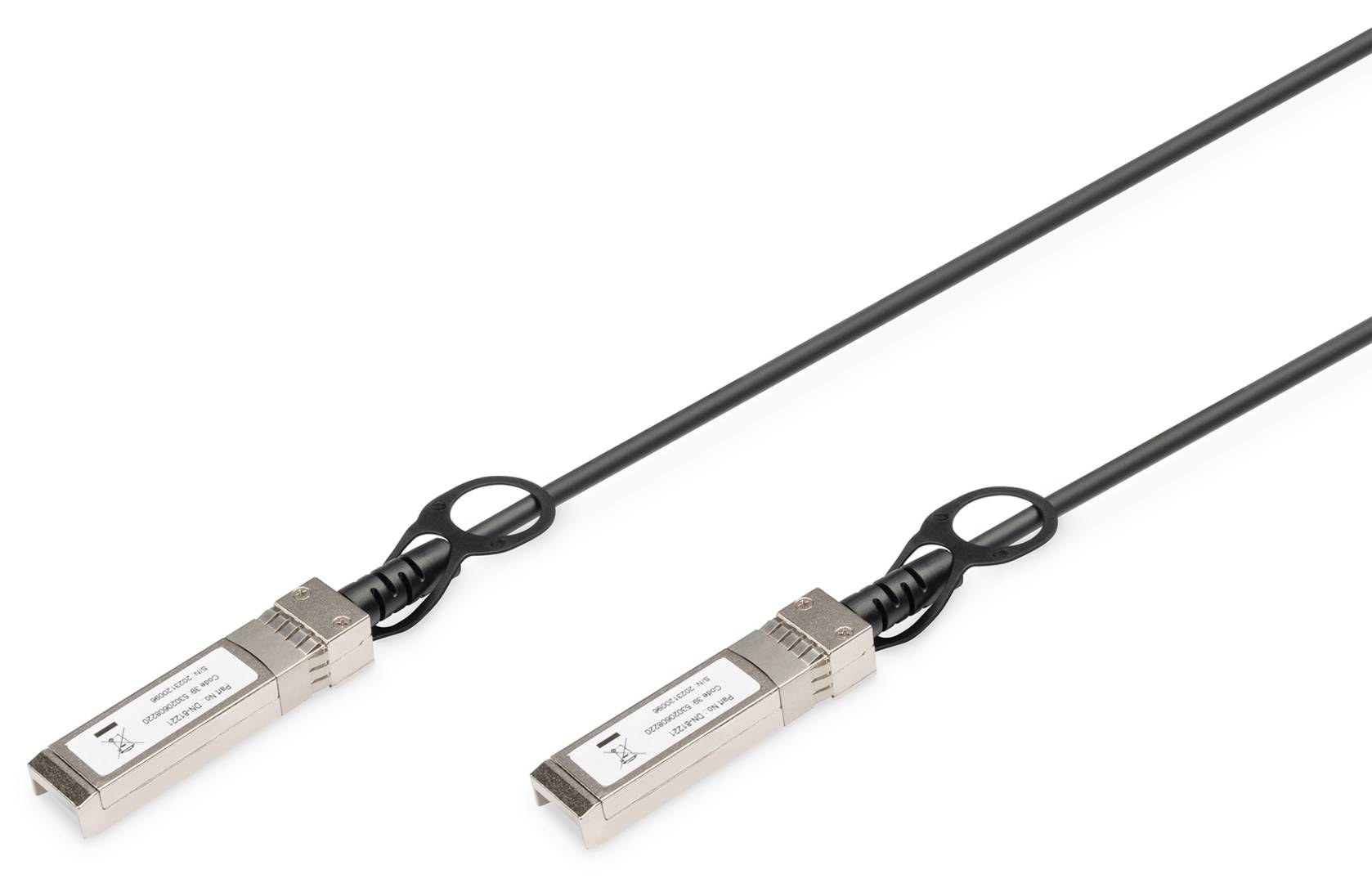

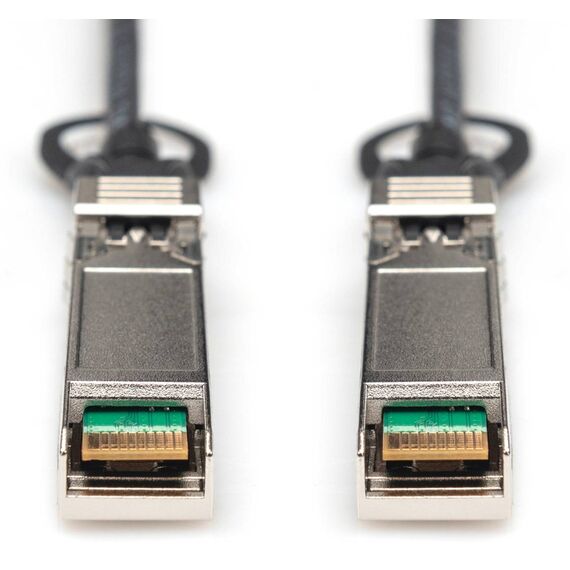

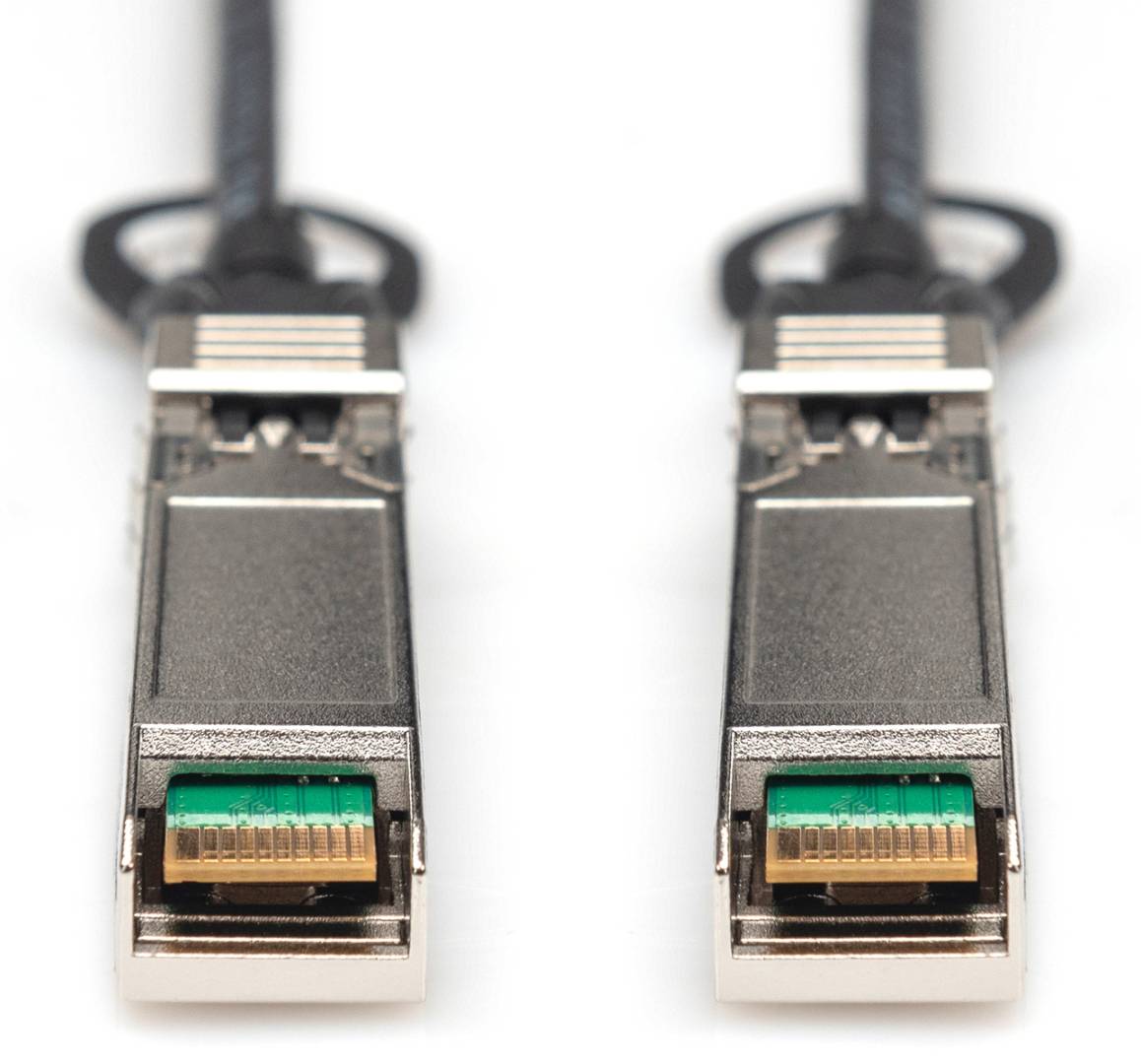

DIGITUS Professional / 10GBase direct attach cable / SFP+ to SFP+ / 7 m / twinaxial | DN-81225
Please sign in so that we can notify you about a reply
Product Features
· AWG 24 Twinax cable· 7 m maximum distance
· 1.0625-10.52Gbps supported data rate
· Supported applications: 10G Ethernet (10.21 Gbps), 10G fiber channel (10.52 Gbps), 8G fiber channel (8.5 Gbps), 4G fiber channel (4.25 Gbps), 2G fiber channel (2.125 Gbps), 1G fiber channel (1.0625 Gbps), Gigabit Ethernet (1.25 Gbit/s), CPRI option 2,3,5,6,7,8, OBSAI RP3 x 2, RP3 x 4, RP x 8
· Compatible with the following manuafacturers: Allnet, CISCO, 3COM, D-LINK, Dell, Edimax, Etherwan, ENTERASYS, EXTREME, FINISAR, FORCE 10, Fortinet, HUAWEI, IBM, JUNIPER, LINKSYS, NETGEAR, NORTEL, RIVERSTONE, ZTE, ZYXEL
· DDM / DOM support
· Temperature range: 0 ~ 70 °C
· Ports: SFP +
· Power: + 3.3V supply voltage
· Power consumption: 0.5W
· Transceiver type: DAC
Special Features
· SFP+ 10G 7m DAC cable· AWG 24 Twinax cable
· 1.0625-10.52Gbps supported data rate
Product Specification
| Network Cable Type | 10GBase direct attach cable |
| Technology | Twinaxial |
| American Wire Gauge (AWG) | 30 |
| Length | 7 m |
| Connectivity | Connectivity |
| Connector | SFP+ |
| Connector (Second End) | SFP+ |
| Environmental Parameters | Environmental Parameters |
| Min Operating Temperature | 0 °C |
| Max Operating Temperature | 70 °C |
Features - Digitus - DN-81225
Length
7m
More Details
Product Code
03:165850
EAN Code
4016032445982
Manufacturer
Digitus
