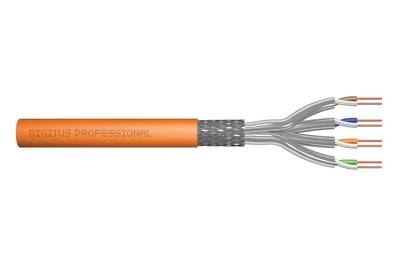

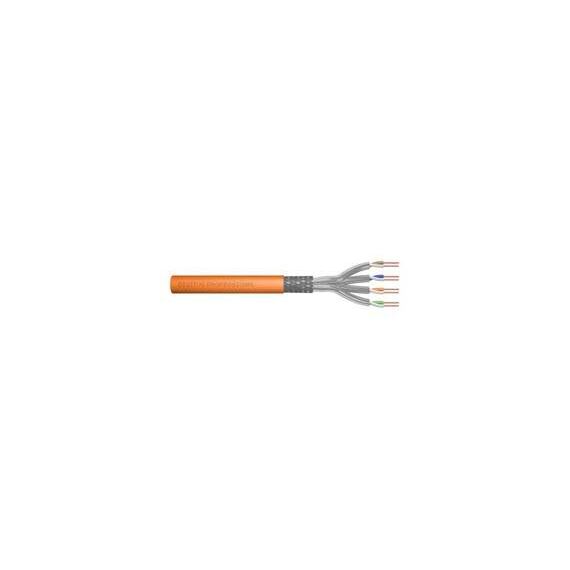

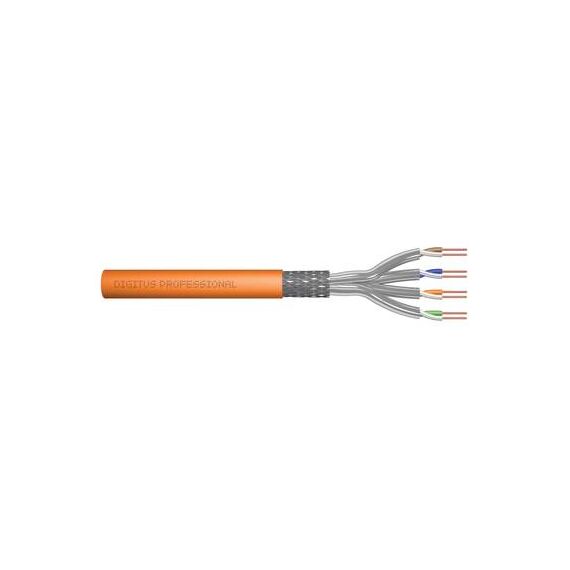

DIGITUS Professional / Bulk cable / 100 m / SFTP, PiMF / CAT 7 / orange, RAL 2000 | DK-1743-VH-1

Product Features

· Physical properties:
· Conductor: Bare annealed copper, solid AWG 23/1
· System/s of AVCP: AVCP 3
· Insulation: SFS-PE (Foam-Skin Polyethylene)
· Total number of insulated conductors: 8, twisted in 4 pairs
· Color code: Blue-white, orange-white, green-white, brown-white
· Shielding of individual pairs: aluminum-clad polyester foil, covers 100%.
· Overall shielding: Copper braid
· Outer sheath: Dca- s2,d1,a1, acc. to EN 50575; LSZH
· Outer sheath diameter (nominal): 0,50 mm (Eca); 0,52 mm (Dca); 0,60 mm (Cca); 0,60 (B2ca)
· Color: Orange (RAL 2008)
· Mechanical properties:
· Tensile loading: 135N max.
· Dynamic bending radius: 8x AD mm min.
· Static bending radius: 4x AD mm min.
· Shipping- and storage temperature range: -20 °C up to +60 °C
· Operating temperature range: -20 °C up to +50 °C
· Installation temperature range: 0 °C up to +50 °C
· Overall diameter Simplex (nominal): 7,0 mm (Eca); 7,2 mm (Dca); 7,5 mm (Cca); 7,5 mm (B2ca)
· Weight (kg/km): 49,5 kg (Eca); 51 kg (Dca), 53 kg (Cca); 53 kg (B2ca)
· Electrical properties:
· Impedance: 100±15 Ohm @ 4 - 1000 MHz; 100±25 OHM @ 100-600 MHz
· Capacitance: 45 pF/m nominal @ 1 KHz
· Insulation resistance: 5 GOhm x km min.
· DC resistance: 95 Ohm/km max. (2% max. resistance unbalance)
· DC loop resistance: 190 Ohm/km max. (2% max. resistance unbalance)
· Voltage resistance: 72 Vdc max.
· Coupling attenuation: CA-Type 1b
· Signal propagation delay: 450 nS/100 m max.
· Propagation delay: 10 nS/100 m max.
· Separating class: d acc. to EN 50174-2
· NVP: 79%
· Flame spread: EN 60332-1-2 (LSOH-PVC)
· Halogen-free, corrosiveness: EN 60754-1/2 (LSOH)
· Smoke density: EN 61034-2

Special Features

· 10GBit Ethernet
· 1200 MHz transmission frequency
· Permanent link certified
· PoE Power over Ethernet support
· CPR class Dca-s1a d1 a1

Product Specification

Network Cable Type	Bulk cable - CAT 7
Technology	SFTP, PiMF
Jacket Material	Low Smoke Zero Halogen (LSZH)
American Wire Gauge (AWG)	23/1
Wires per Cable	8 wires
Pairs per Cable	4 pairs
Length	100 m
Colour	Orange, RAL 2000
Miscellaneous	Miscellaneous
Compliant Standards	IEC 61034, IEC 60332-3-24 - up to 1200 MHz
Environmental Parameters	Environmental Parameters
Min Operating Temperature	-20 °C
Max Operating Temperature	65 °C
