DIGITUS Professional DN-19 47U-8/10-1 - Rack cabinet - grey, RAL 7035 - 47U - 19" | DN-19 47U-8/10-1
DN-19 47U-8/10-1
Find similar
Delivery
Payment options
Please sign in so that we can notify you about a reply
Product Features

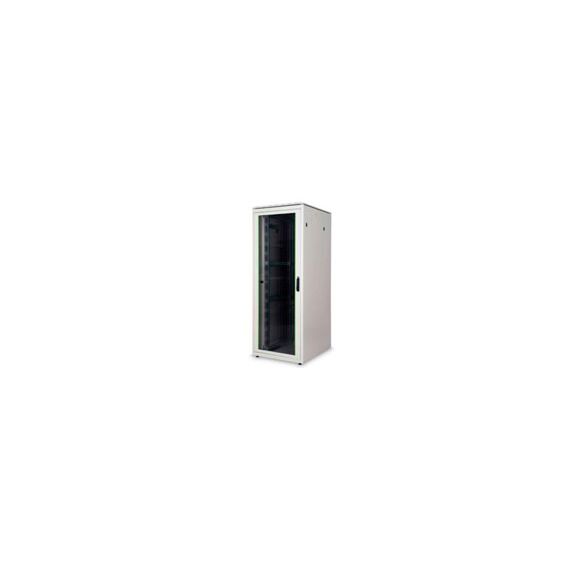

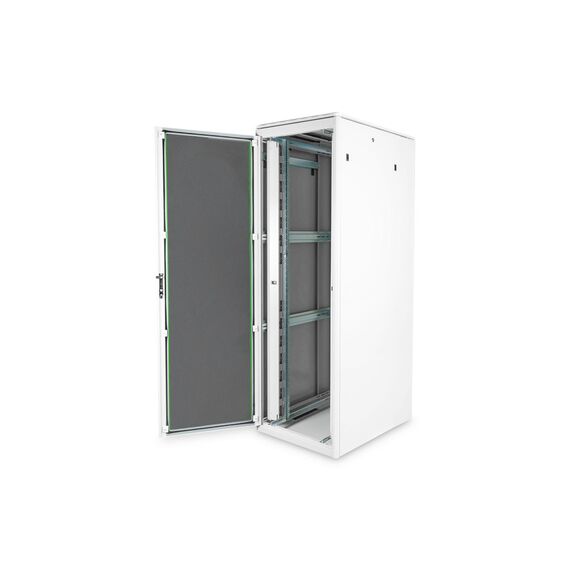

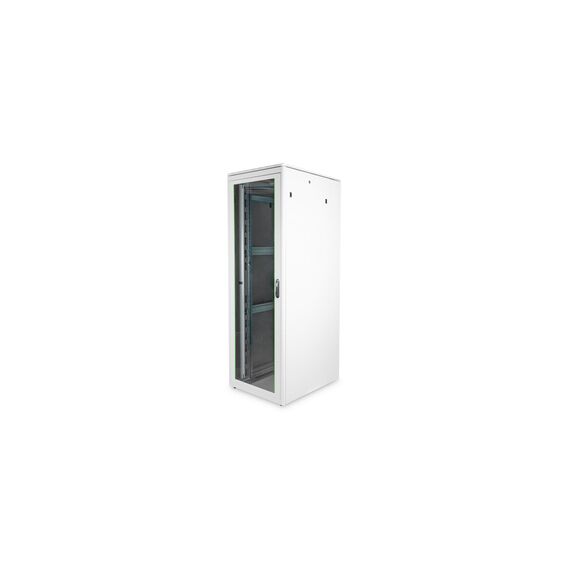

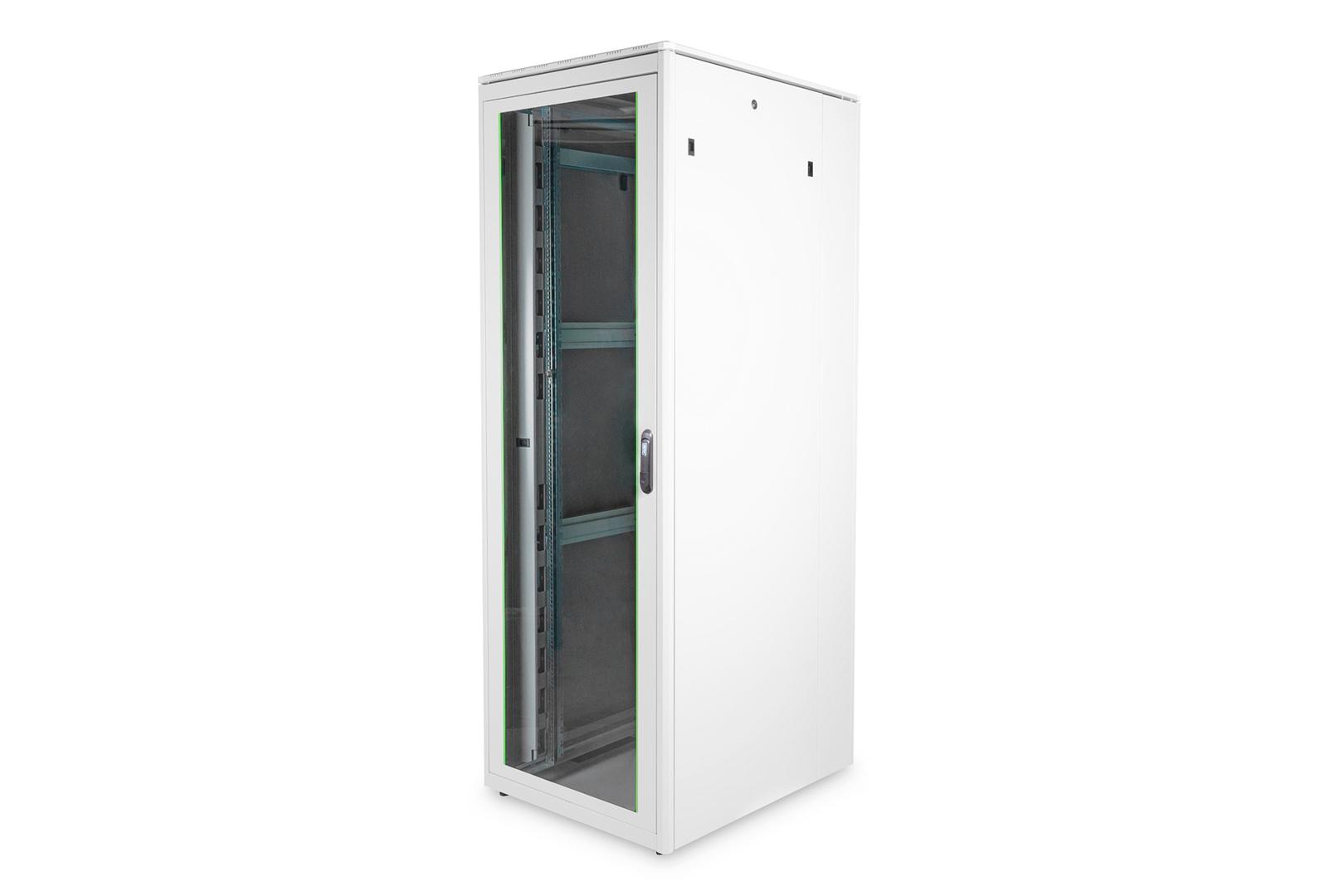

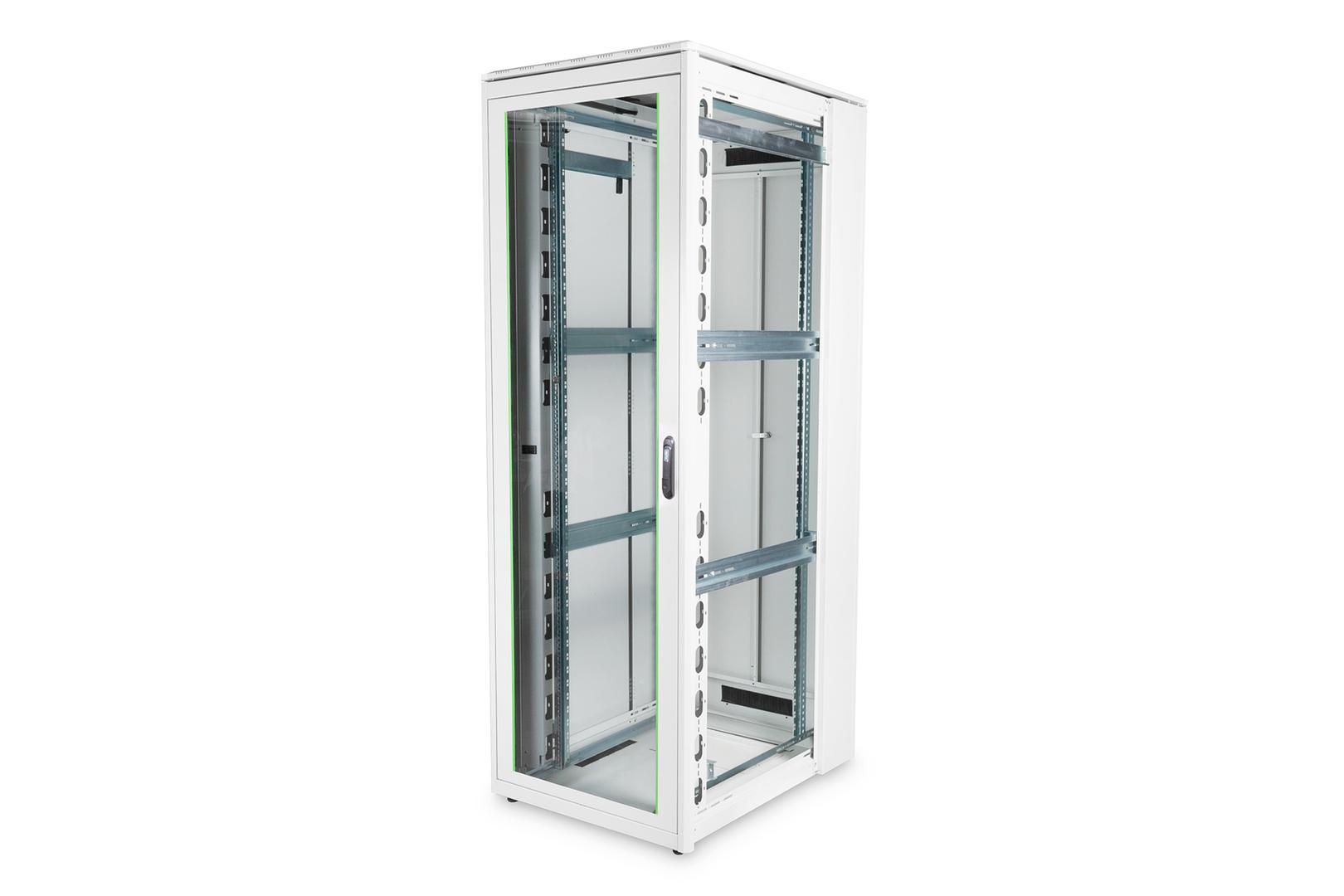

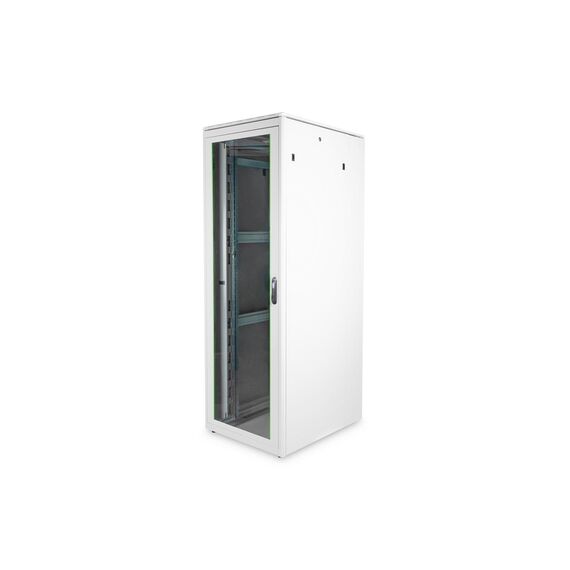

· Safety class rating IP20· Complete metal frame front door with safety glass
· Lock system with pivot lever on front door (ready for profile half cylinder; adapter included)

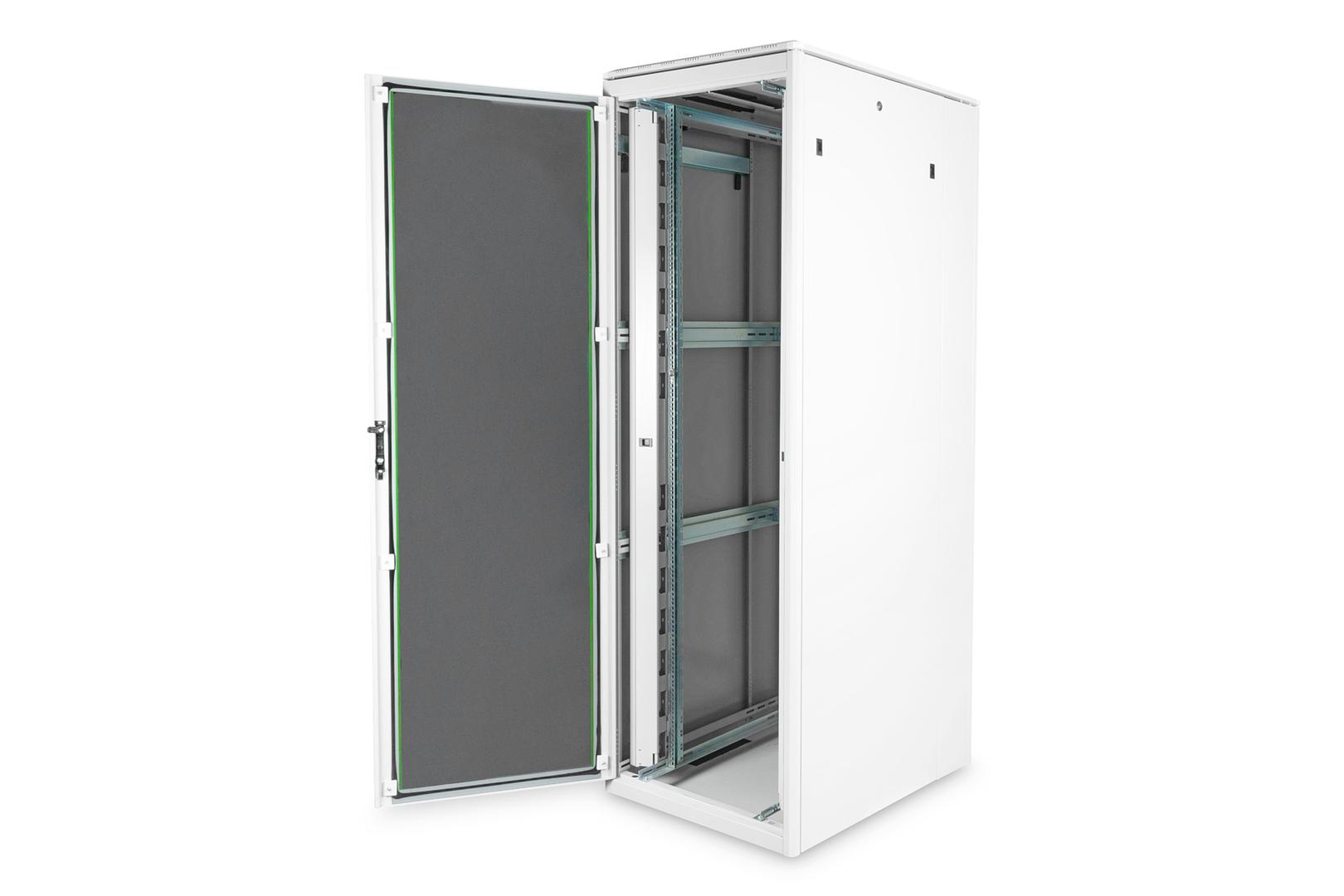

· 120° door opening angle on front- and rear doors

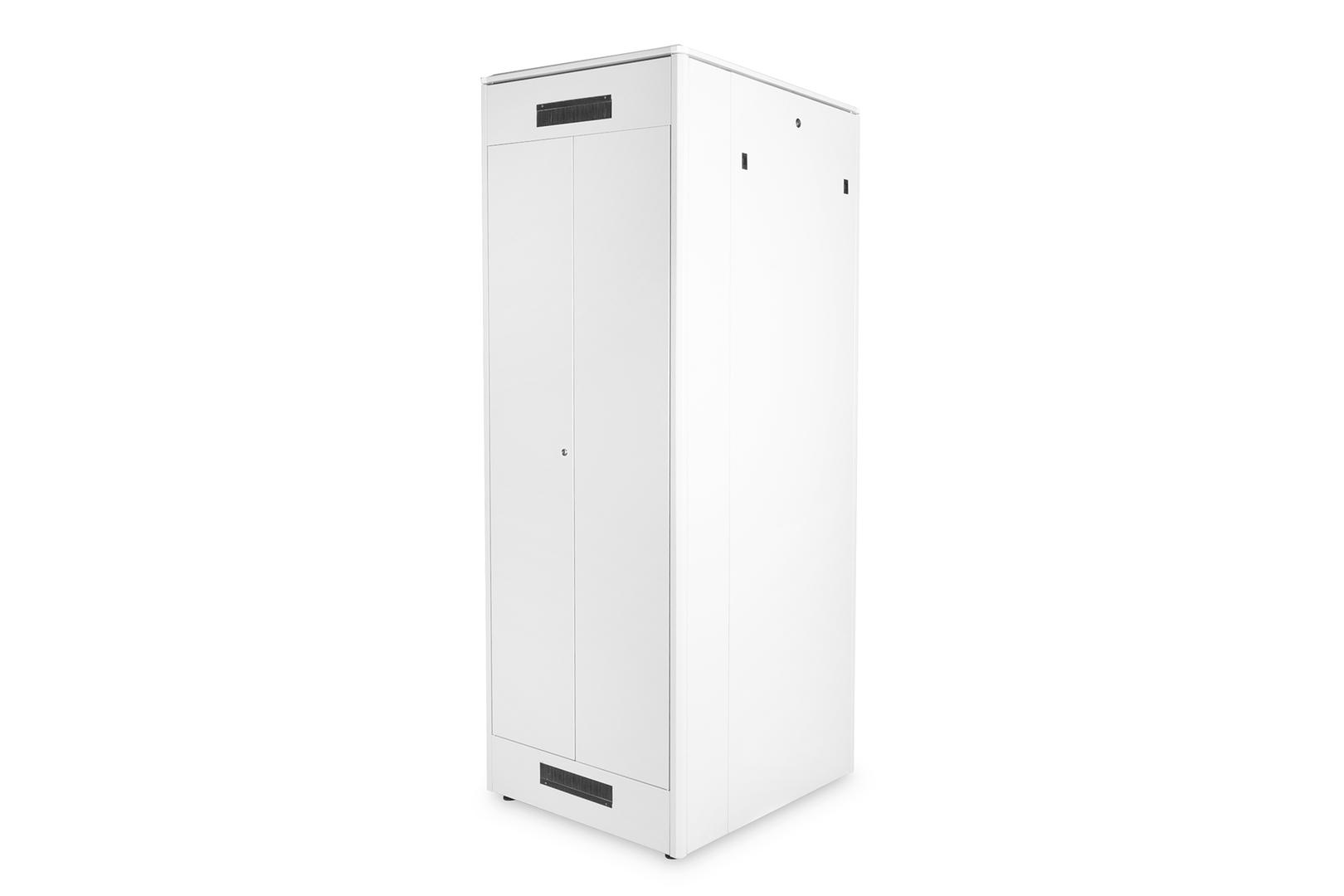

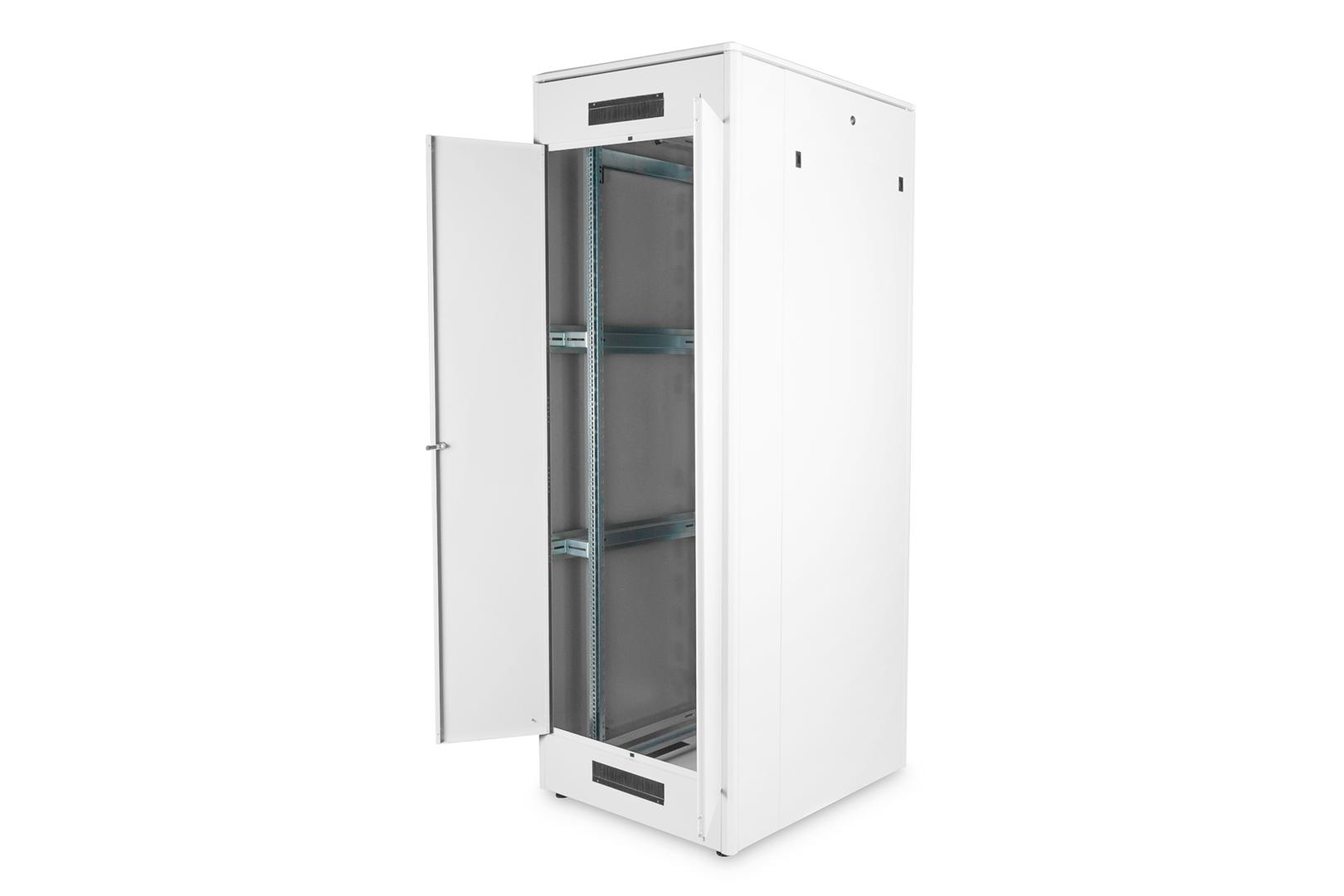

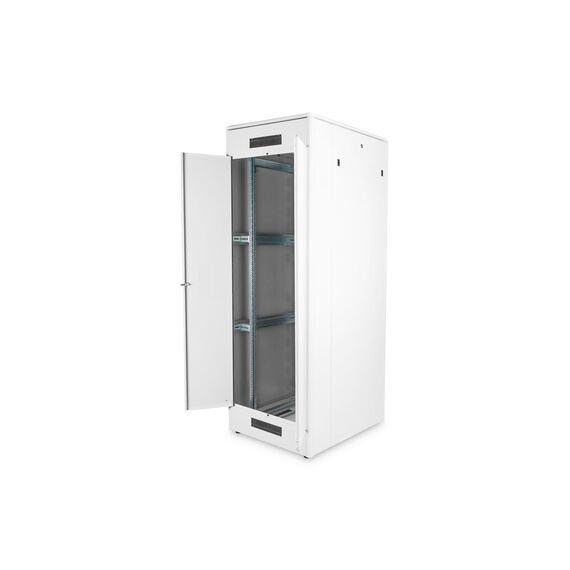

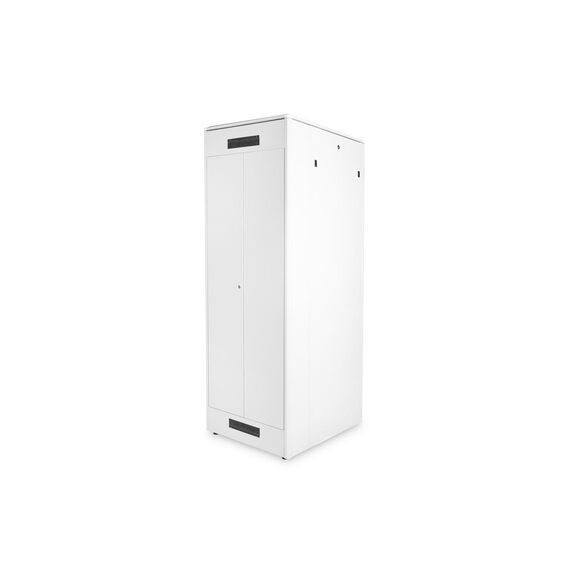

· Double wing opening rear door
· 1-point-locking-mechanism on all doors
· Side panels are lockable and removable
· incl. 4 pieces of leveling feet already pre-configured under the rack

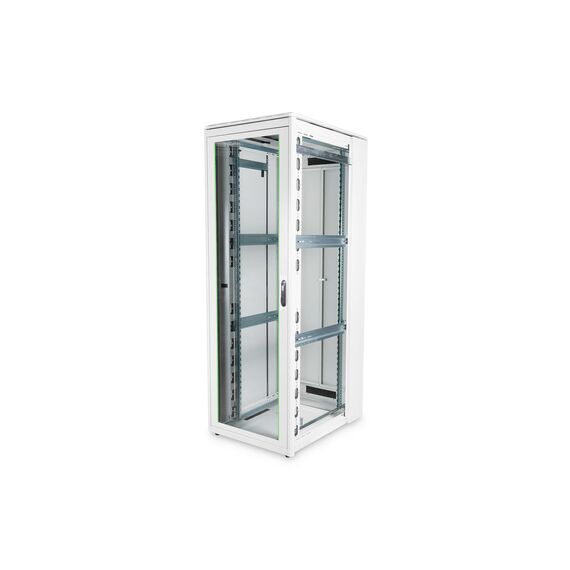

· 483 mm (19) profile rails mounted on the front- and rear side inside of the rack, galvanized
· 483 mm (19) profile rails are adjustable in depth and with height unit marking
· Built-in depth support bars for more stability
· Vertical cable management ducts in the front
· Sliding cable entry with rubber sealing on the base
· Cable entry with brush strip at the top and bottom of the cabinet rear side
· Top and base with brushed cable entries left and right
· Special roof construction for fan unit with added lid which can be unmounted
· Several earthing points for rack components
· Incl. installation set (screws, cage nuts, washers)
· Rack is completely mounted
· Equipment mounting depth min.-max.: 688-943 mm
Special Fetures
· Special roof construction for fan unit with added lid which can be unmounted· Lock system with pivot lever on front door (ready for profile half cylinder; adapter included)
· Sliding cable entry with rubber sealing on the base
Product Specification
| Product Type | Rack |
| Rack Type | Cabinet |
| Product Material | Powder-coated steel |
| Package Content | 2 x keys, 4 height adjustable feet, 4 x 19" adjustable mounting profiles |
| Rack Size | 19" |
| Height (Rack Units) | 47U |
| Width | 80 cm |
| Depth | 100 cm |
| Height | 228 cm |
| Colour | Grey, RAL 7035 |
| Miscellaneous | |
| Weight Limit | 800 kg |
| Features | Lockable front door, lockable rear door, lockable side panel, glass door, swing handle, quick release side panels, adjustable rails, top & bottom cable entry points, 2 locking casters, quick release doors |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 15 years |
Features - Digitus - DN-19 47U-8/10-1
More Details
Product Code
03:161223
EAN Code
4016032353522
Manufacturer
Digitus
