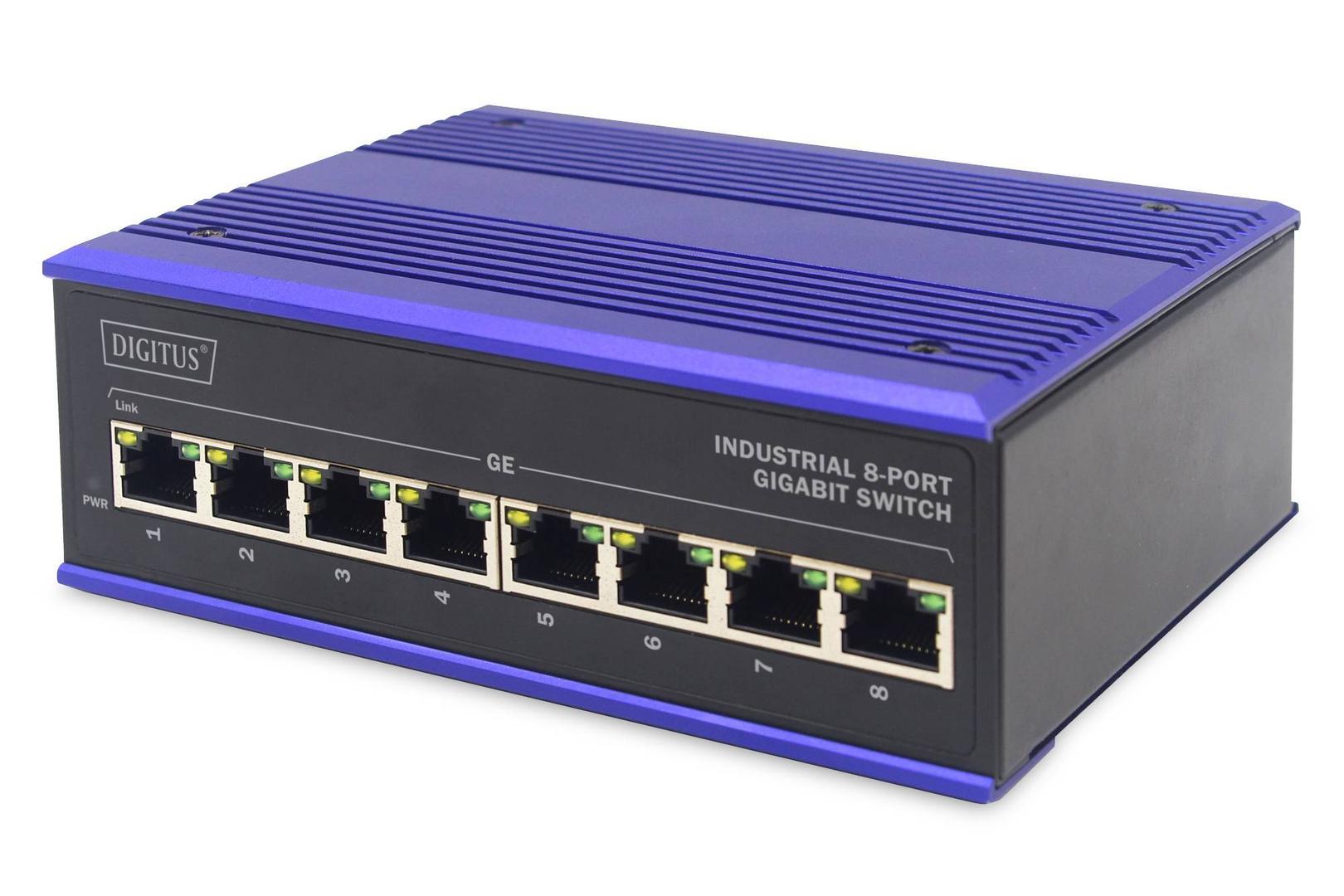

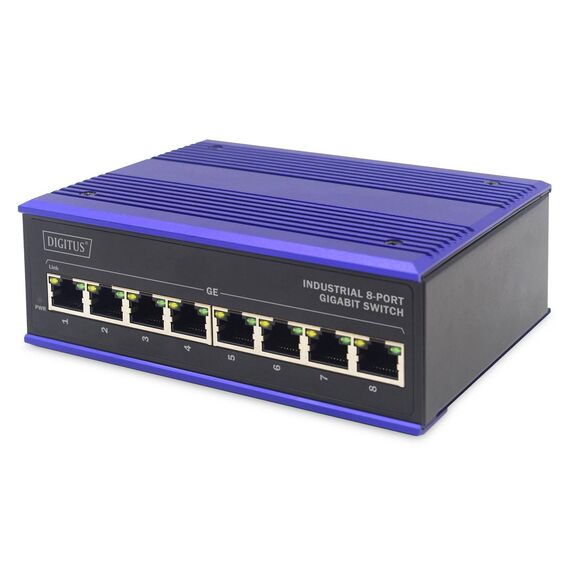

DIGITUS Professional DN-651119 Industrial / Switch / unmanaged / 8 x 10/100/1000 / DIN rail mountable / DC power | DN-651119
Please sign in so that we can notify you about a reply
Product Features
· 8 x 10/100/1000Base-TX Ethernet Ports· Automatic cable detection - Auto MDI / MDI-X function
· Supported standards: IEEE 802.3 10BaseT, IEEE 802.3u 100BaseTX, IEEE802.3ab 1000BaseTX
· IEEE802.3x Flow Control und Back Pressure
· Store and forward technology for optimized data transfer
· Automatic speed and half/full duplex recognition/adjustment
· Backplane with 16 Gbps
· Supports up to 4K MAC addresses
· Compact, robust metal housing
· Excellent short-circuit protection
· Lightning and overvoltage protection
· Suitable for DIN rail (top-hat rail) mounting
· Redundant power supply: 12~48 V DC, redundant power supply with reverse polarity protection function
· Extended operating temperature range, -40 °C ~ +80 °C
· Removable terminal connection
· Protection class: IP40
· Electricity consumption: <5 Watts
Special Features
· Industrial 8-Port Gigabit Switch· 8 x 10/100/1000Base-TX Ethernet Ports
· DIN rail mountable
Product Specification
| Device Type | Switch - 8 ports - unmanaged |
| Enclosure Type | DIN rail mountable |
| Subtype | Gigabit Ethernet |
| Ports | 8 x 10/100/1000 |
| MAC Address Table Size | 4K entries |
| Features | Flow control, auto-uplink (auto MDI/MDI-X), half duplex mode, full duplex mode, wall mountable, over-voltage protection, short circuit protection, metal housing, Back Pressure Support, lightning protection |
| Compliant Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.3x |
| Expansion / Connectivity | Expansion / Connectivity |
| Interfaces | 8 x 1000Base-T RJ-45 |
| Power | Power |
| Voltage Required | DC 12 - 48 V |
| Dimensions & Weight | Dimensions & Weight |
| Width | 14.3 cm |
| Depth | 10.1 cm |
| Height | 4.4 cm |
| Weight | 640 g |
| Dimensions & Weight (Shipping) | Dimensions & Weight (Shipping) |
| Shipping Width | 21.3 cm |
| Shipping Depth | 15.4 cm |
| Shipping Height | 6.7 cm |
| Shipping Weight | 830 g |
| Environmental Parameters | Environmental Parameters |
| Min Operating Temperature | -40 °C |
| Max Operating Temperature | 85 °C |
Features - Digitus - DN-651119
General
8-Port
More Details
Product Code
03:165902
EAN Code
4016032458845
Manufacturer
Digitus
