DIGITUS Professional DN-82122 / Fibre media converter / GigE / 10Base-T, 1000Base-LX, 100Base-TX, 1000Base-T / RJ-45 / SC single-mode / up to 20 km / 1310 (TX) / 1550 (RX) nm | DN-82122
Description
The media converters from DIGITUS are the ideal solution for the migration of copper and fiber network signals. From now on, you are able to access the Fiber Technology and transfer network signals over several kilometers without renewing your whole network infrastructure. The intuitive operation guarantees a quick and easy installation.

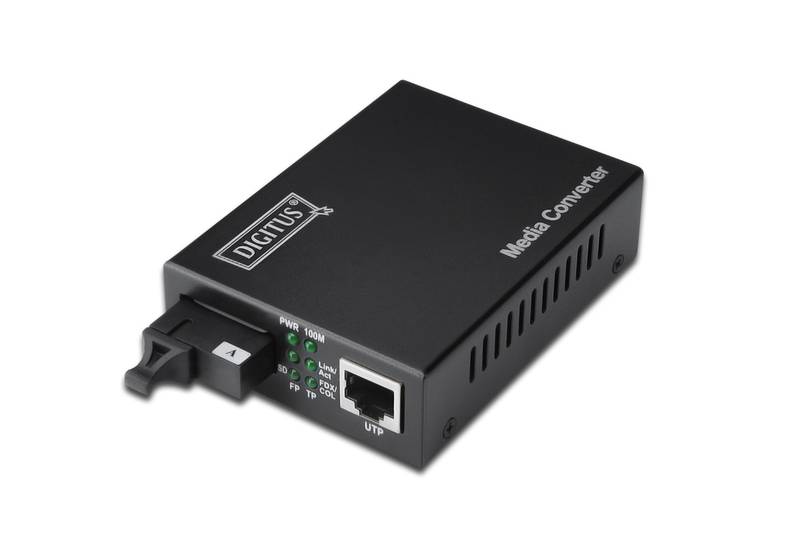

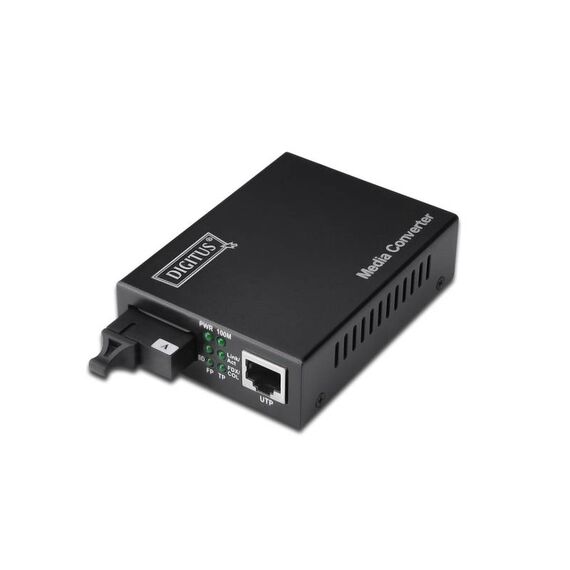

DIGITUS Professional DN-82122 / Fibre media converter | DN-82122
Special Features
- Transforms wire based network media to fiber optic
- High quality and excellent reliability
- Automatic cable detection - auto MDI / MDI-X function
- Auto-negotiation of full- and half-duplex
- Diagnostic and monitoring LEDs for the status of power, link and act of the ports
- Link Fault Pass Through (LFP) function for easier network maintenance
- Suitable for 9/125 µm fiber cables
- Standalone converter with external power supply
Product Specification
| Device Type | Fibre media converter |
| Form Factor | External |
| Connectivity Technology | Wired |
| Cabling Type | 10Base-T, 1000Base-LX, 100Base-TX, 1000Base-T |
| Data Link Protocol | 10Mb LAN, 100Mb LAN, GigE |
| Data Transfer Rate | 1 Gbps |
| Optical Wave Length | 1310 (TX) / 1550 (RX) nm |
| Max Transfer Distance | 20 km |
| Status Indicators | Power, link/activity |
| Features | Flow control, auto-uplink (auto MDI/MDI-X), half duplex mode, full duplex mode |
| Compliant Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3z |
| Interfaces | 1 x Ethernet 10Base-T/100Base-TX/1000Base-T - RJ-45 female ¦ 1 x Ethernet 1000Base-LX - SC single-mode female |
| Power Device | External power adapter |
| Power Consumption Operational | 2.5 Watt |
| Width | 7 cm |
| Depth | 9.5 cm |
| Height | 2.6 cm |
| Weight | 200 g |
| Min Operating Temperature | 0 °C |
| Max Operating Temperature | 60 °C |
Features - Digitus - DN-82122
More Details
Product Code
03:166694
EAN Code
4016032307938
Manufacturer
Digitus
