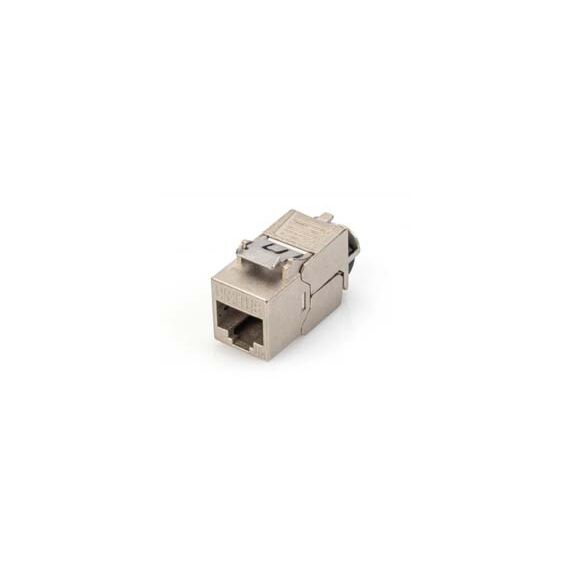

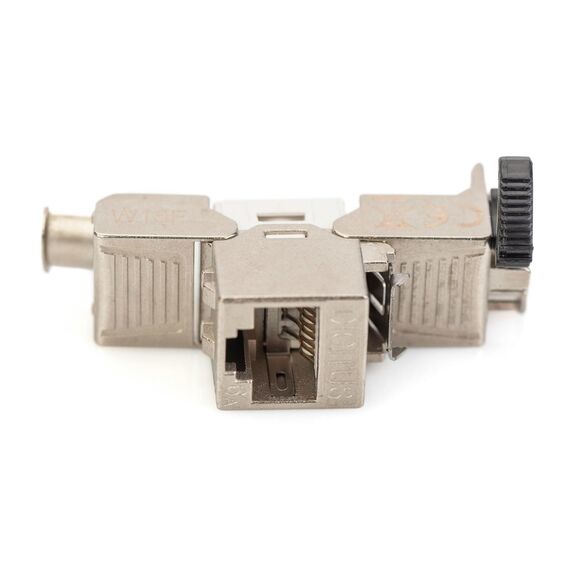

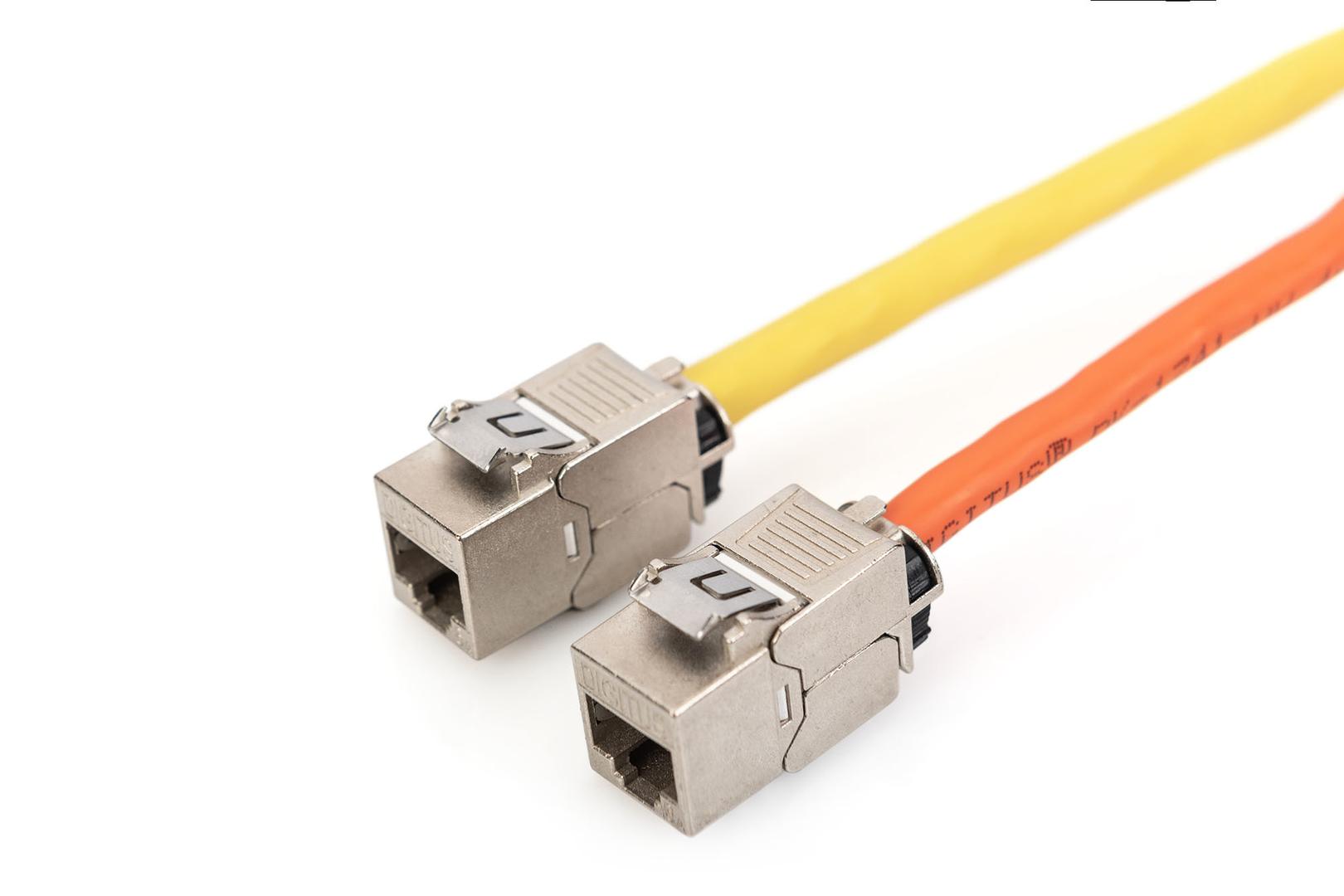

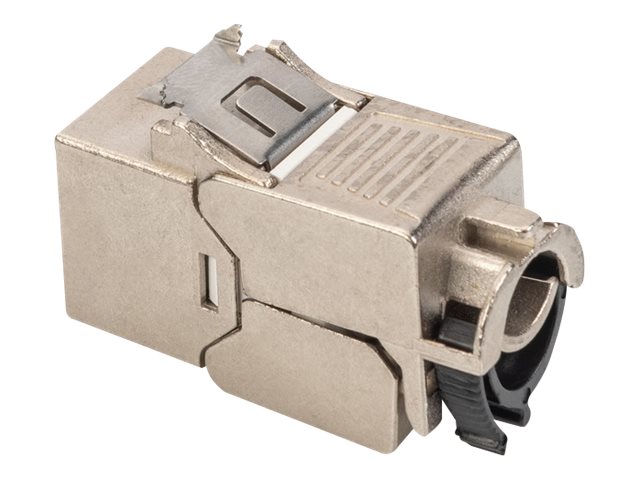

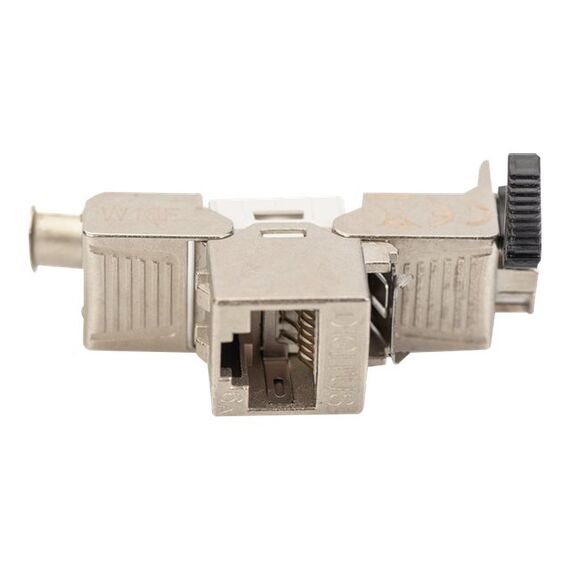

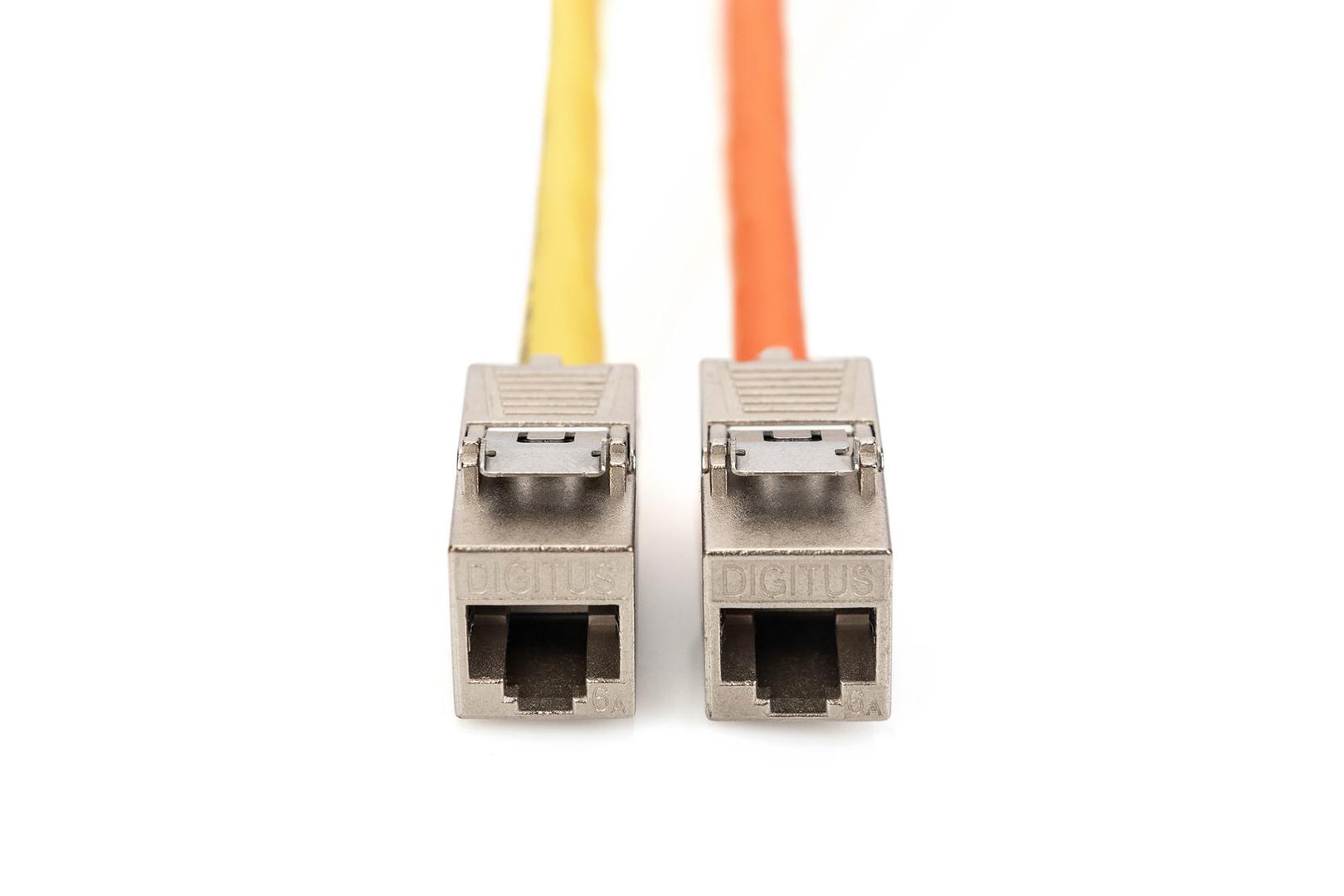

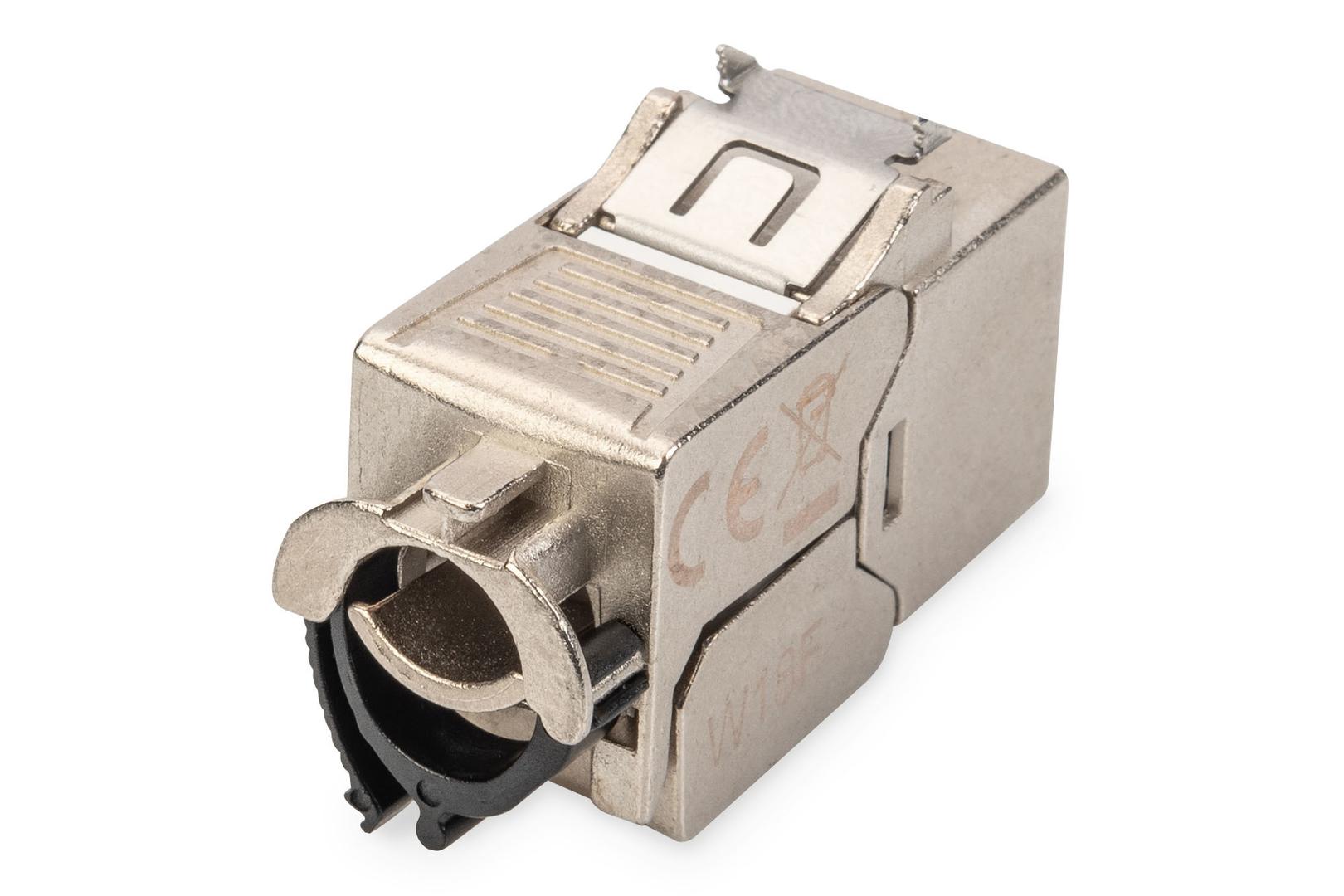

DIGITUS Professional DN-93619-24 - Modular insert - RJ-45 (pack of 24) | DN-93619-24
DN-93619-24
Find similar
Delivery
Payment options
Please sign in so that we can notify you about a reply
Product Features
· Category 6A 10G Base-T, 500 MHz· ISO/IEC 11801 3rd edition, EN 50173-1
· Suitable for PoE/PoE+/4PPoE (IEEE 802.3af, 802.3at, 802.3bt)
· Suitable for distribution panel and junction box mounting
· RJ45 jack, 8P8C

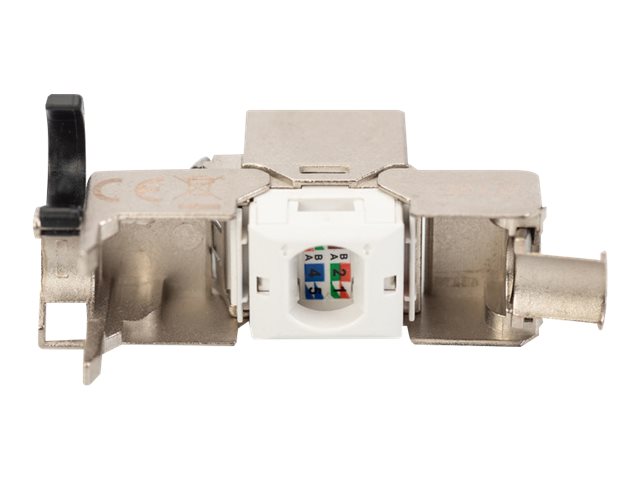

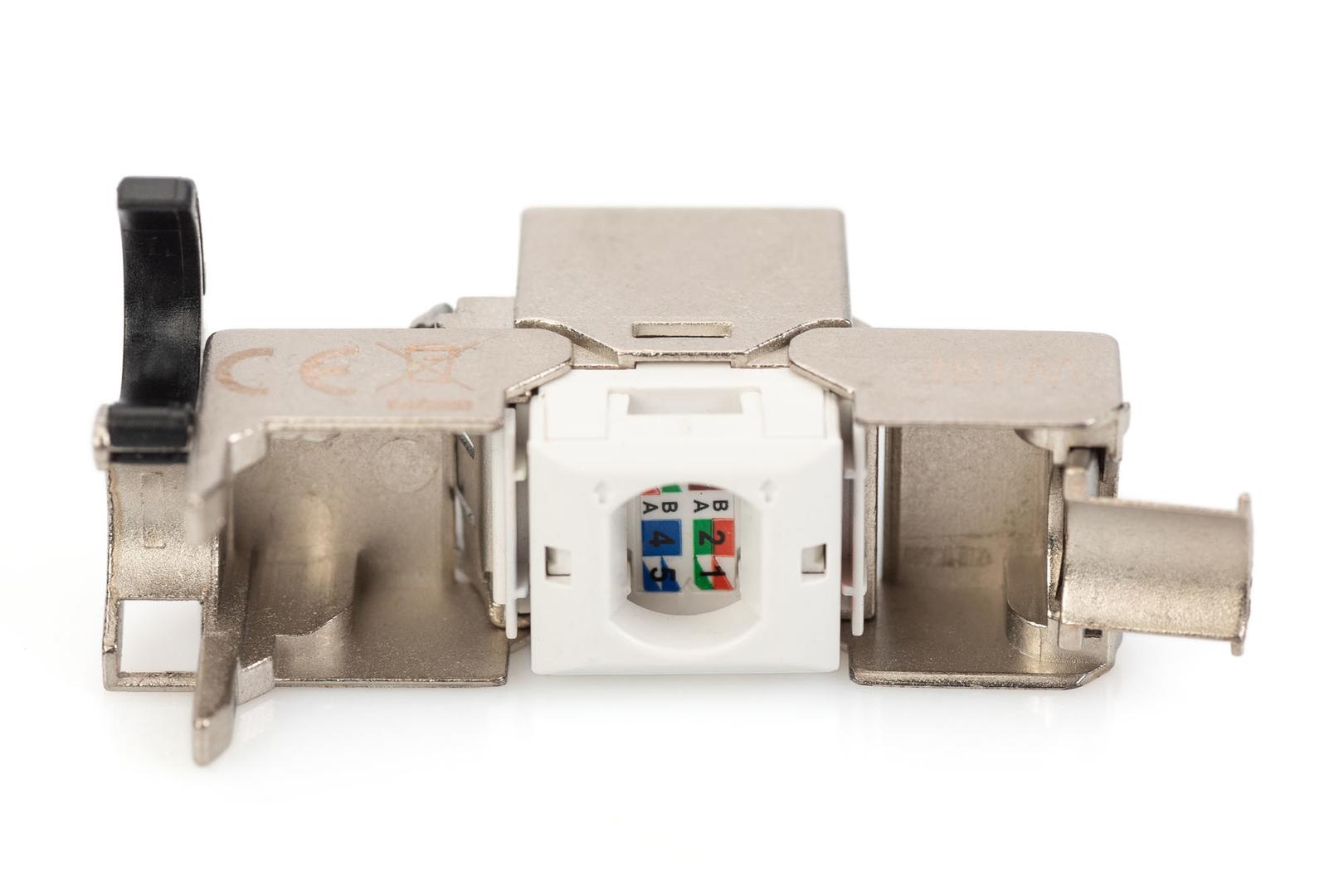

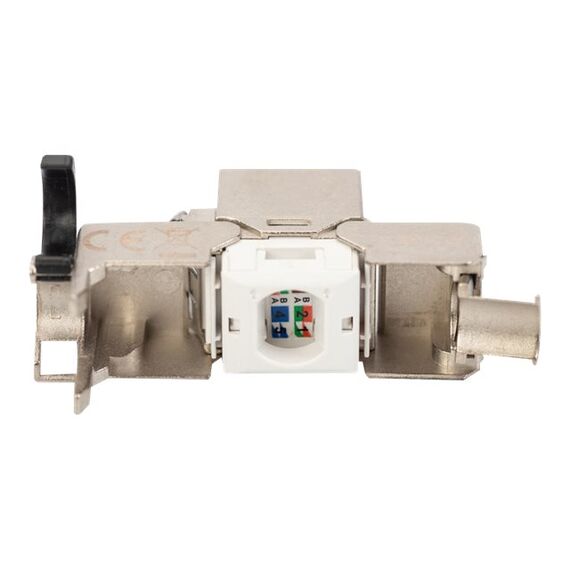

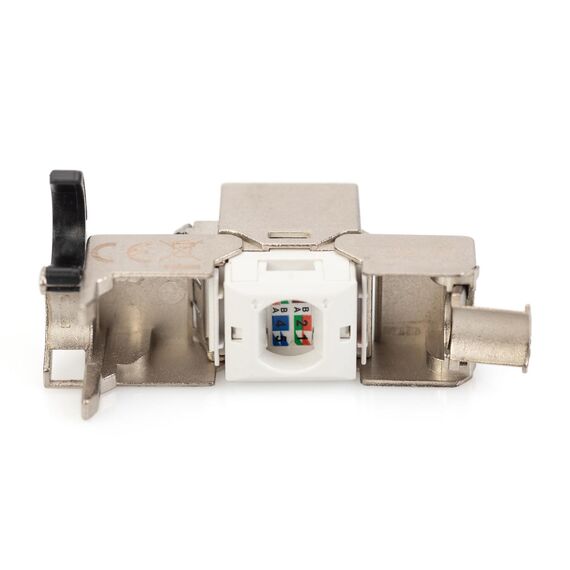

· Cable installation via insulation-displacement connectors, color coded in accordance with EIA/TIA 568 A & B

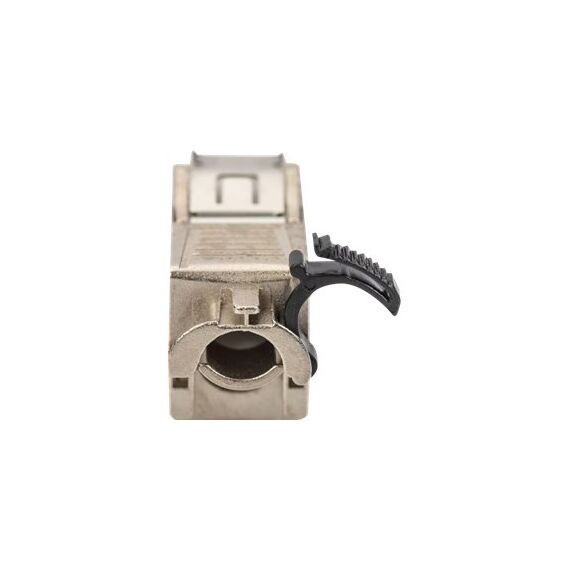

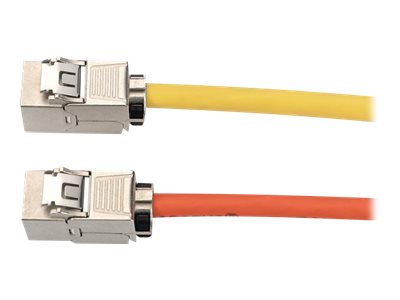

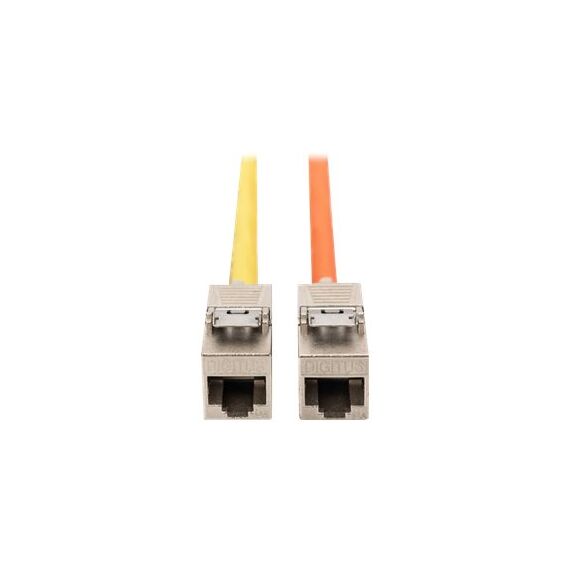

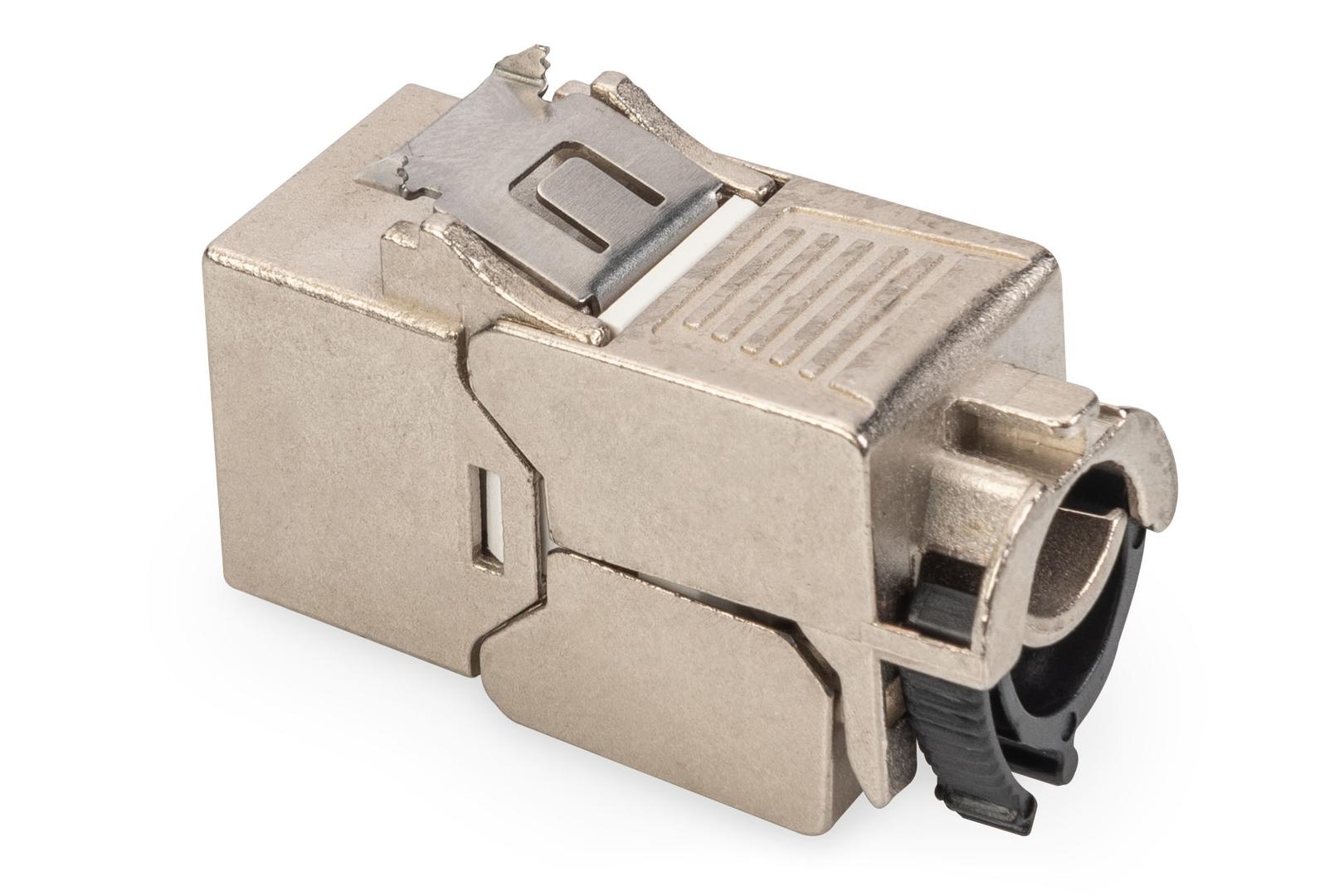

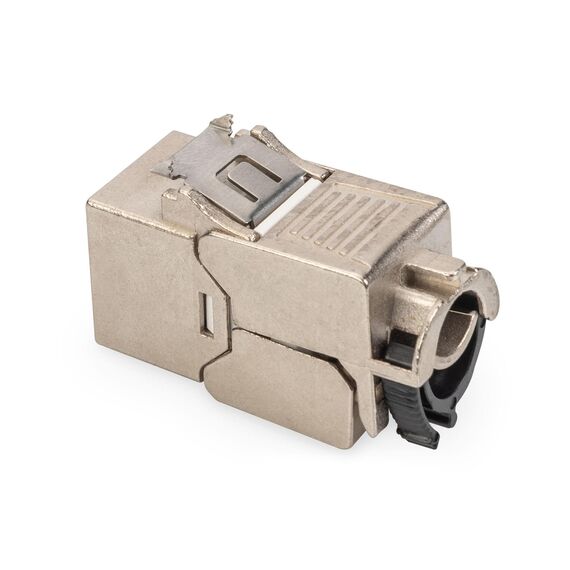

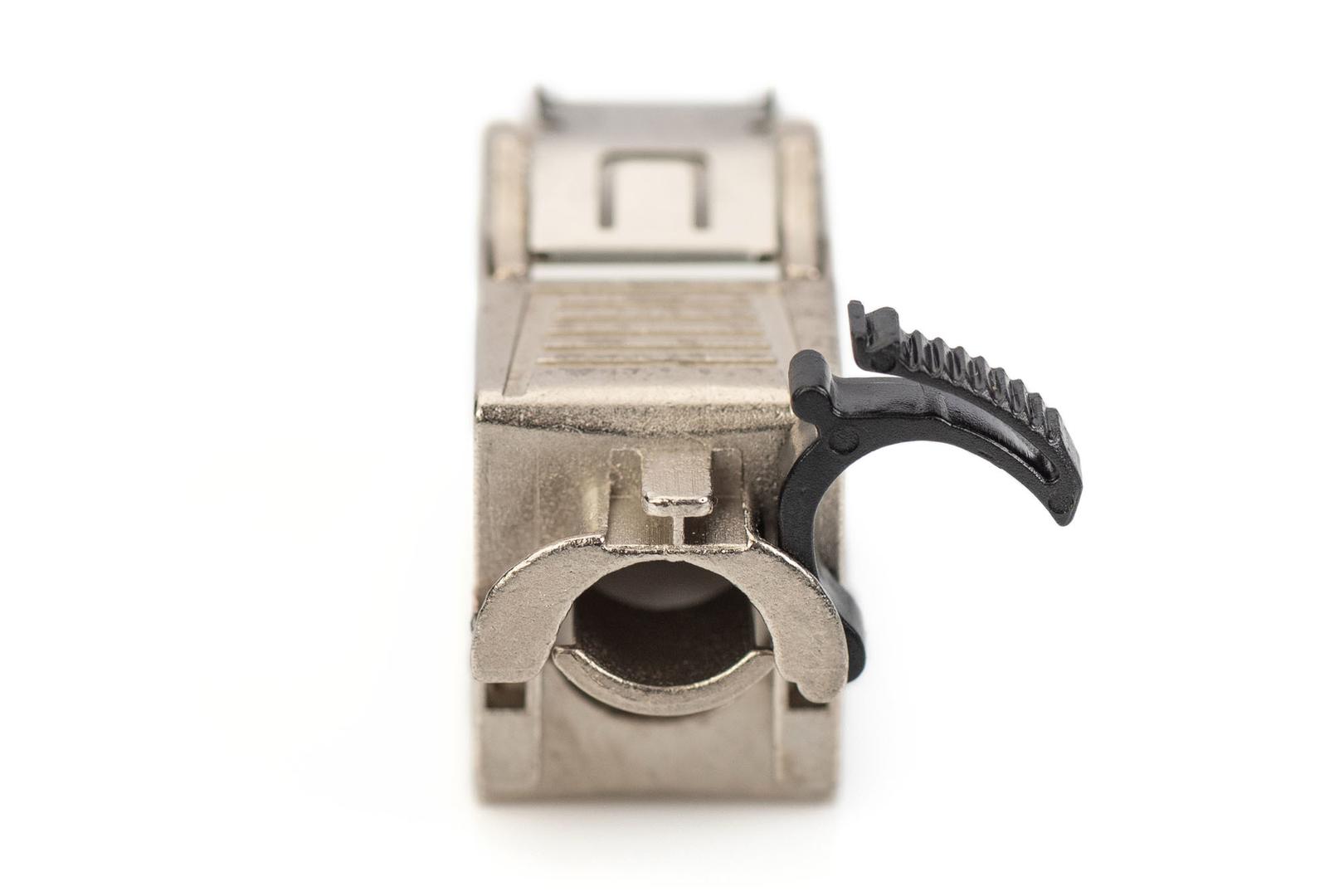

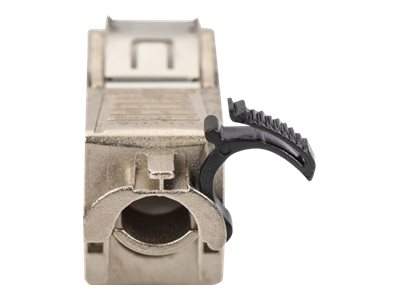

· Cable grip and cable fixation using intelligent cable manager
· Tool-free mounting connection
· 360° shield contact
· Case material: Zinc die-cast nickel-plated
· Contact material: Phosphor bronze
· Contact coating: Nickel, gold-plated 0.5 µ
· Insertion force: Max. 30N (as per IEC 60603-7-51)
· Holding force: 7.7 kg between jack and plug
· Operating temperature range: -20 °C to +70 °C (ISO/IEC 11801, ANSI/TIA 568 C.2)
· Mating cycles: 750 (ISO/IEC 11801, IEC 60603-7-51)
· Copper cable diameter: AWG (26/7 22/1), stranded and solid wire
· Tested with AWG 22/1 solid installation cable
· (DIGITUS® DK-174X-A-VH-X; AWG 22/1 cat. 7A installation cable)
· Dielectric strength: 1000 VDC (contact/contact), 1500 VDC (contact/ground)
· Tool-free installation using LSA insulation-displacement connectors color coded in accordance with EIA/TIA 568 A & B

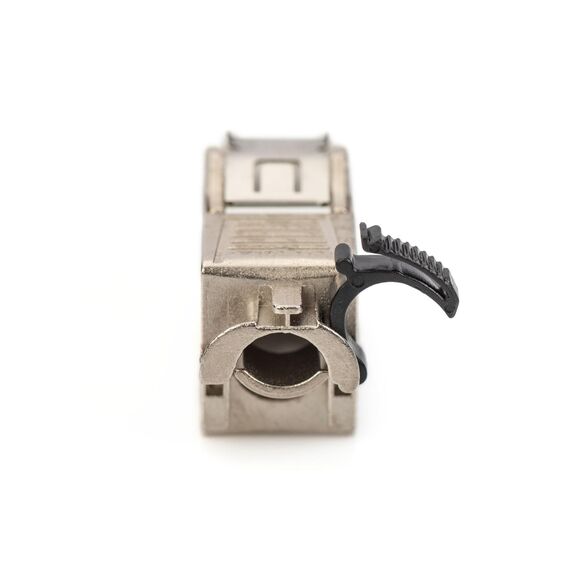

· Intelligent cable manager (resealable)
· Dimensions (HxWxD): 21.0 x 14.5 x 34.5 mm
· Weight: 19.5 g
Special Fetures
· Cable grip and cable fixation using intelligent cable manager· 360° shield contact
· Suitable for field installation (tool free assembly)
· Multi-design - suitable for distribution panel and junction box mounting
· Cat. 6A with LSA insulation-displacement connector
· Metal locking lever

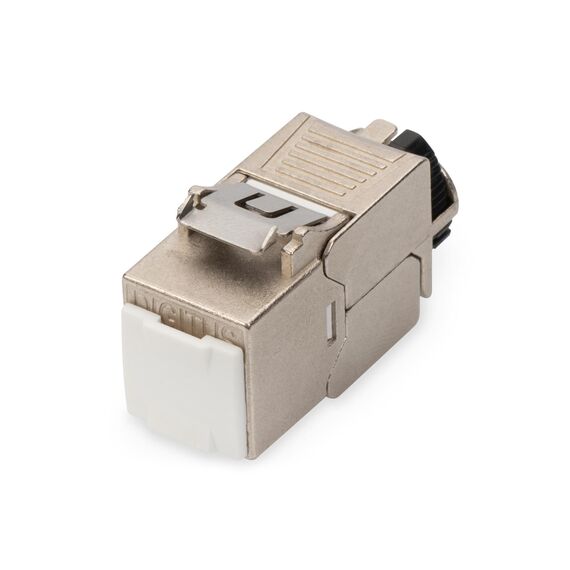

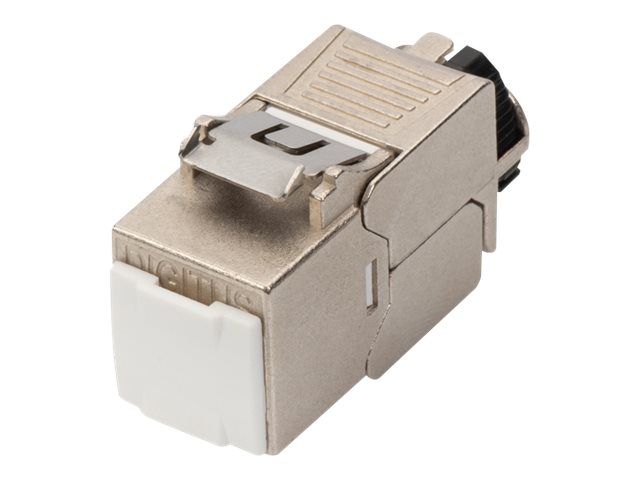

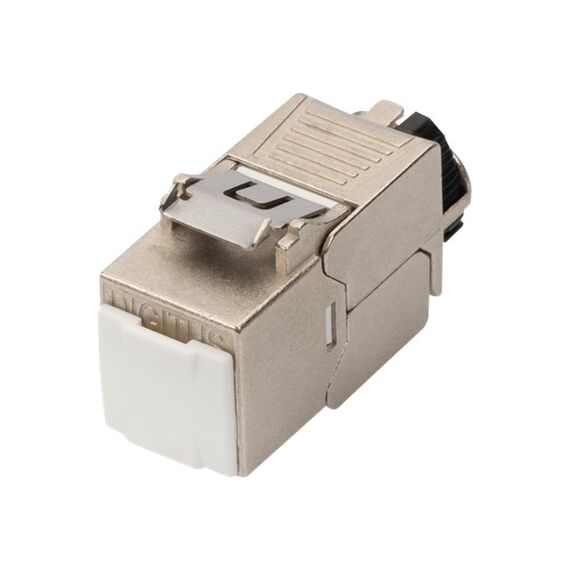

· Dust protection cap for RJ45 jack
· GHMT certified
· Supported PoE-Standards: IEEE 802.3 af/at/bt (PoE, PoE+ & 4PPoE)
Product Specification
| Packaged Quantity | 24 (specifications are for single item) |
| Product Type | Modular insert - CAT 6a |
| Product Material | Metal |
| Width | 1.45 cm |
| Depth | 3.45 cm |
| Height | 2.1 cm |
| Weight | 19.5 g |
| Cabling & Wiring | |
| Port Qty | 1 port |
| Pair Qty | 4 |
| Technology | Shielded twisted pair (STP) |
| Features | Keystone type, toolless |
| Connector Provided | 1 x RJ-45 female |
| Environmental Parameters | |
| Min Operating Temperature | -20 °C |
| Max Operating Temperature | 70 °C |
Features - Digitus - DN-93619-24
More Details
Product Code
04:319826
EAN Code
4016032458760
Manufacturer
Digitus
