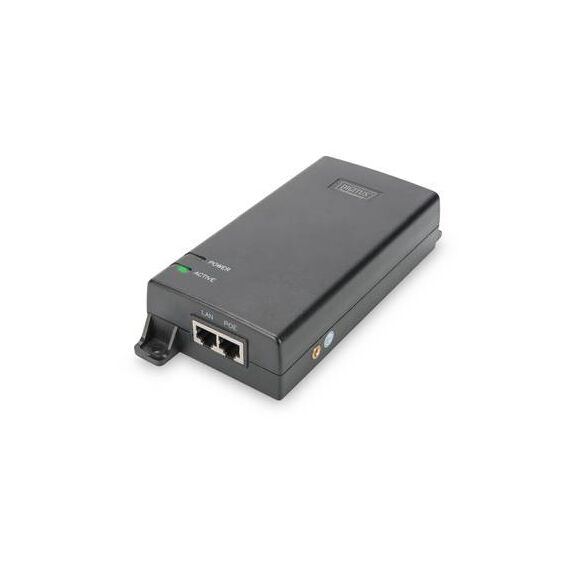

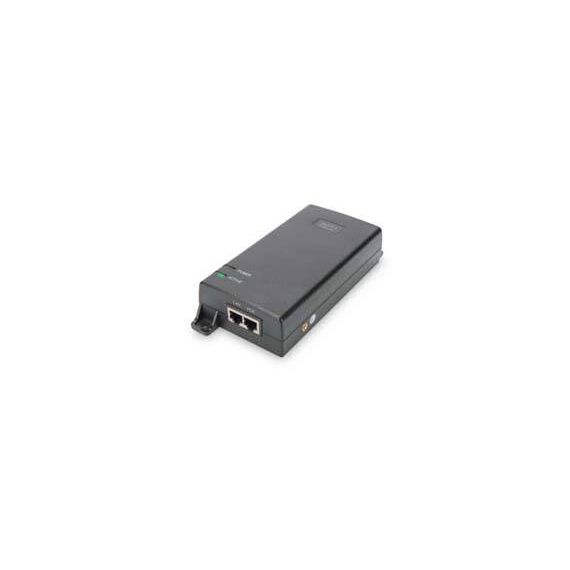

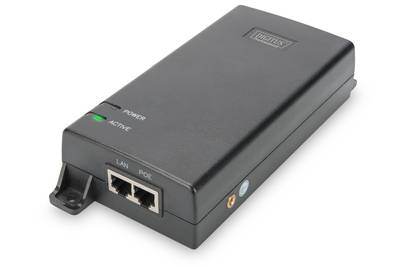

DIGITUS Professional DN-95104 / PoE injector / AC 100-240 V / 60 Watt | DN-95104

Product Features

· Complies with the 802.3at Ultra PoE and 802.3af PoE standards
· Easily merge of power and data cables into a single cable
· Extend your network to places where there are no power supply cables or sockets available
· no setup needed
· Supports all IEEE 802.3at-compliant PoE devices (such as access points, VoIP telephones, and IP cameras)
· Transmission range of up to 100 m with an additional PoE extender, this can be increased to up to 400 m
· Own consumption: 1,6W max
· Internal consumption (full loaded): 10 W max.
· Input: 1x RJ-45 (data)
· Output: 1x RJ-45 (power and data)
· Data output: 100/100/1000 Mbps Gigabit
· Power output: 60 W
· Output voltage: 55 V DC
· Operating temperature range: -10 °C to +45 °C
· Dimensions: 193 mm x 85 mm x 41 mm
· Weight: 380 g
· The output is equipped with a current limit, a short-circuit fuse and automatic terminal device recognition and classification.

Special Features

· Complies with the 802.3at Ultra PoE and 802.3af PoE standards
· Easily merge of power and data cables into a single cable
· Extend your network to places where there are no power supply cables or sockets available
· no setup needed
· The output is equipped with a current limit, a short-circuit fuse, and automatic terminal device recognition and classification.

Product Specification

Device Type	PoE injector - external
Power Device	Power Device
Input Voltage	AC 100-240 V
Frequency Required	50 - 60 Hz
Power Output Connectors Details	1 x RJ-45
Output Voltage	55 V
Power Capacity	60 Watt
Surge Suppression	Yes
Max Spike Voltage	3000 V
Max Spike Current	1500 A
Expansion / Connectivity	Expansion / Connectivity
Interfaces	1 x LAN - RJ-45
Miscellaneous	Miscellaneous
MTBF	100,000 hours
Compliant Standards	EN55022 Class B, RoHS, WEEE, FCC Part 15 Class B
Environmental Parameters	Environmental Parameters
Min Operating Temperature	-5 °C
Max Operating Temperature	45 °C
Humidity Range Operating	0 - 90% (non-condensing)
Dimensions & Weight	Dimensions & Weight
Width	19.3 cm
Depth	8.5 cm
Height	4.1 cm
Weight	380 g
