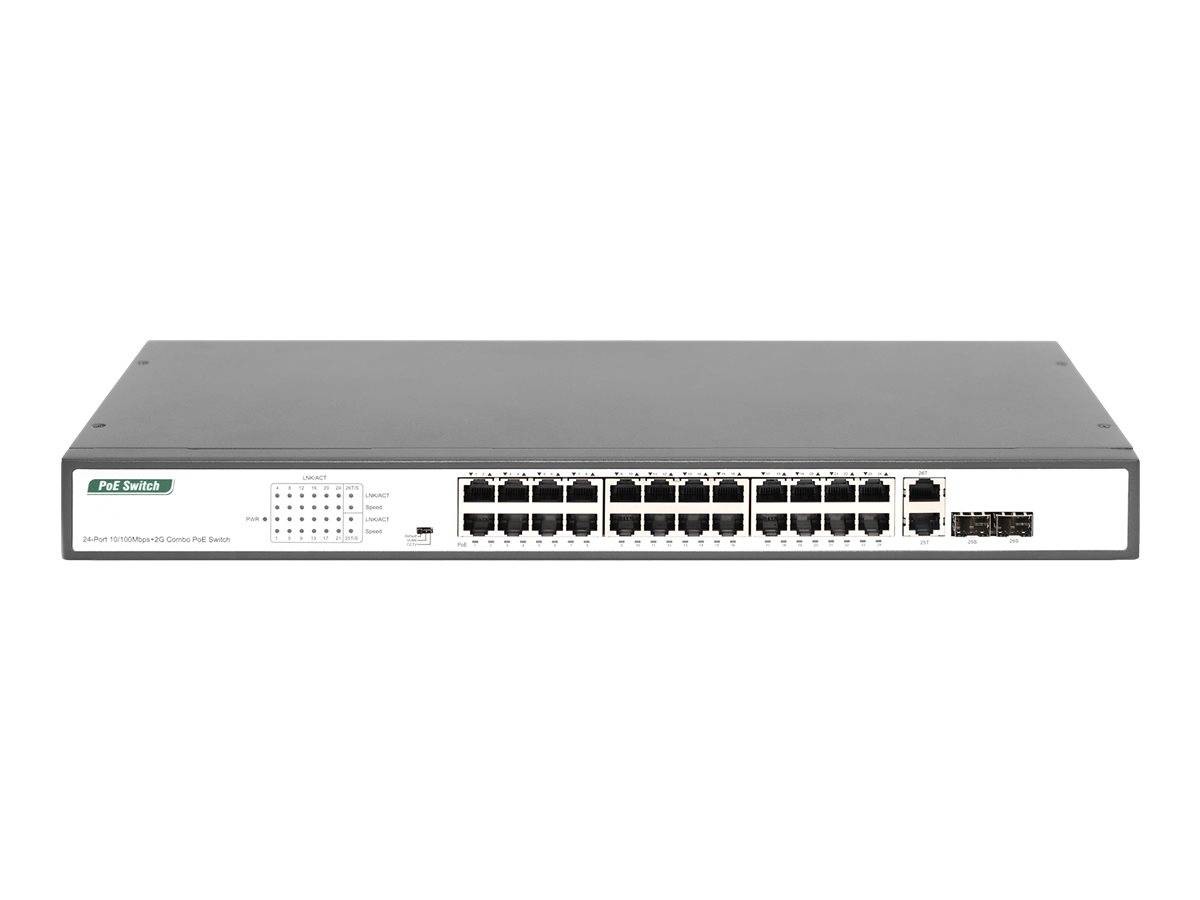

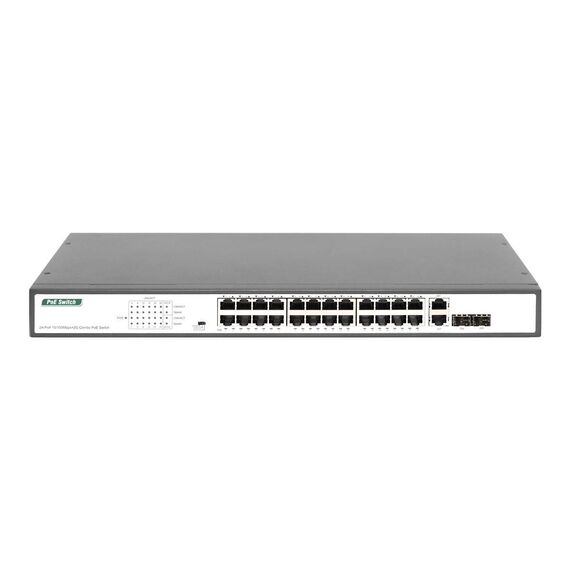

DIGITUS Professional DN-95343 / Switch / 24 x 10/100 (PoE) + 2 x combo Gigabit SFP (uplink) / rack-mountable / PoE (370 W) | DN-95343
Please sign in so that we can notify you about a reply
Product Features
· 24-port 10/100Base-TX with PoE support· 2-port Combo Gigabit TP/SFP Uplink
· Meets the network standards IEEE 802.3, IEEE802.3u, IEEE802.3ab, IEEE802.3z, IEEE802.3x, IEEE802.3af, IEEE802.3at
· PoE current output 55V DC, max. 30 W per port
· PoE power supply mode A, PIN 1/2(+), 3/6(-)
· Supports non-blocking, non-head-of-line forwarding
· Store and forward technology for optimized data transfer
· Automatic speed and half/full duplex recognition/adjustment
· Auto MDI/MDI-X function
· 16K MAC addresses
· Integrated power supply unit
· Power supply: 390 watts
· Maximum PoE output power: 370 watts
Special Features
· 24-port 10/100Base-TX with PoE support· 2-port Combo Gigabit TP/SFP Uplink
· Maximum PoE power of 370 watts
· Support one-click VLAN & CCTV mode
· Support PD-ALIVE function
Product Specification
| Device Type | Switch - 24 ports |
| Enclosure Type | Rack-mountable |
| Subtype | Fast Ethernet |
| Ports | 24 x 10/100 (PoE) + 2 x combo Gigabit SFP (uplink) |
| Power Over Ethernet (PoE) | PoE |
| PoE Budget | 370 W |
| Performance | Switching capacity: 8.8 Gbps ¦ Packet forwarding rate: 6.5 Mpps |
| MAC Address Table Size | 16K entries |
| Features | Auto-uplink (auto MDI/MDI-X), store and forward, full duplex mode, MAC address learning, MAC address aging, auto duplex mode |
| Compliant Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3x, IEEE 802.3at, IEEE 802.3az |
| Status Indicators | Power, PoE, link/activity, speed |
| Expansion / Connectivity | Expansion / Connectivity |
| Interfaces | 24 x 100Base-TX RJ-45 PoE - 30 W ¦ 2 x Gigabit LAN SFP uplink ¦ 2 x Gigabit LAN RJ-45 |
| Power | Power |
| Power Device | Internal power supply |
| Voltage Required | AC 120/230 V (50/60 Hz) |
| Miscellaneous | Miscellaneous |
| Included Accessories | 4 rubber feet, 8 screws, rack mounting ears |
| Rack Mounting Kit | Included |
| MTBF | 50,000 hours |
| Dimensions & Weight | Dimensions & Weight |
| Width | 44 cm |
| Depth | 20.7 cm |
| Height | 4.4 cm |
| Weight | 3.6 kg |
| Environmental Parameters | Environmental Parameters |
| Min Operating Temperature | 0 °C |
| Max Operating Temperature | 40 °C |
| Humidity Range Operating | 10 - 90% (non-condensing) |
| Min Storage Temperature | -40 °C |
| Max Storage Temperature | 70 °C |
| Humidity Range Storage | 5 - 90% (non-condensing) |
Features - Digitus - DN-95343
General
24-Port
More Details
Product Code
04:284847
EAN Code
4016032451242
Manufacturer
Digitus
