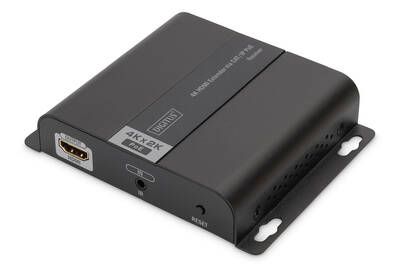

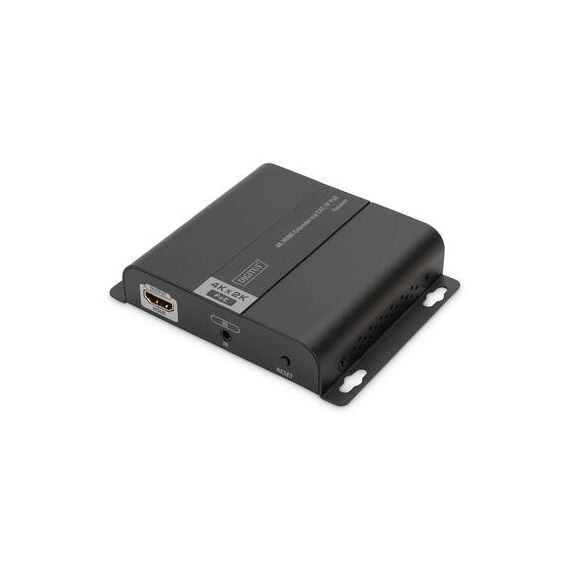

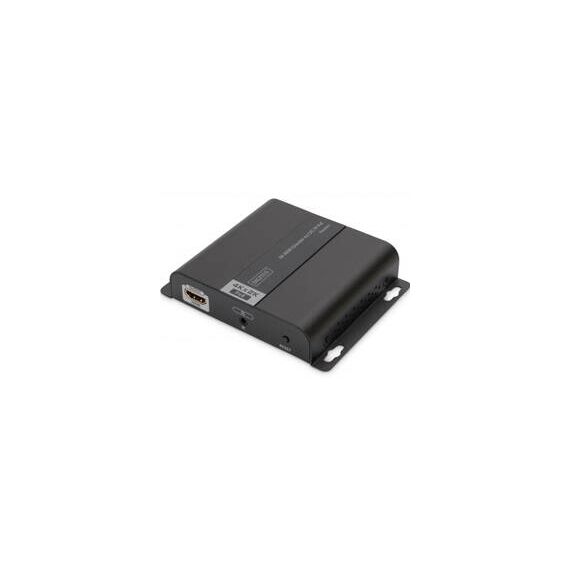

DIGITUS Professional DS-55125 - Video/audio extender - receiver - HDMI - up to 120 m | DS-55125

Product Features

· HDMI signal can be extended (unlimited distance) with the existing local network infrastructure or additional PoE switches (IP connection)
· Use additional receiver units (DS-55125) and your existing network infrastructure or additional PoE switches to display video contents on up to 253 screens (point-to-multipoint connection)
· Power supply through PoE switch - no external power supply required
· Supports CAT 5, CAT 5e, CAT 6 and CAT 7 network cables
· Supports 4K (30 Hz), 3840 x 2160p resolution
· HDMI bandwidth: 10.2 Gbit/s (max.)
· HDMI version: 1.4
· HDCP version: 1.4
· Integrated IR interface - simple remote control of the input source
· Resolutions: 4K (30 Hz), 1080p, 1080i, 720p, 576p, 576i, 480p, 480i
· Supports HDTV
· Supports Deep Color (24 bit)
· Supports uncompressed audio signals like LPCM
· Operation temperature: 0°C - 60°C
· Metal casing
· Suitable for wall mounting
· Compact size, easy to operate and install
· Dimensions: L 11.9 x W 9.4 x H 2.4 cm
· Weight: 0.275 kg
· Color: Black

Special Fetures

· Use additional receiver units (DS-55125) and your existing network infrastructure or additional PoE switches to display video contents on up to 253 screens (point-to-multipoint connection)
· Power supply through PoE switch - no external power supply required
· Supports CAT 5, CAT 5e, CAT 6 and CAT 7 network cables
· Supports 4K (30 Hz), 3840 x 2160p resolution
· HDMI bandwidth: 10.2 Gbit/s (max.)
· HDCP version: 1.4

Product Specification

Device Type	Video/audio extender (receiver)
Form Factor	Wall mountable
Colour	Black
Networking
Connectivity Technology	Wired
Data Link Protocol	HDMI
Data Transfer Rate	10.2 Gbps
Max Resolution	3840 x 2160 @ 30 Hz
Max Transfer Distance	120 m
Features	HDTV Compatible, HDCP compliant, 4K resolution support, 24-bit Deep Colour support
Expansion / Connectivity

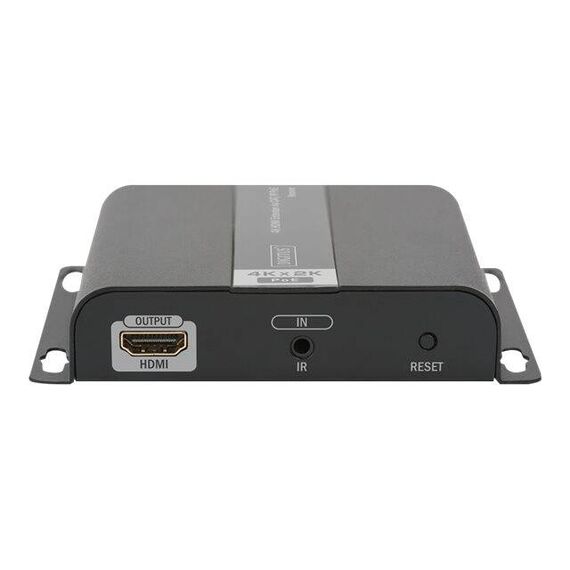

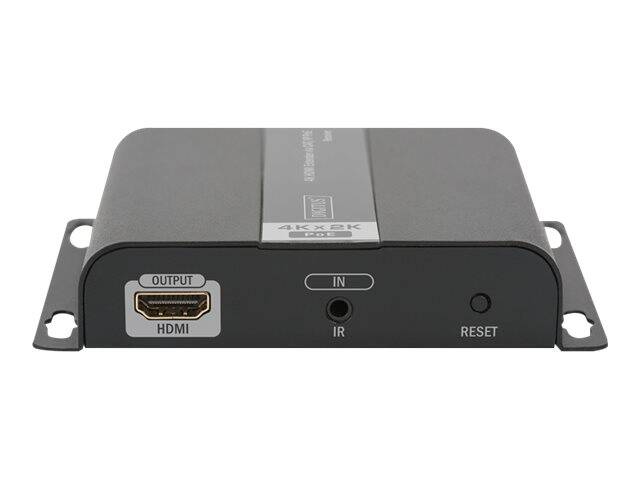

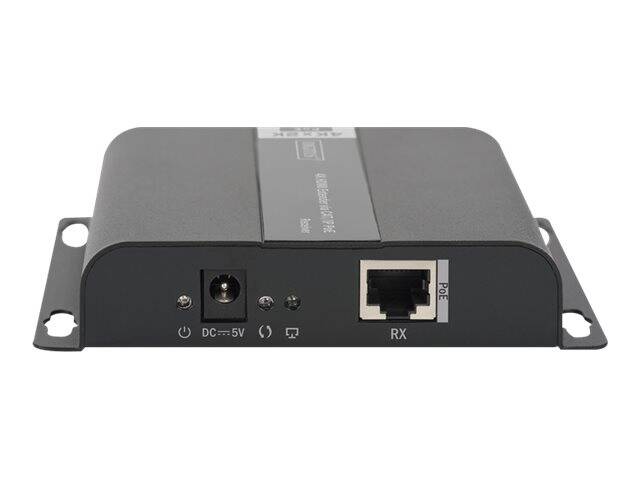

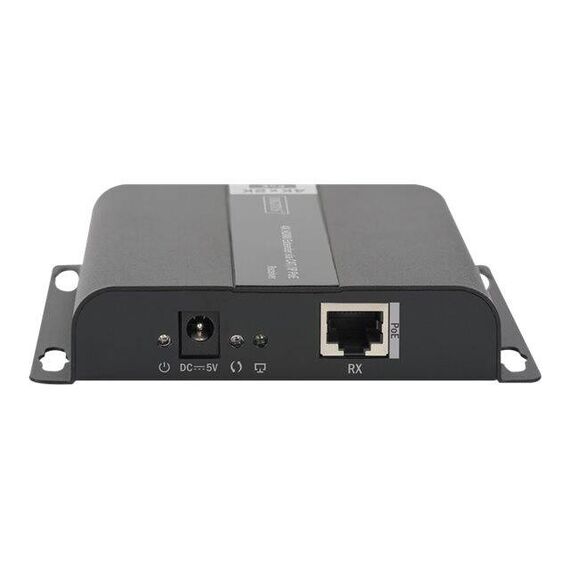

Interfaces	1 x HDMI (output) - 19 pin HDMI Type A ¦ 1 x IR ¦ 1 x network (PoE) - RJ-45
Miscellaneous
Compliant Standards	HDCP 1.4
Power
Power Over Ethernet (PoE)	PoE
Dimensions & Weight
Width	9.4 cm
Depth	11.9 cm
Height	2.4 cm
Weight	275 g
Dimensions & Weight (Shipping)
Shipping Width	17.6 cm
Shipping Depth	24 cm
Shipping Height	8 cm
Shipping Weight	430 g
Environmental Parameters
Min Operating Temperature	0 °C
Max Operating Temperature	60 °C
