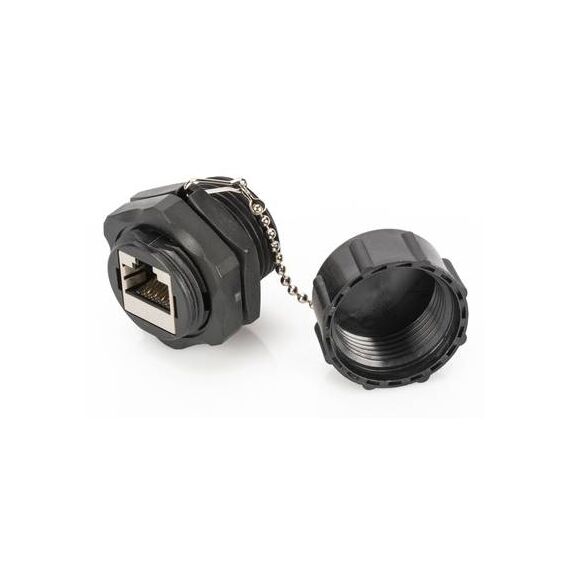

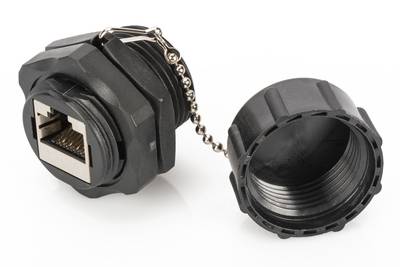

DIGITUS Professional / Network coupler / RJ-45 (F) to RJ-45 (F) / CAT 6 | DN-IND-C6-C
Please sign in so that we can notify you about a reply
Product Features
· Main body & dust cap: PBT+GF, UL94V-0· Shielded case: Brass, nickel plated
· Coupler housing: ABS, UL94V-0
· Module contacts: Phosphor bronze, 50 µ gold plated
· Insertion life: 750 mating cycles with FCC compliant 8P plug
· Contact force: 100 g with FCC compliant 8P plug
· Plug retention force: 11 LBF min.
· Operating temperature range: -10 °C up to +60 °C
· Storage temperature range: -40 °C up to + 68 °C
· Humidity: 10%~90% RH
· Insulation resistance: 500 M
· Dielectric withstanding voltage: 1000 V AC
· DC current rating: 1.5 Amps.
· DC resistance: 0.1
· Contact resistance: 20m
Special Features
· IP67 (dust tight; immersion, up to 1 m depth)· incl. detachable closing cap
· Supported: PoE / PoE+ / 4PPoE (IEEE802.3 af/at/bt)
Product Specification
| Network Cable Type | Network coupler - CAT 6 |
| Plated Connector | Gold |
| Features | With dust caps |
| Connectivity | Connectivity |
| Connector | RJ-45 - female |
| Connector (Second End) | RJ-45 - female |
| Miscellaneous | Miscellaneous |
| Compliant Standards | UL 94 V-0, IP67 |
| Environmental Parameters | Environmental Parameters |
| Min Operating Temperature | -10 °C |
| Max Operating Temperature | 60 °C |
Features - Digitus - DN-IND-C6-C
More Details
Product Code
04:365883
EAN Code
4016032429623
Manufacturer
Digitus
