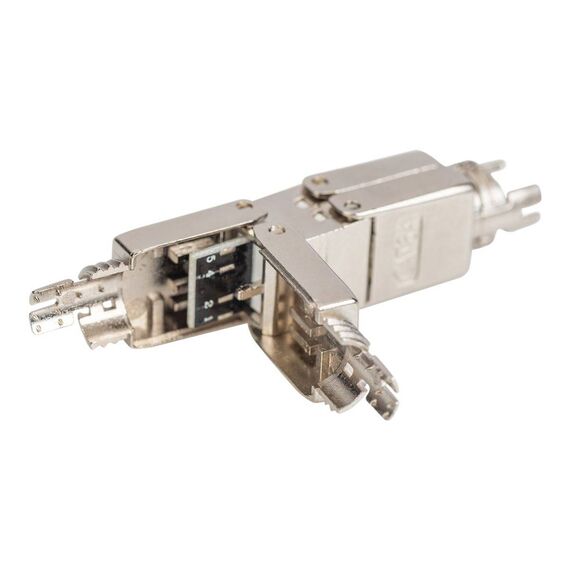

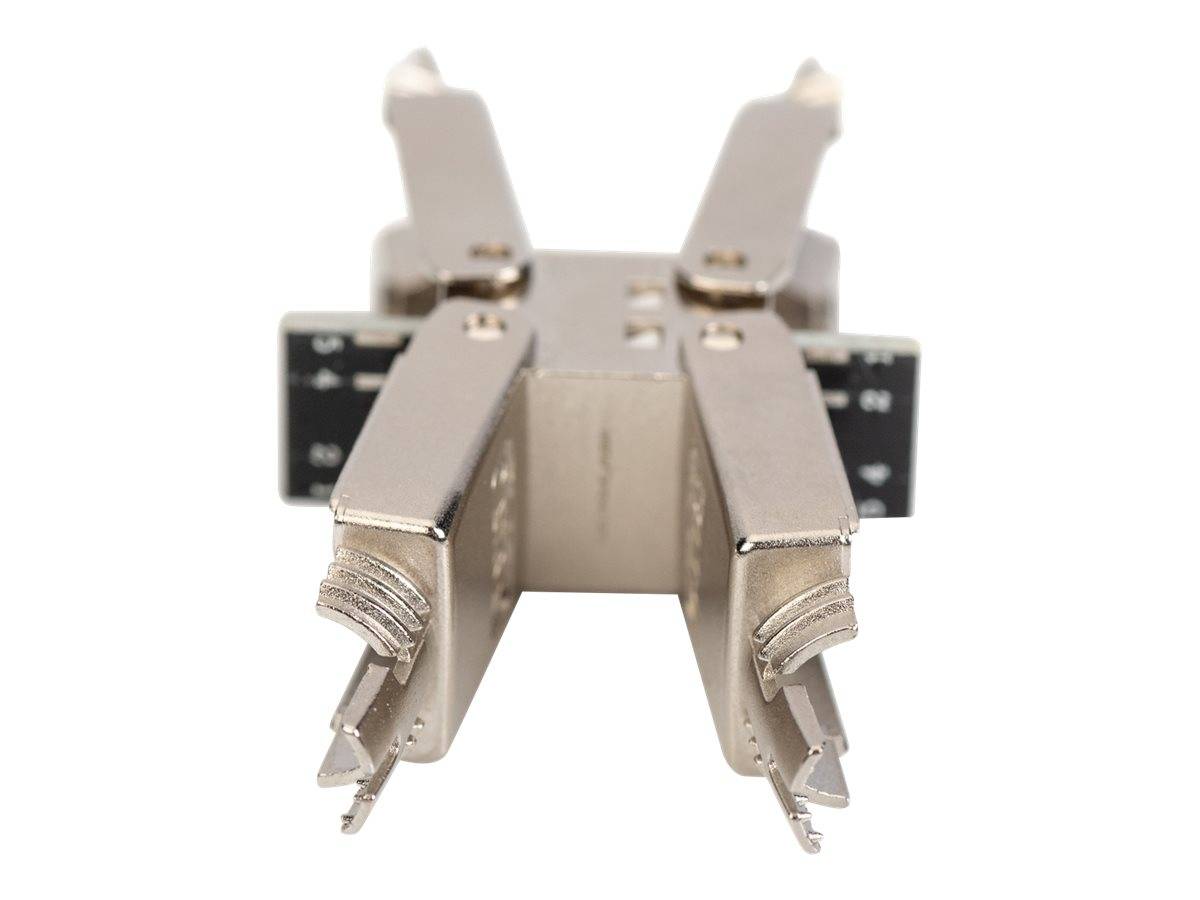

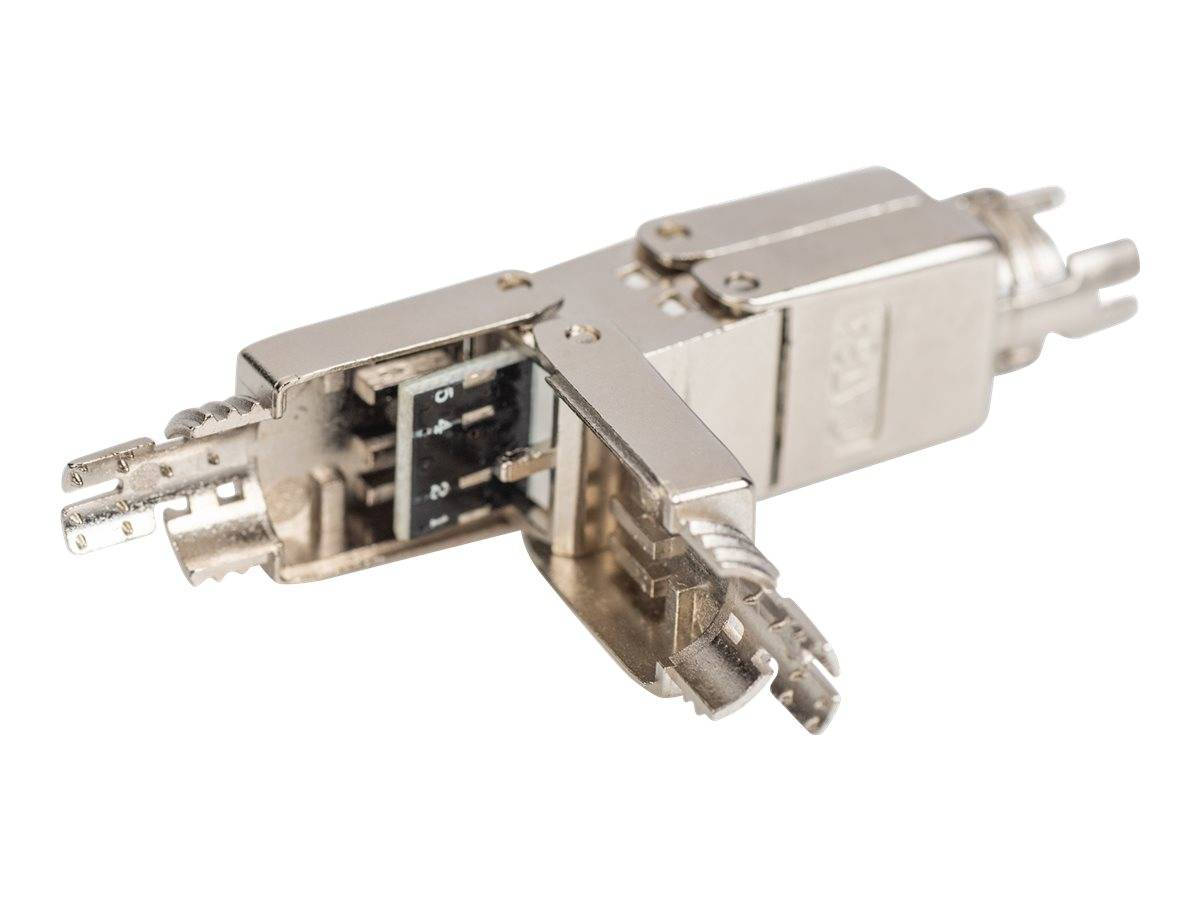

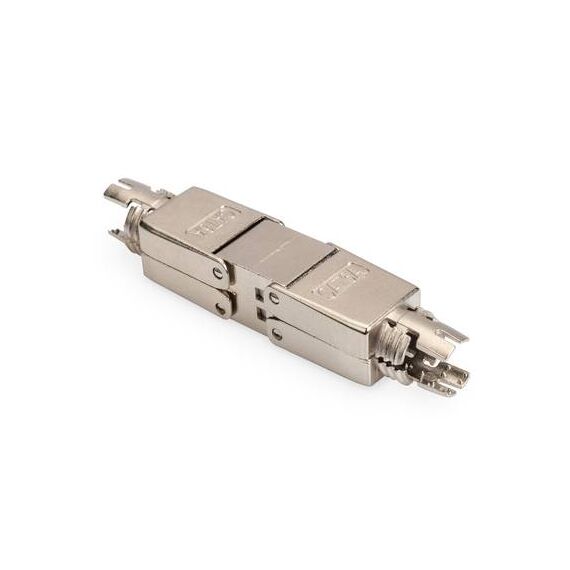

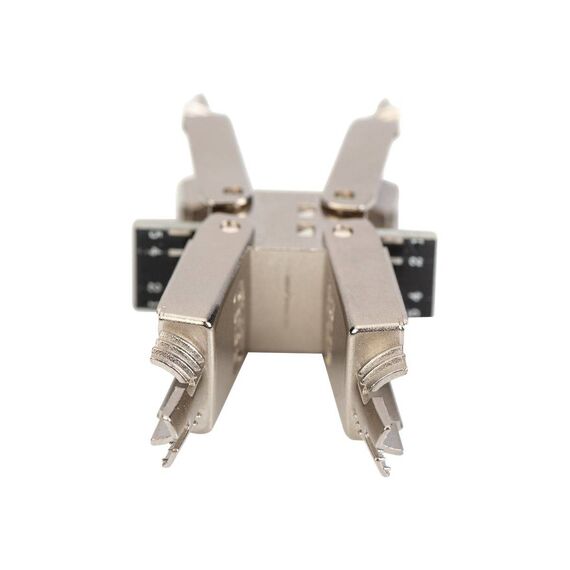

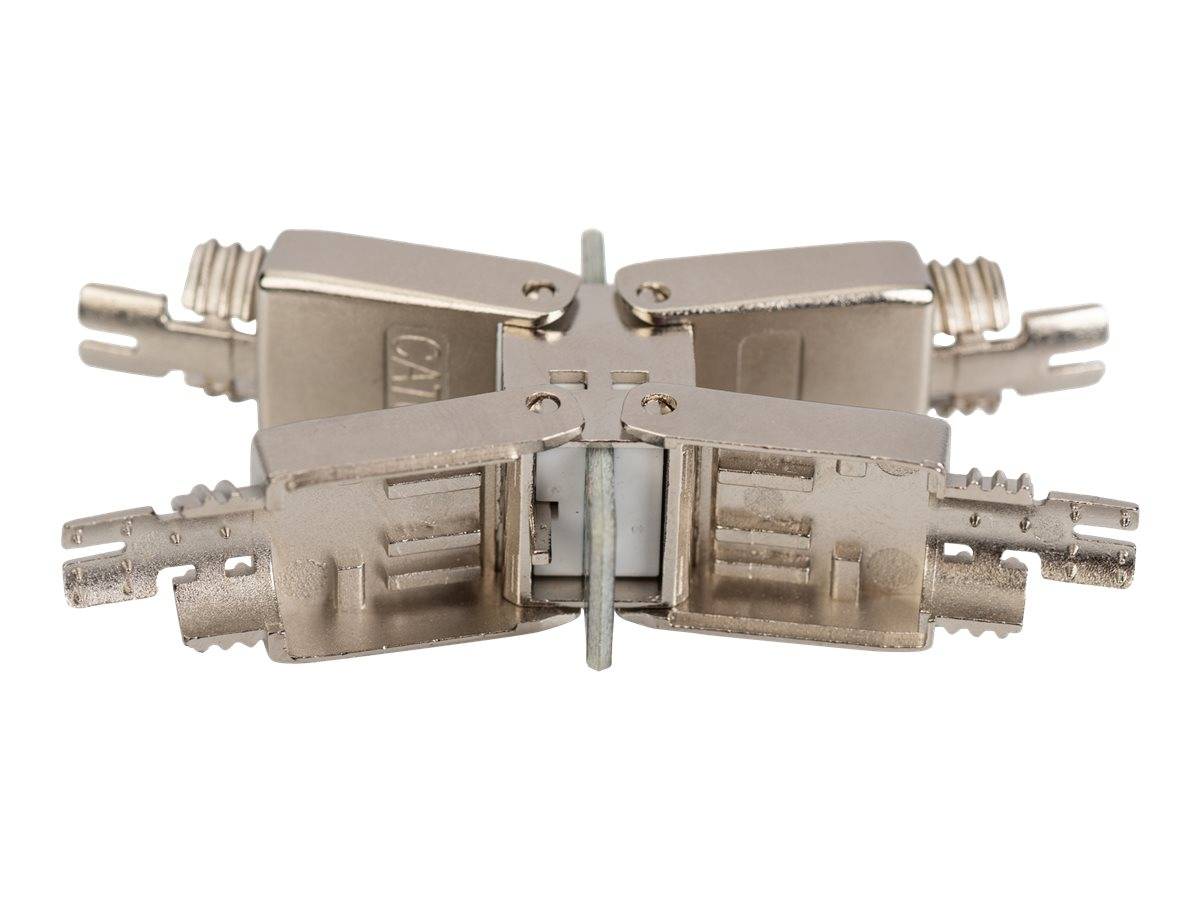

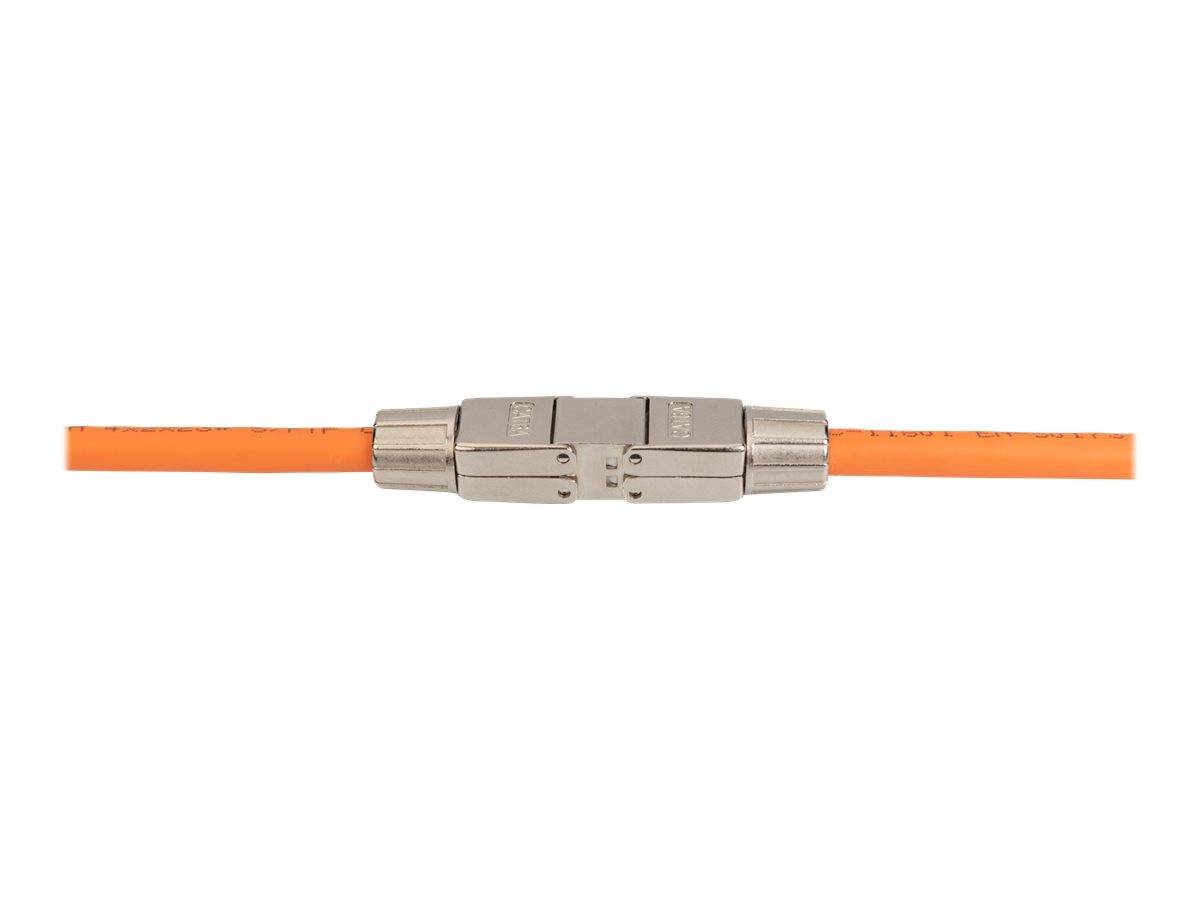

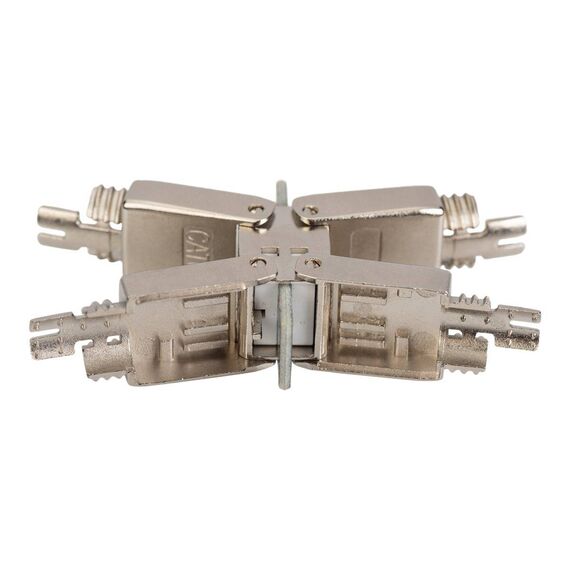

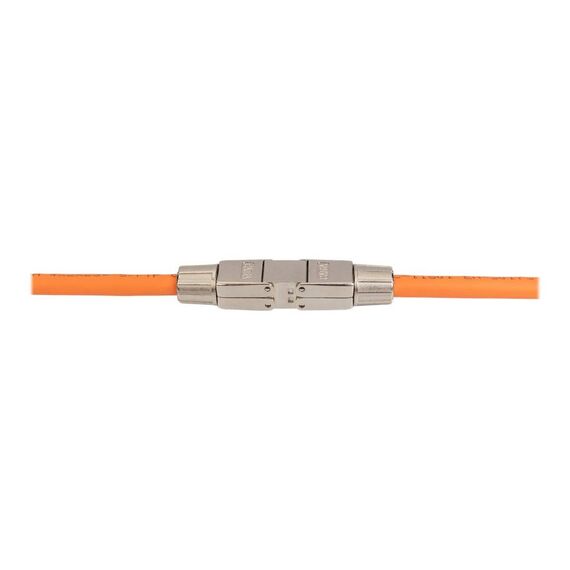

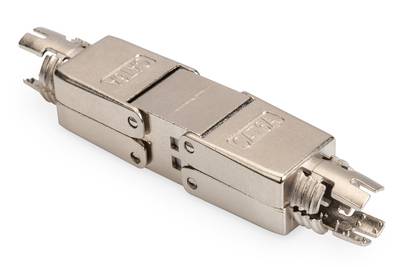

DIGITUS Professional / Network coupler / shielded / CAT 6a | DN-93912

Product Features

· Transmission properties:
· Category 6A, 10G Base-T, 500 MHz
· ISO/IEC 11801 3rd ed.; EN50173-1; IEC 60603-7-51
· Suitable for PoE/PoE+/4PPoE (IEEE 802.3af; 3at; 3bt)
· General specifications:
· Cable installation via insulation-displacement connector, color coded in accordance with EIA/TIA 568 A & B
· Cable grip and cable fixation using screw cable grip
· Tool-free mounting connection
· 360° shield contact
· Technical specifications:
· Case material: Zinc die-cast nickel-plated
· Contact material: Phosphor bronze
· Contact coating: Nickel, gold-plated 0.5 µ
· Physical specifications:
· Insertion force: Max. 30N (as per IEC 60603-7-5)
· Holding force: 7.7 kg between jack and plug
· Operating temperature range: -20 °C to +70 °C (ISO/IEC 11801, ANSI/TIA 568 C.2)
· Mating cycles: 750 (ISO/IEC 11801, IEC 60603-7-5)
· Copper cable diameter: AWG (26/7 22/1), stranded and solid wire
· Tested with AWG 22/1 solid installation cable
· (DIGITUS® DK-174X-A-VH-X; AWG 22/1 cat. 7A installation cable)
· Dielectric strength: 1000 VDC (contact/contact), 1500 VDC (contact/ground)

Special Features

· Cat. 6A, 500 MHz
· 10G Base-T
· Screw cable grip
· Tool-free mounting
· Conductor manager for easy field installation (tool free)
· 360° shield contact
· Cat. 6A with LSA insulation-displacement connector
· Slim design
· Suitable for PoE/PoE+/4PPoE (IEEE 802.3af; 3at; 3bt)

Product Specification

Network Cable Type	Network coupler - CAT 6a
Technology	Shielded
Features	Protection cap
Miscellaneous	Miscellaneous
Compliant Standards	Up to 500 MHz
