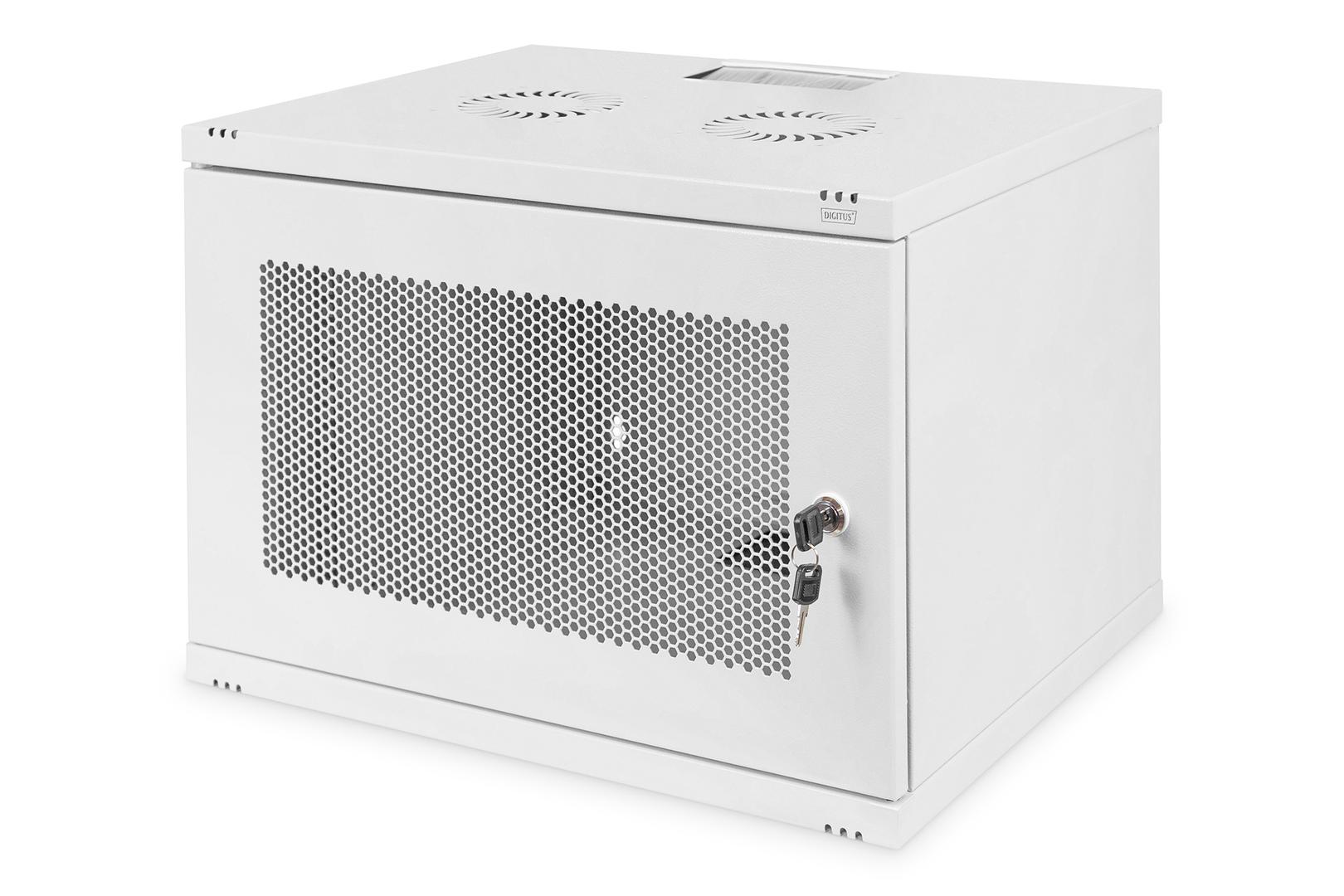

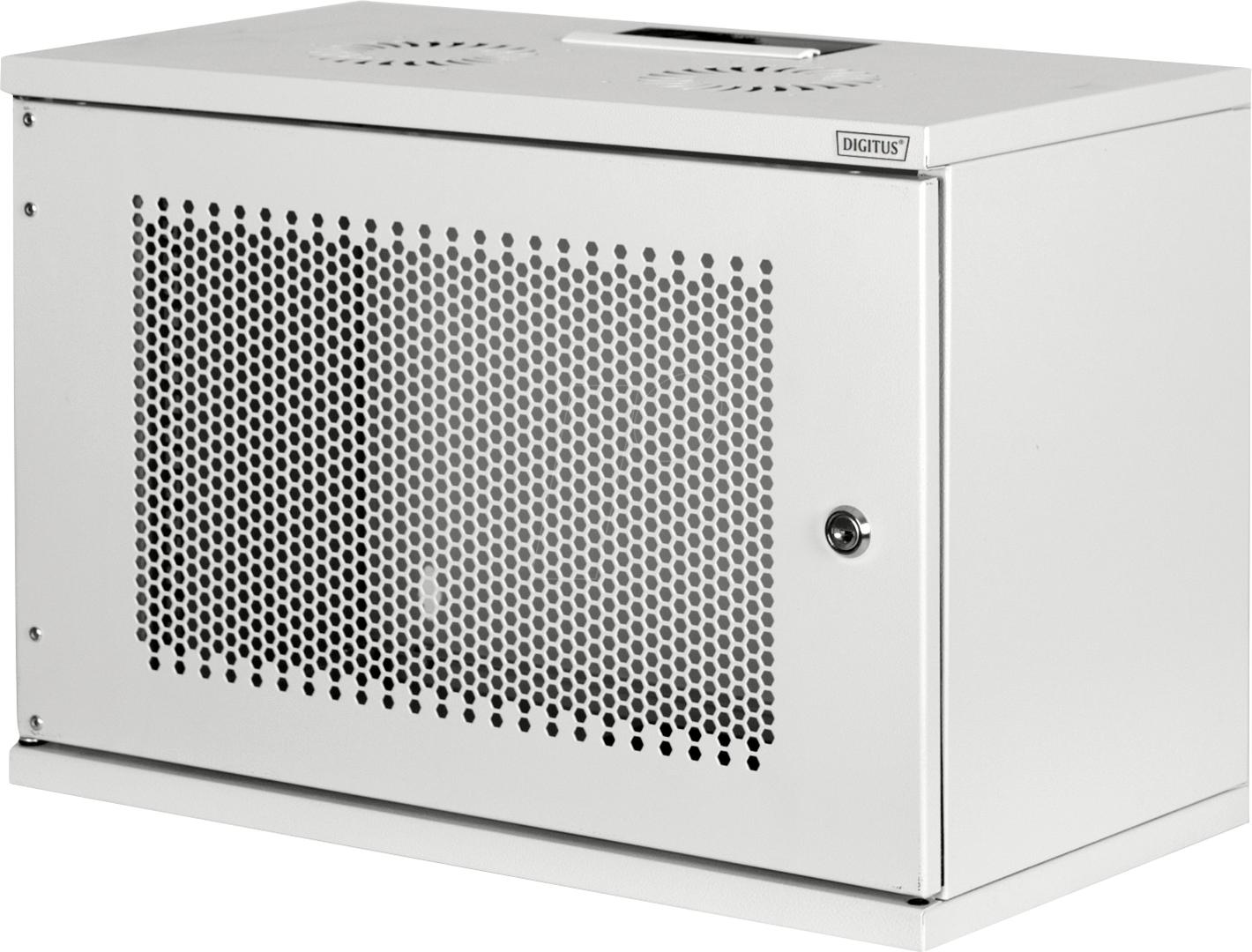

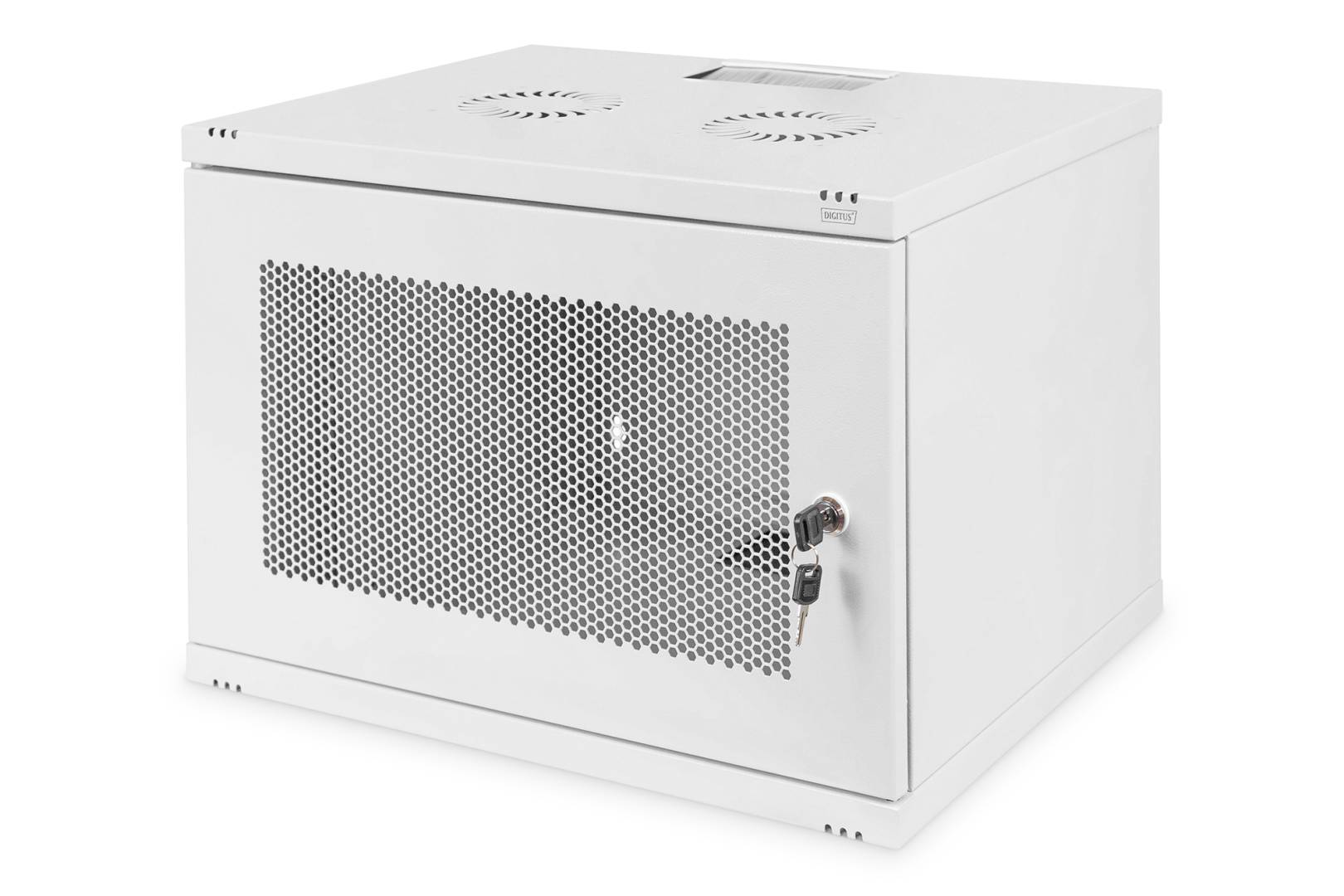

DIGITUS Professional Soho Series DN-19-07U-S-PD - Cabinet - wall mountable - grey, RAL 7035 - 7U - 19" | DN-19-07U-S-PD
Please sign in so that we can notify you about a reply
Product Features

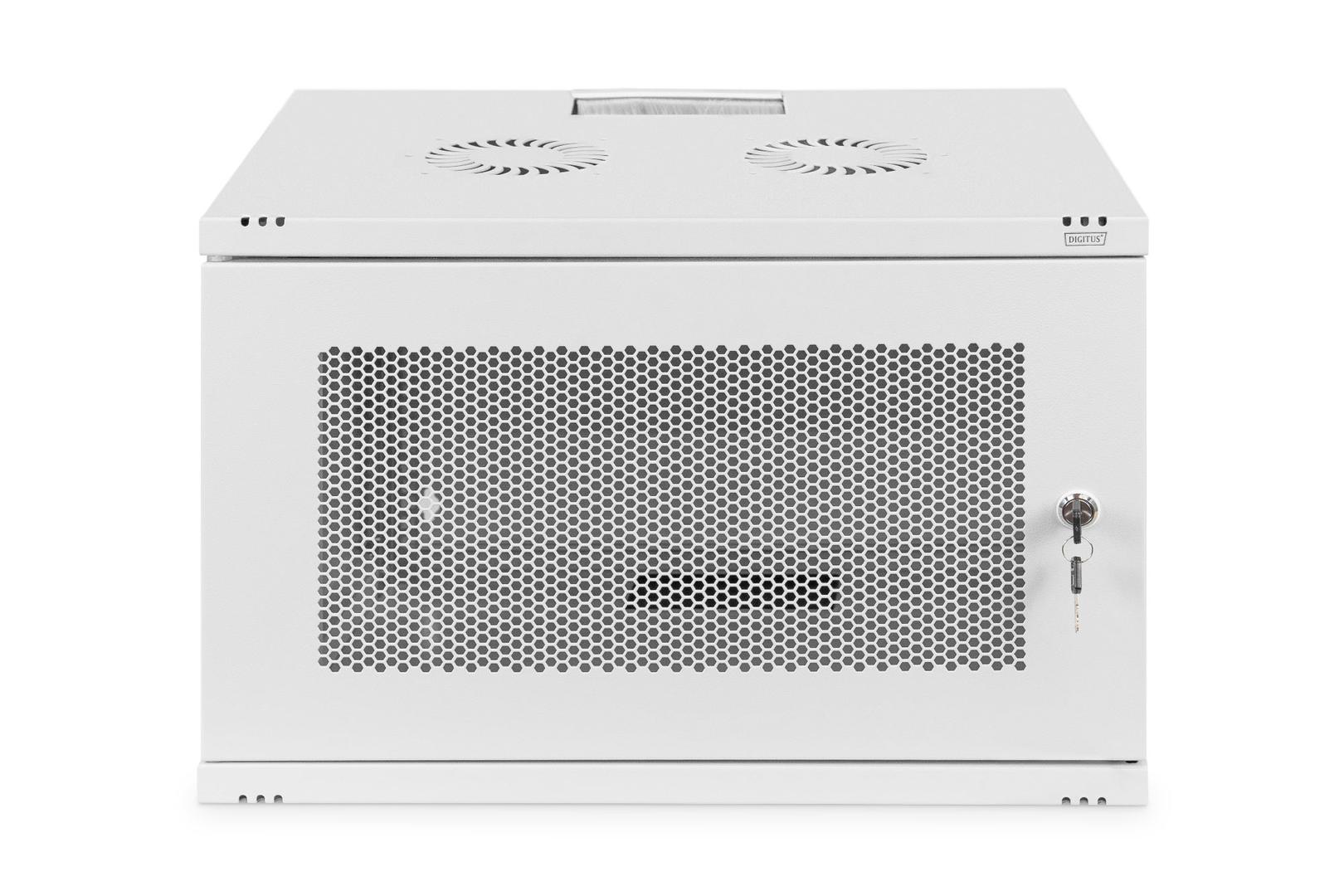

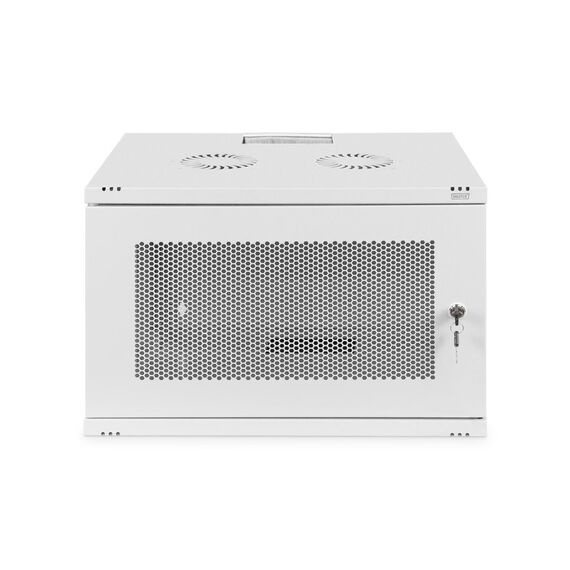

· Safety class rating IP20· Lockable perforated steel front door

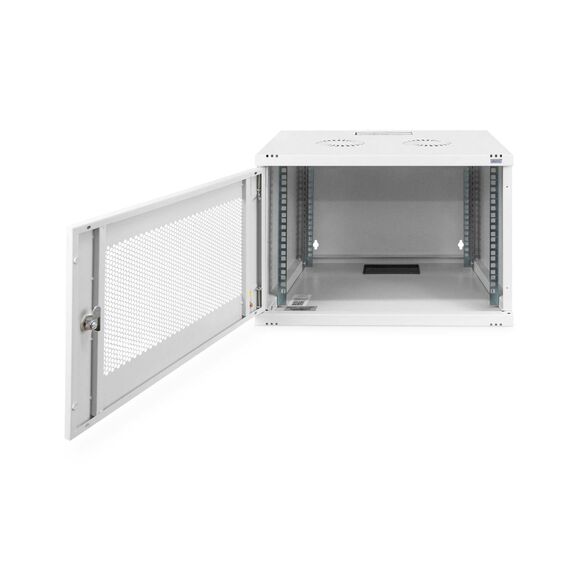

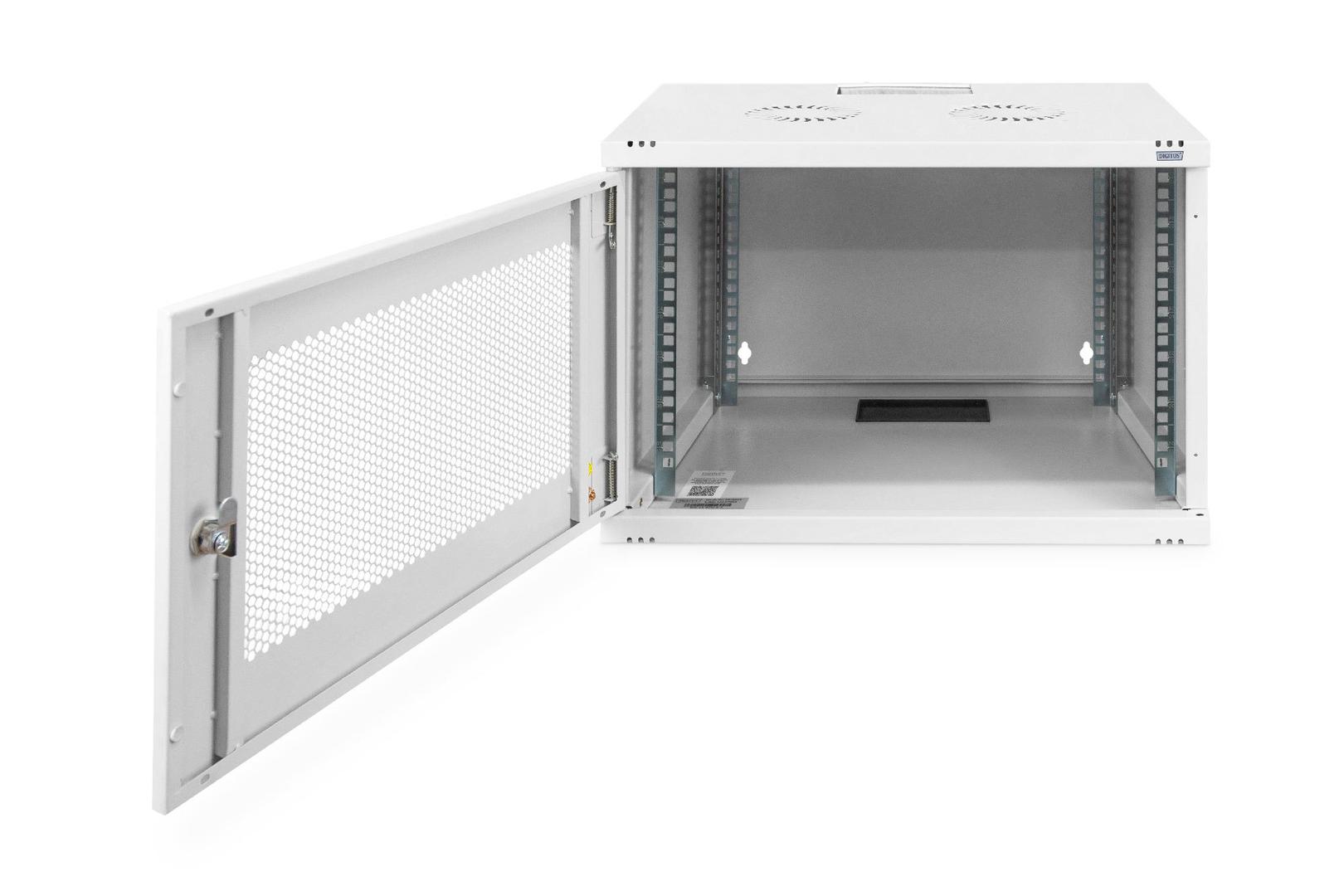

· 200° door opening angle
· 1-point-locking-mechanism on the front door

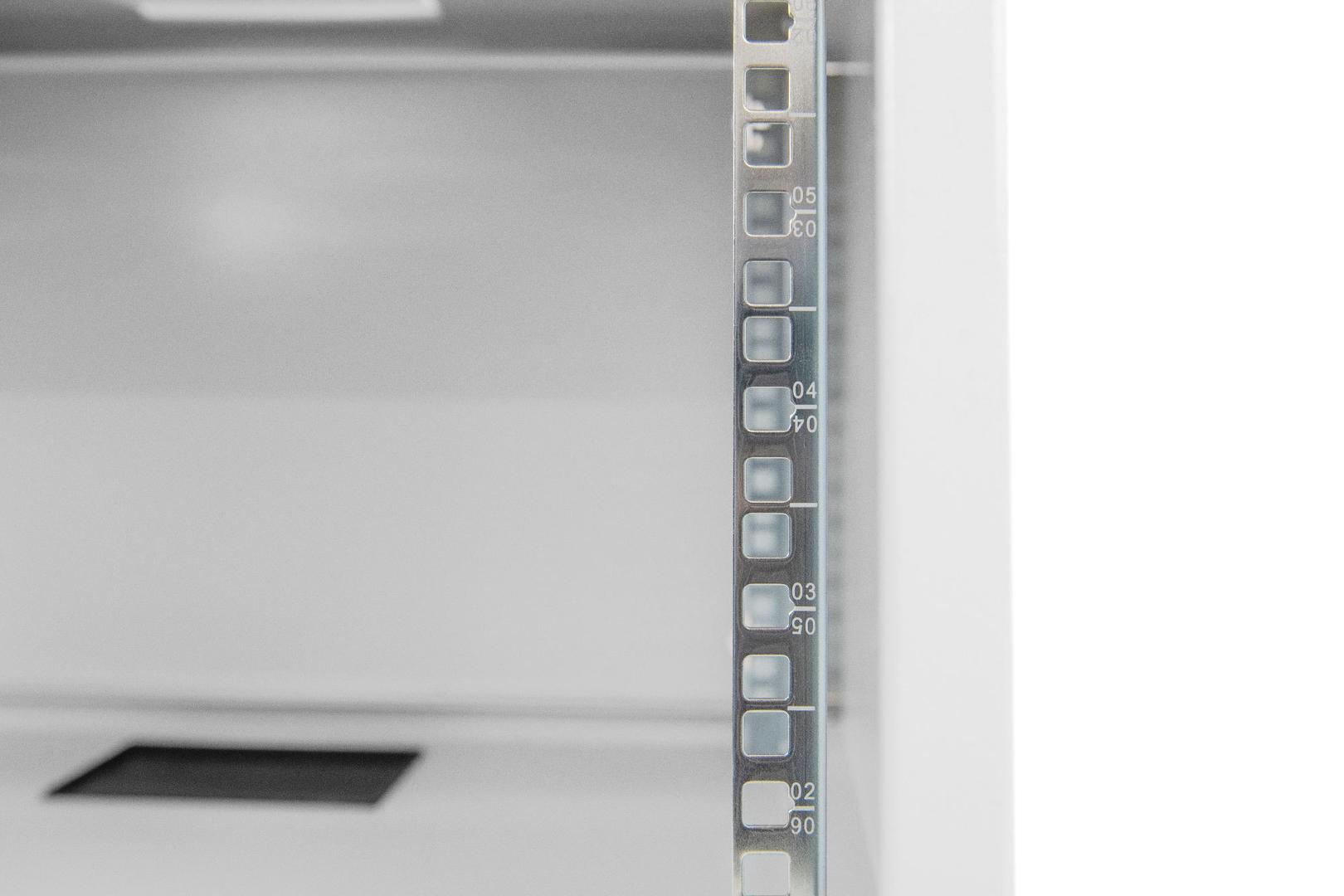

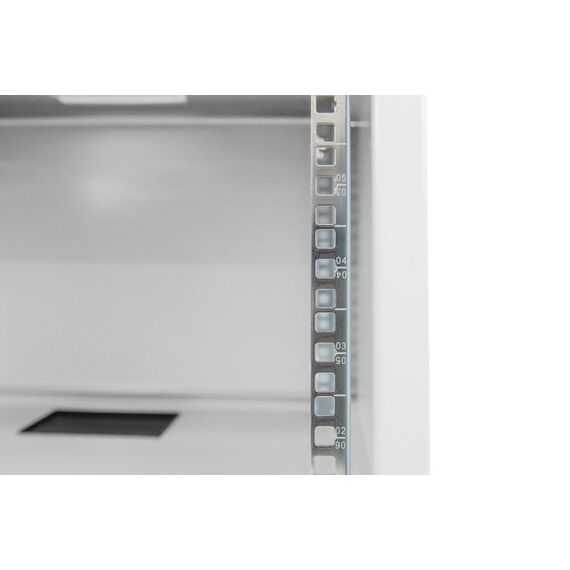

· 483 mm (19) profile rails mounted on the front- and rear side inside of the rack, galvanized
· 483 mm (19) profile rails are adjustable in depth
· 1.1 - 1.5 strong sheet steel with a high loading capacity, powder coated
· Cable entry with brush strip on the top and with plastic cover on the base
· Roof is prepared for fan units (punched out entries)
· Ventilation slots for active and passive ventilation and exhausting
· Equipment mounting depth min.-max.: 170-270 mm
Special Fetures
· Unmounted flat package delivery for cost- and space effciency· Optimized air ventilation and exhaustion
· Lockable perforated steel front door ensures safety
Product Specification
| Product Type | Cabinet |
| Placing / Mounting | Wall mountable |
| Product Material | Steel |
| Rack Size | 19" |
| Height (Rack Units) | 7U |
| Width | 54 cm |
| Depth | 40 cm |
| Height | 37 cm |
| Colour | Grey, RAL 7035 |
| Finish | Powder coat |
| Miscellaneous | |
| Features | Lockable front door, perforated front door, 200° door opening |
| Compliant Standards | IP20 |
Features - Digitus - DN-19-07U-S-PD
More Details
Product Code
03:161176
EAN Code
4016032432524
Manufacturer
Digitus
