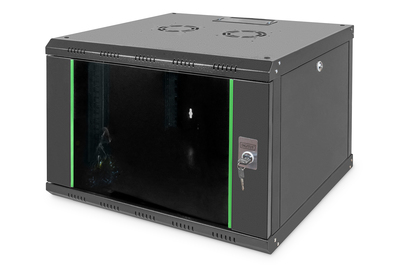

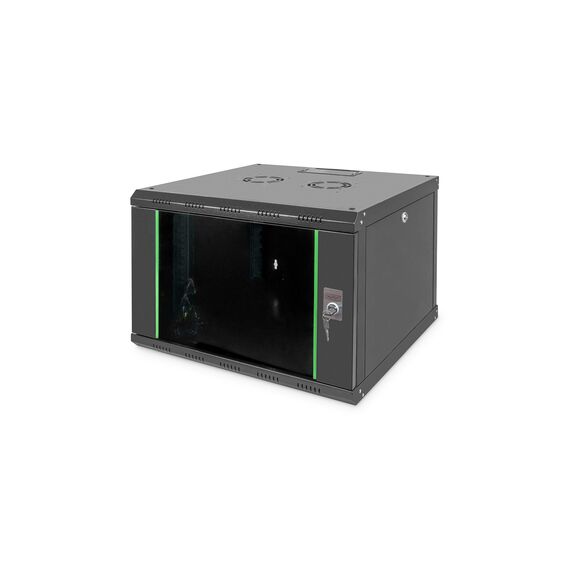

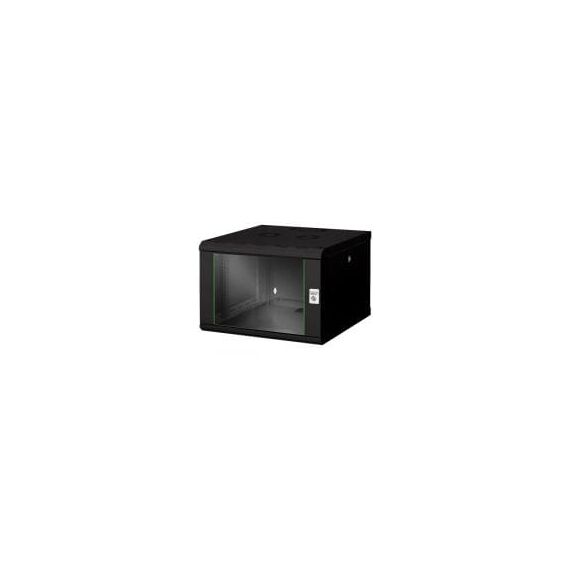

DIGITUS Professional Unique DN-19 07U-6/6-SW - Rack cabinet - wall mountable - black, RAL 9005 - 7U - 19" | DN-19 07U-6/6-SW
Please sign in so that we can notify you about a reply
Product Features

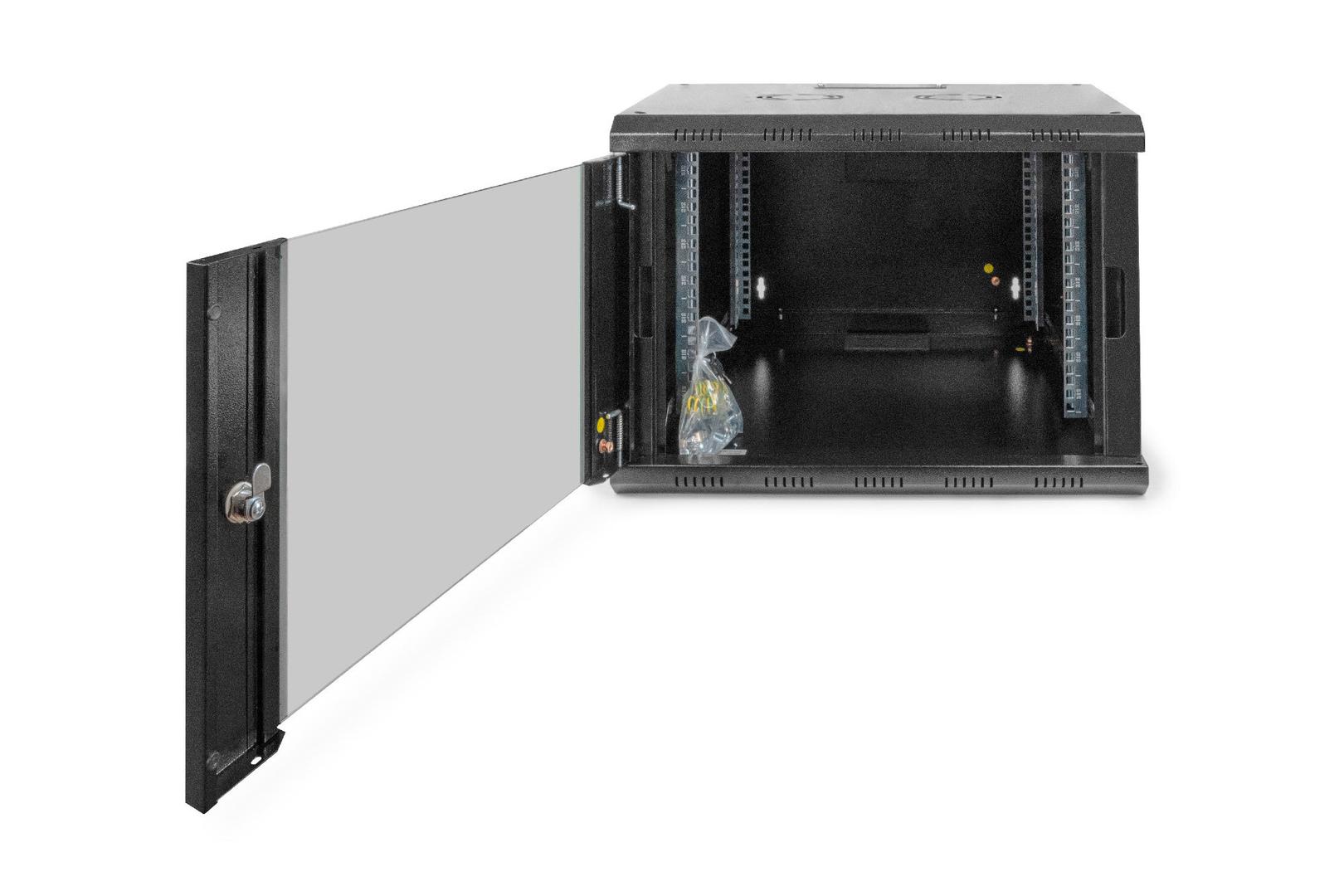

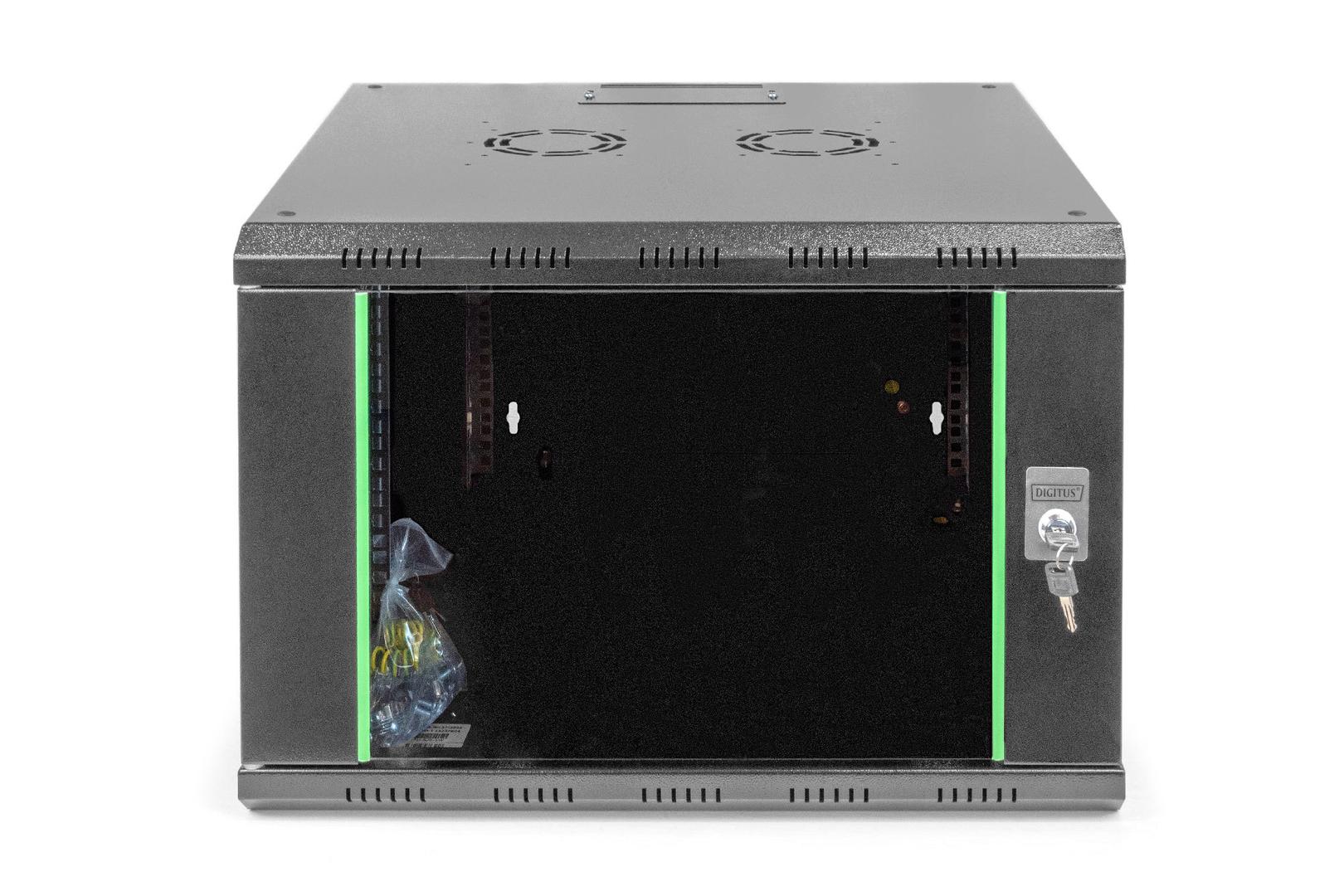

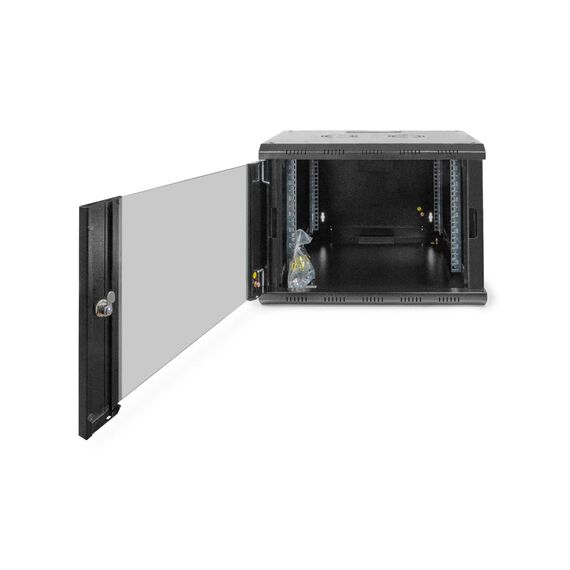

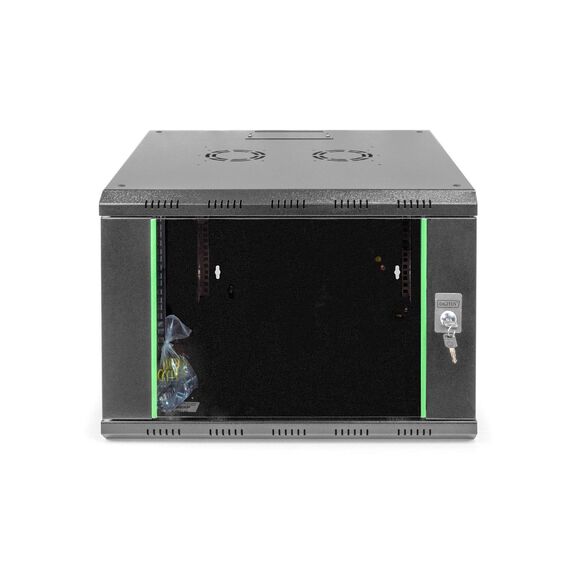

· Safety class rating IP20· Lockable safety-glass door with steel frame
· 210° door opening angle

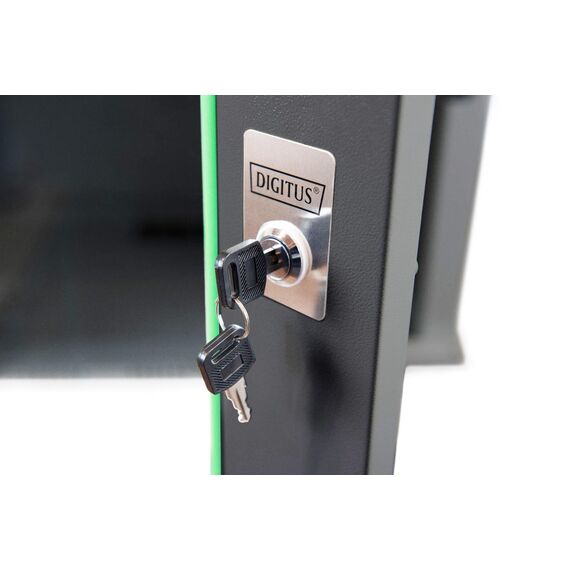

· 1-point-locking-mechanism on the front door
· Side panels are lockable and removable
· 483 mm (19) profile rails mounted on the front- and rear side inside of the rack, galvanized

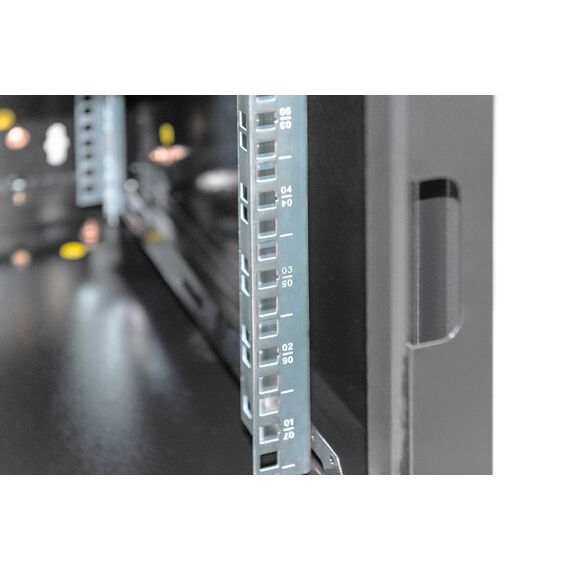

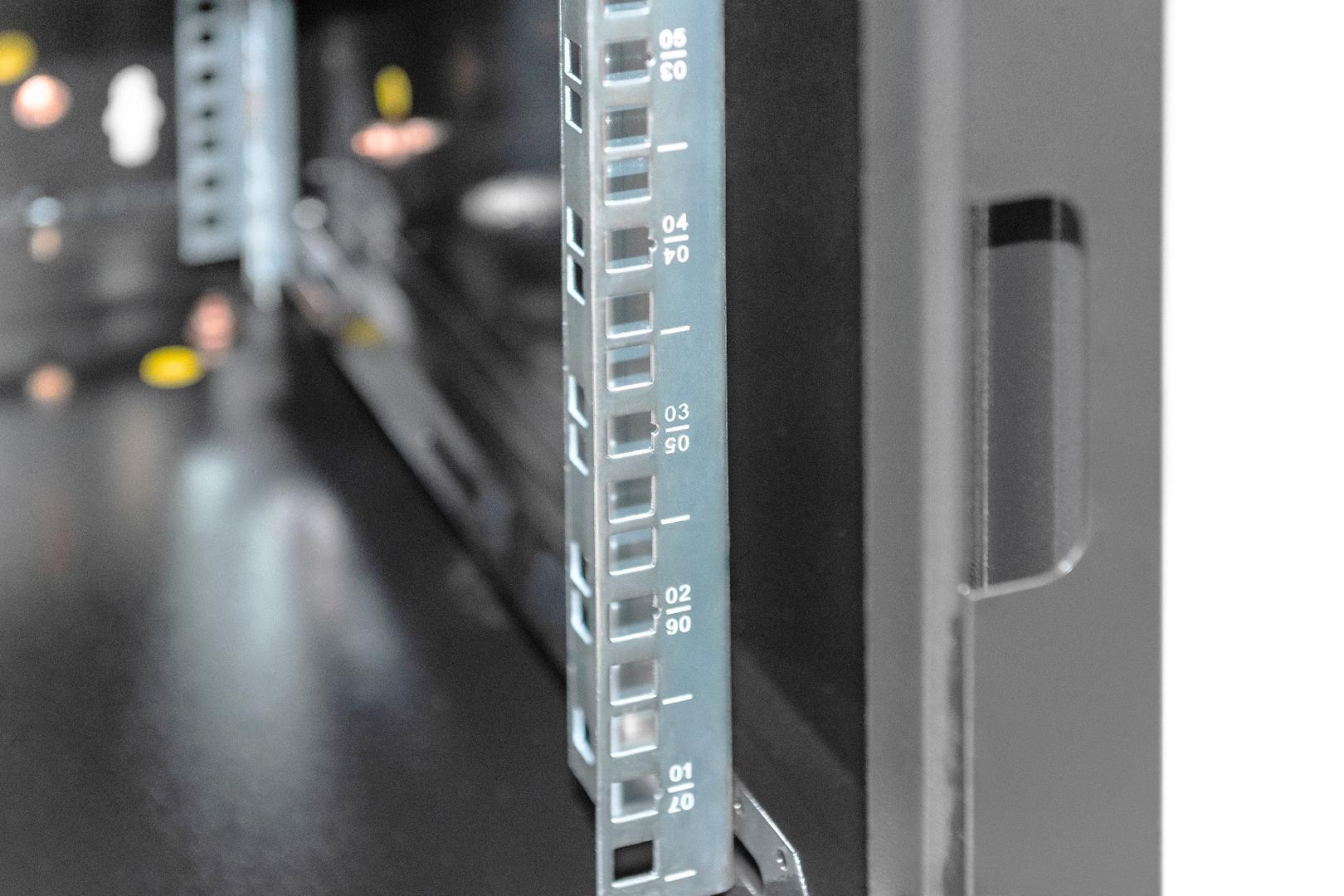

· 483 mm (19) profile rails are adjustable in depth and with height unit marking
· Max. installation depth: 450 mm

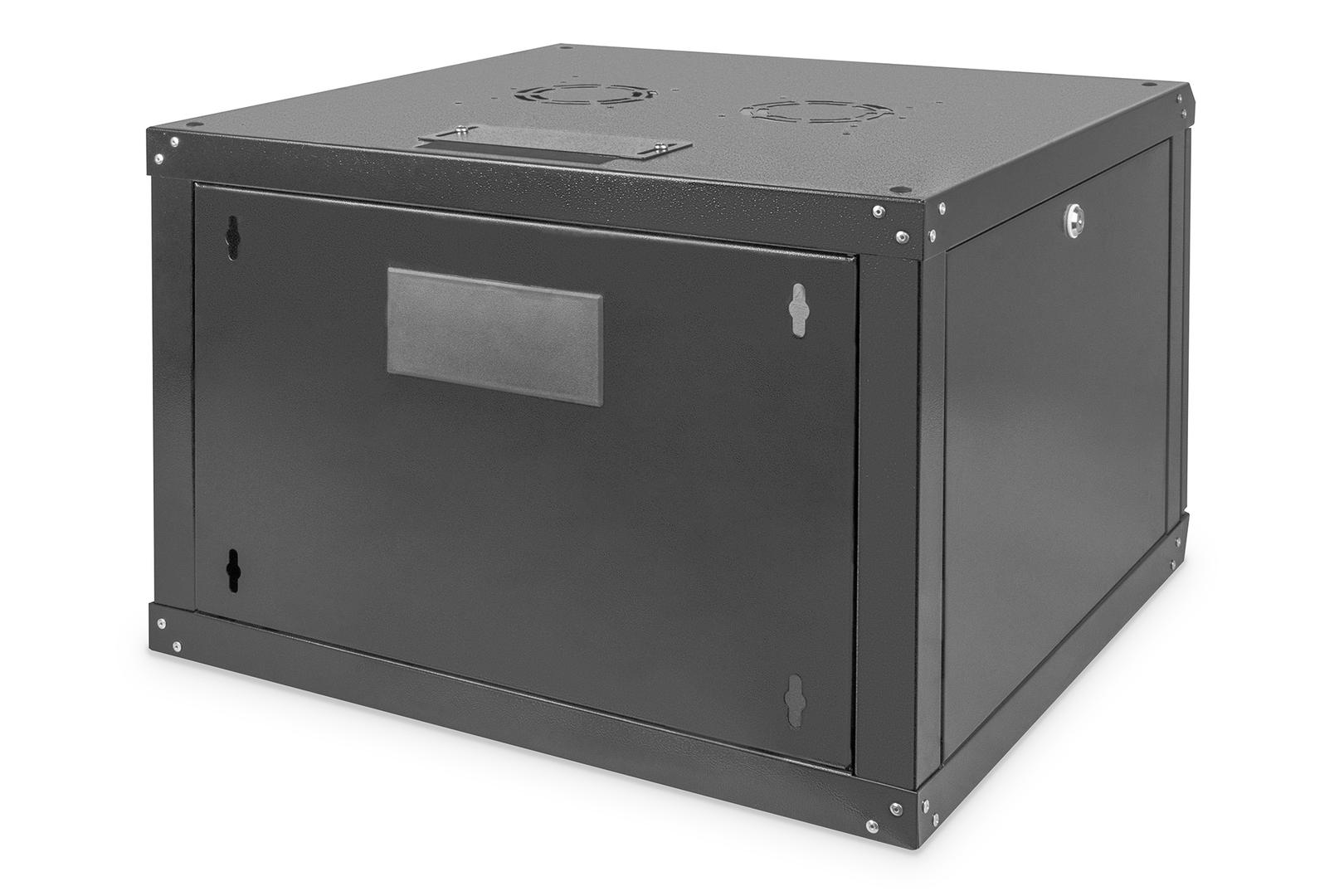

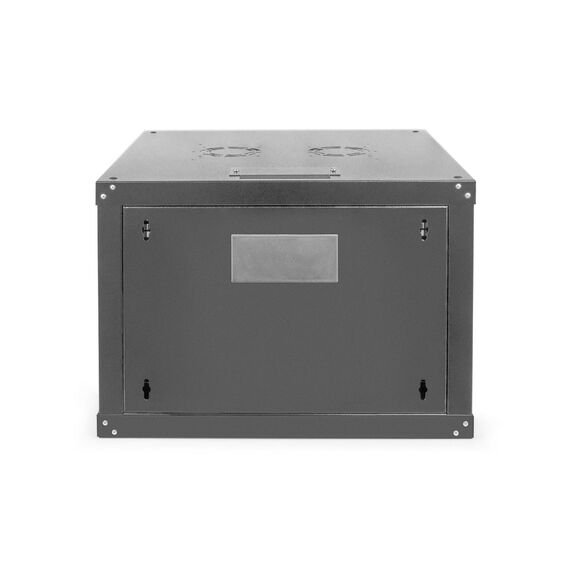

· Cable entry on the rear side and base with plastic cover and top with sliding cover
· Roof is prepared for fan units (punched out entries)
· Ventilation slots for active and passive ventilation and exhausting
· Several earthing points for rack components

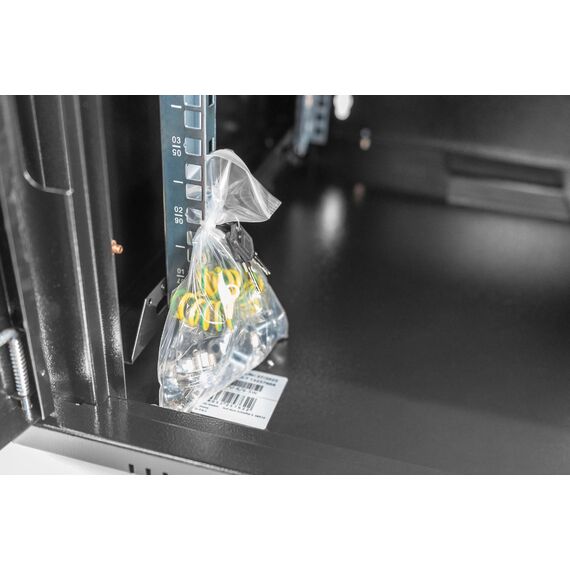

· Incl. installation set (screws, cage nuts, washers)
· Rack is completely mounted
· Equipment mounting depth min.-max.: 320-450 mm
Special Fetures
· Robust steel construction for sturdy wall mounting· Lockable safety-glass door with steel frame
· Side panels are lockable and removable
Product Specification
| Product Type | Rack |
| Rack Type | Cabinet |
| Placing / Mounting | Wall mountable |
| Product Material | Steel |
| Rack Size | 19" |
| Height (Rack Units) | 7U |
| Width | 60 cm |
| Depth | 60 cm |
| Height | 42 cm |
| Weight | 19 kg |
| Shipping Dimensions (WxDxH) / Weight | 65 cm x 65 cm x 47 cm / 20 kg |
| Colour | Black, RAL 9005 |
| Finish | Powder coat |
| Miscellaneous | |
| Weight Limit | 100 kg |
| Features | Lockable front door, lockable side panel, rear cable entry, bottom cable entry points, side cable entry, removable side panels, IP20 protection, glass front door, 210° opening angle |
Features - Digitus - DN-19 07U-6/6-SW
More Details
Product Code
03:161285
EAN Code
4016032257622
Manufacturer
Digitus
