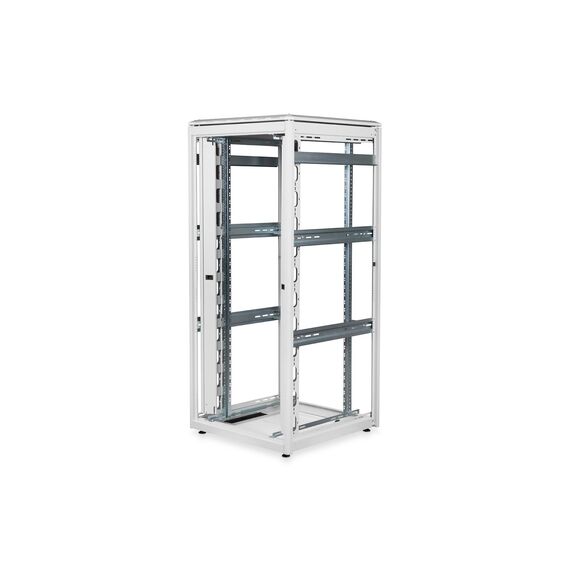

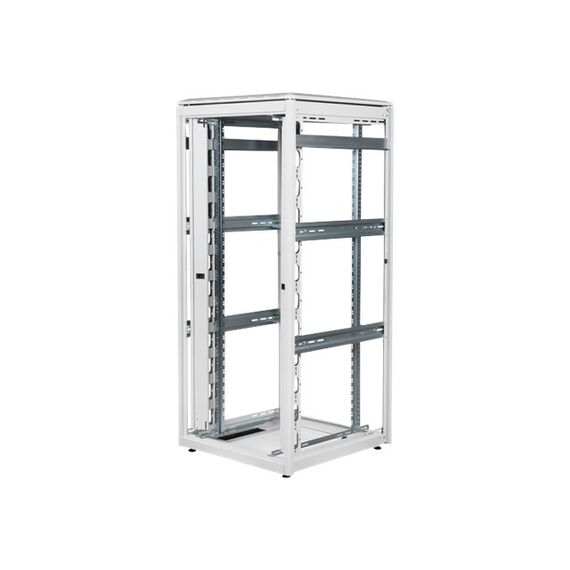

DIGITUS Professional Unique - Rack cabinet - light grey, RAL 7035 - 42U - 19" | DN-31117

Product Features

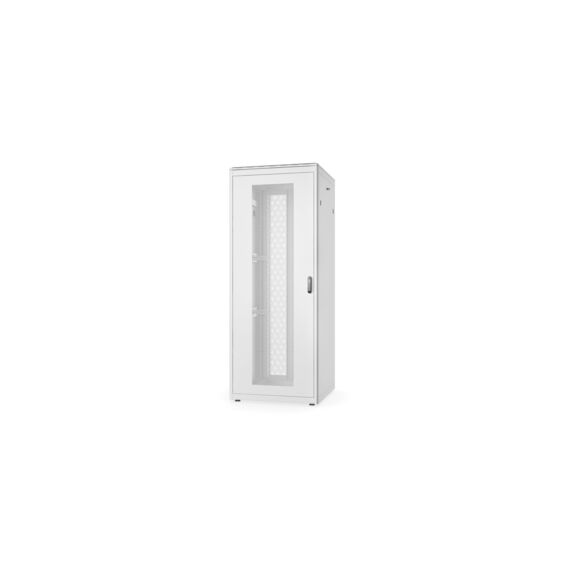

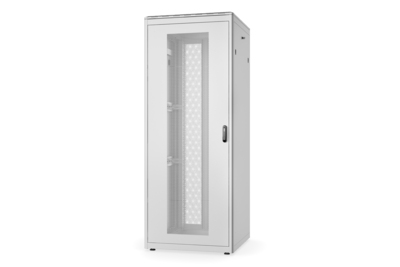

· Steel front and rear door with 70% perforation
· Locking system with swiveling lever handle on the front and rear door (prepared for profile half cylinder; adapter included)

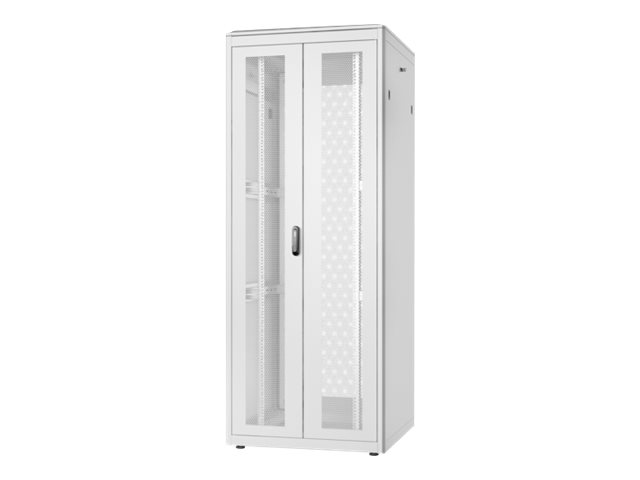

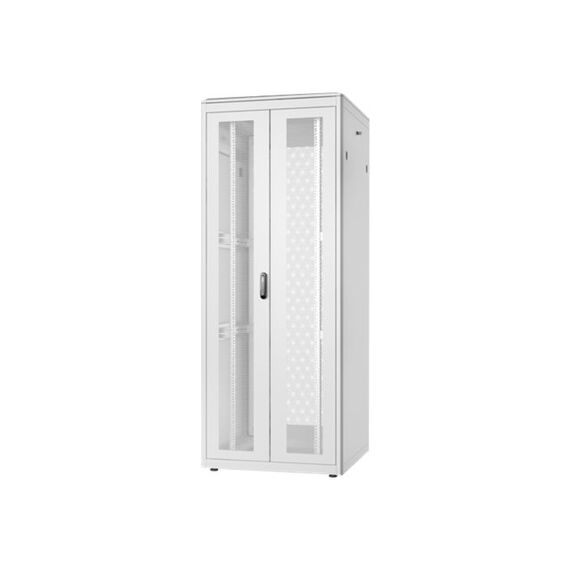

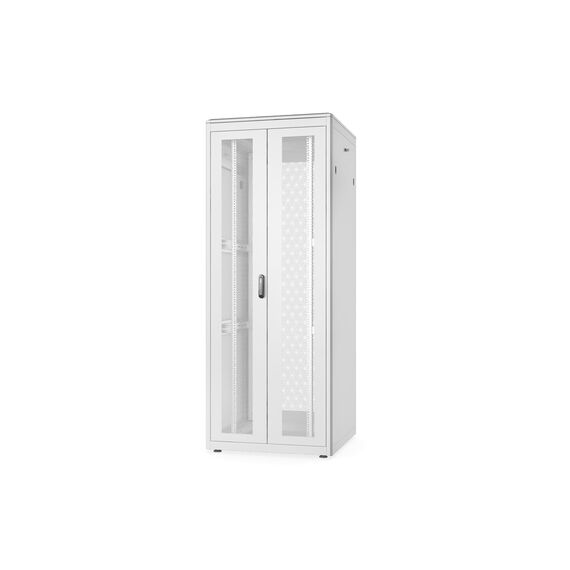

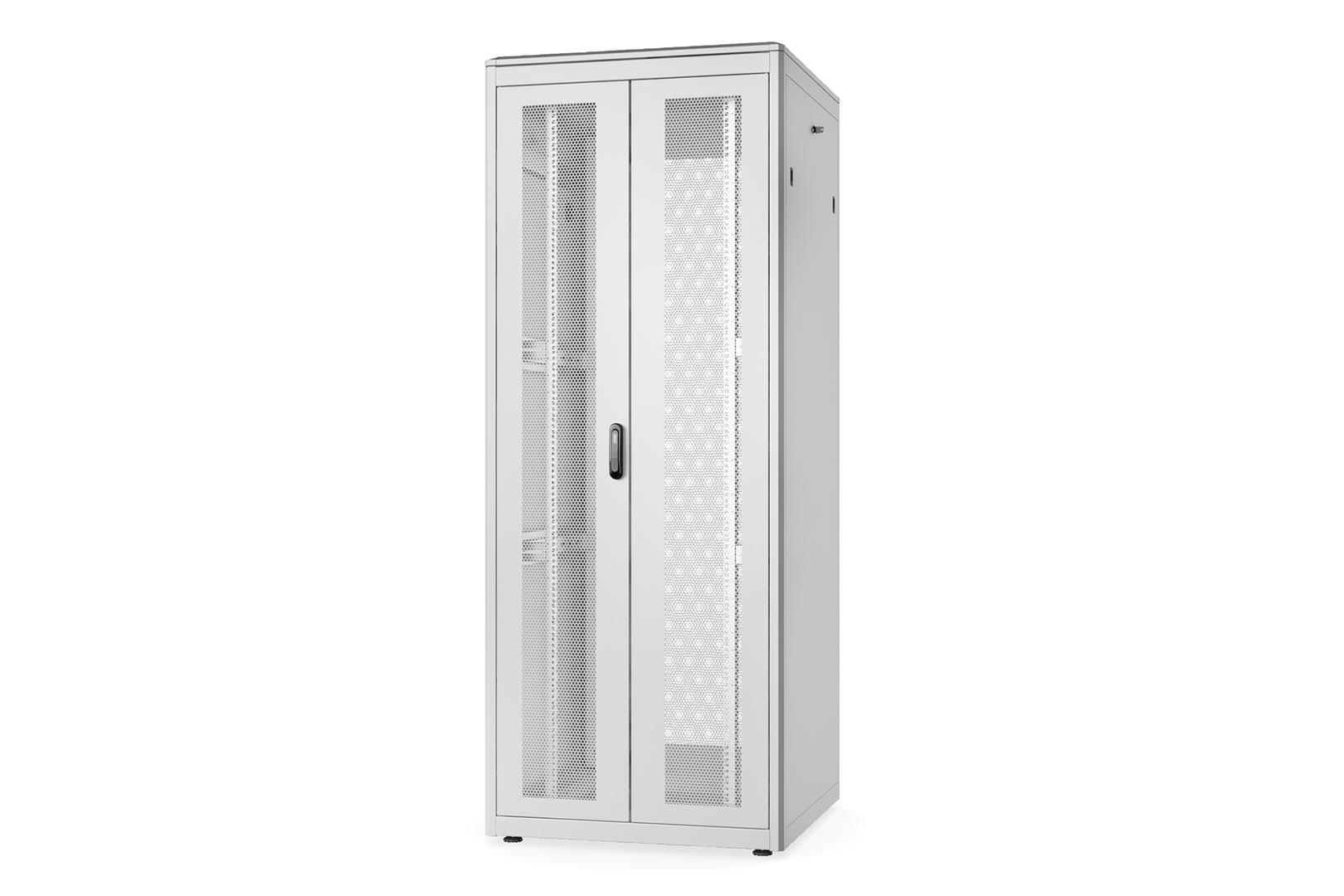

· Front door, single door, rear door double folding
· 1-point-locking-mechanism on all doors
· 120° door opening angle on front- and rear doors
· Side panels are lockable and removable
· incl. 4 pieces of leveling feet already pre-configured under the rack

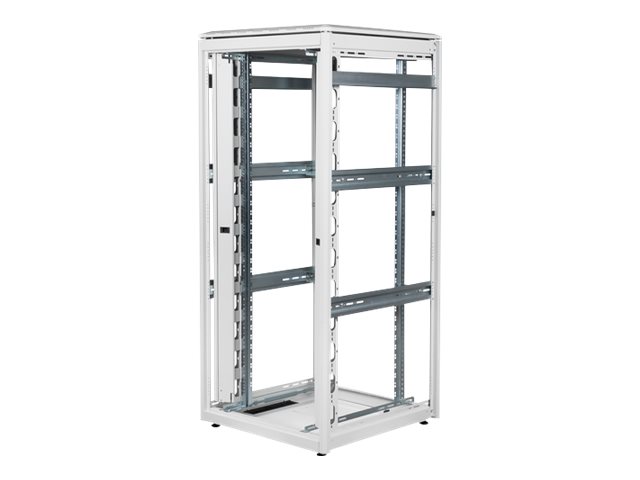

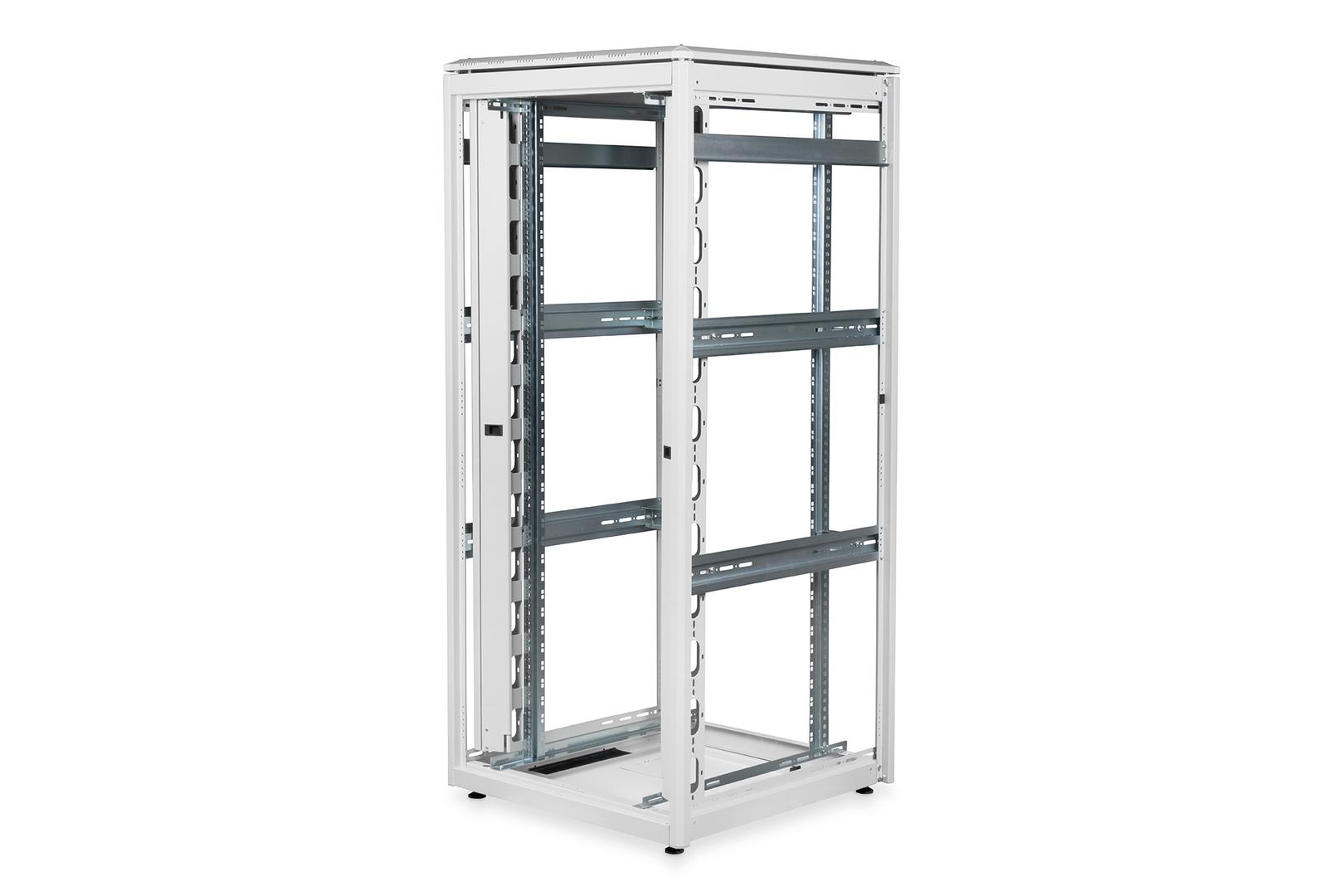

· 483 mm (19) profile rails mounted on the front- and rear side inside of the rack, galvanized
· 483 mm (19) profile rails are adjustable in depth and with height unit marking
· Built-in depth support bars for more stability
· Sliding cable entry with rubber sealing on the base
· Special roof construction for fan unit with added lid which can be unmounted
· Several earthing points for rack components
· Equipment mounting depth min.-max.: 563-743 mm

Special Fetures

· Special roof construction for fan unit with added lid which can be unmounted
· Sliding cable entry with rubber sealing on the base
· Locking system with swiveling lever handle on the front and rear door (prepared for profile half cylinder; adapter included)
· Steel front and rear door with 70% perforation for improved air circulation & heat discharge
· Rack is completely mounted

Product Specification

Product Type	Rack
Rack Type	Cabinet
Product Material	Steel
Package Content	36 washers, 36 screws, 36 captive nuts, adapter for profile half-cylinder, 4 grounding cables
Rack Size	19"
Height (Rack Units)	42U
Width	80 cm
Depth	80 cm
Height	205.3 cm
Weight	153.98 kg
Shipping Dimensions (WxDxH) / Weight	85 cm x 85 cm x 210.3 cm / 157 kg
Colour	Light grey, RAL 7035
Finish	Powder coat
Miscellaneous
Weight Limit	800 kg
Features	Adjustable rails, swivel handle, perforated rear doors, removable side panels, perforated front door, perforated door (70%), lockable side panels, 120° door opening, 1 point-locking mechanism, depth support bars, sliding cable entry, earthing points, solid roof construction for fan unit with added lid
Compliant Standards	IP20
