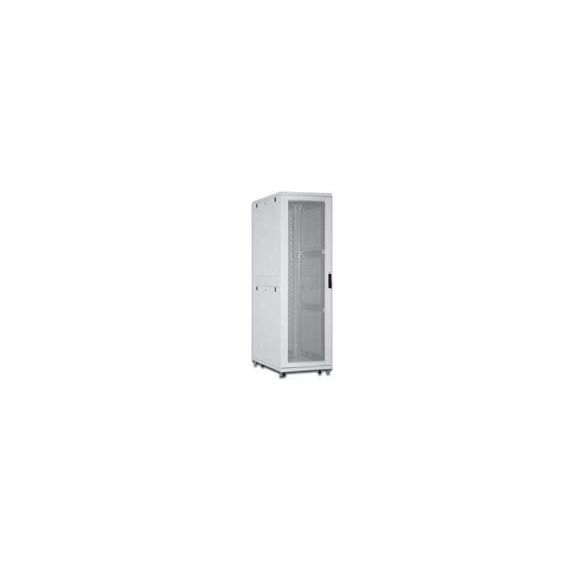

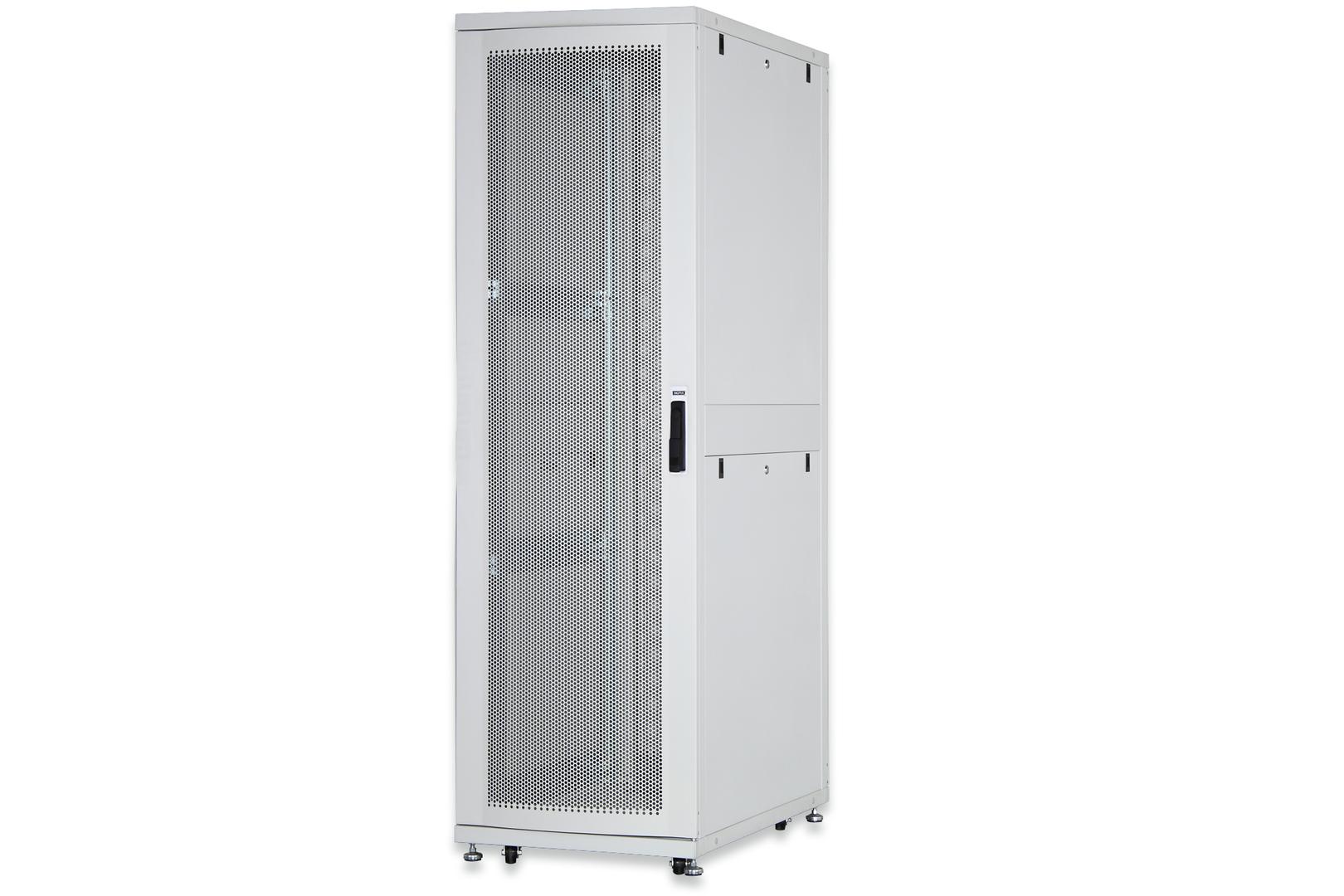

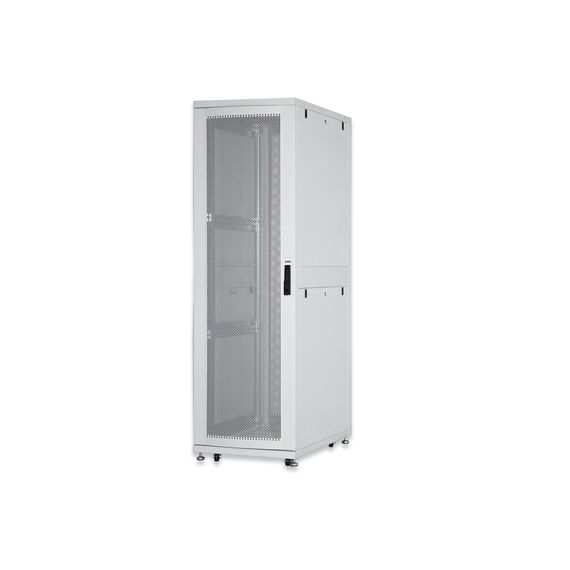

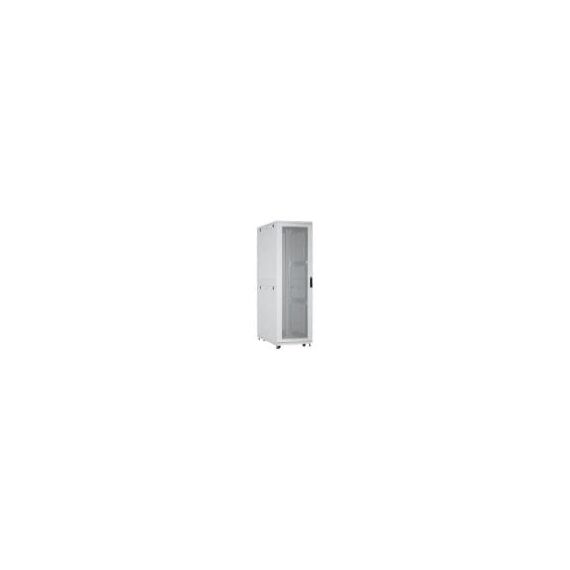

Digitus - Rack - cabinet - light grey, RAL 7035 - 42U - 19" | DN-19 SRV-42U-N-1

Product Features

· Safety class rating IP20
· Front- and rear doors made out of 70% perforated steel
· Front door is curved to the outside in perforated resp. plexi glass area

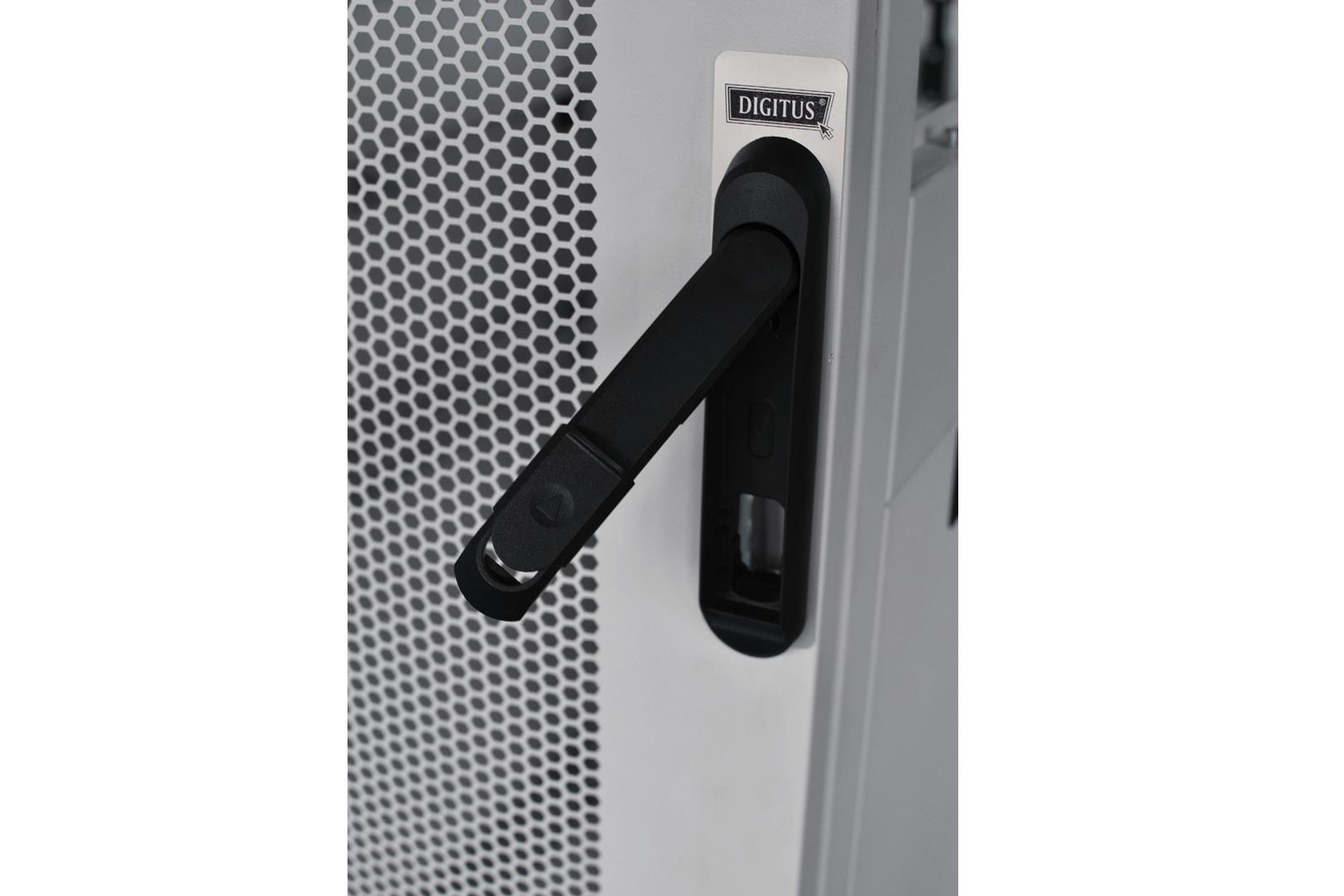

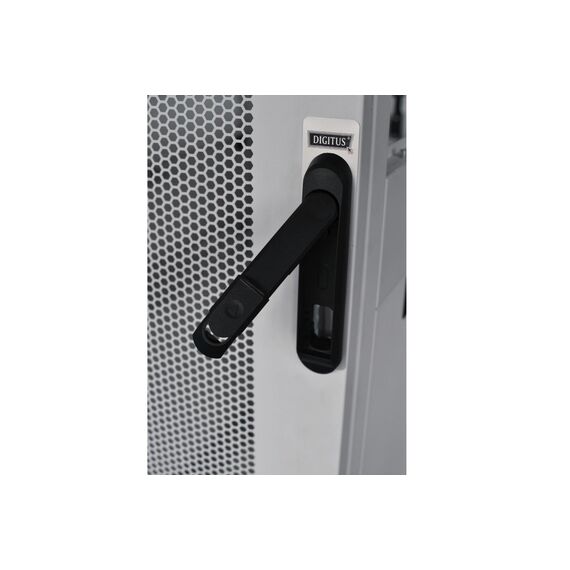

· Lock system with pivot lever on front- and rear door (incl. profile half cylinder lock)
· 230° door opening angle on front- and rear doors
· Double wing opening rear door
· Front door with 4-point locking and rear door with 3-point locking
· Horizontally separated side panels (two per side), lockable and detachable
· incl. 4 pieces of leveling feet and 4 pieces of castor, already pre-configured under the cabinet (front castor are lockable)
· 483 mm (19) profile rails mounted on the front- and rear side inside of the rack, galvanized
· 483 mm (19) profile rails are adjustable in depth and with height unit marking
· Built-in depth support bars for more stability
· Sliding cable entry with rubber sealing on the top and base
· Special roof construction for fan unit, incl. perforated cover
· Several earthing points for rack components
· Incl. installation set (screws, cage nuts, washers)
· Rack is completely mounted
· Equipment mounting depth min.-max.: 675-875 mm

Special Fetures

· Special roof construction for fan unit, incl. perforated cover
· Lock system with pivot lever on front- and rear door (incl. profile half cylinder lock)
· Sliding cable entry with rubber sealing on the top and base

Product Specification

Product Type	Rack
Rack Type	Cabinet
Product Material	Powder-coated steel
Package Content	2 door keys
Rack Size	19"
Height (Rack Units)	42U
Width	60 cm
Depth	100 cm
Height	197 cm
Colour	Light grey, RAL 7035
Miscellaneous
Weight Limit	1000 kg
Features	Lockable side panel, lockable, vented top panel, perforated rear panel, perforated front doors
Compliant Standards	IEC 297-1/2, IEC 917-2-1, IP20
