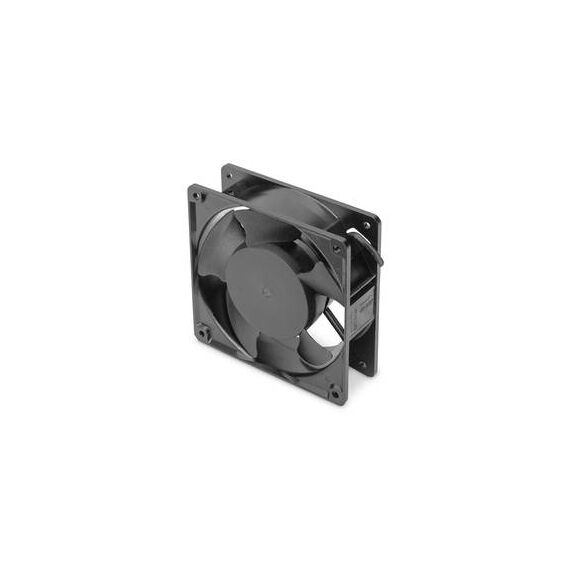

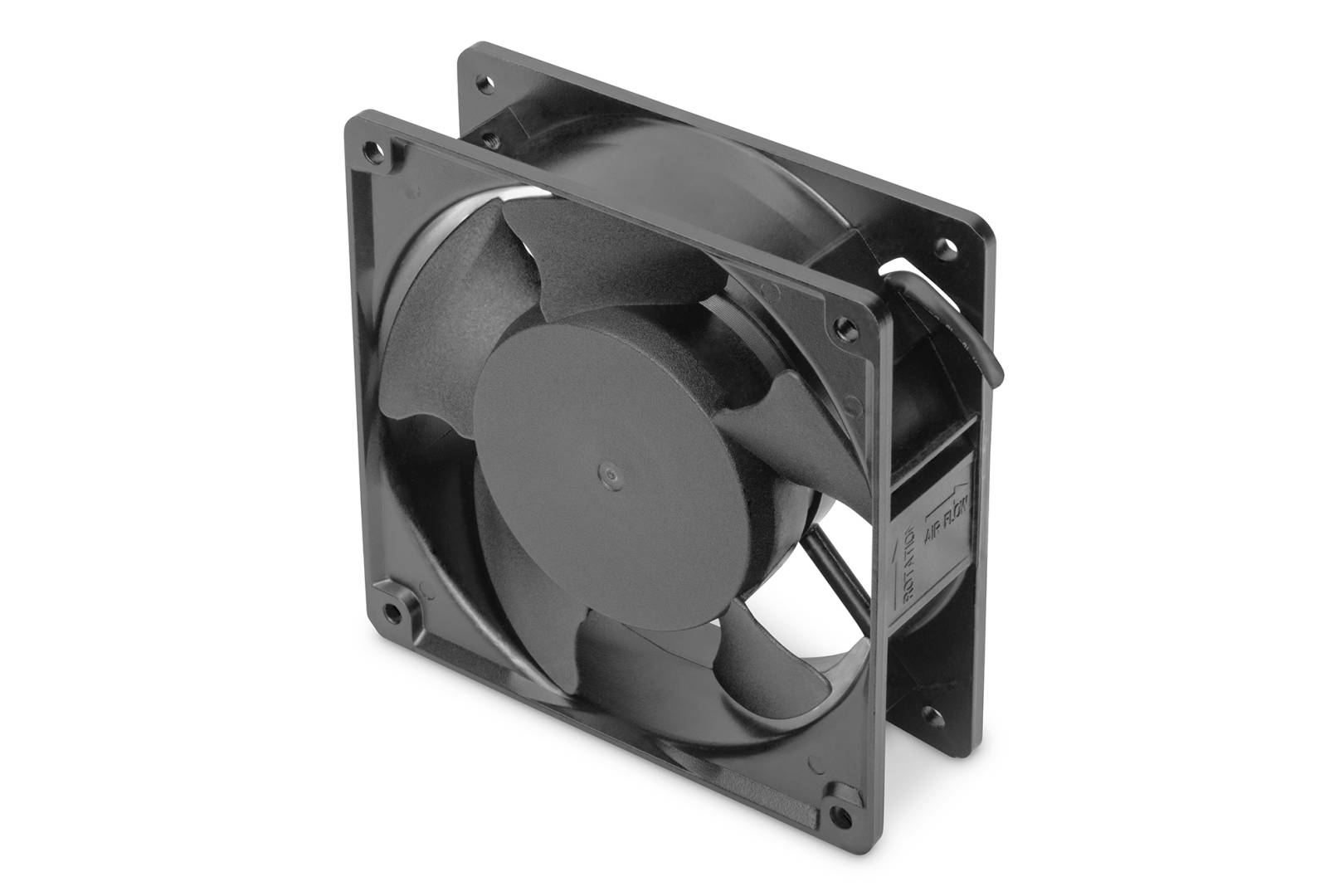

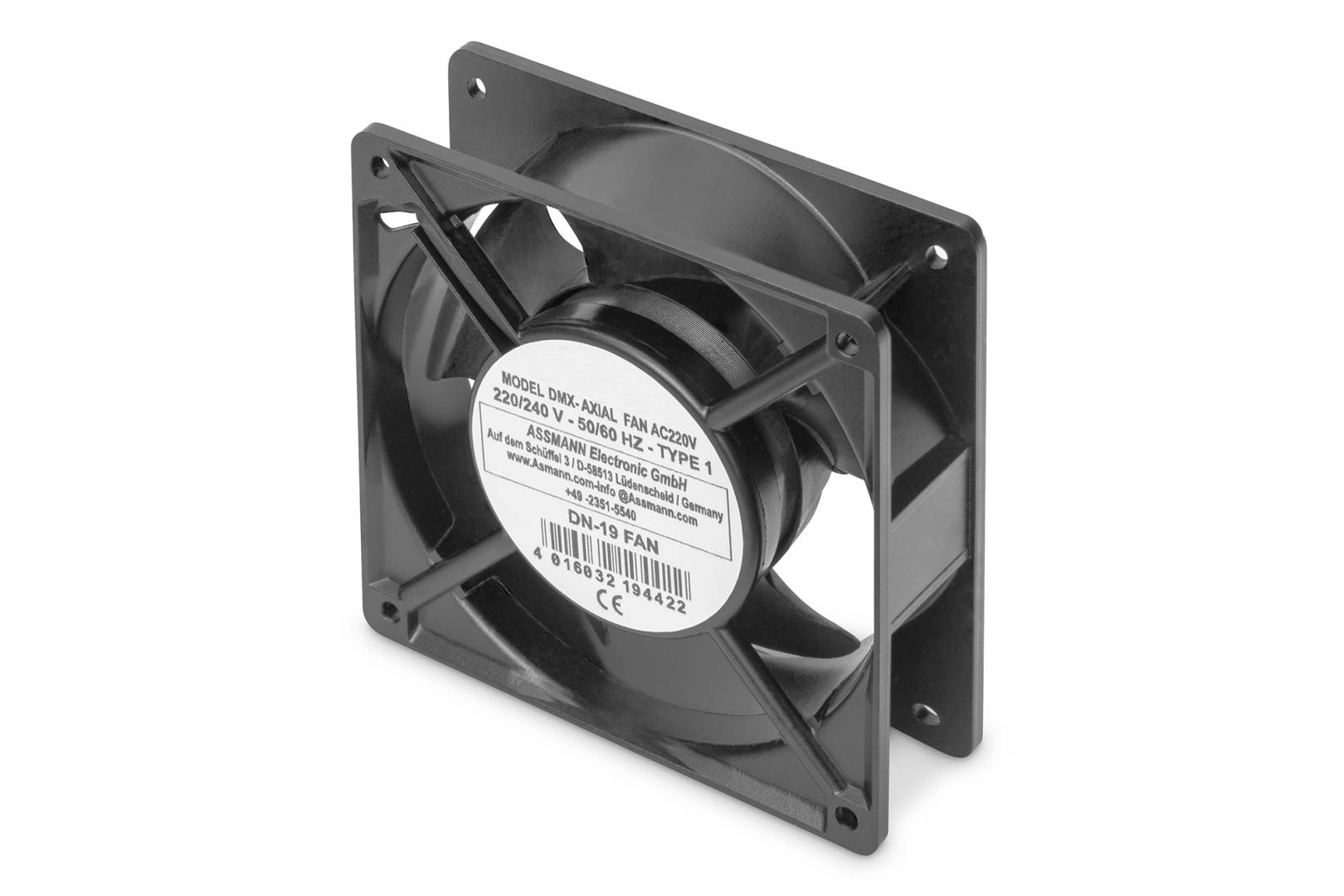

Digitus / Fan unit / RAL 9005 / for P/N: DN-19 07U-6/6, DN-19 09U-6/6, DN-19 12U-6/6, DN-19 16U-6/6, DN-19 20-U, DN-19 20U-6/6 | DN-19 FAN
Please sign in so that we can notify you about a reply
Product Features
· Dimensions: 120 x 120 x 38 mm· Weight: 530 g
· 1-phase
· Power supply: 230 VAC
· Frequency: 50/60 Hz
· Power output: 0.14/0.12 A
· Power input: 22/21 W
· Speed: 2700/3100 RPM
· Air circulation: 161.40 / 195.38 m³/h
· Noise level: 42/47 dbA
· Operating temperature: -30 °C to +75 °C
· Life cycle: 50000 h
· Housing material: Die-cast aluminum alloy
· Caster material: UL 94-0 plastic
· Motor protection: Impedance protected
· Ball bearing

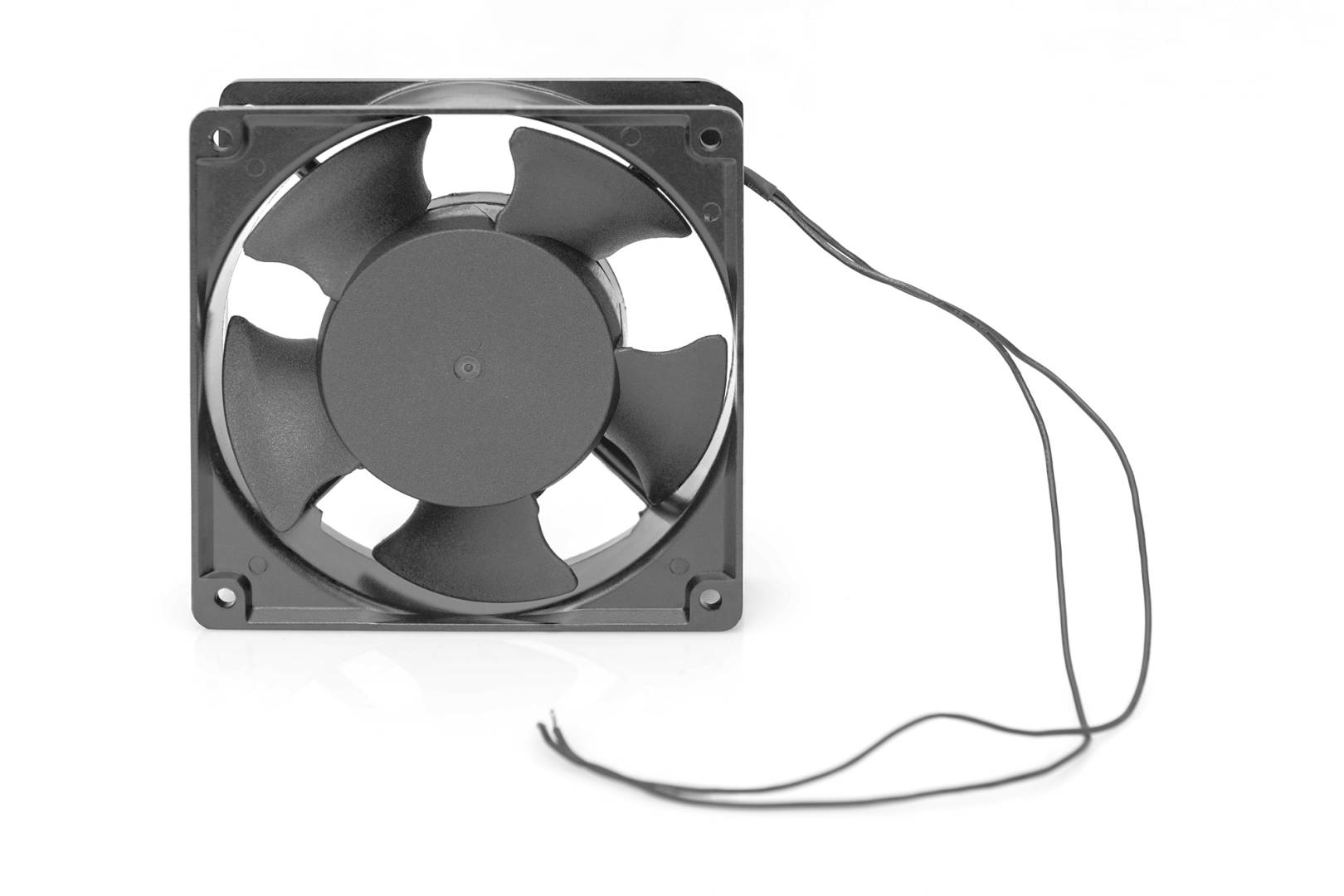

· Connection cable: Lead wires
Special Features
· Serves as replacement ventilator for ventilator units from DIGITUS®· Can alternatively be commissioned as an individual ventilator
Product Specification
| Product Type | Fan unit |
| Width | 12 cm |
| Depth | 12 cm |
| Height | 3.7 cm |
| Colour | RAL 9005 |
| Heatsink & Fan | Heatsink & Fan |
| Noise Level | 47 dB |
| Compatibility Information | Compatibility Information |
| Designed For | P/N: DN-19 07-U, DN-19 07U-6/6, DN-19 09-U, DN-19 09U-6/6, DN-19 12-U, DN-19 12U-6/6, DN-19 16-U, DN-19 16U-6/6, DN-19 20-U, DN-19 20U-6/6 |
Features - Digitus - DN-19 FAN
More Details
Product Code
03:186819
EAN Code
4016032194422
Manufacturer
Digitus
