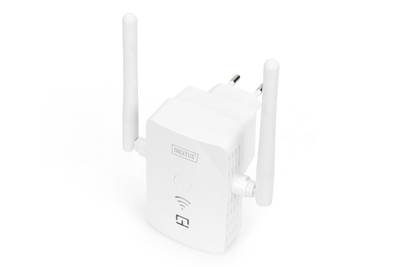

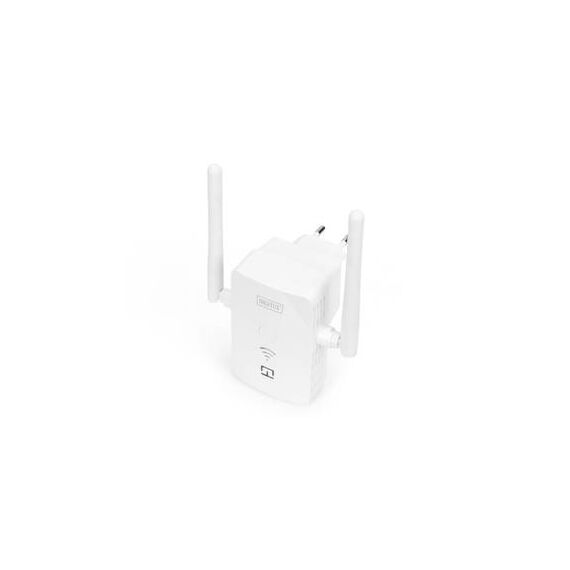

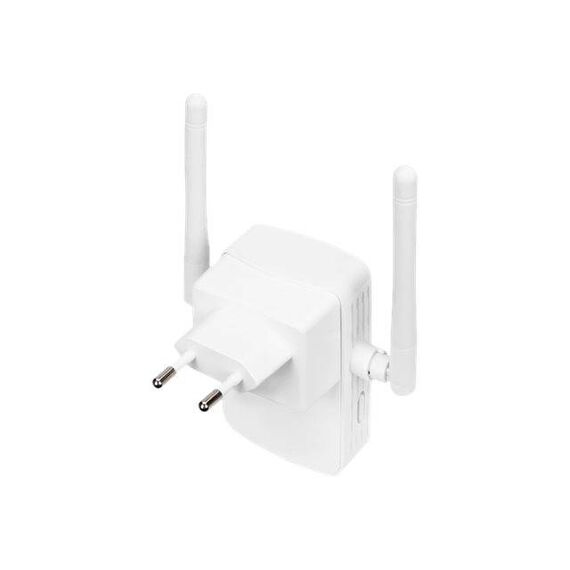

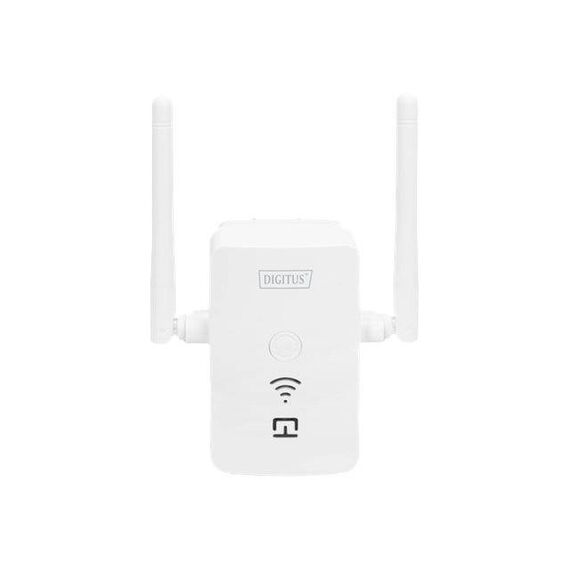

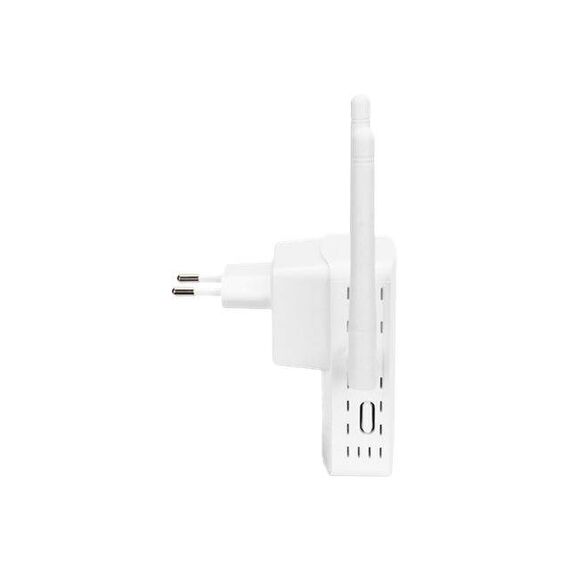

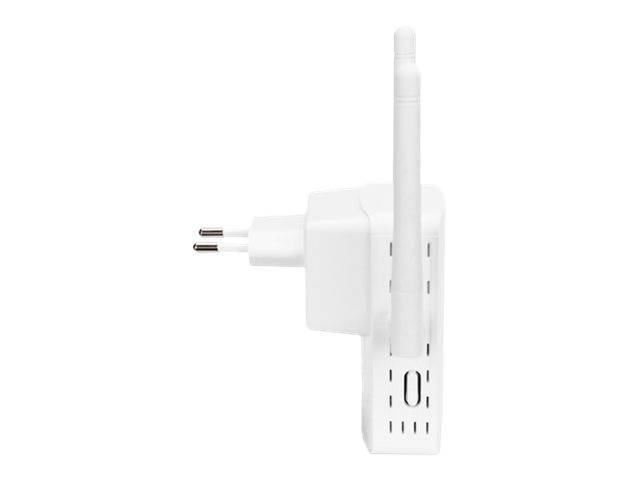

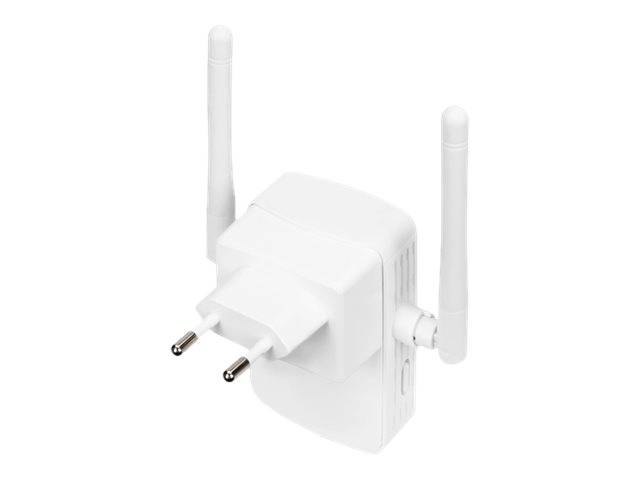

DIGITUS / Radio access point / Wi-Fi / 2.4 GHz | DN-7072

Product Features

· Data transfer rate: max. 300 Mbps
· LEDs on the repeater indicate the reception strength and system information
· Reset button to reset to factory settings
· Configuration via WPS button or web interface
· Wireless LAN frequency: 2.4 GHz
· Wireless LAN standards: 802.11 b/g/n
· Encryption: WPA2
· Transfer strength: < 20 dBm (EIRP) / 100 mW
· Antennas: 2 omni-directional WLAN antennas that can be rotated 180° on each side for optimal emission in all directions
· Range: ca. 20 m
· Modes: Access Point / Repeater
· USB connection: USB A, 5 V / 500 mA
· RJ45 connection: 10/100 Mbit LAN
· Plug designation: Euro plug Type C (CEE 7/16)
· Operating voltage: 100 - 240 V AC, 50/60 Hz
· Dimensions: W 9.5 x D 11.4 x H 8.3 cm
· Weight: 100.6 g

Special Features

· Individually extend your home WLAN network
· 2 external, omni-directional WLAN antennas ensure first-class reception for your WLAN devices
· Option of connecting with your router by pressing the WPS button
· Option of convenient configuration via web interface with PC and smartphone
· LEDs indicate the current reception strength at all times
· USB connection for charging mobile devices
· RJ45 network connection for direct connection of network devices
· No installation required - Simply plug the repeater into a free socket and connect via WPS
· Compatible with all common routers (IEEE 802.11 b/g/n)

Product Specification

Device Type	Radio access point
Width	9.5 cm
Depth	11.4 cm
Height	8.3 cm
Weight	100.6 g
Networking	Networking
Form Factor	External
Connectivity Technology	Wireless
Data Transfer Rate	300 Mbps
Data Link Protocol	IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
Frequency Band	2.4 GHz
Max Range Indoors	20 m
Status Indicators	Status, signal strength
Features	Access Point operational mode, Wi-Fi Protected Setup (WPS), reset button, USB charger, wireless extender mode, WPS button
Encryption Algorithm	WPA2
Compliant Standards	IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
Aerial	Aerial
Antenna	External
Antenna Qty	2
Directivity	Omni-directional
Expansion / Connectivity	Expansion / Connectivity
Interfaces	1 x USB (power only) - Type A ¦ 1 x 100Base-TX - RJ-45
Power	Power
Power Device	Internal power supply
Voltage Required	AC 100-240 V (50/60 Hz)
