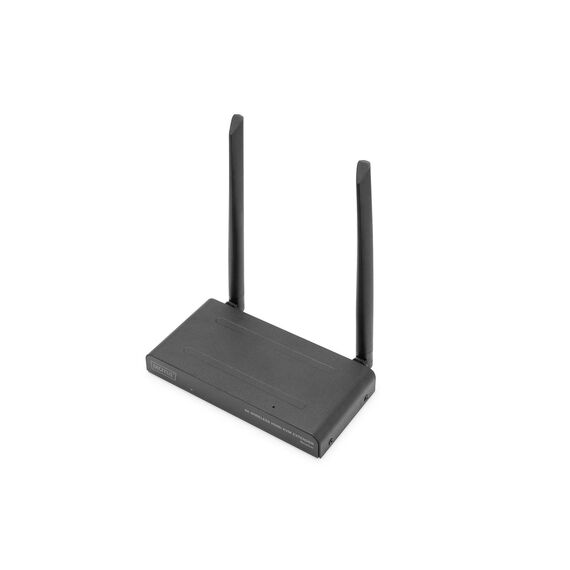

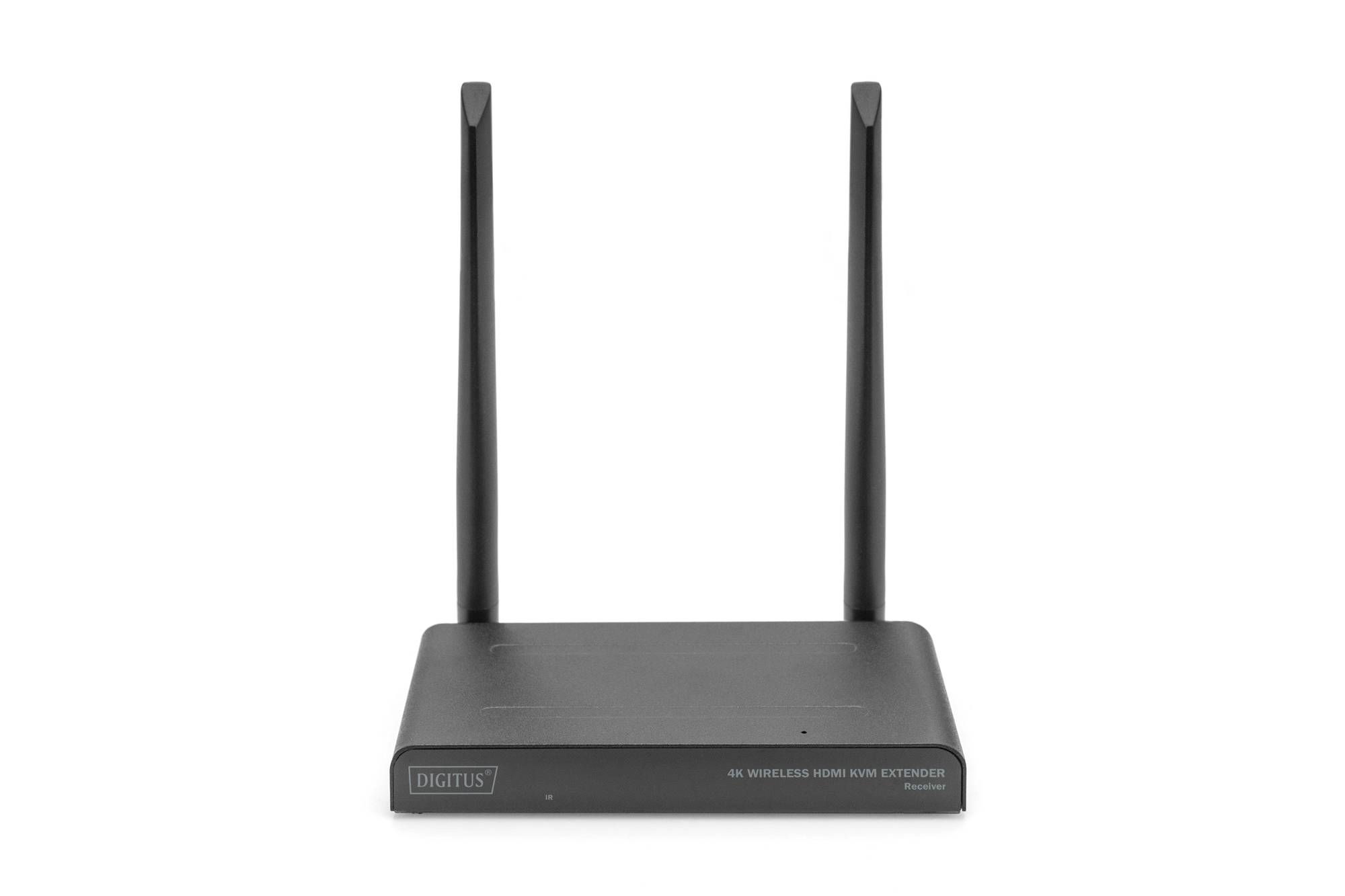

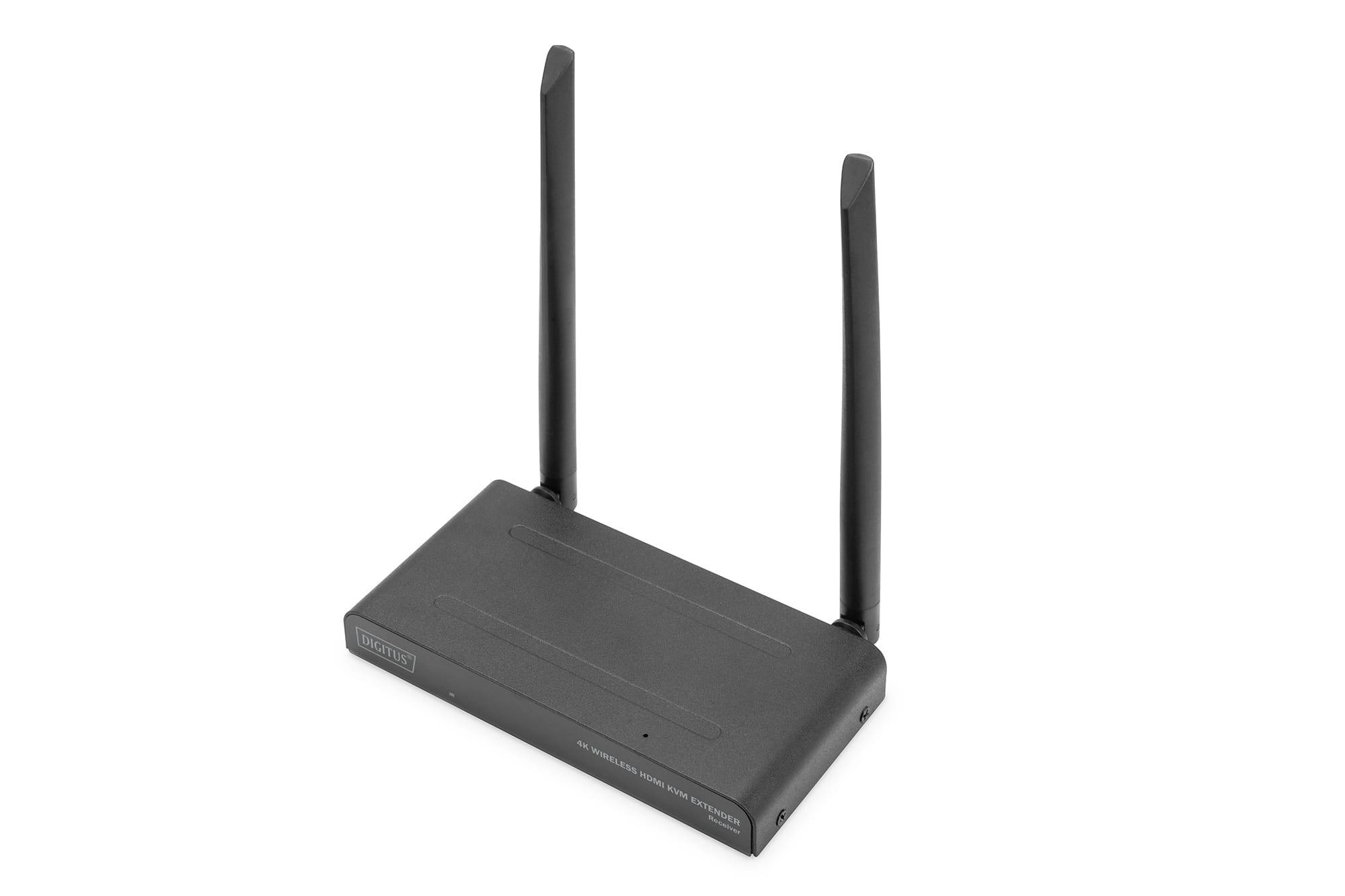

DIGITUS Receiver unit for 4 K Wireless HDM KVM Extender Set (DS-55328) / KVM | DS-55329

Product Features

· Point-to-multipoint connection - 1x transmitter (source) + up to 4x receivers (output device)
· Touch Screen Back Control - Supports touch panels (via USB connection on the receiver)
· Wireless channel: IEEE 802.11.b/g/n/ac
· Frequency band: Dual Band, 2,4/5G
· Compression: H.265
· Latency: approx. 100 ms
· AES 128 bit encryption
· Authentication protocol: WPA2 (WPAS-PSK / WPA2-Enterprise)
· HDMI version: 2.0

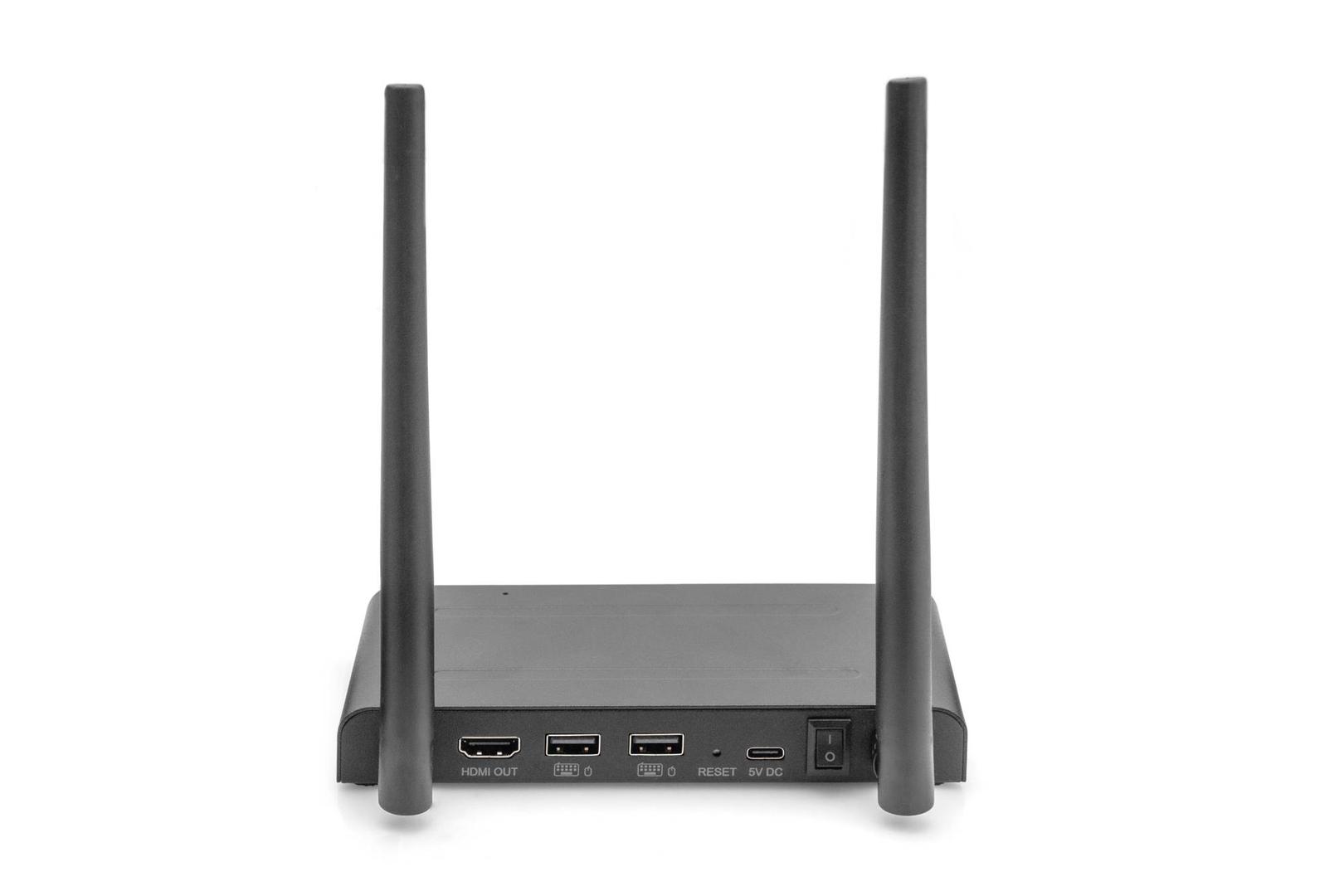

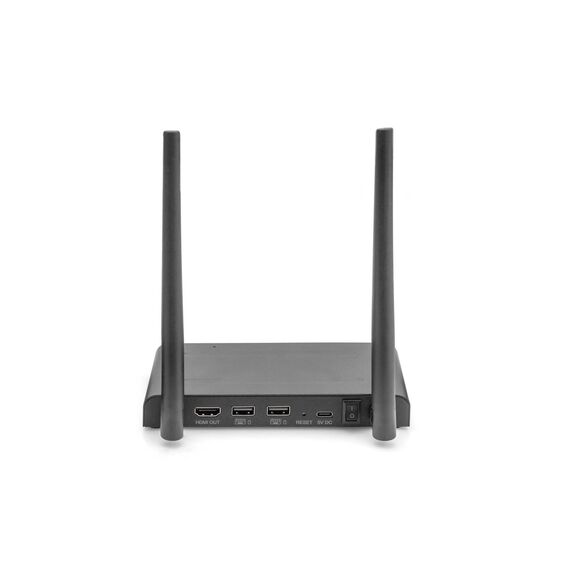

· Receiver unit connections:
· 1x HDMI output (output device, 4K/60Hz max.)
· 2x USB-A input (connection of mouse/keyboard/touch panel)
· 1x USB-C input - connection power adapter (5V/2A)
· 1x Reset button
· 1x On/Off switch
· Housing: Metal
· Color: black
· Dimensions: W 15.4 x D 7.75 x H 2.1 cm
· Weight: 330 g
· Power consumption (1 unit): approx. 5W
· Operating temperature: 0-40 °C
· Manufacturers notice:
· The transmission distance with a restricted visual range cannot be determined generally and depends on the specific circumstances where installed
· Walls, glass etc. shorten the signal range or cause signal losses

Special Features

· Point-to-multipoint connection - 1x transmitter (source) + up to 4x receivers (output device)
· Supports wireless AV signal transmission with resolutions up to 4K UHD (2160p/30Hz max.) via transmitter
· Touch Screen Back Control - Supports touch panels (via USB connection on the receiver)
· Wireless channel: IEEE 802.11.b/g/n/ac
· Frequency band: Dual Band, 2,4/5G
· Compression: H.265
· Latency: approx. 100 ms
· AES 128 bit encryption
· Authentication protocol: WPA2 (WPAS-PSK / WPA2-Enterprise)
· HDMI version: 2.0

Product Specification

Type	Cable / adapter set
Video / network interfaces	HDMI
Technical specifications	Technical specifications
Application	Digital / Display / Video
Video/AV and network connections	HDMI
