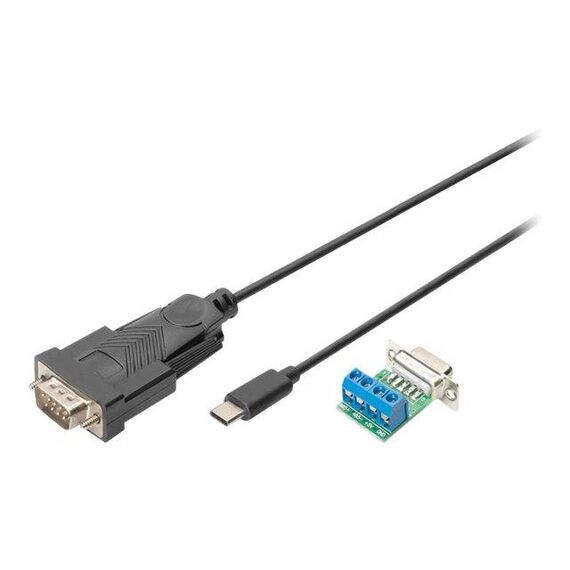

DIGITUS / Serial adapter / USB 2.0 / serial / serial RS-485 | DA-70168
Please sign in so that we can notify you about a reply
Product Features
· Provides a serial RS485 interface via USB-C port· Meets the USB 2.0 standard
· Downward compatibility with USB 1.1
· Adaptable data transfer rates of between 75 and 128,000 bits per second.
· Supports remote wake up and power management
· Chipset: FTDI FT232RL+SP485
· Customizable with the FTDI FT232RL+SP485 chipset

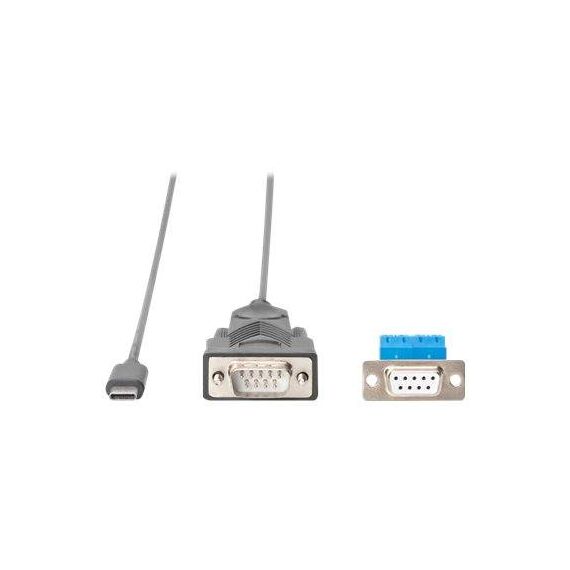

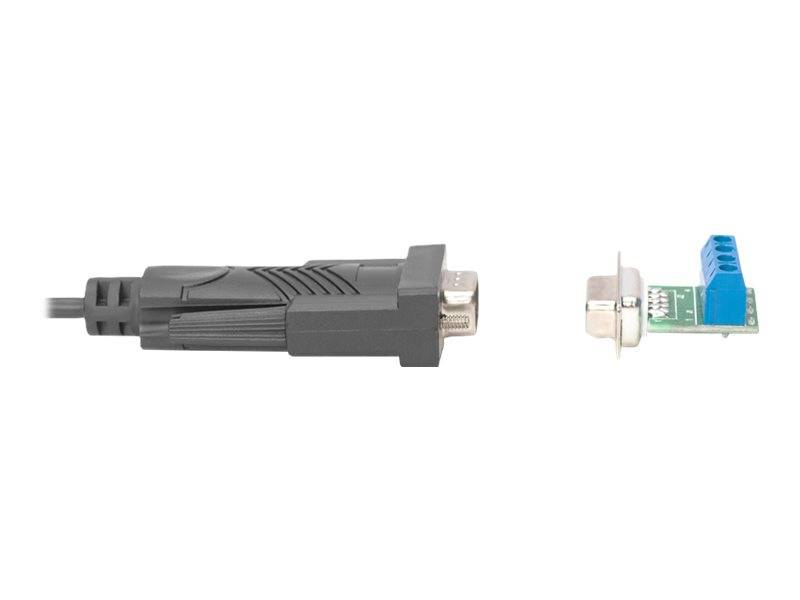

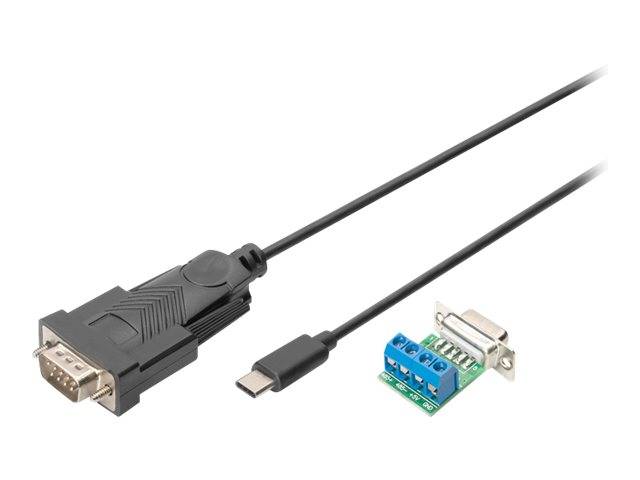

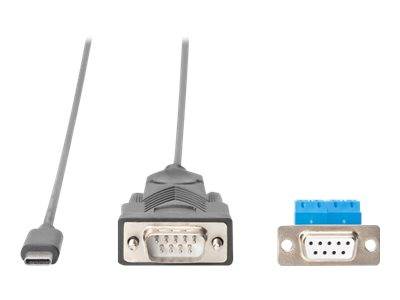

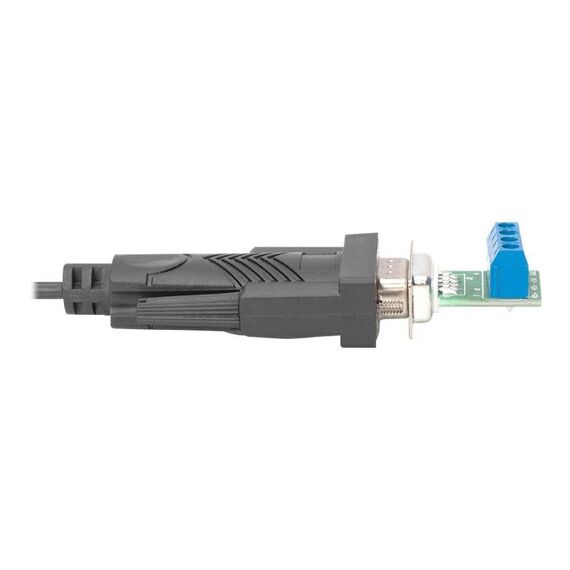

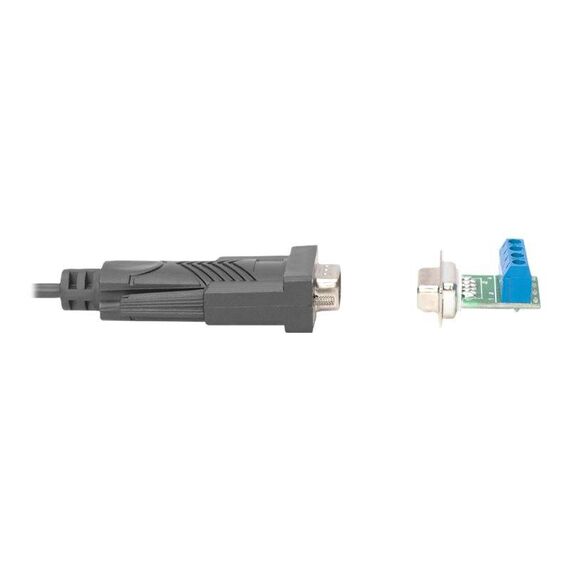

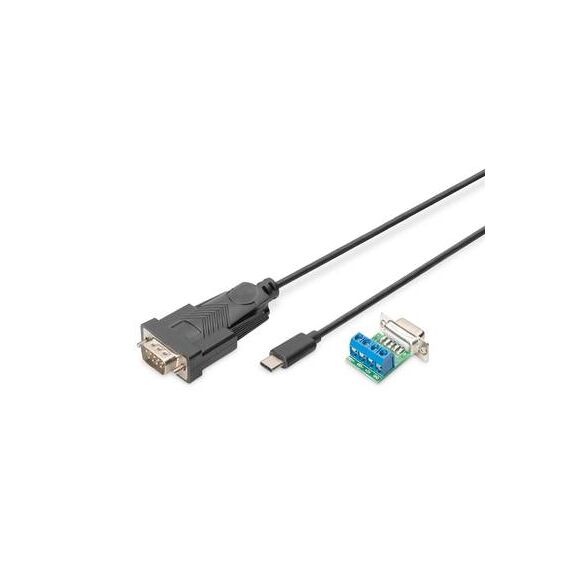

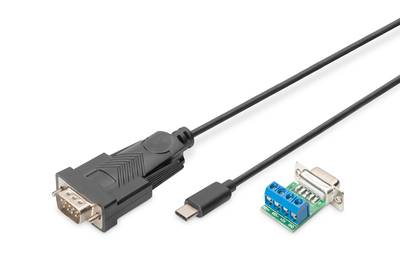

· 1× RS485 plug (Sub D 9-pole) / 1× USB-C plug
· Interface: Full duplex
· Gilded contacts
· Incl. USB extension cable, approx. 1 m
· Supports Windows 10, 8.1, 8, 7, Vista, XP, Mac OS X and Linux
· True 3.3V CMOS drive output and TTL input
Special Features
· Enables data exchange between PCs and serial peripheral devices (machine control systems, modems, sensors, etc.) via the USB-C port.· Meets the USB 2.0 standard
· FTDI FT232RL+SP485 chipset for individual configuration
· Incl. 1 m USB extension cable
Product Specification
| Device Type | Serial adapter |
| Form Factor | External |
| Interface (Bus) Type | USB 2.0 |
| Networking | Networking |
| Connectivity Technology | Wired |
| Cabling Type | Serial RS-485 |
| Data Link Protocol | Serial |
| Data Transfer Rate | 128000 bps |
| Features | Remote Wake Up, full duplex mode, remote power management, gold plated connectors, 3.3VDC TTL/CMOS compatible |
| Compliant Standards | USB 1.1, USB 2.0 |
| Processor / Memory | Processor / Memory |
| Processor | 1 x FTDI FT232RL + SP485 |
| Expansion / Connectivity | Expansion / Connectivity |
| Interfaces | 1 x USB-C - male ¦ 1 x RS-485 (TTL) - 9 pin D-Sub (DB-9) |
| Miscellaneous | Miscellaneous |
| Cables Included | 1 x USB-C cable - 1 m |
| Software / System Requirements | Software / System Requirements |
| Software Included | Drivers & Utilities |
| OS Required | Linux, Apple MacOS X, Microsoft Windows XP, Microsoft Windows 7, Microsoft Windows Vista, Windows 8, Windows 8.1, Windows 10 |
Features - Digitus - DA-70168
More Details
Product Code
03:187173
EAN Code
4016032473046
Manufacturer
Digitus
