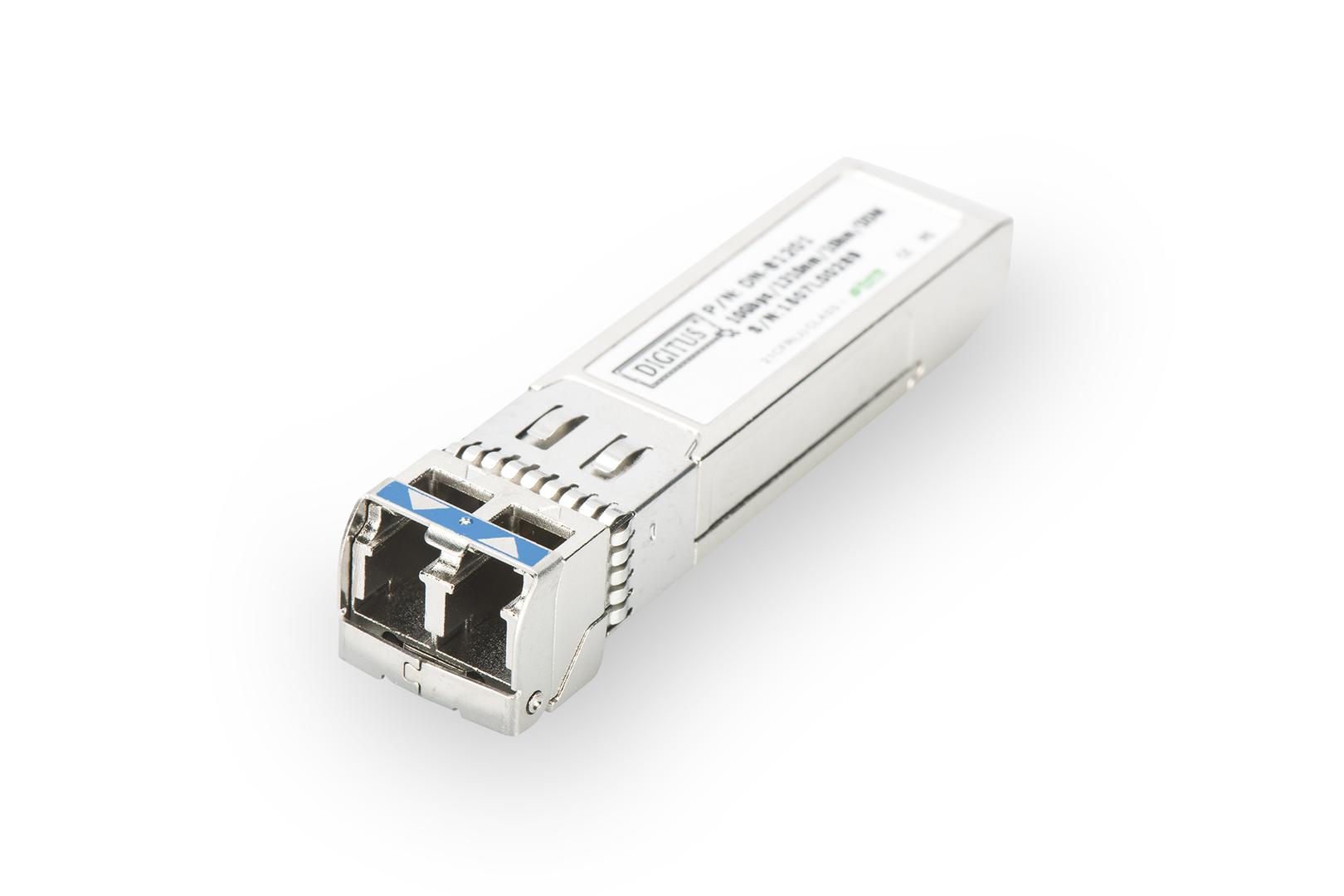

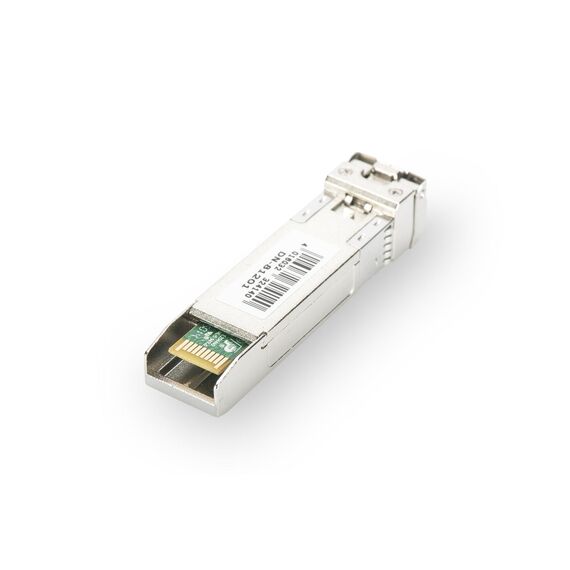

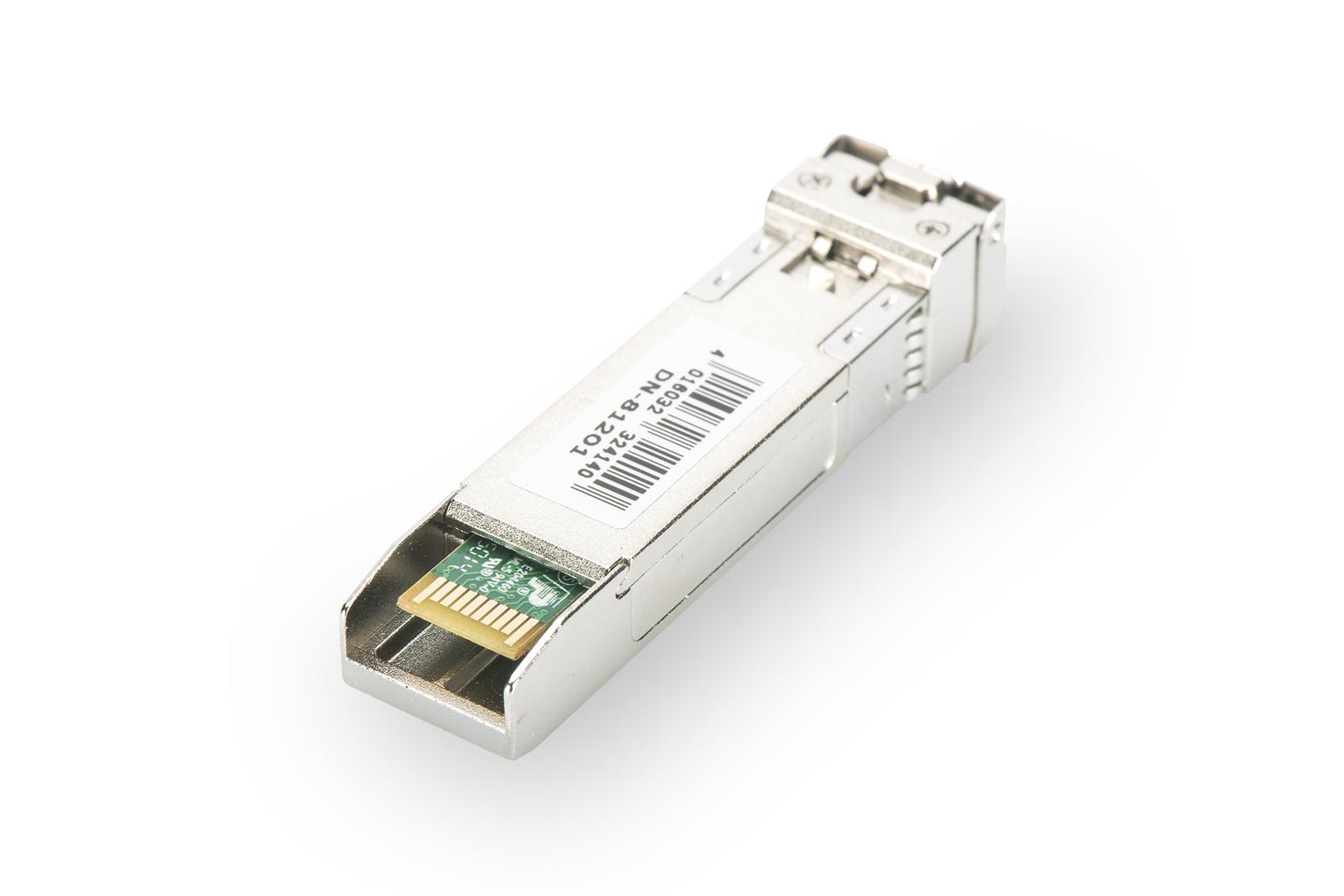

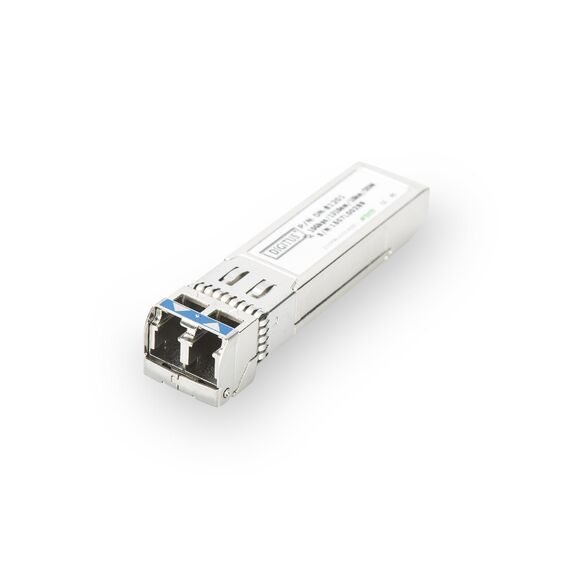

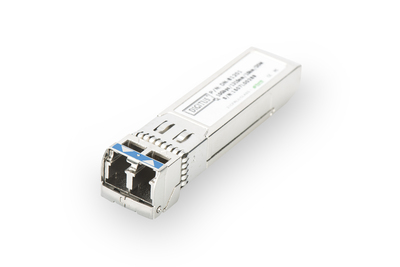

DIGITUS - SFP+ transceiver module - 10Gb Fibre Channel - over fibre optic - LC single-mode - up to 10 km - 1310 nm | DN-81201-01
DIGITUS - SFP+ transceiver module - 10Gb Fibre Channel - over fibre optic - LC single-mode - up to 10 km - 1310 nm | DN-81201-01
€59.46 inc. VAT
DN-81201-01
Find similar
Delivery
Payment options
Please sign in so that we can notify you about a reply
Product Features
· Mini GBIC SFP (Small Form Factor Pluggable) module· Supports DDM (Digital Diagnostic Monitoring)
· High quality and excellent reliability
· 10 Gbps Maximum Data Rate
· Compliant to IEEE802.3ae 10 Gigabit Standard
· Class 1 laser product compliant with EN 60825-1
· Easy plug-and-play installation
· MSA (Multi Source Agreement) compliant
· Hot pluggable

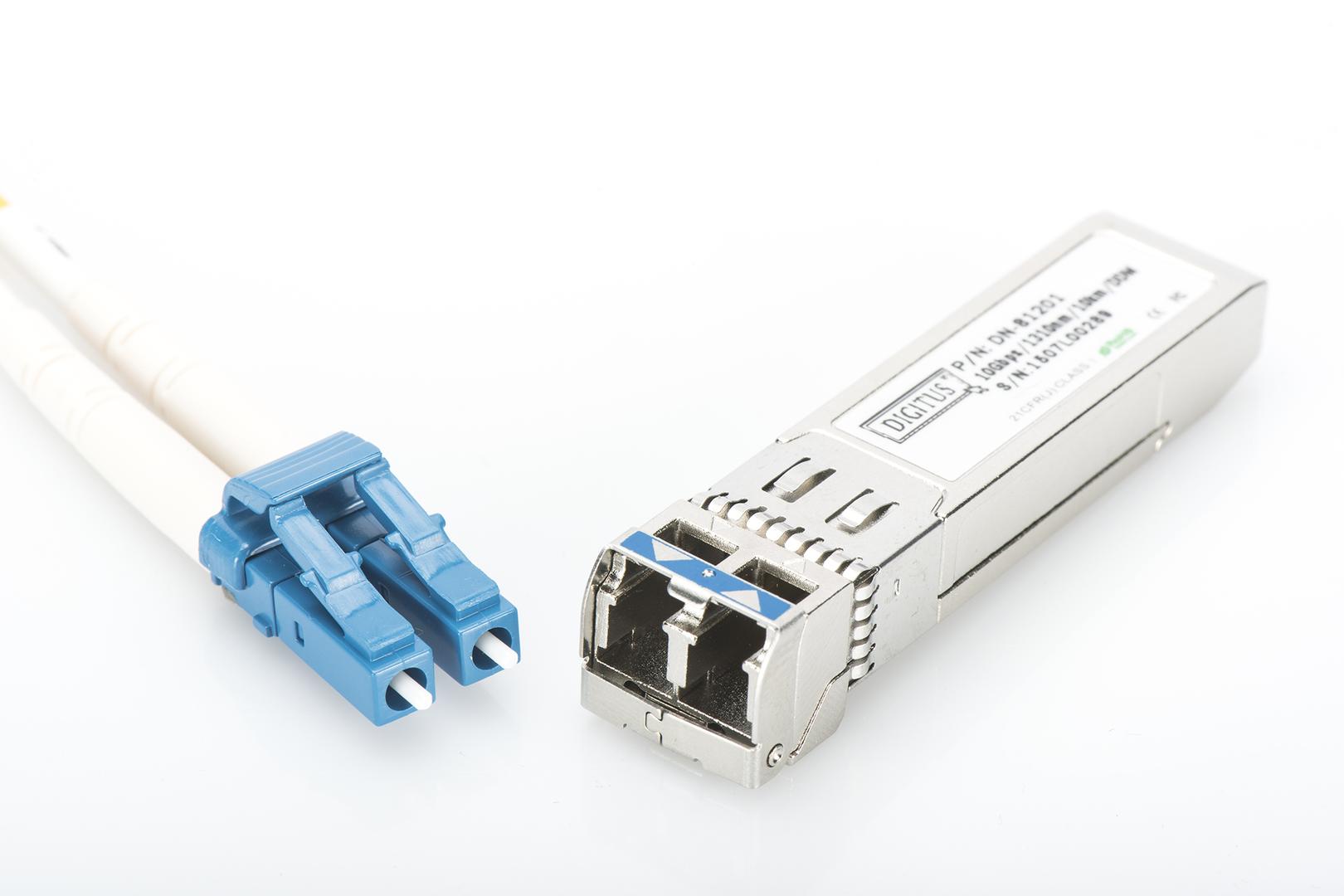

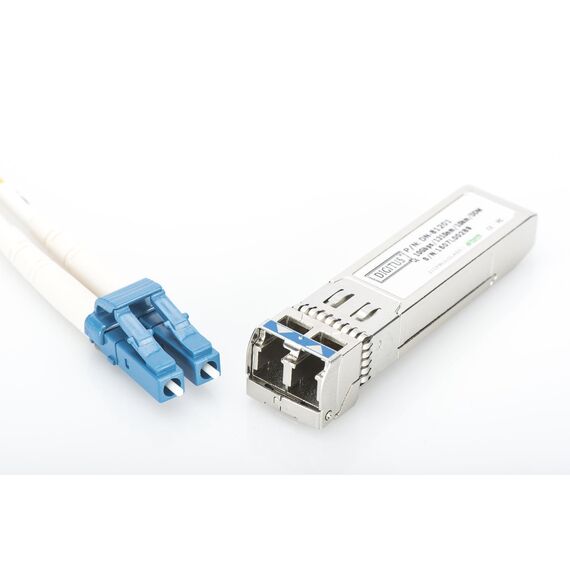

· Connector: 1x LC Duplex
· Wavelength: 1310nm
· Transmission Power: Minimum -8 dBm, Maximum -0,5 dBm
· Sensitivity Receiving Power: Minimum -12.5 dBm
· For a distance of up to 10,0km
· Safe fast-locking mechanism
· Operating temperature: 0 °C ~ 70 °C
· HP compatible
· HP-Aruba compatible
Special Fetures
· The Plug & Play fiber optic link enables quick installation· Sends data in high quality and additionally provides excellent reliability
· Distance up to 10km at a maximum data rate of 10Gbps
· Operating temperature: 0 °C ~ 70 °C
Product Specification
| Device Type | SFP+ transceiver module |
| Form Factor | Plug-in module |
| Networking | |
| Connectivity Technology | Wired |
| Data Link Protocol | 10Gb Fibre Channel |
| Optical Wave Length | 1310 nm |
| Max Transfer Distance | 10 km |
| Features | Digital Diagnostics Monitoring (DDM), unidirectional broadcasting mode, HP (Aruba) compatible, hot-pluggable |
| Compliant Standards | IEEE 802.3ae |
| Expansion / Connectivity | |
| Interfaces | 2 x 10Gb Ethernet - LC single-mode |
| Miscellaneous | |
| Compliant Standards | Plug and Play, EN 60825-1, MSA |
| Dimensions & Weight (Shipping) | |
| Shipping Width | 11.5 cm |
| Shipping Depth | 3 cm |
| Shipping Height | 9 cm |
| Shipping Weight | 100 g |
| Environmental Parameters | |
| Min Operating Temperature | 0 °C |
| Max Operating Temperature | 70 °C |
Features - Digitus - DN-81201-01
More Details
Product Code
04:365844
EAN Code
4016032370031
Manufacturer
Digitus
