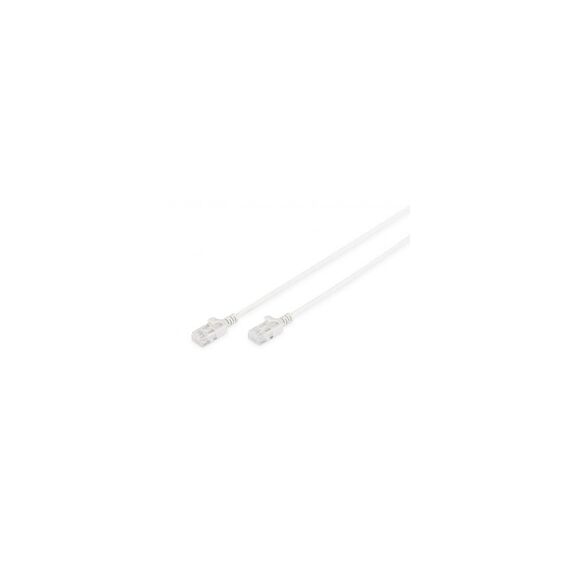

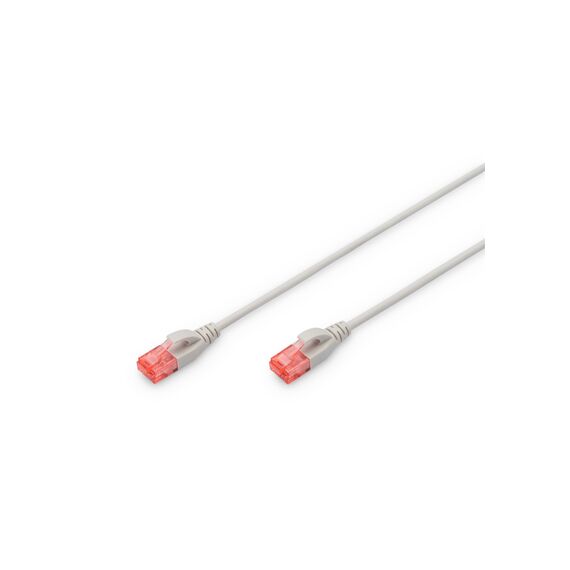

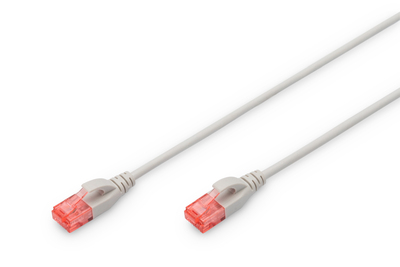

DIGITUS Slim - Patch cable - RJ-45 (M) to RJ-45 (M) - 1 m - UTP - CAT 6 - halogen-free, molded, snagless - grey | DK-1617-010S
DK-1617-010S
Find similar
Delivery
Payment options
Please sign in so that we can notify you about a reply
Product Features

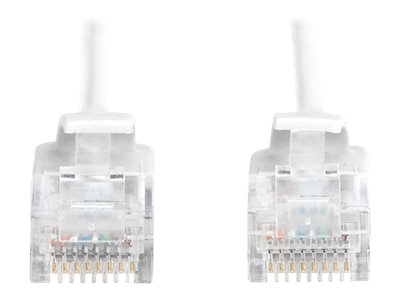

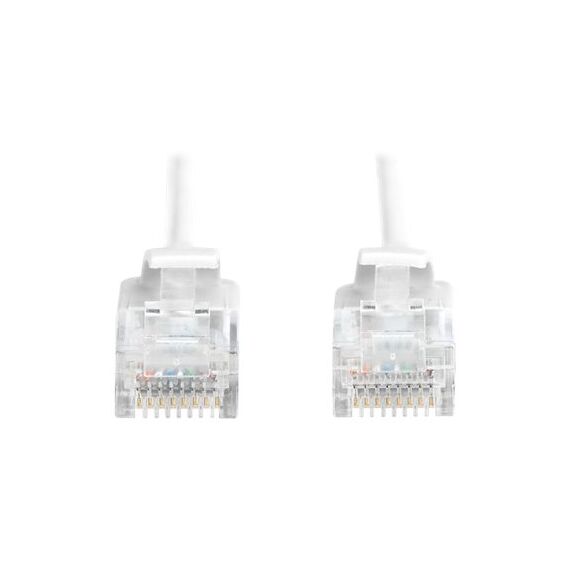

· 2x RJ45 connectors (8P8C)· Covers with kink protection, strain relief and locking lever protection
· Length indication on hoods
· Inner conductors: Copper (Cu)
· Halogen free: yes
· Pin Assignment: 1:1
· Category: 6
· AWG cross-section: 28
· Anti-kink sleeve: moulded
· Connector 1 type: RJ45 8(8)
· Connector 2 type: RJ45 8(8)
· Cable design: 4x2
· Flame retardant version: yes
· Anti-kink sleeve colour: Grey
· Locking lever protection: yes
· NVP value: 69
· Oil resistant to EN 60811-404: no
· Bending radius: 4D (outer diameter x 4)
· Sheath colour: Grey
· Length: 1 m
Special Fetures

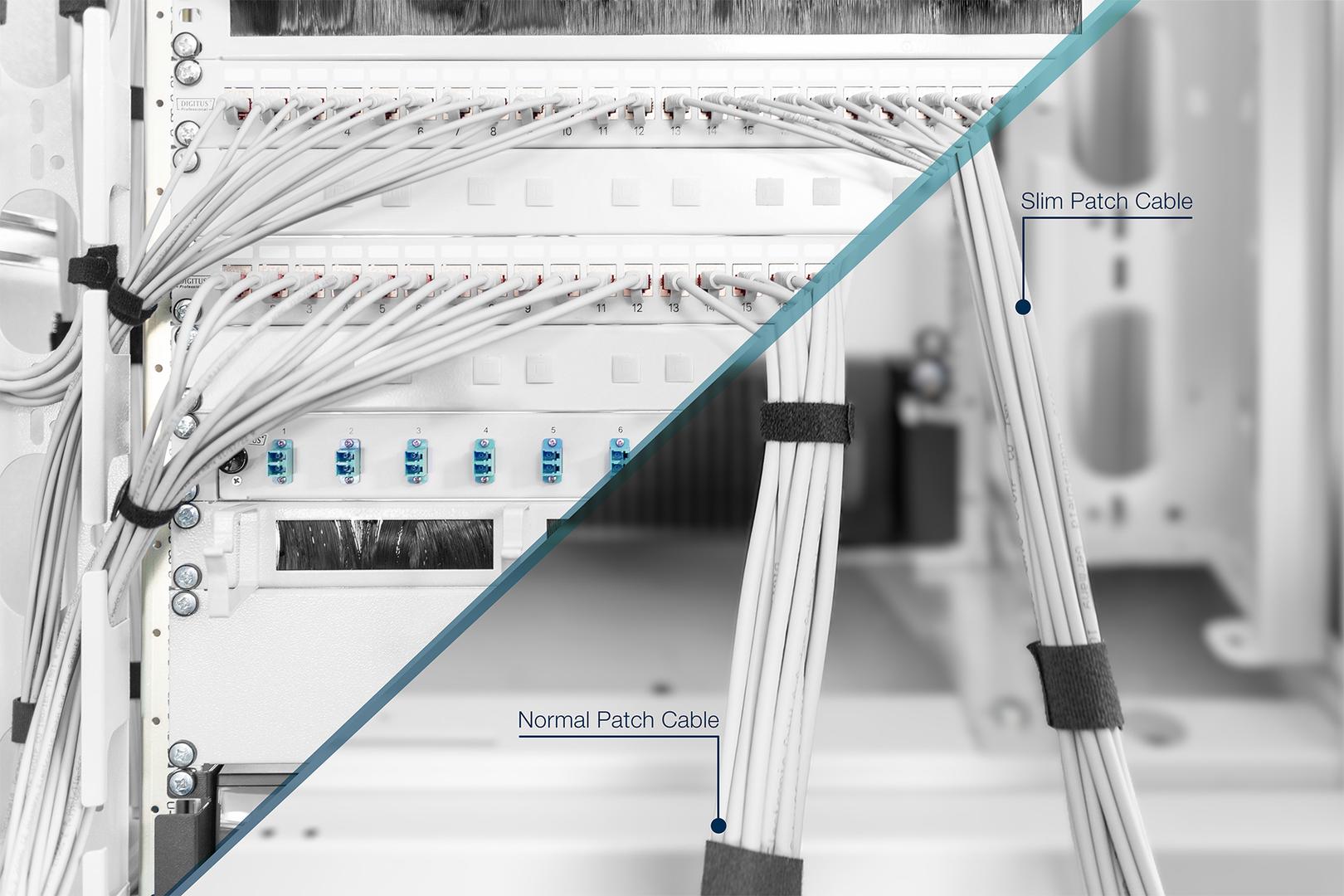

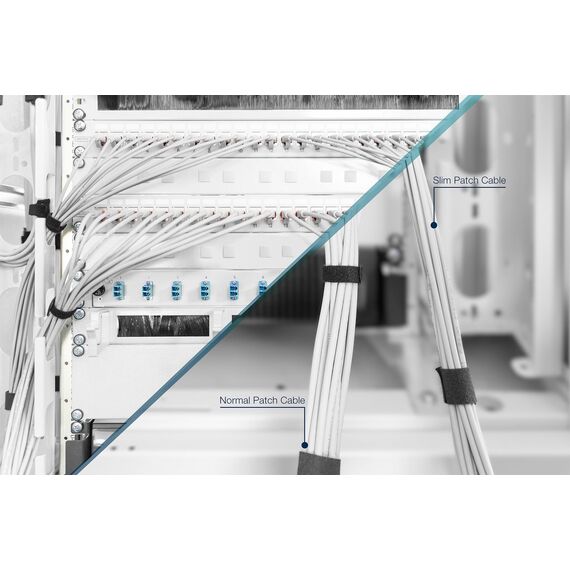

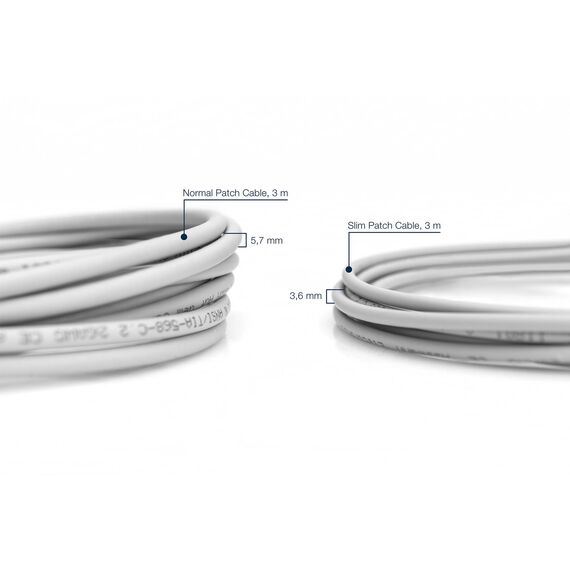

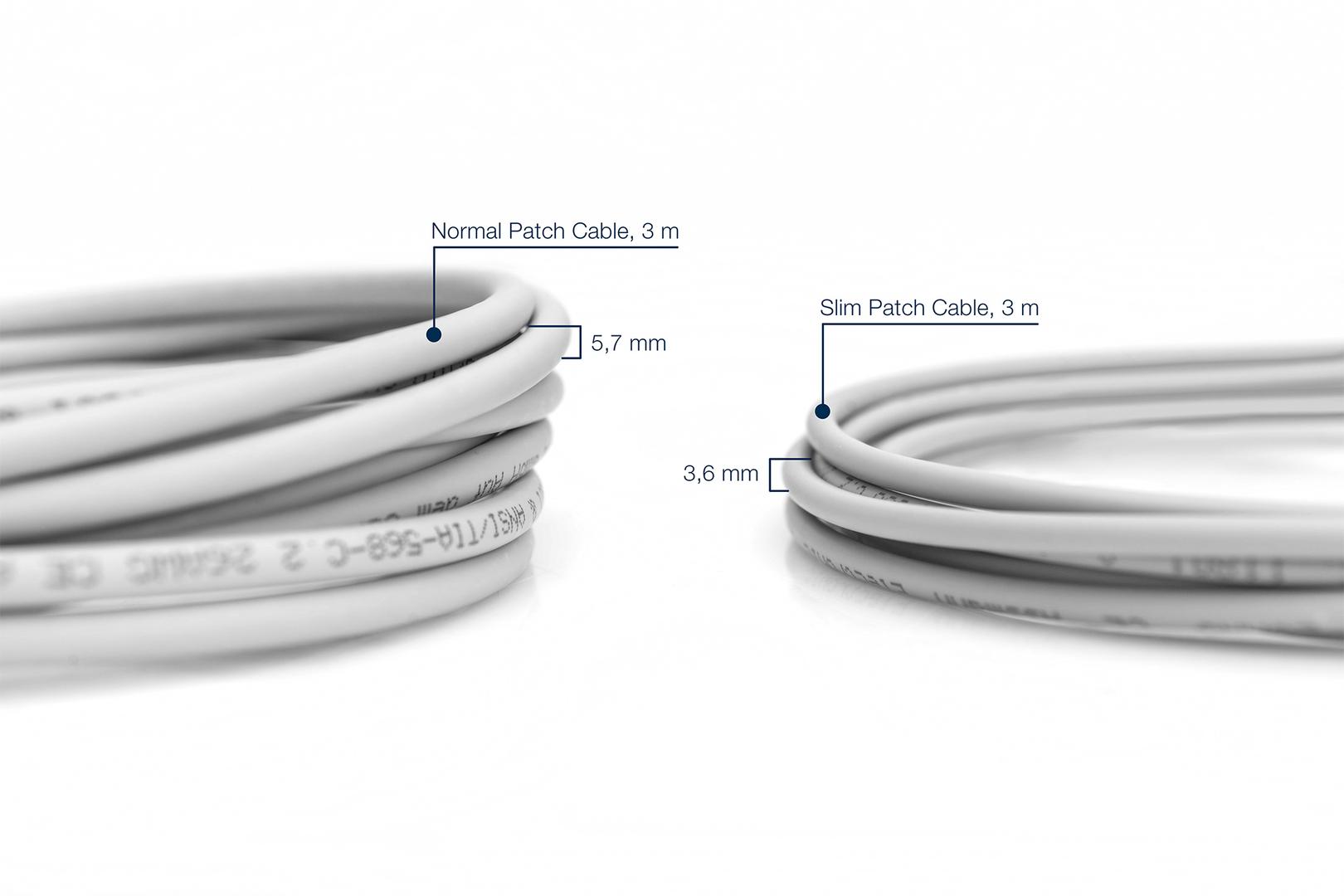

· Small outer diameter of 3.65 mm is suitable for flexible use· With LSZH (low smoke zero halogen) outer sheath for best fire behaviour and low smoke emission.

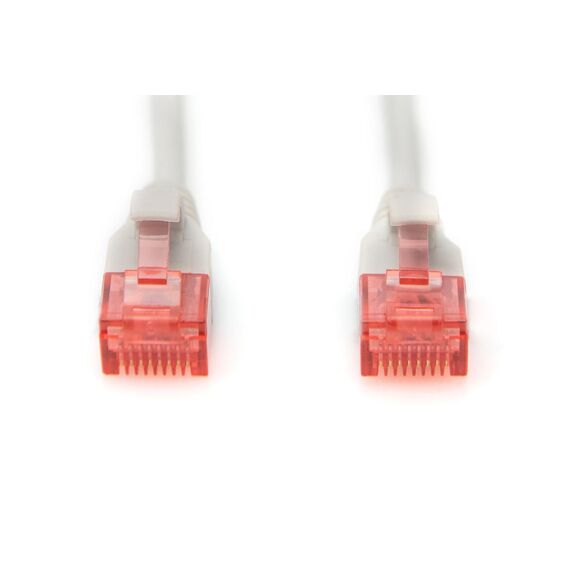

· Transparent red coloured connector for easy identification of Category 6 (250 MHz)
· Inner conductors: Copper (Cu)
Product Specification
| Network Cable Type | Patch cable - CAT 6 |
| Technology | Unshielded twisted pair (UTP) |
| Jacket Material | Low Smoke Zero Halogen (LSZH)/PVC |
| American Wire Gauge (AWG) | 28/7 |
| Wires per Cable | 8 wires |
| Pairs per Cable | 4 pairs |
| Features | Halogen-free, molded, snagless, Slim, flame retardant, Anti-kink sleeve, strain relief, length indication, copper conductors, bending radius 4D |
| Length | 1 m |
| Colour | Grey |
| Image Colour Disclaimer | The displayed product image may be a different colour |
| Connectivity | |
| Connector | RJ-45 - male |
| Connector (Second End) | RJ-45 - male |
| Miscellaneous | |
| Compliant Standards | ISO/IEC 11801, EN 50173 - up to 250 MHz |
| Dimensions & Weight (Shipping) | |
| Shipping Width | 16 cm |
| Shipping Depth | 17 cm |
| Shipping Height | 1 cm |
| Shipping Weight | 30 g |
Features - Digitus - DK-1617-010S
Colour
grey
Length
1.0m
General
CAT6
More Details
Product Code
CA04281
EAN Code
4016032459965
Manufacturer
Digitus
