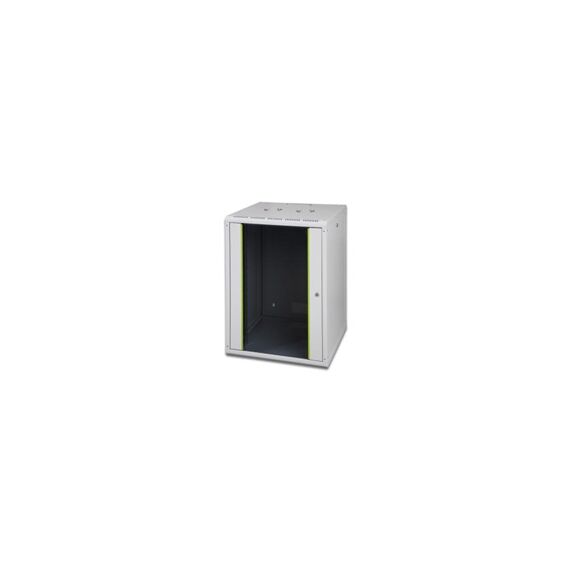

DIGITUS SoHoline DN-19 16U-6/6 - Cabinet - wall mountable - grey, RAL 7035 - 16U - 19" | DN-19 16U-6/6
Please sign in so that we can notify you about a reply
Product Features

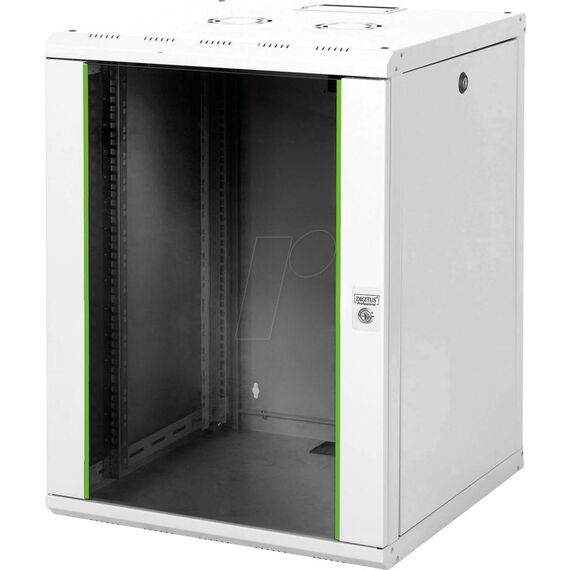

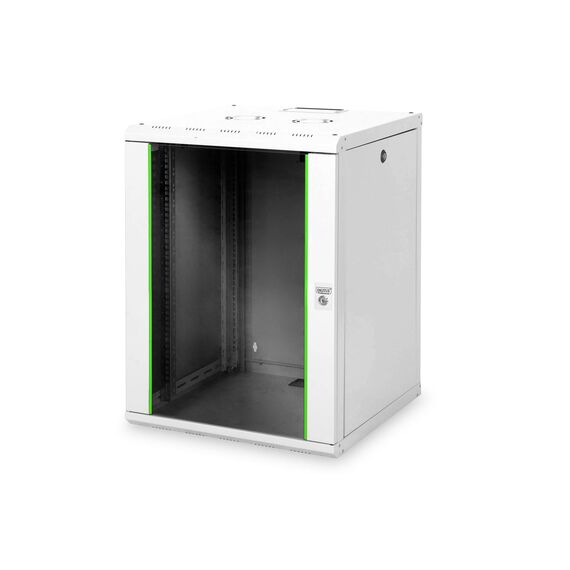

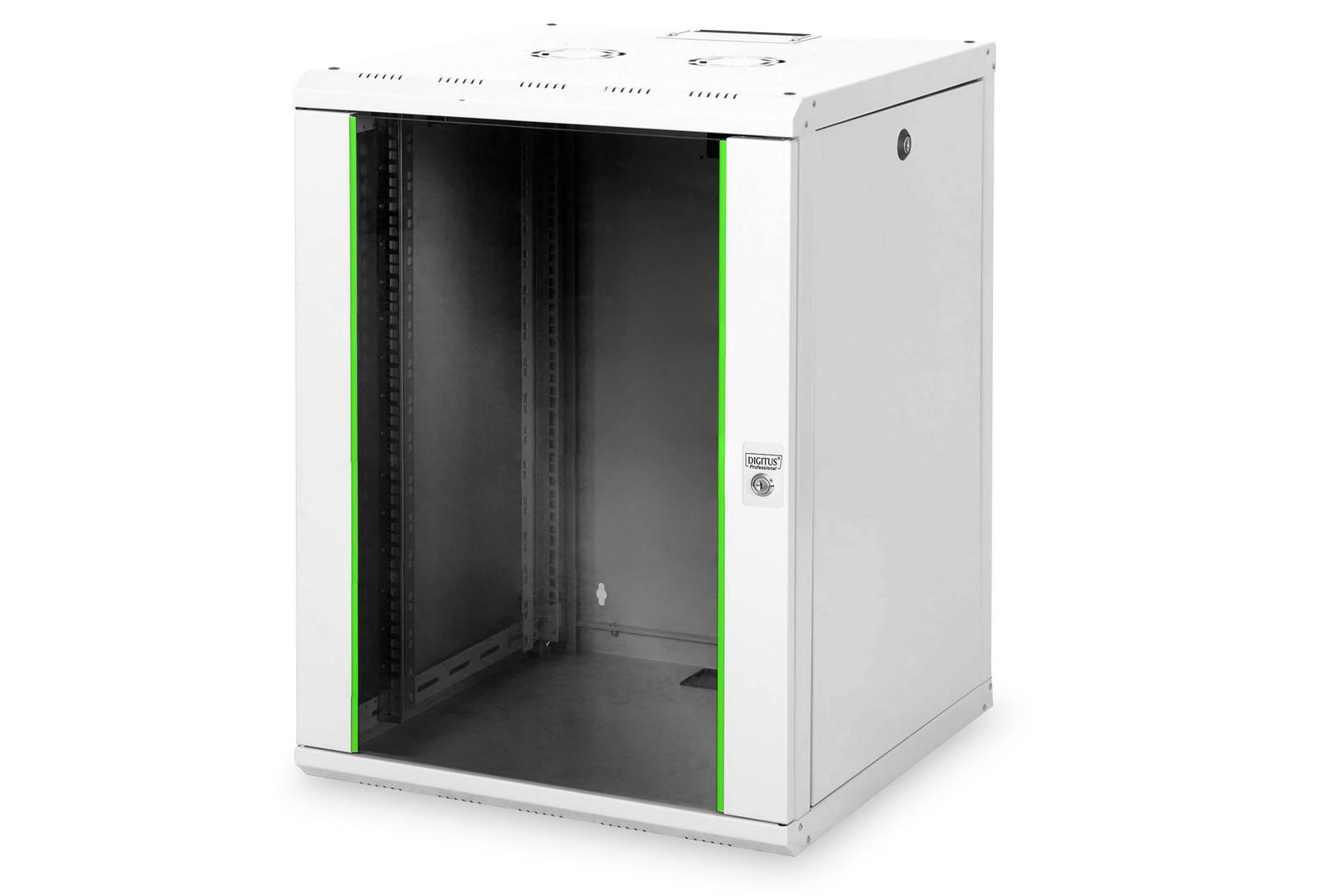

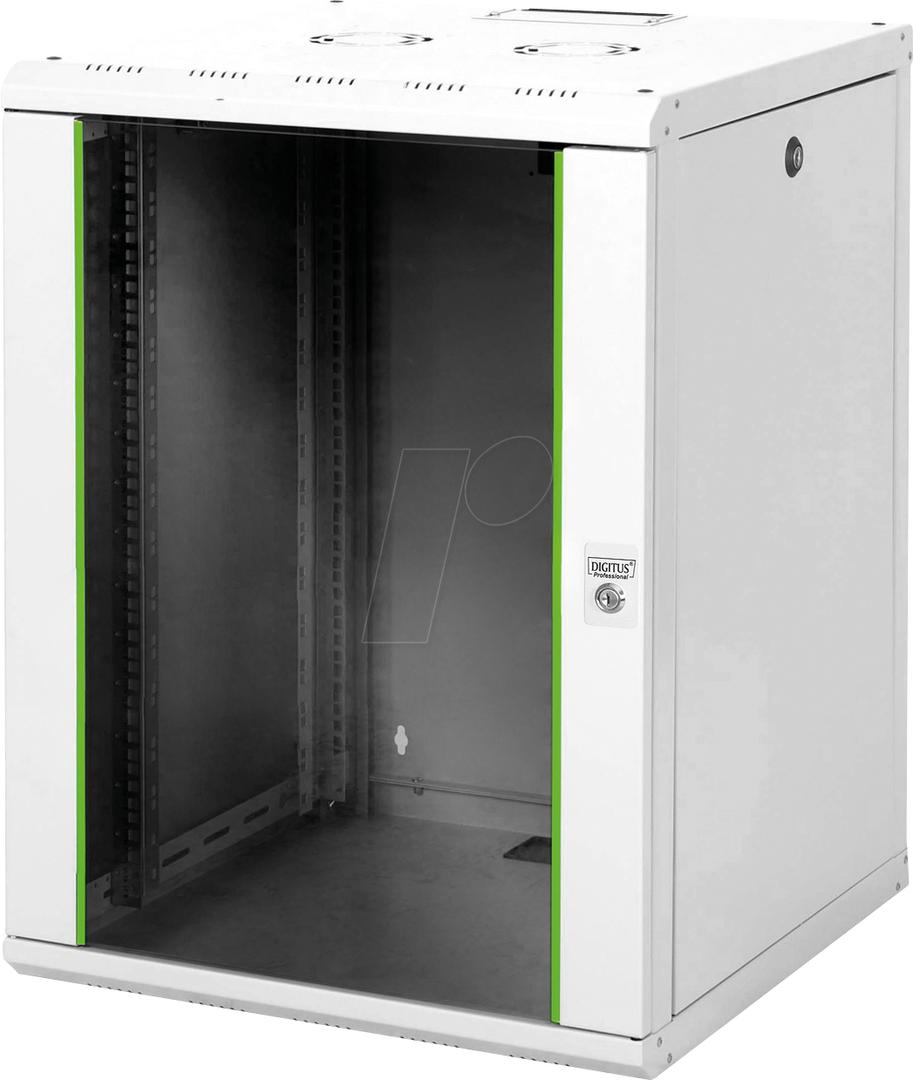

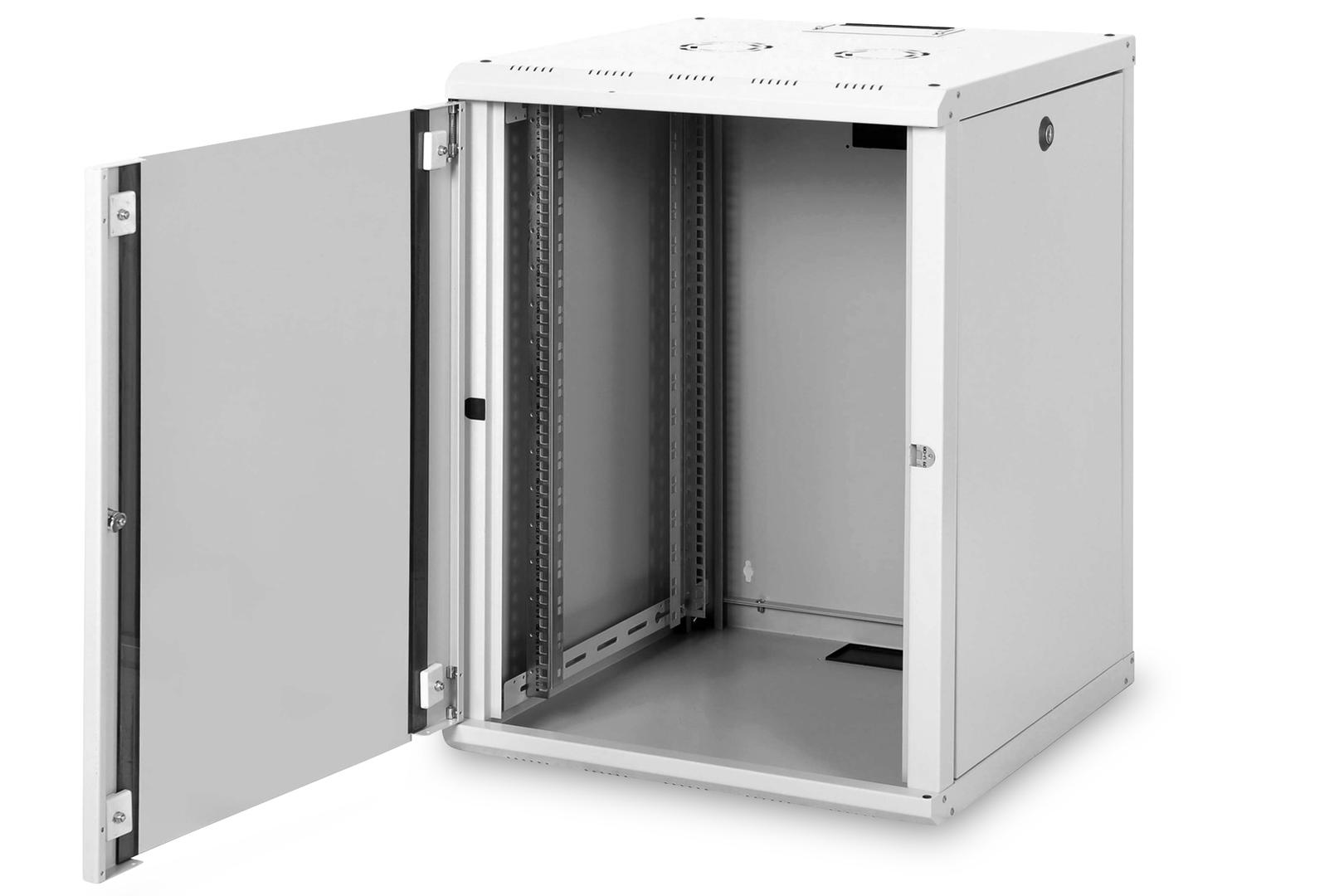

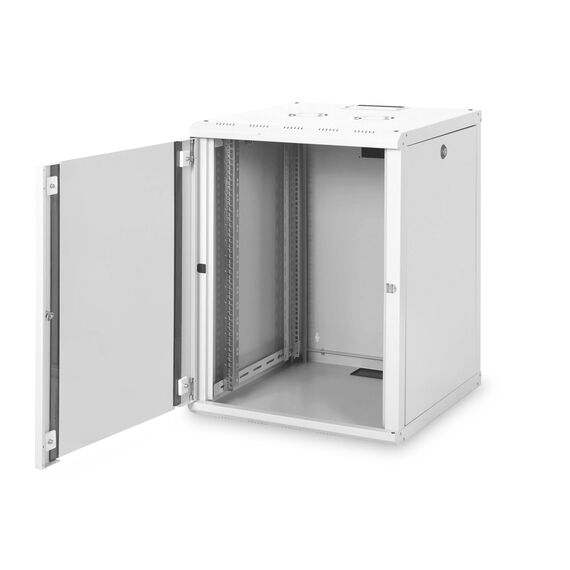

· Safety class rating IP20· Lockable safety-glass door with steel frame
· 210° door opening angle
· 1-point-locking-mechanism on the front door
· Side panels are lockable and removable
· 483 mm (19) profile rails mounted on the front- and rear side inside of the rack, galvanized
· 483 mm (19) profile rails are adjustable in depth and with height unit marking
· Max. installation depth: 450 mm

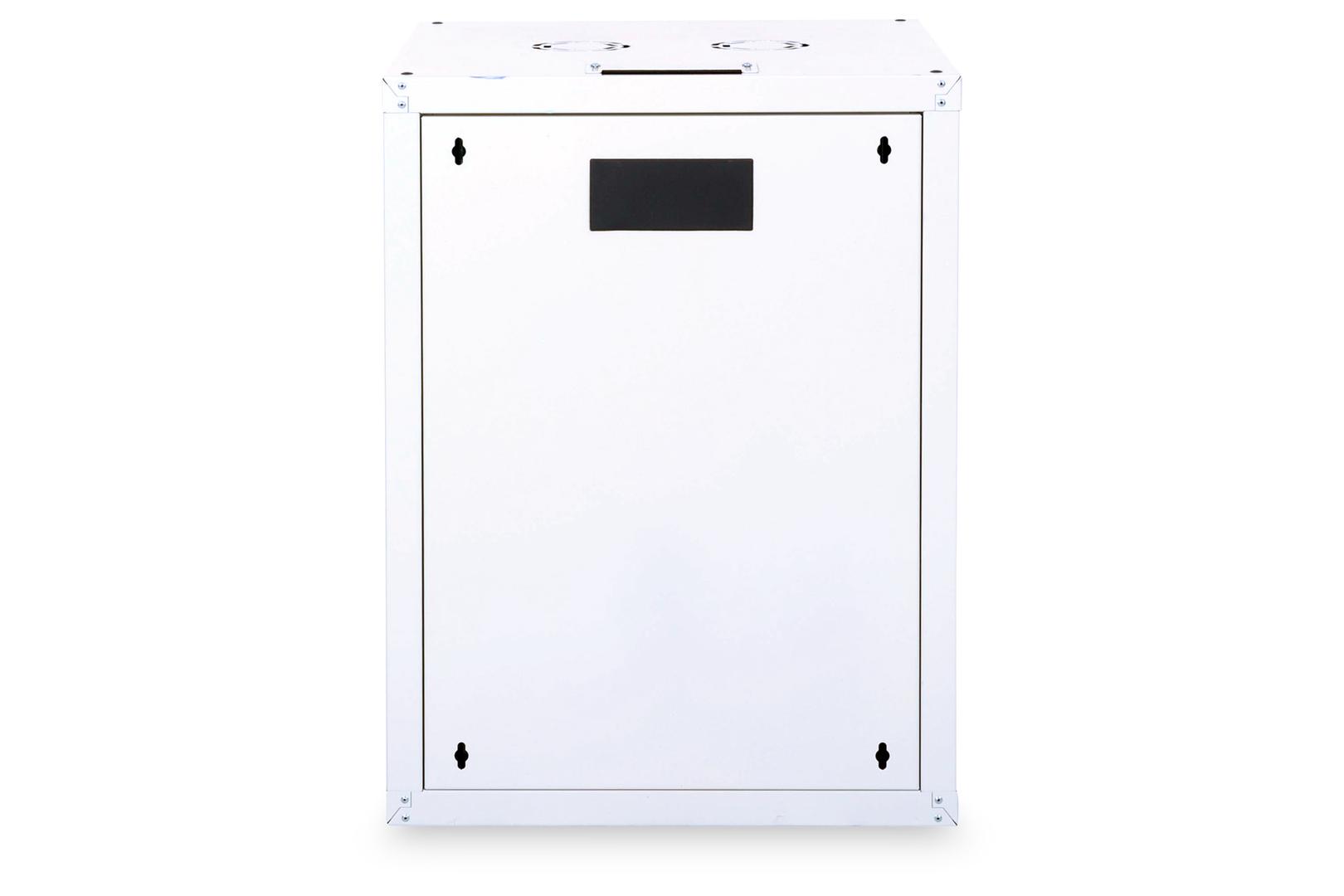

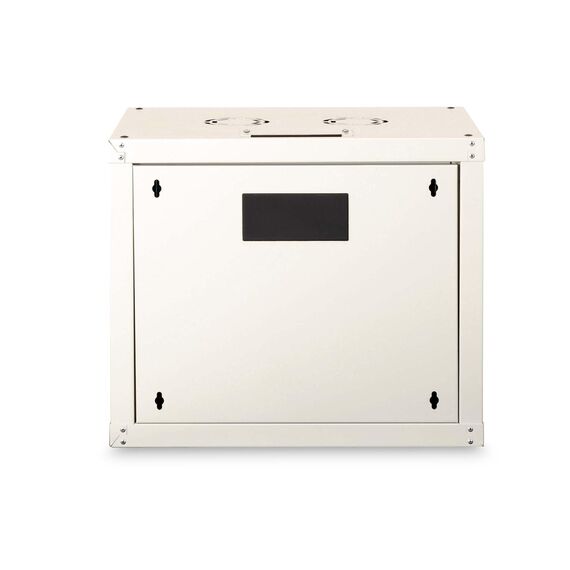

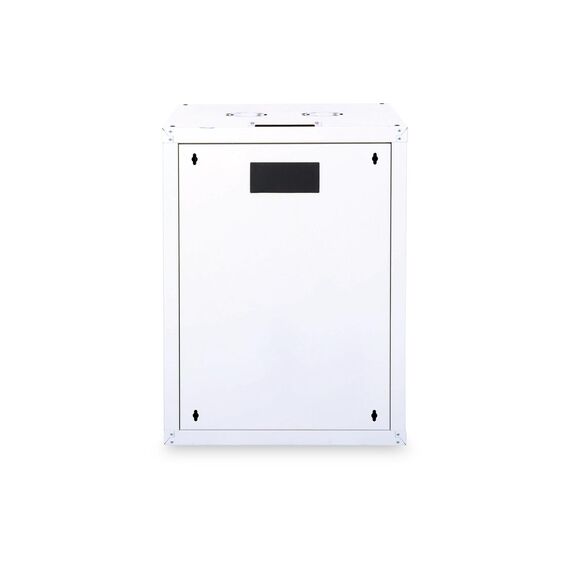

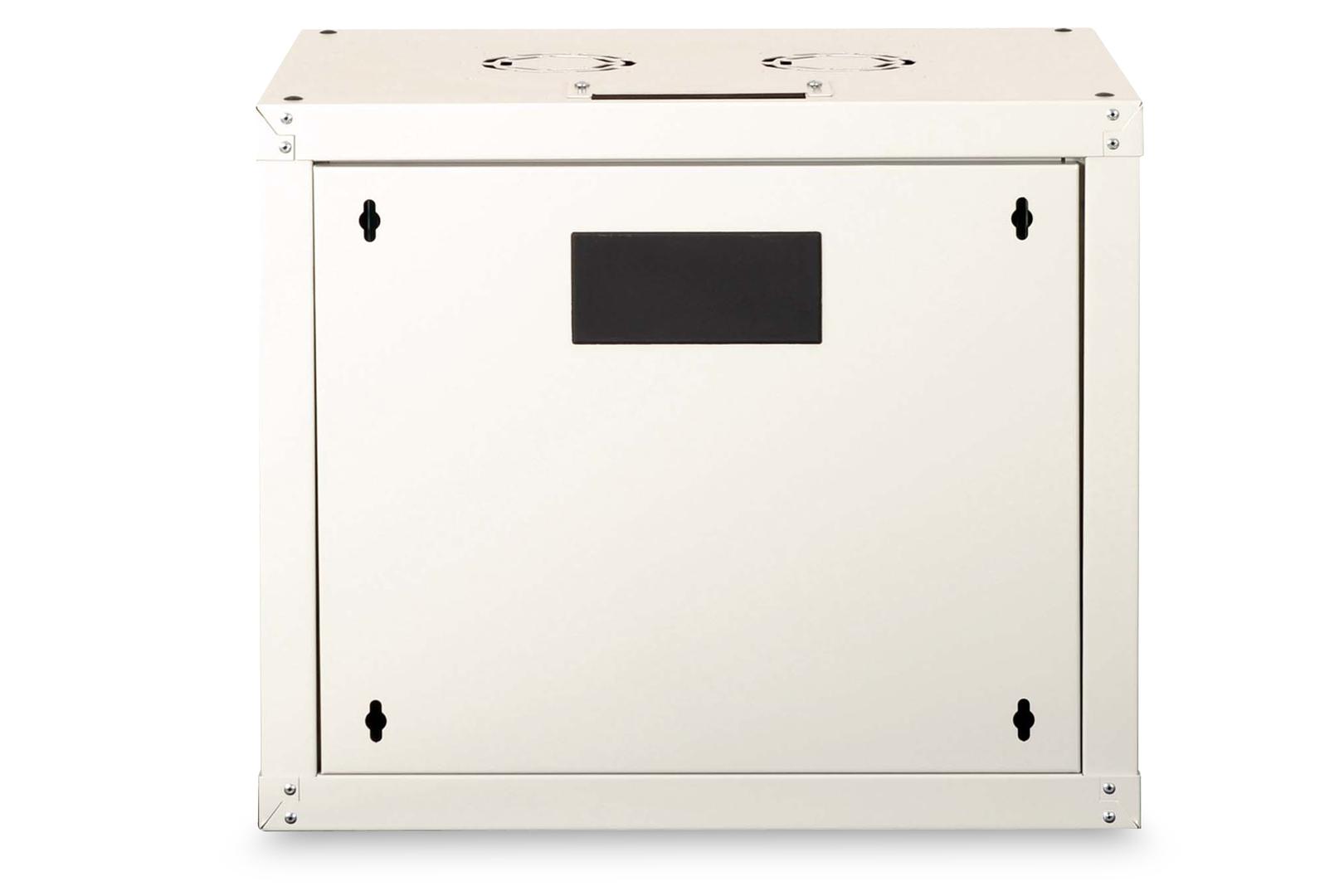

· Cable entry on the rear side and base with plastic cover and top with sliding cover
· Roof is prepared for fan units (punched out entries)
· Ventilation slots for active and passive ventilation and exhausting
· Several earthing points for rack components
· Incl. installation set (screws, cage nuts, washers)
· Rack is completely mounted
· Equipment mounting depth min.-max.: 320-450 mm
Special Fetures

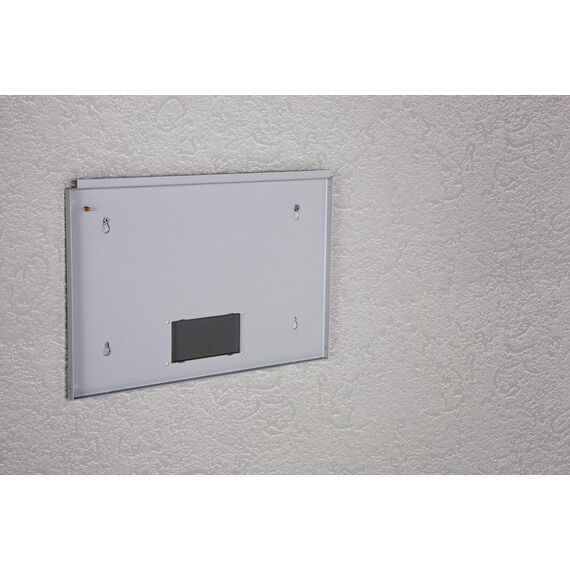

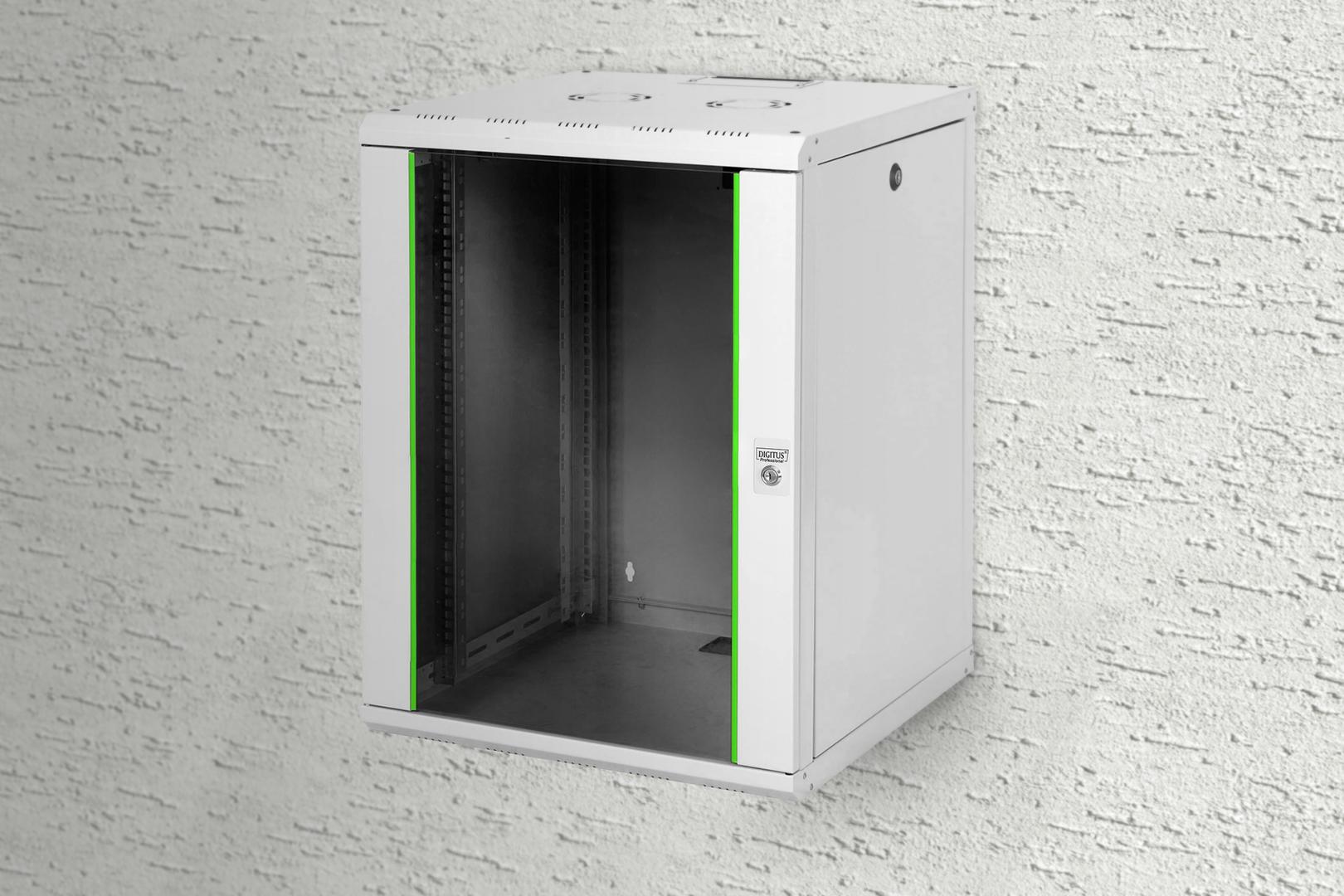

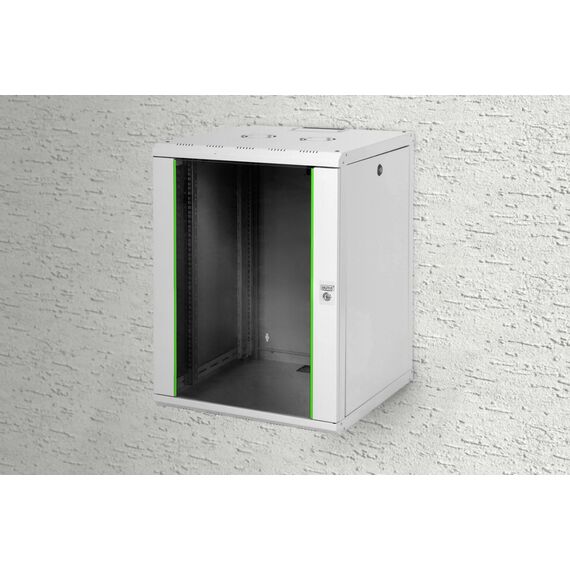

· Robust steel construction for sturdy wall mounting· Lockable safety-glass door with steel frame
· Side panels are lockable and removable
Product Specification
| Product Type | Cabinet |
| Placing / Mounting | Wall mountable |
| Product Material | Steel |
| Rack Size | 19" |
| Height (Rack Units) | 16U |
| Width | 60 cm |
| Depth | 56 cm |
| Height | 80.2 cm |
| Weight | 36 kg |
| Colour | Grey, RAL 7035 |
| Miscellaneous | |
| Mounting Kit | Included |
| Features | Lockable front door, plexiglass door |
Features - Digitus - DN-19 16U-6/6
More Details
Product Code
5090374
EAN Code
4016032174097
Manufacturer
Digitus
