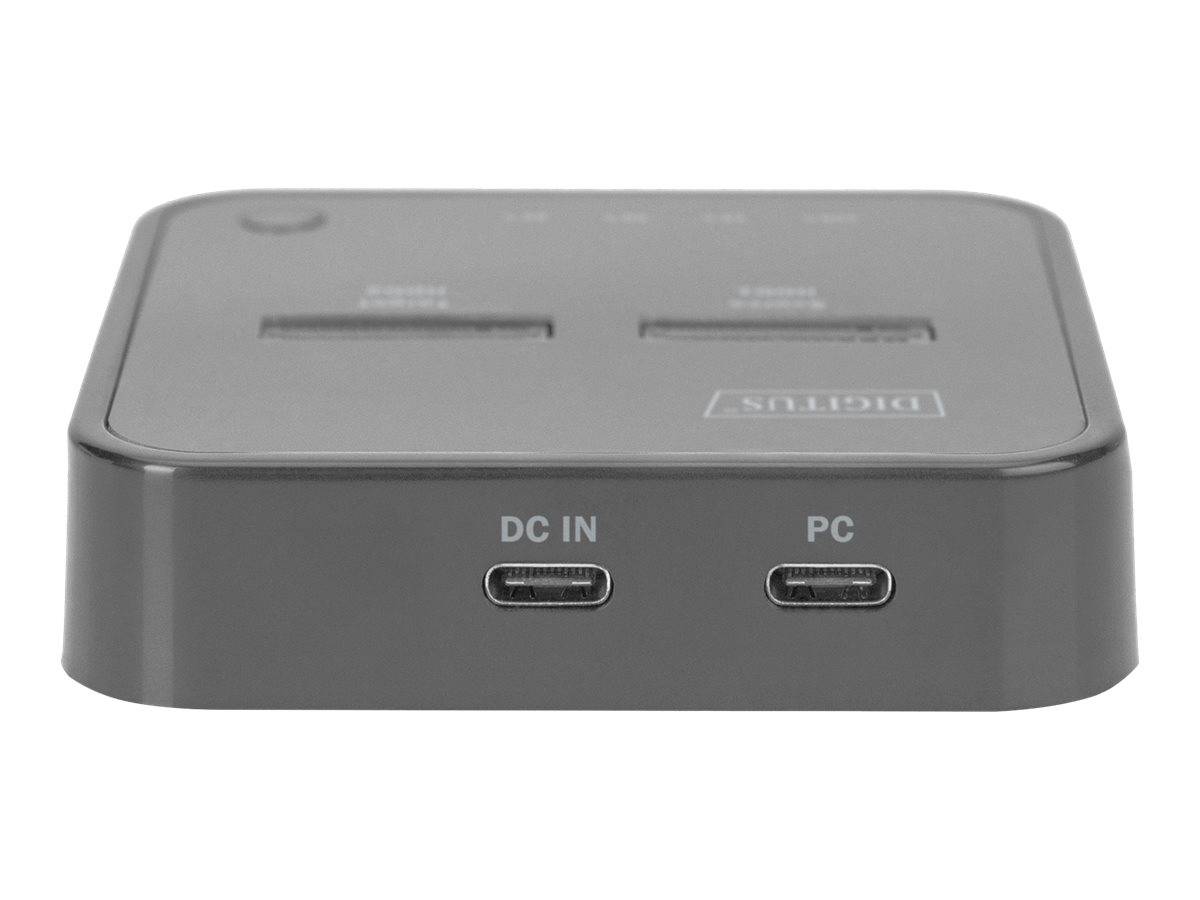

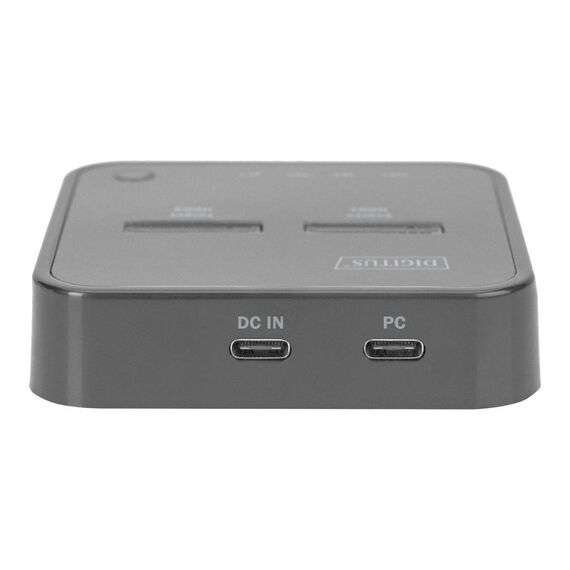

DIGITUS / SSD docking station / bays: 2 / M.2 / M.2 NVMe Card / USB-C 3.2 (Gen 2) / black | DA-71545

Product Features

· 2-Box Docking Station for NVMe M.2 SSDs
· Capacity: max. 4 TB per box
· Supported formats: 2242, 2260, 2280 & 22110 / M-Key, B & M-Key SSDs (NVMe)
· USB-C connections: 1 x Data USB-C 3.2 Gen2, 1 x Power jack USB-C
· Backwards-compatible with USB 3.0 / USB 2.0
· Maximum transfer rate USB-C: 10 Gbps
· Modes: Clone and dual mode
· Supports Hot Swap (Plug in and eject during operation)
· Offline clone function by pressing a button (possible without PC)
· LED indicators for copying progress (25%, 50%, 75%, 100%)
· Applications PC, notebook, TV, router or gaming console (with USB-C connection)
· Storage formats: NTFS, FAT, FAT32
· Input voltage USB power adapter: 100 - 240 V AC / 50/60 Hz, 0.6 A - Euro plug: Type C (CEE 7/16)
· Power supply via USB: 5 V / 3 A
· Systems: Windows 10/8/8.1/7/XP, macOS 10.0 or higher
· Dimensions: W 7.9 x D 7.7 x H 1.8 cm
· Weight: 152 g
· Material: ABS
· Color: Black

Special Features

· 2 x M.2 Slots for NVMe SSDs, each up to 4 TB
· Offline clone function by pressing a button (possible without PC)
· High data transfer rate of up to 10 Gbps
· LED indicators show copying progress
· Can be used as a storage medium for up to 8 TB in total
· Supported formats: 2242, 2260, 2280 & 22110 / M-Key, B & M-Key SSDs (NVMe)
· USB-C connection: USB 3.2 Gen2
· Ideal storage extension for notebooks, PCs, gaming consoles, TVs, NAS or routers (USB-C)
· Plug and Play, no driver installation required

Product Specification

Device Type	SSD docking station - external
Bays	2
Hard Drive Form Factor Compatibility	M.2
Host Bus	USB-C 3.2 (Gen 2)
Colour	Black
Features	Data indicator, offline clone
Storage Controller	Storage Controller
Interface	M.2 NVMe Card
Supported Devices	Solid state drive
Max Storage Devices Qty	2
Expansion / Connectivity	Expansion / Connectivity
Bays	2 x top accessible - M.2 2242/2260/2280/22110
Interfaces	2 x M.2 Card - M.2 M+B/M Key (external)
Connections	1 x USB 3.2 (Gen 2) - 24 pin USB-C
Miscellaneous	Miscellaneous
Cables Included	1 x USB-C cable - external - 80 cm ¦ 1 x USB-C to USB-A cable - external - 80 cm
Features	Hot plug
Power	Power
Power Source	Included AC adapter, USB bus
Type	Power adapter
Voltage Required	AC 100-240 V (50 - 60 Hz)
Software / System Requirements	Software / System Requirements
OS Required	Apple MacOS X 10.0 or later, Microsoft Windows XP / 7, Windows 8 / 8.1 / 10
Dimensions & Weight	Dimensions & Weight
Width	7.9 cm
Depth	7.7 cm
Height	1.8 cm
Weight	152 g
