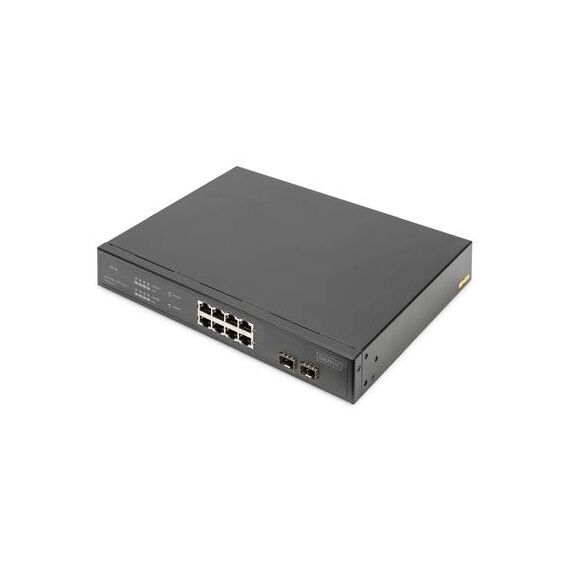

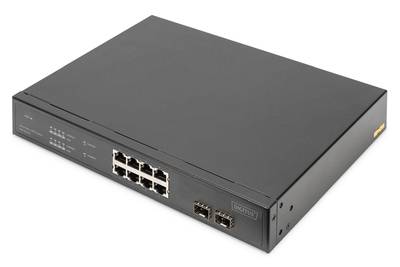

DIGITUS / Switch / unmanaged / 8 x 10/100/1000 (PoE) + 2 x Gigabit SFP (uplink) / desktop, rack-mountable / PoE+ (140 W) | DN-95341-1
Please sign in so that we can notify you about a reply
Product Features
· 8-Port 10/100/1000 Mbps PoE Gigabit rack mountable Switch + 2x SFP Uplink· Ethernet IEEE802.3 / 802.3u / 802.3x/802.3ab/802.3z / IEEE802.3 af/at
· Power over Ethernet (PoE) - You only need one cable for power and data transfer
· PoE power budget: 140 Watts
· Supports PoE: Provides 8 PoE Port, each port output 30W maximum power
· No configuration necessary
· Status LEDs on each port
· Pin Feet: V+ (RJ45 Pin 3, 6) V- (RJ45 Pin 1, 2)
· Backplane: 20Gbps
· MAC address table: 4K
· Rack mountable in system rack (1U)
· Internal power supply: 150W
· Dimensions (L x W x H): 275 mm x 200 mm x 44 mm
· Weight: 4500g
· Ethernet speed: Gigabit
· Number of ports (uplink): 2
· Connection of uplink port: SFP
· VLAN: no
· PoE standard: IEEE802.3at (PoE+)
Special Features
· PoE power budget: 140 Watts· Gigabit Ethernet Speed
· Additional 2 port SFP-Uplink for Fiber Technology
· Rack mountable in system rack (1U)
Product Specification
| Device Type | Switch - 8 ports - unmanaged |
| Enclosure Type | Desktop, rack-mountable 1U |
| Subtype | Gigabit Ethernet |
| Ports | 8 x 10/100/1000 (PoE) + 2 x Gigabit SFP (uplink) |
| Power Over Ethernet (PoE) | PoE+ |
| PoE Budget | 140 W |
| Performance | Backplane speed: 20 Gbps |
| MAC Address Table Size | 4K entries |
| Compliant Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3x, IEEE 802.3at |
| Status Indicators | Port status |
| Expansion / Connectivity | Expansion / Connectivity |
| Interfaces | 8 x 1000Base-T RJ-45 PoE - 30 W ¦ 2 x Gigabit LAN SFP uplink |
| Power | Power |
| Power Device | Internal power supply |
| Miscellaneous | Miscellaneous |
| Rack Mounting Kit | Included |
| Dimensions & Weight | Dimensions & Weight |
| Width | 20 cm |
| Depth | 27.5 cm |
| Height | 4.4 cm |
| Weight | 4.5 kg |
| Dimensions & Weight (Shipping) | Dimensions & Weight (Shipping) |
| Shipping Width | 32.5 cm |
| Shipping Depth | 28 cm |
| Shipping Height | 10 cm |
Features - Digitus - DN-95341-1
General
8-Port
More Details
Product Code
04:420878
EAN Code
4016032484738
Manufacturer
Digitus
