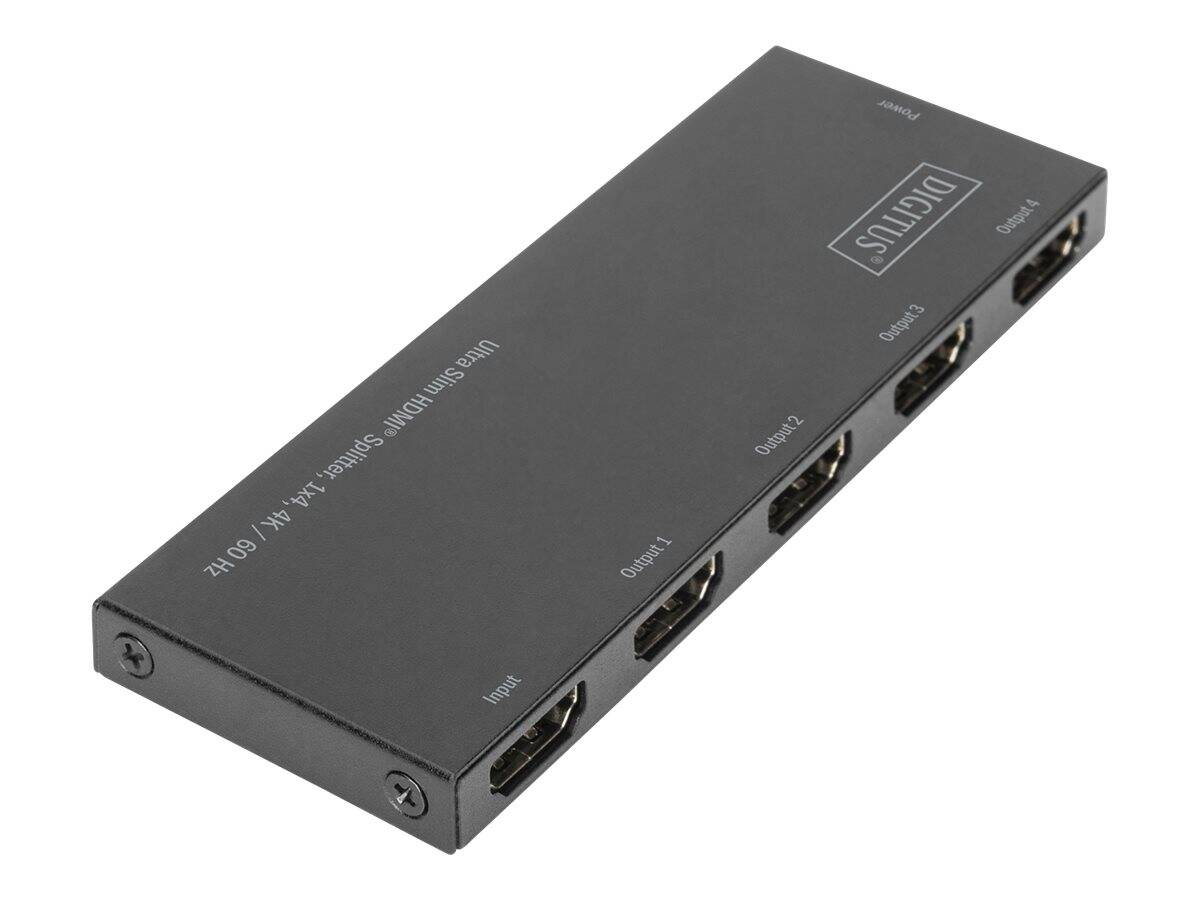

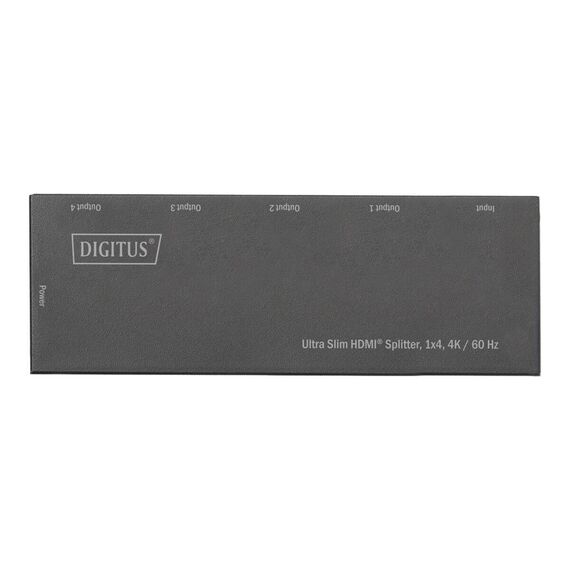

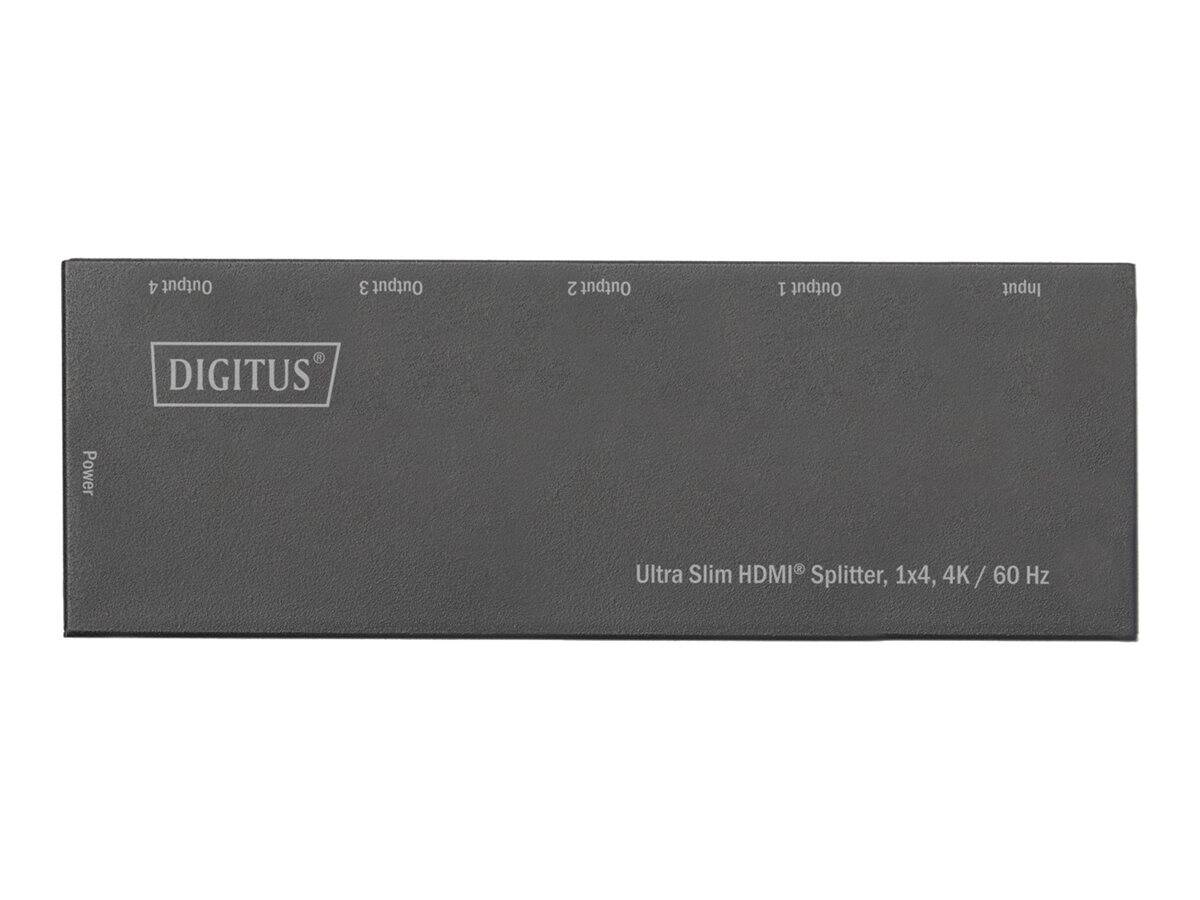

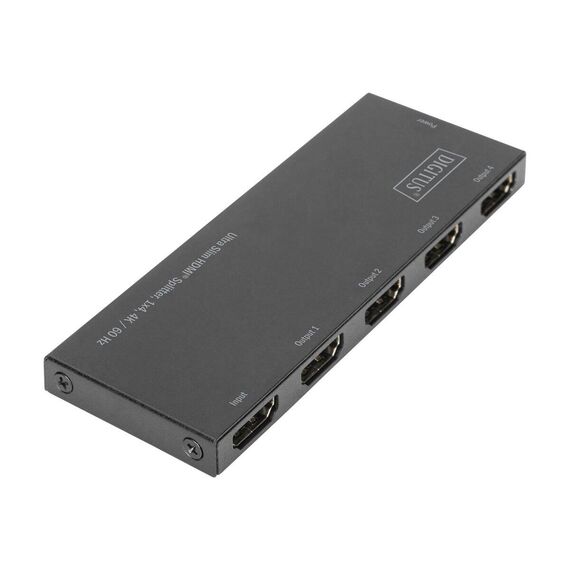

DIGITUS Ultra Slim HDMI Splitter DS-45323 / Video/audio splitter / 4 x HDMI / desktop | DS-45323
Please sign in so that we can notify you about a reply
Product Features
· Supports HDMI® resolutions of up to 4K / 60 Hz (4096 x 2160p)· Data transfer rate: 18 Gbps (6 Gbps per channel)
· Supports: RGB 4:4:4 / YCbCr 4:4:4 / YCbCr 4:2:2 / YCbCr 4:2:0
· Supports 36bit Deep Color (12 Gbps per channel)
· Supports HDCP 2.2 / 1.4
· Supports: 3D
· Supports: HDR (High Dynamic Range)
· Supports cascading of up to 8 splitters
· Operating temperature: 0°C ~ 45°C
· Operating humidity: 10% - 85% RH (non-condensing)
· Power consumption: 2.5 W (5 V / 0.5 A)
· ESD protection: +/- 8 kV air insulation discharge, +/- 4 kV contact discharge
· Housing: Metal
· Color: Black
· Weight: 80 g
· Dimensions: L 11.2 x W 4 x H 0.9 cm
Special Features
· Resolutions of up to 4K / 60 Hz (4:4:4)· Full 18 Gbps - for a crystal clear display of UHD contents
· Supports HDR & HDCP 2.2

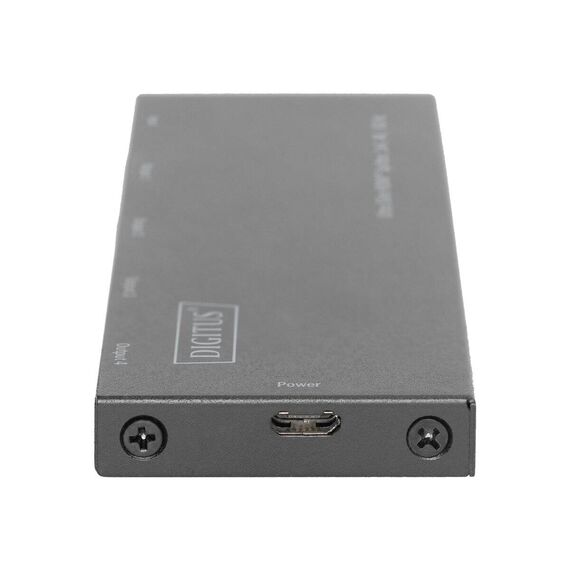

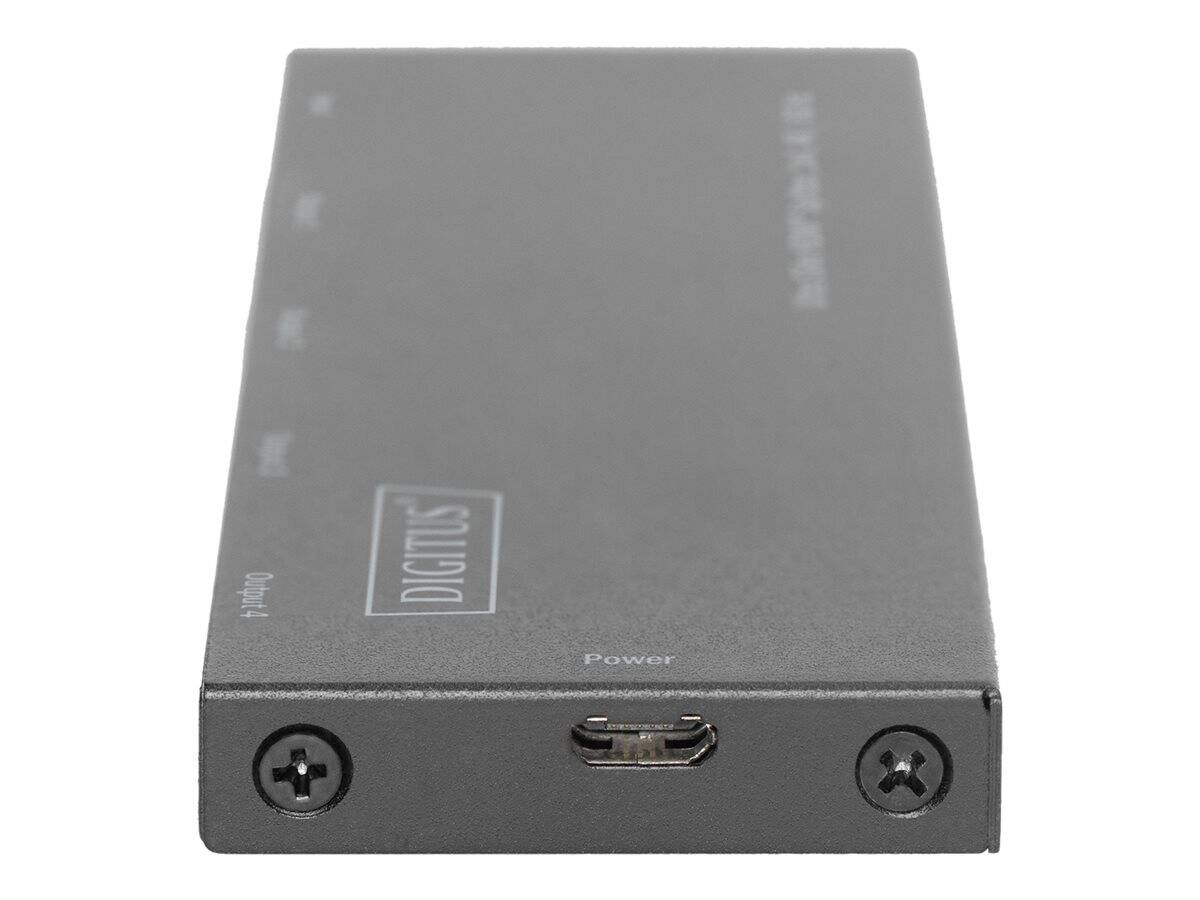

· Power supply via Micro USB (charging adapter, TV, notebook)
· Cascading of up to 8 splitters in a row
· Ultra slim design
· Compatible with the latest Ultra High Definition (UHD) standards
· Protection from Electrostatic Discharges (ESD)
· Plug and Play
Product Specification
| Device Type | Video/audio splitter - 4 ports |
| Enclosure Type | Desktop |
| Subtype | HDMI |
| Ports | 4 x HDMI |
| Performance | Bandwidth: 18 Gbps |
| Max Resolution | 4096 x 2160 @ 60 Hz |
| Features | USB powered, HDCP compliant, cascadable, 3D support, 4K resolution support, metal housing, 4KV ESD Protector (contact discharge), 8KV ESD Protector (air-gap discharge), HDR support |
| Compliant Standards | HDCP 1.4, HDCP 2.2 |
| Status Indicators | Power, output |
| Expansion / Connectivity | Expansion / Connectivity |

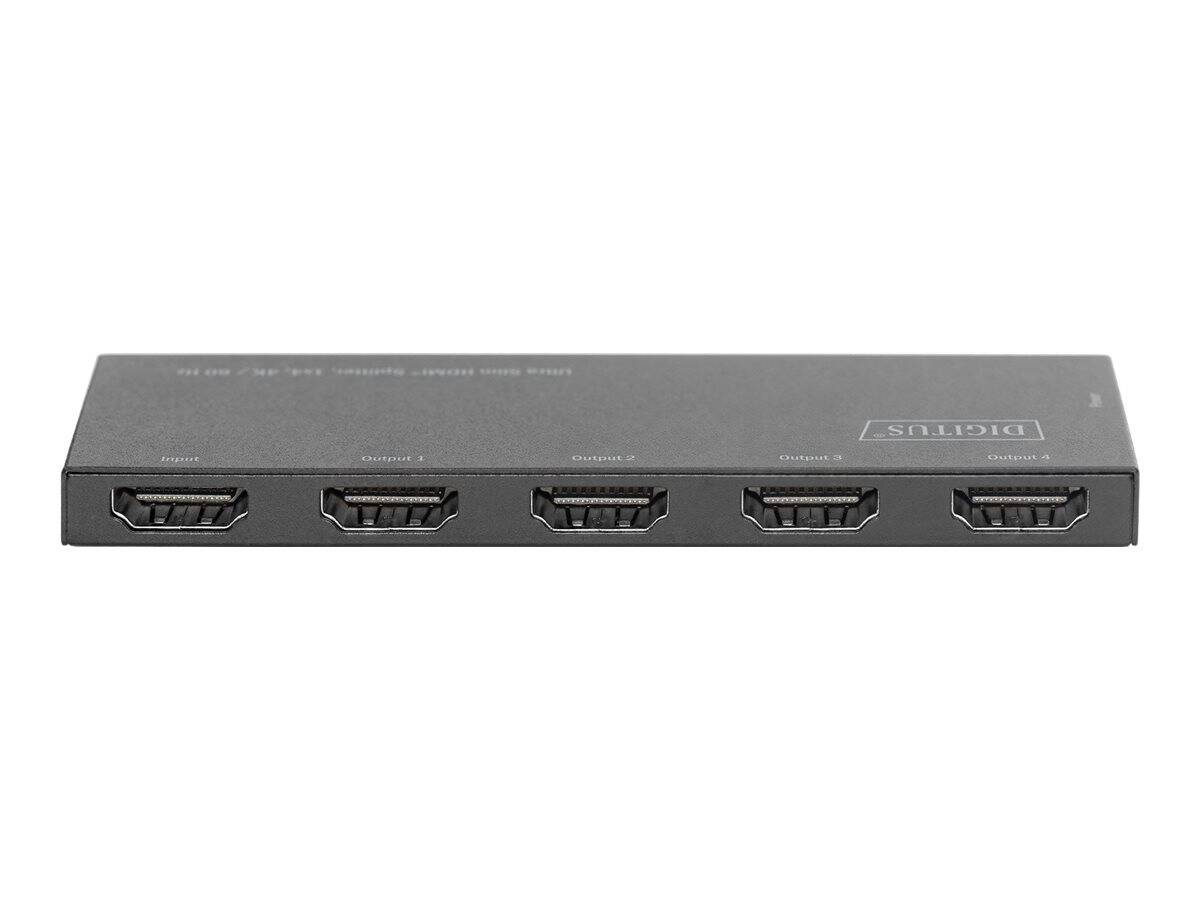

| Interfaces | 4 x HDMI output ¦ 1 x HDMI input |
| Power | Power |
| Power Consumption Operational | 2.5 Watt |
| Miscellaneous | Miscellaneous |
| Colour | Black |
| Cables Included | 1 x micro-USB cable |
| Compliant Standards | Plug and Play |
| Dimensions & Weight | Dimensions & Weight |
| Width | 11.2 cm |
| Depth | 4 cm |
| Height | 0.9 cm |
| Weight | 80 g |
| Environmental Parameters | Environmental Parameters |
| Min Operating Temperature | 0 °C |
| Max Operating Temperature | 45 °C |
| Humidity Range Operating | 10 - 85% (non-condensing) |
Features - Digitus - DS-45323
More Details
Product Code
04:347376
EAN Code
4016032465065
Manufacturer
Digitus
