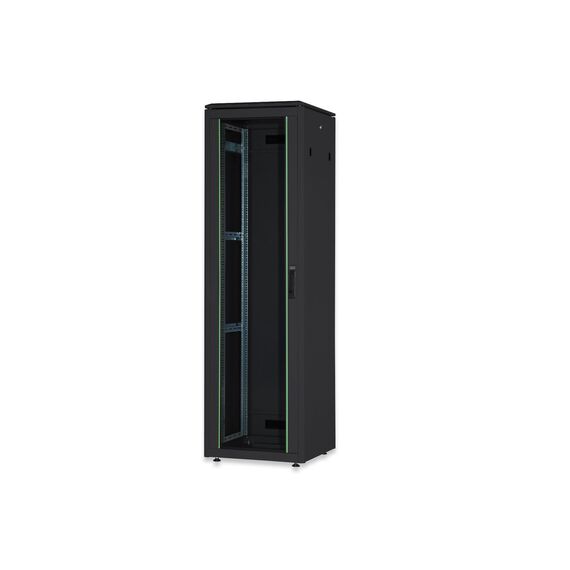

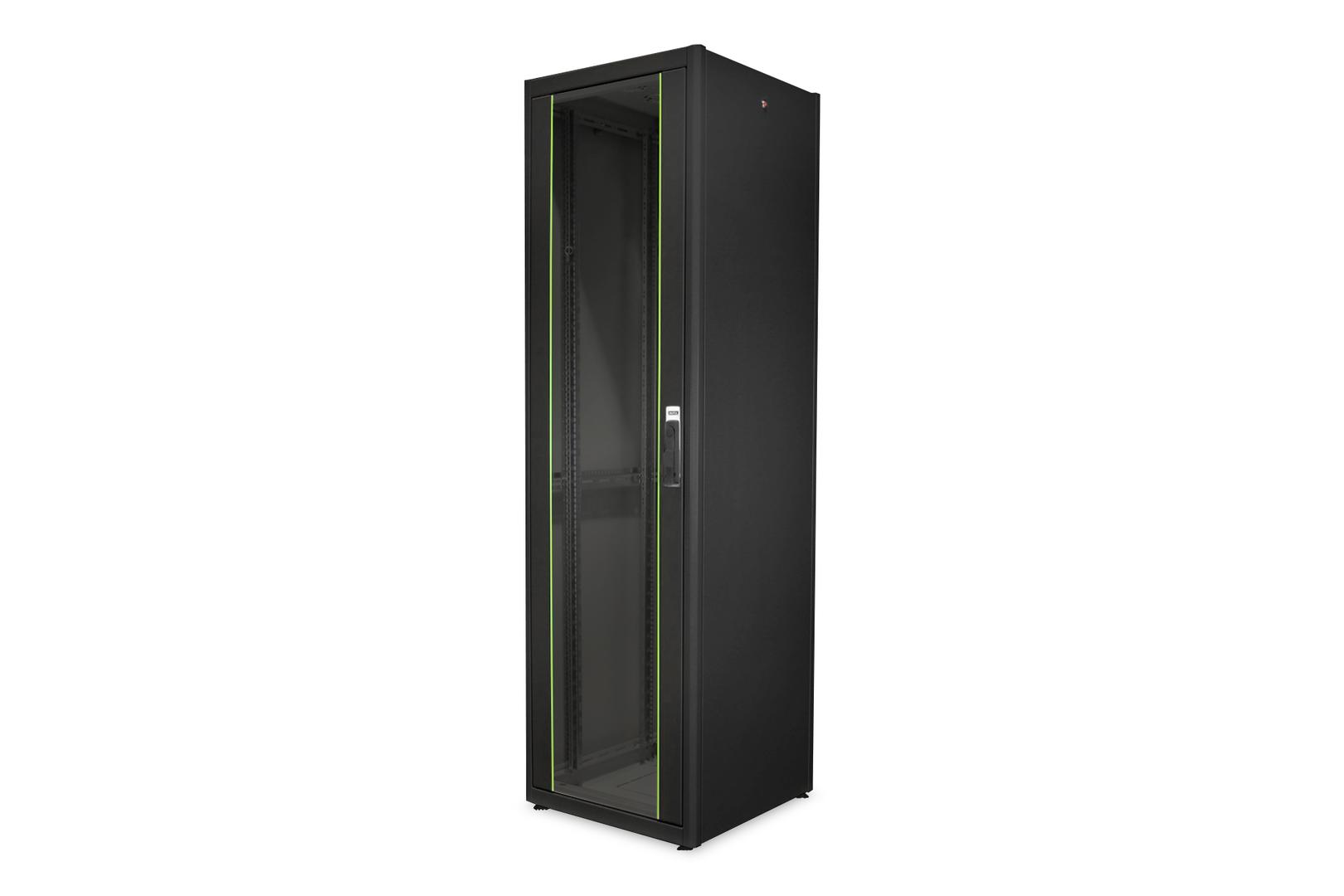

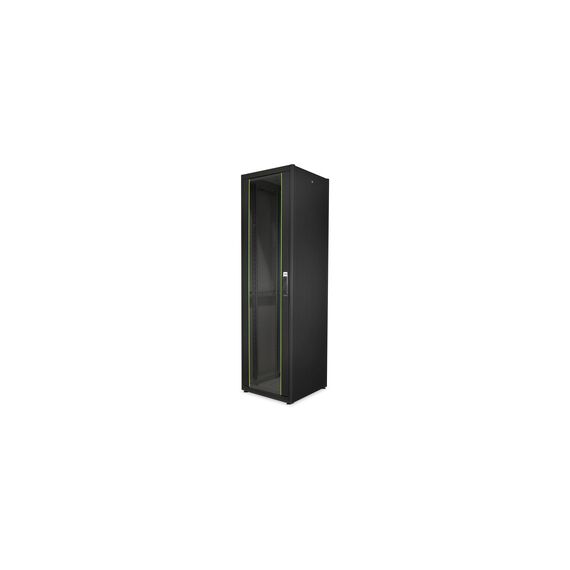

Digitus Unique - Rack - cabinet - black, RAL 9005 - 42U - 19" | DN-19 42U-6/6-DB
Please sign in so that we can notify you about a reply
Product Features

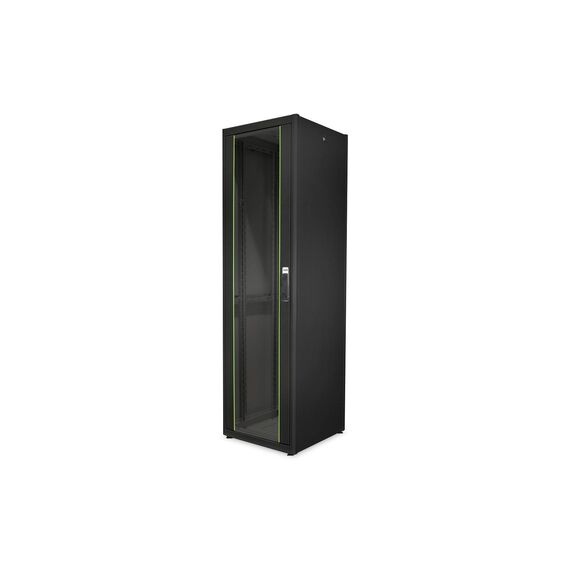

· Safety class rating IP20· Lateral metal struts front door with safety glass

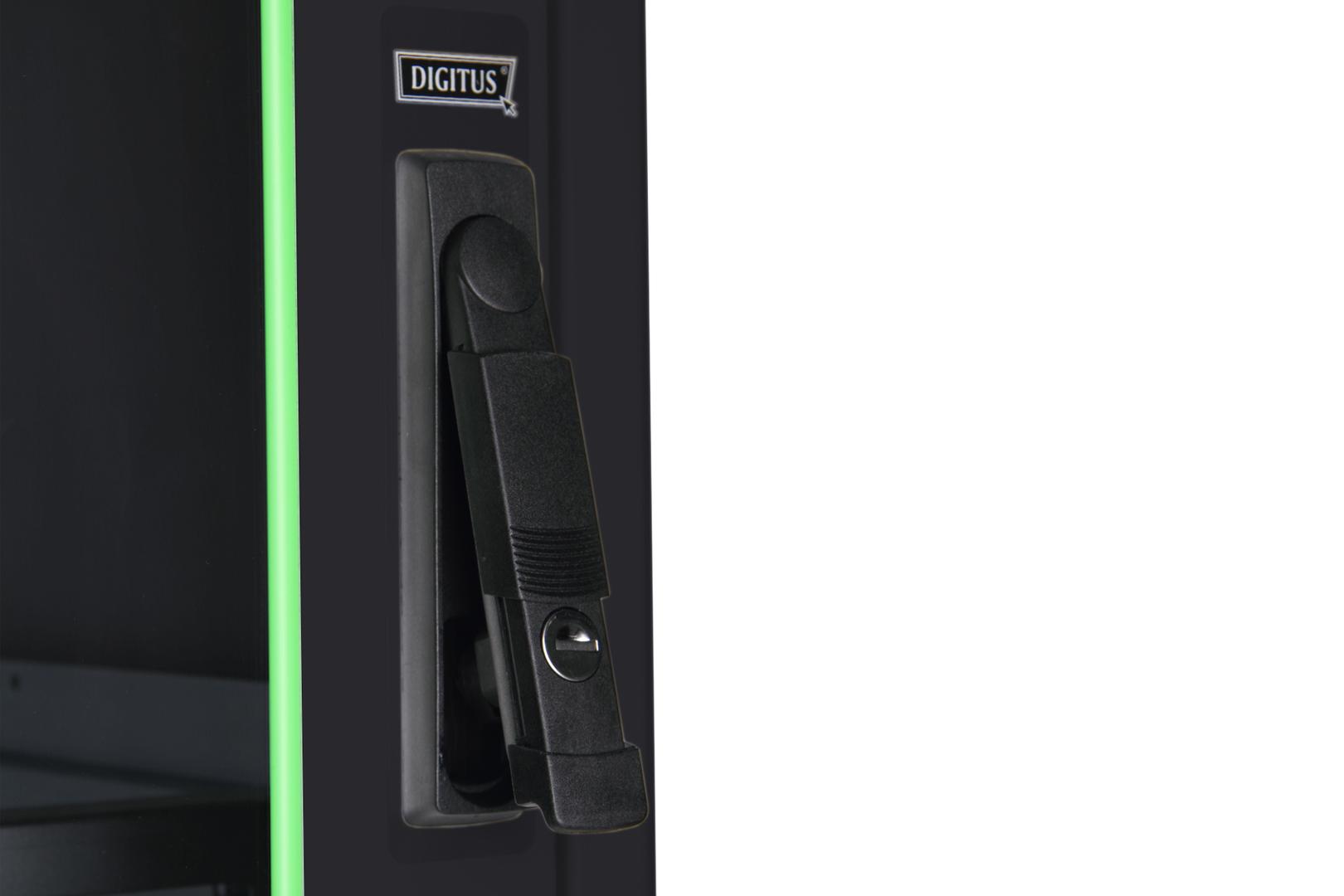

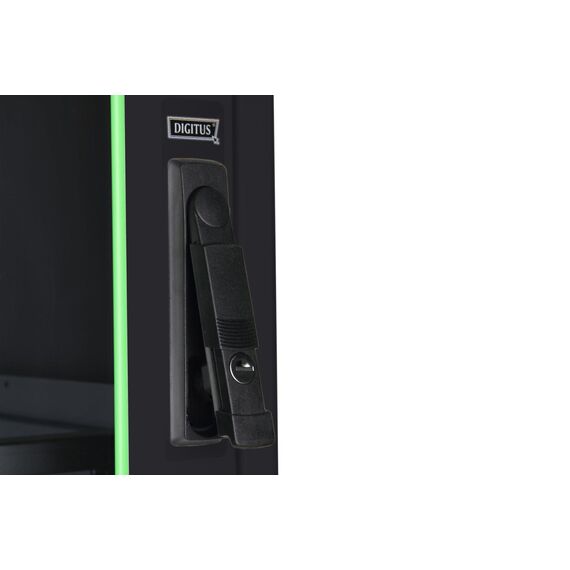

· Lock system with pivot lever on front door
· 120° door opening angle on the front door
· 1-point-locking-mechanism on the front door

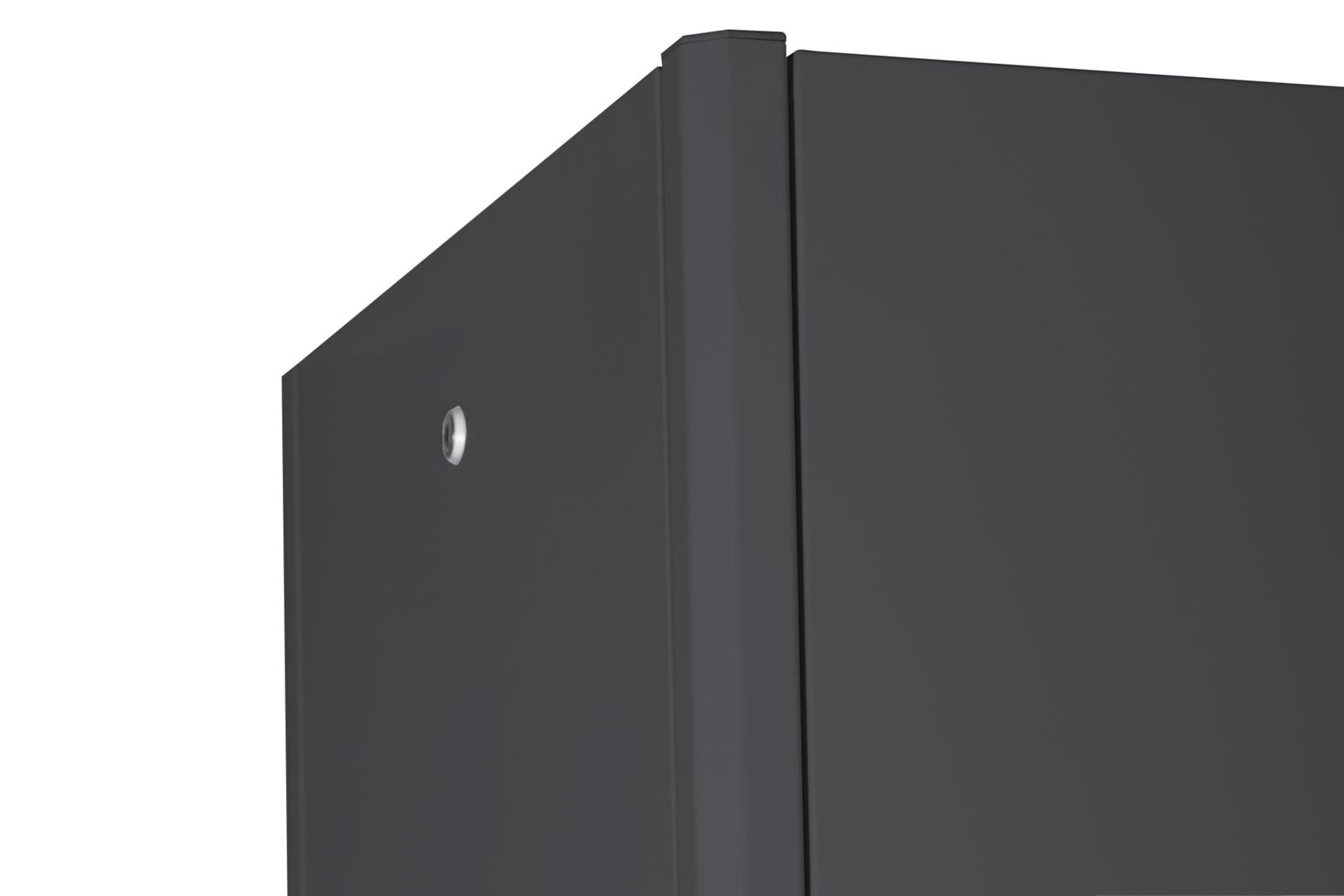

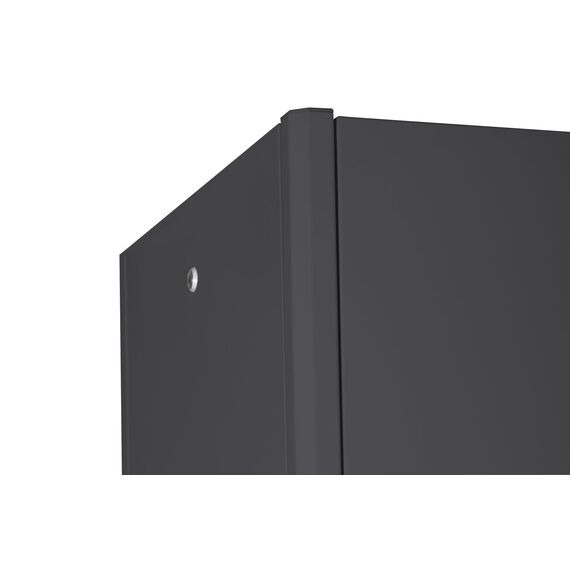

· Rear wall and side panels are lockable and detachable
· incl. 4 pieces of leveling feet already pre-configured under the rack

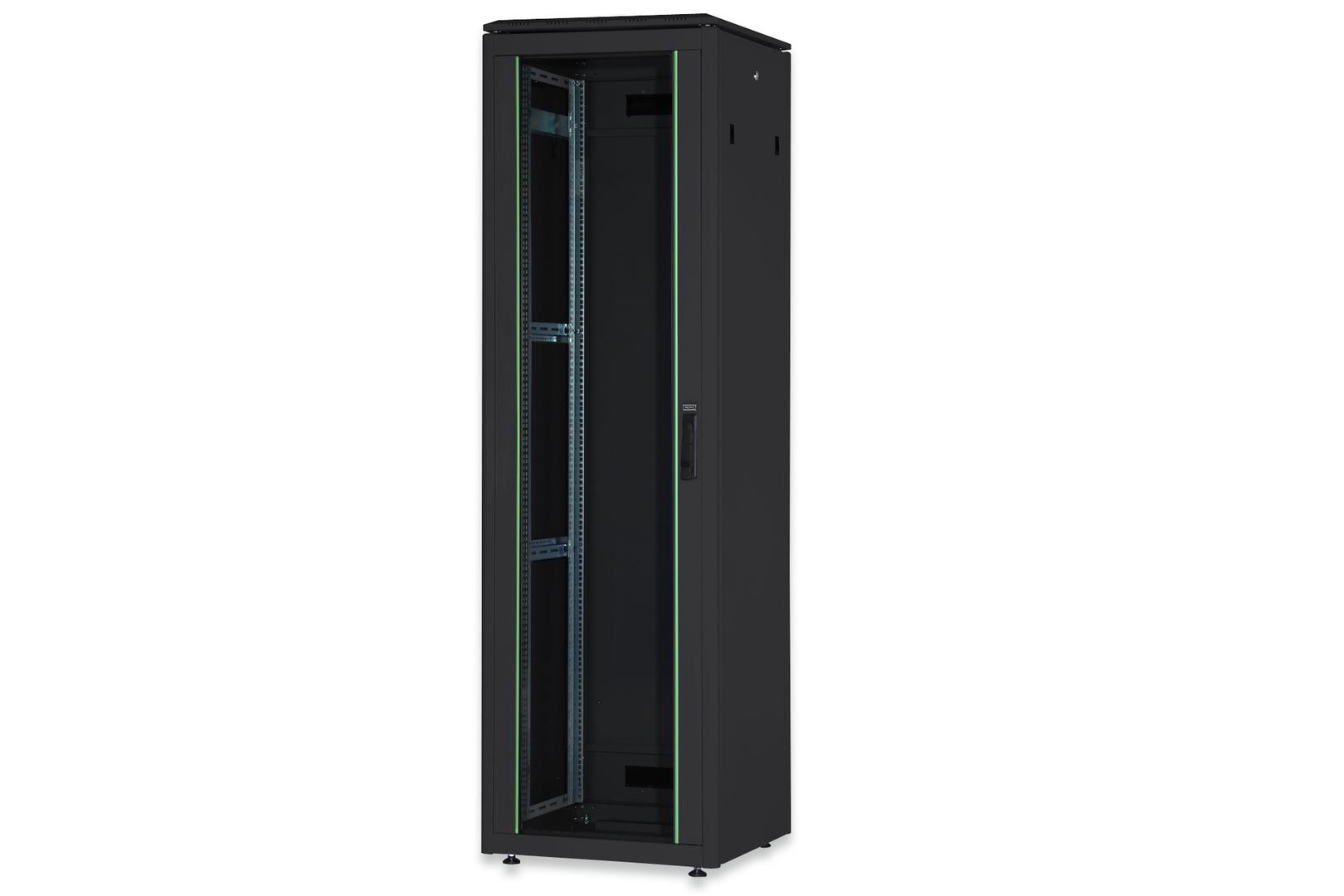

· 483 mm (19) profile rails mounted on the front- and rear side inside of the rack, galvanized
· 483 mm (19) profile rails are adjustable in depth and with height unit marking
· Base with punched out cable entry, covered with screwed metal plate
· Roof with punched out cable entries with plastic covers

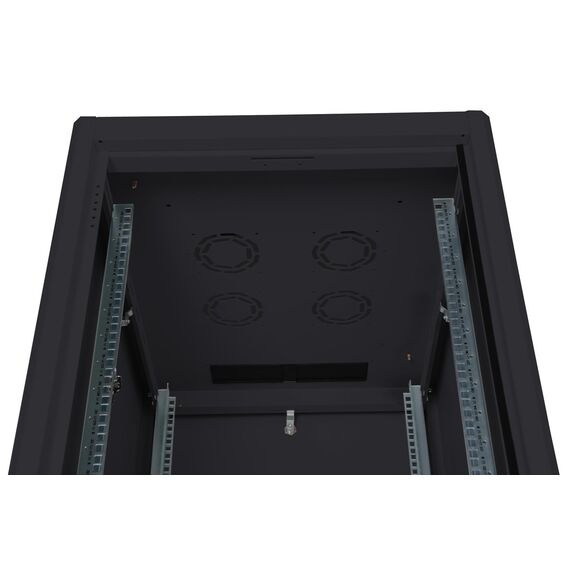

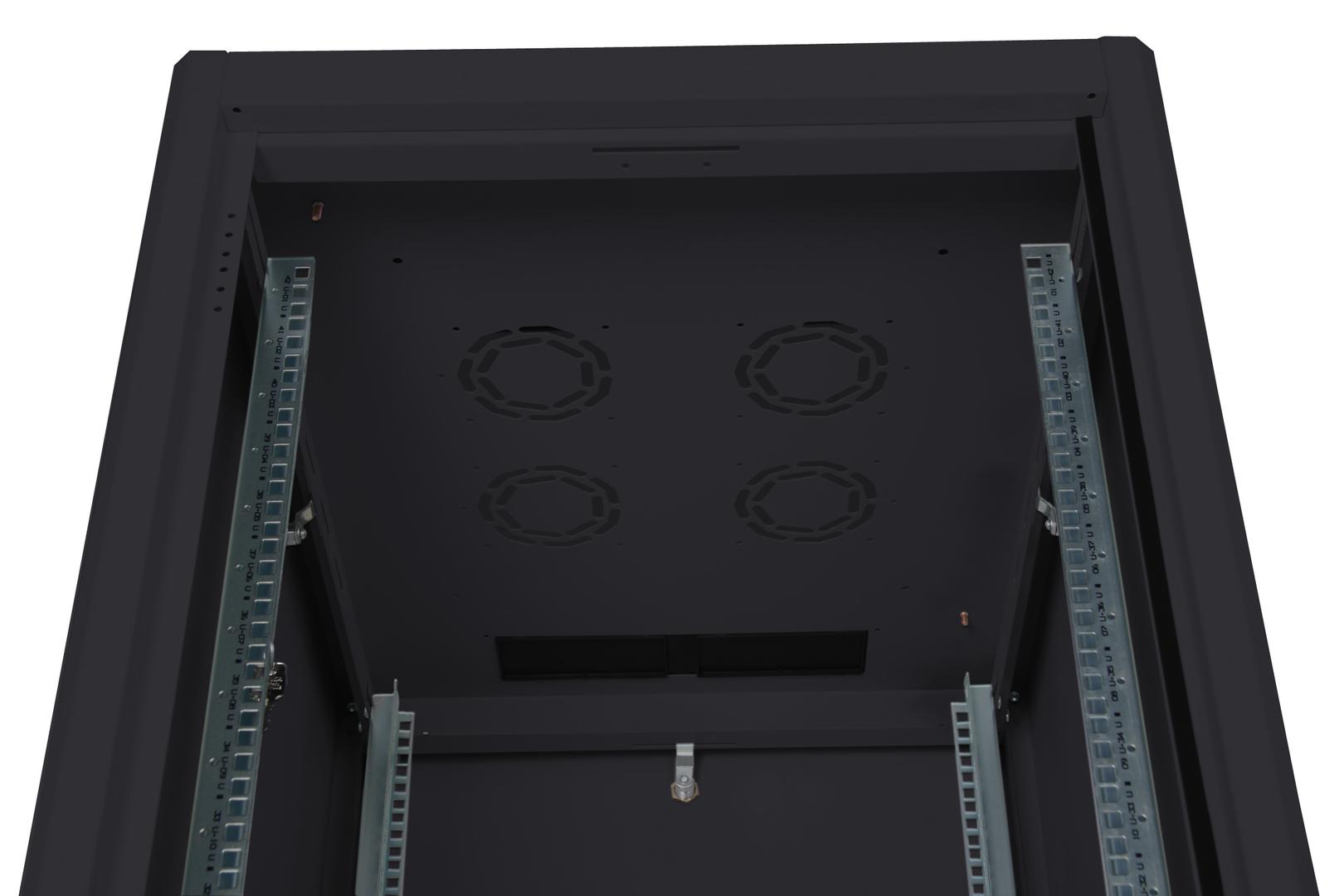

· Roof is prepared for fan units (punched out entries)
· Several earthing points for rack components
· Incl. installation set (screws, cage nuts, washers)
· Rack is completely mounted
· Equipment mounting depth min.-max.: 290-550 mm
Special Fetures
· Roof is prepared for fan units (punched out entries)· Lockable pivot lever on front door
· Base with punched out cable entry, covered with screwed metal plate
Product Specification
| Product Type | Rack |
| Rack Type | Cabinet |
| Product Material | Powder-coated steel |
| Rack Size | 19" |
| Height (Rack Units) | 42U |
| Width | 60 cm |
| Depth | 60 cm |
| Height | 205.3 cm |
| Colour | Black, RAL 9005 |
| Miscellaneous | |
| Weight Limit | 600 kg |
| Features | Lockable rear door, glass door, vertical cable entry |
| Compliant Standards | IEC 297-1/2, IEC 917-2-1, IP40 |
Features - Digitus - DN-19 42U-6/6-DB
More Details
Product Code
03:186924
EAN Code
4016032336747
Manufacturer
Digitus
