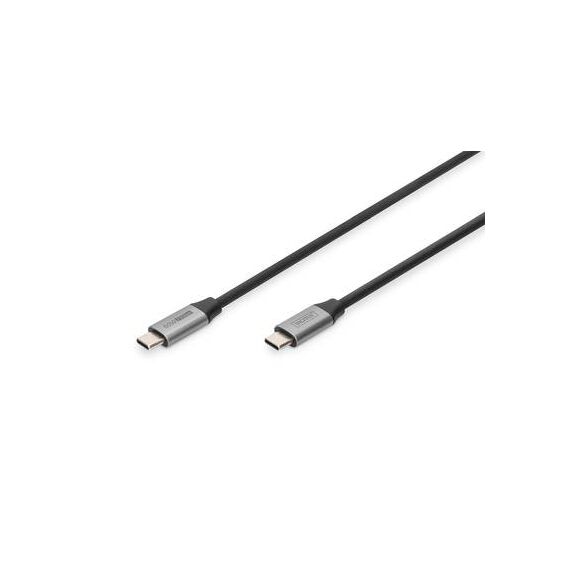

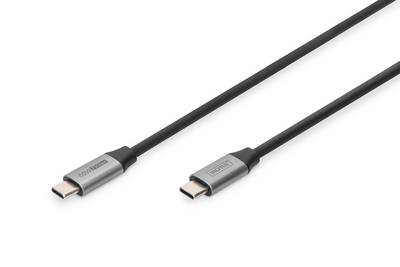

DIGITUS / USB connector / 24 pin USB-C (M) to 24 pin USB-C (M) / 20 V / 3 A / 1 m / 4K support / black | DB-300220-010-S

Product Features

· Supports: 4K @ 60Hz
· Supports data transfer rates of up to 5 Gbit/s
· Backwards-compatible with Thunderbolt 3 and USB 2.0
· Supports USB Power Delivery with 20 V, 3A and 60W
· Strand material: CU
· Connection 1: USB Type-C plug
· Connection 2: USB Type-C plug
· Color of connections: Gray
· Contact material: nickel-plated
· Contact surface: nickel-plated
· Cable color: black
· Length: 1m
· USB-C products: yes
· OD: 4.3 mm
· Material: TPE
· Operating temperature: -20 °C to +60 °C
· Storage temperature: -10 °C to +50 °C
· Humidity: 95%
· Bending radius: 60
· Tensile strength: 4 kg/min
· Manufacturers notice:
· If you connect a USB-C monitor/TV/projector to a PC equipped with USB Type-C, make sure that your USB-C display supports DisplayPort signal output.
· The video output capabilities depend on your notebooks graphic card and the connected monitor. Some screens also limit the available resolution.

Special Features

· Supports data transfer rates of up to 5 Gbit/s
· Supports USB Power Delivery with 20 V, 3A and 60W
· Backwards-compatible with Thunderbolt 3 and USB 2.0
· Supports DisplayPort video/audio signals and PCi Express
· Video/audio support up to 4K with 60 Hz
· USB version: USB-3.0 Gen. 1
· Aluminum housing

Product Specification

Type	USB connector
Technology	Double shielded
Shielding Material	TPE
Rated Voltage	20 V
Rated Current	3 A
Plated Connector	Nickel
Features	4K support, Ultra HD (4K) support
Length	1 m
Outside Diameter	4.3 mm
Colour	Black
Width	11 cm
Depth	10 cm
Height	2 cm
Weight	30 g
Connectivity	Connectivity
Connector	24 pin USB-C - male
Connector (Second End)	24 pin USB-C - male
Miscellaneous	Miscellaneous
Compliant Standards	USB 3.0/ USB 3.1, Plug and Play, CU, USB Power Delivery, Thunderbolt 3
Dimensions & Weight (Shipping)	Dimensions & Weight (Shipping)
Shipping Width	12 cm
Shipping Depth	11 cm
Shipping Height	3 cm
Shipping Weight	50 g
