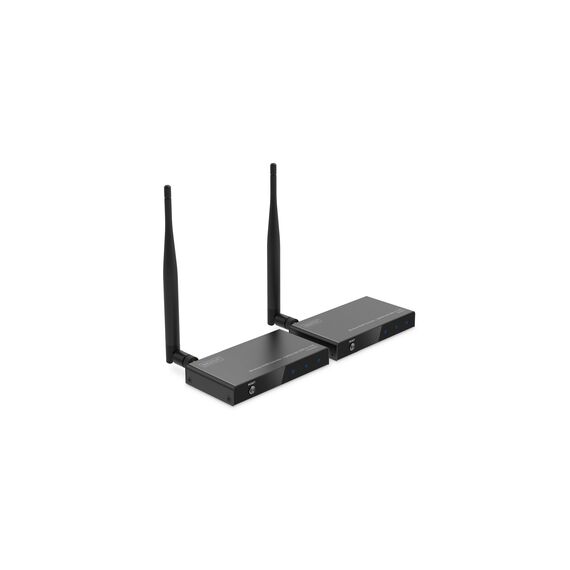

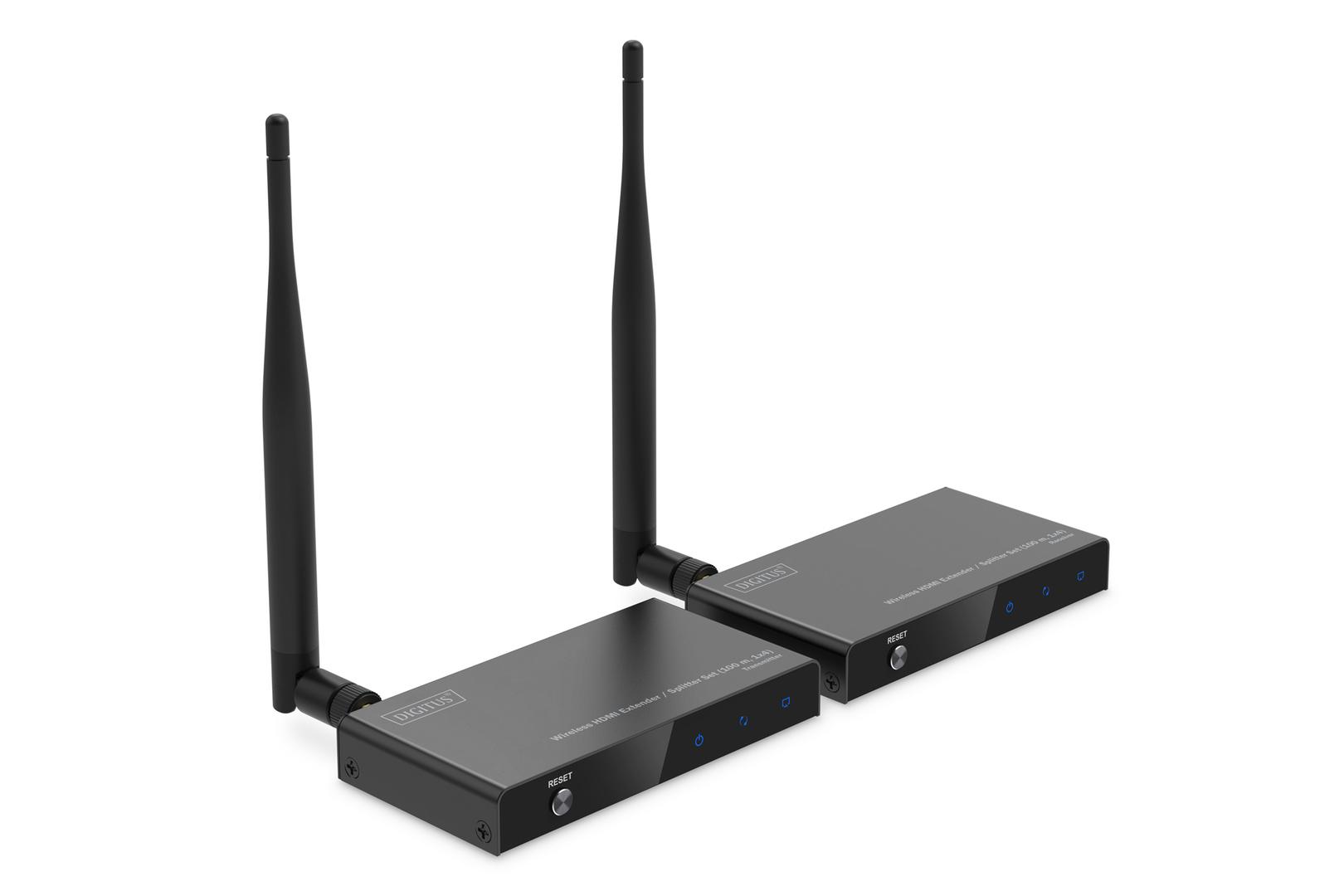

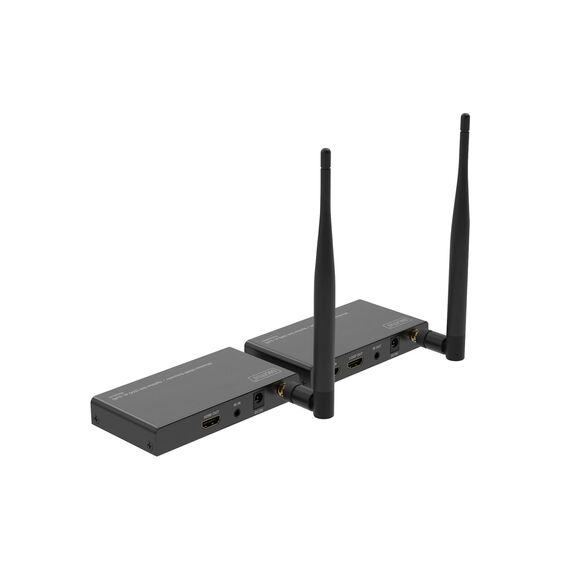

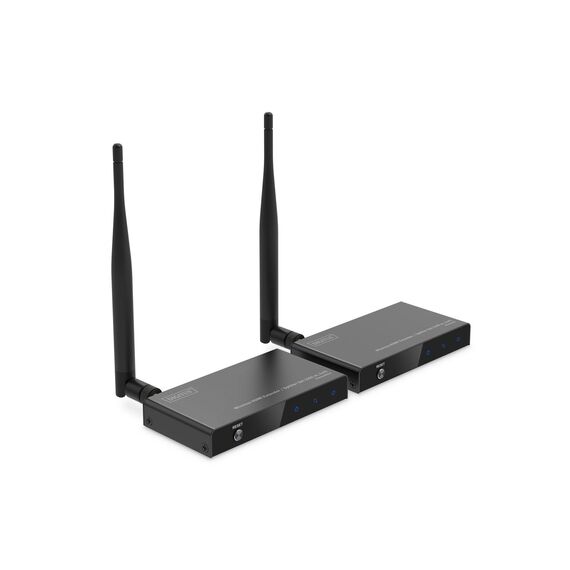

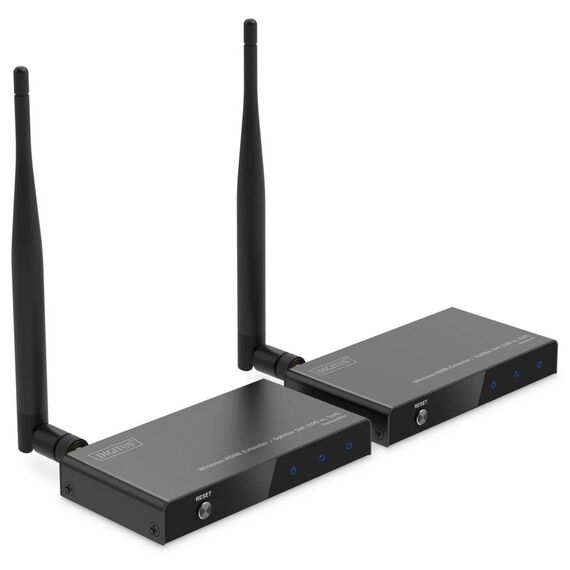

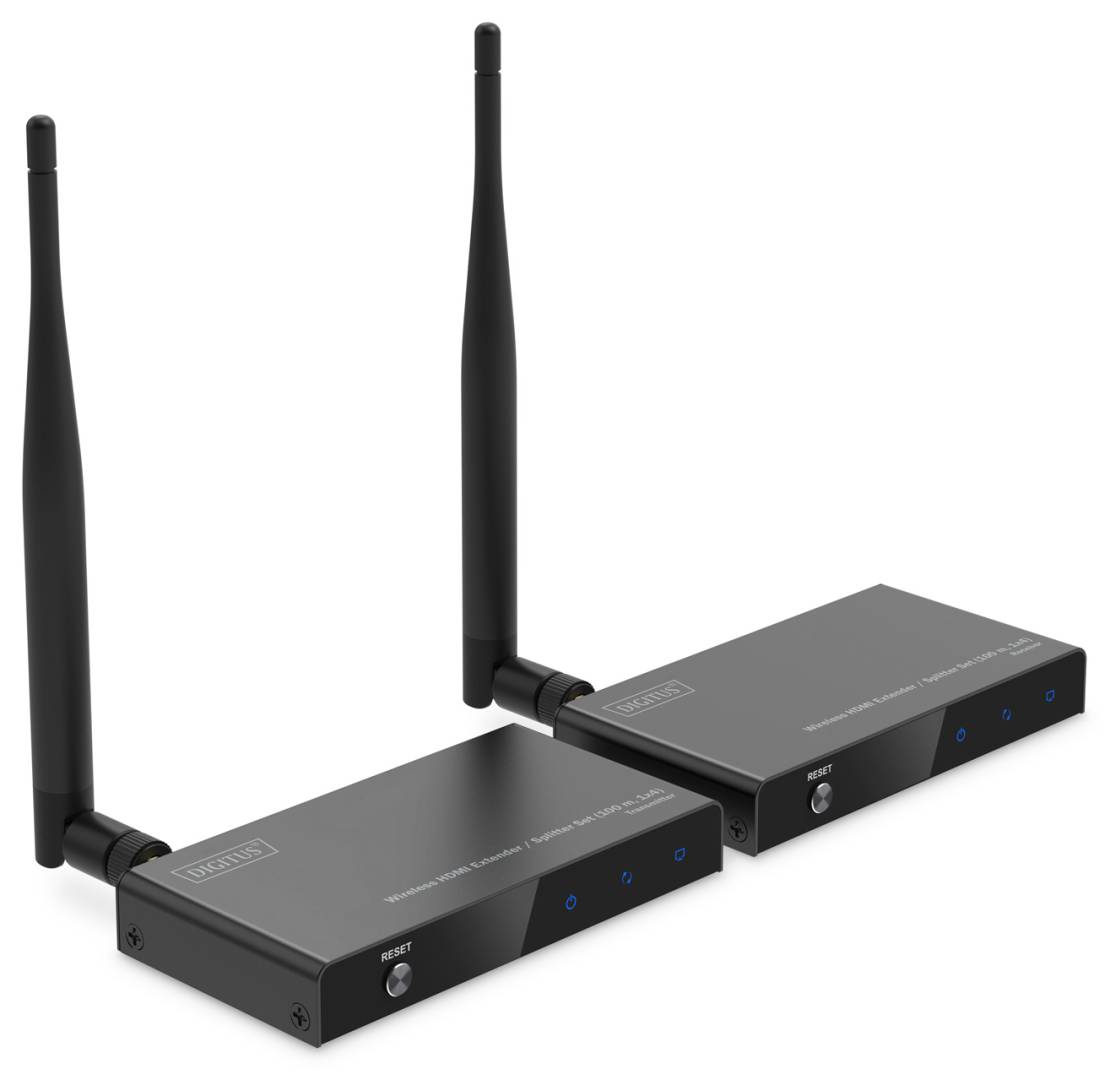

Digitus Wireless HDMI Extender / Splitter Set (100 m, 1x4), 1920 x 1080 pixels, AV transmitter & receiver, 100 m, Wireless, Black, HDCP | DS-55346

Product Features

· Wireless transfer of Full HD AV signals over a distance of up to 100 m (1:1 connection, unobstructed view)
· Supports Point-to-Point and Multicast (Point-to-Multipoint) transfer
· Transfer of HDMI signals in Full HD with max. resolution of 1080p / 60 Hz
· Expandable for up to 4 receiver units (DS-55347) and offers video splitter functionality with additional receivers
· Distribute your HDMI signal on up to 4 displays
· Additional HDMI output (loop-out) on transmitter module for connection to an external monitor
· IR transmission to control the source device from output display
· Plug & Play - no software or driver required
· HDMI 1.4, HDCP 1.3
· Transmission distance 1:1 connection: up to 100 m (unobstructed view)
· Transmission distance 1:2 connection: up to 60 m (unobstructed view)
· Transmission distance 1:3 connection: up to 45 m (unobstructed view)
· Transmission distance 1:4 connection: up to 25 m (unobstructed view)
· Frequency: 5 GHz
· Wireless standard: 802.11a
· HDMI transfer rate: 6.75 Gbps
· Compression: H.264
· Transfer latency: 150 - 200 ms

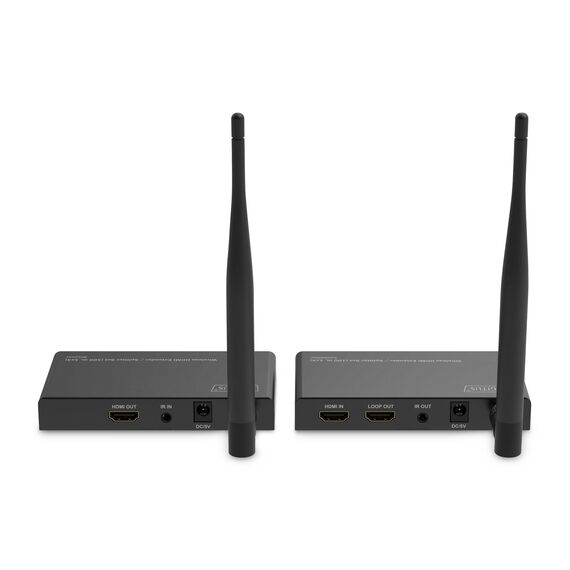

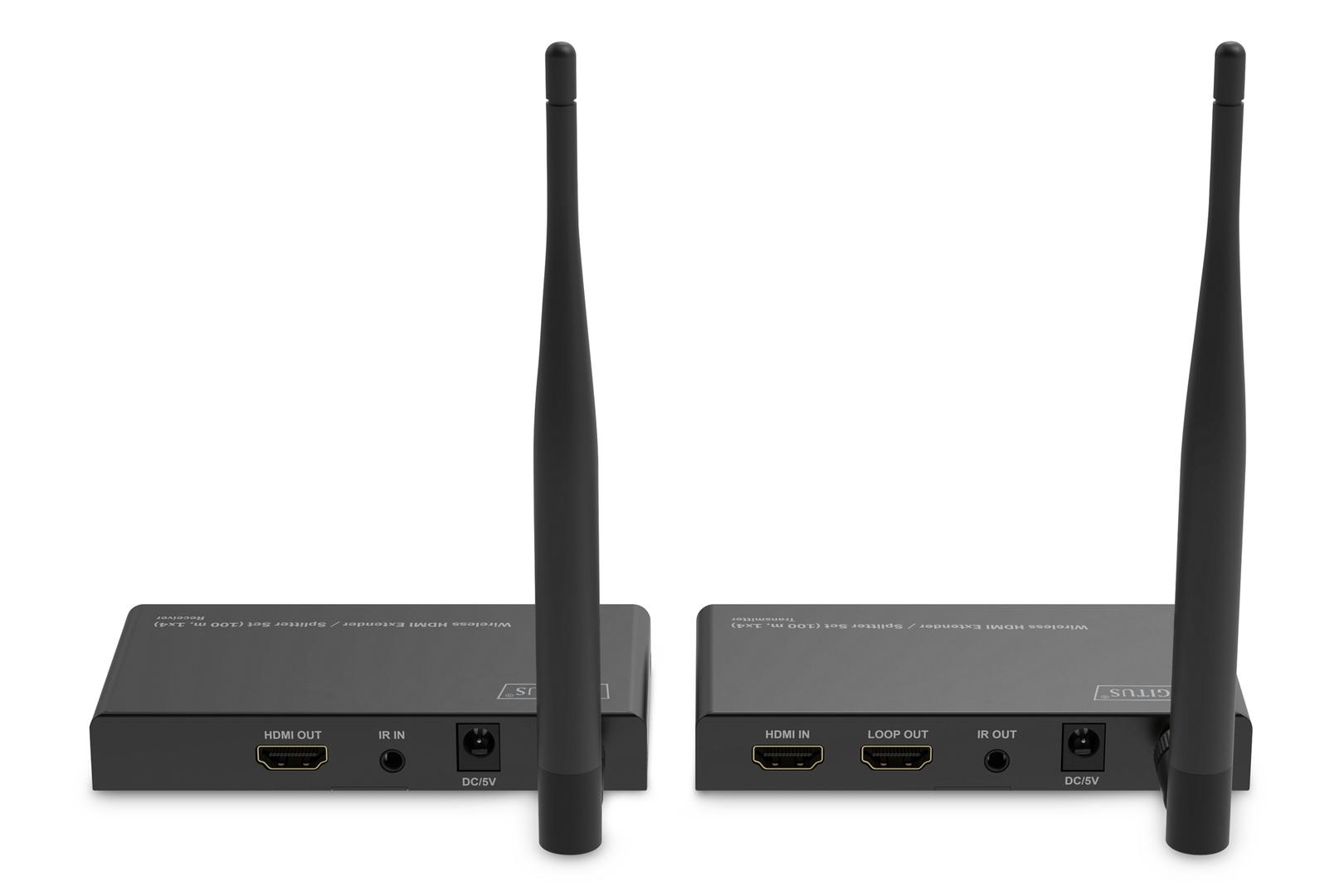

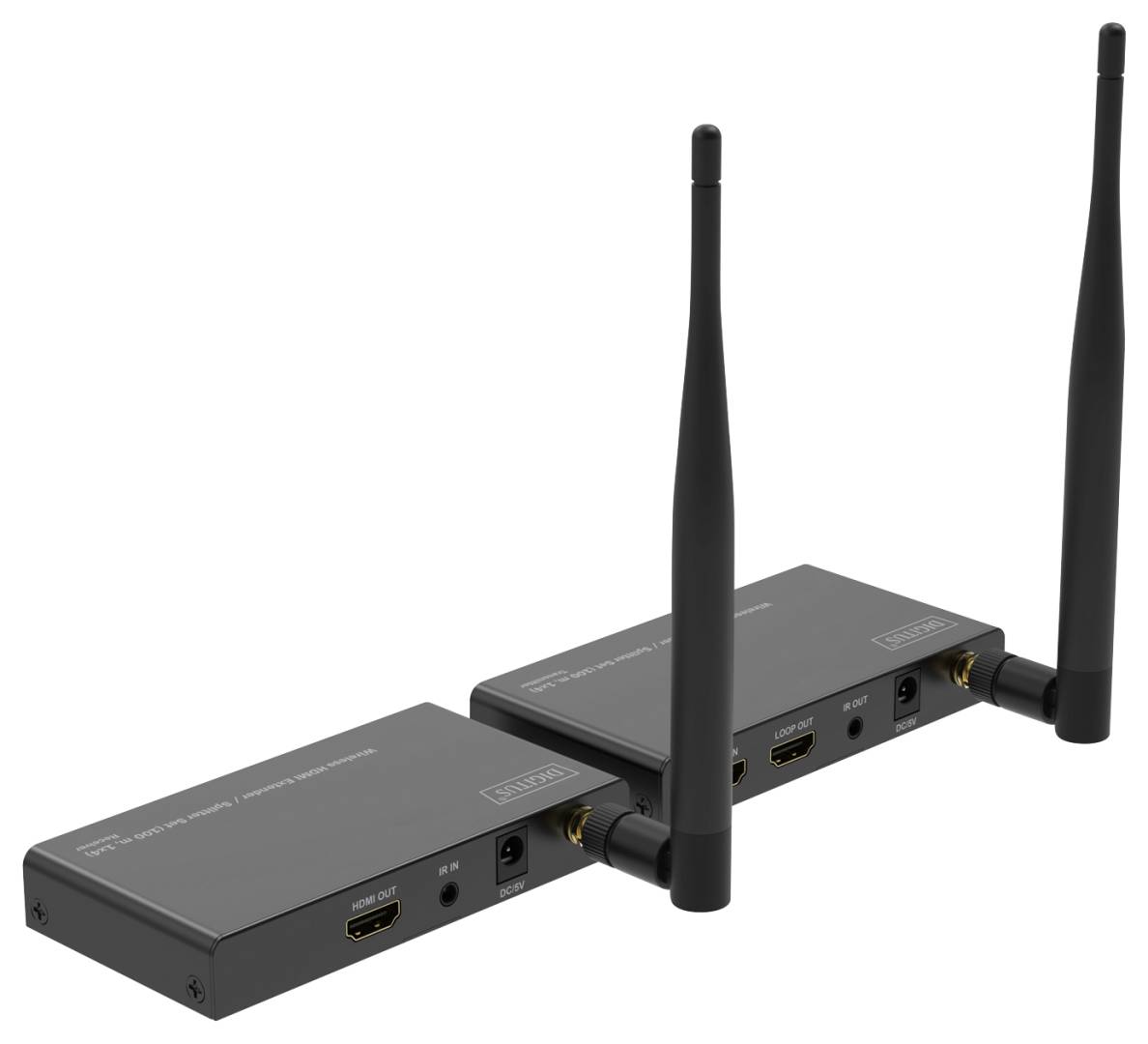

· Transmitter connections:
· 1 x HDMI (input) - Connection signal source
· 1 x HDMI (output) - Loop-out to connect a monitor to the transmitter unit
· 1 x IR (output) - Connection IR cable
· 1x Power adapter (DC/5V)
· 1x Reset button
· Receiver connections:
· 1 x HDMI (output) - Connection output display
· 1 x IR (input) - Connection IR cable
· 1x Power adapter (DC/5V)
· 1x Reset button

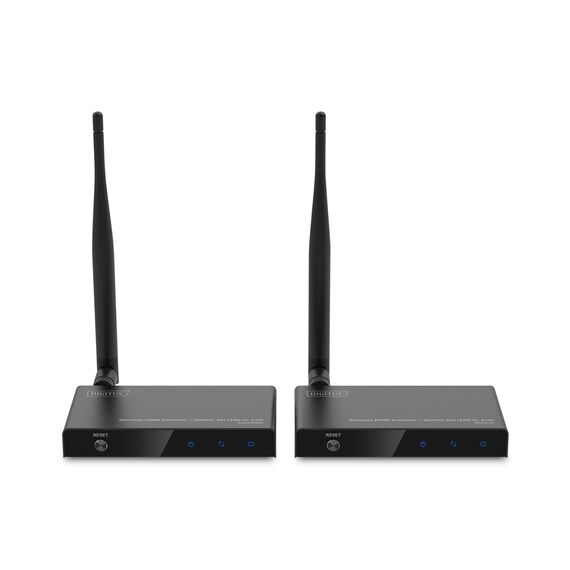

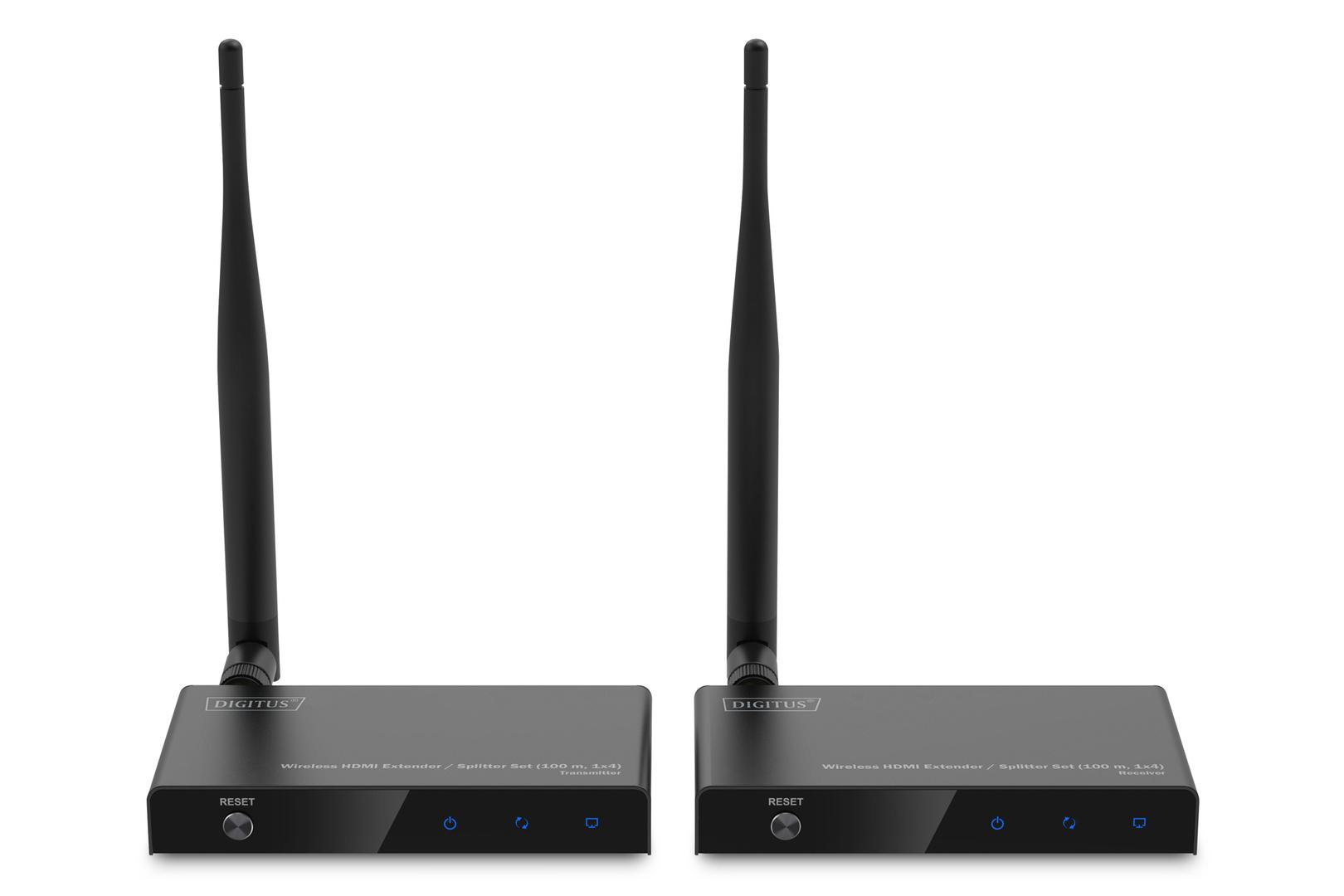

· LED displays: Power / Link / Status
· Operating temperature: 0°C - 50°C
· Power consumption transmitter unit: approx. 3 W
· Power consumption receiver unit: approx. 1.5 W
· Dimensions (1 unit): L 11.8 x W 6,35 x H 1.8 cm
· Color: black
· Weight transmitter: 172 g, receiver: 170 g
· Housing material: Metal
· Note: The transmission distance with a restricted visual range cannot be determined generally and depends on the specific circumstances where installed
· Note: Walls, glass etc. shorten the signal range or cause signal losses

Special Fetures

· Wireless transfer of Full HD AV signals over a distance of up to 100 m (1:1 connection, unobstructed view)
· Supports Point-to-Point and Multicast (Point-to-Multipoint) transfer
· Transfer of HDMI signals in Full HD with max. resolution of 1080p / 60 Hz
· Expandable for up to 4 receiver units (DS-55347) and offers video splitter functionality with additional receivers
· Distribute your HDMI signal on up to 4 displays
· Additional HDMI output (loop-out) on transmitter module for connection to an external monitor
· IR transmission to control the source device from output display
· Plug & Play - no software or driver required
· HDMI 1.4, HDCP 1.3

Product Specification

Type	AV transmitter & receiver
Maximum resolution	1920 x 1080 pixels
Maximum transfer distance	100 m
Connectivity technology	Wireless
Power source type	DC
Operating voltage (transmitter)	5 V
Operating voltage (receiver)	5 V
Receiver dimensions (WxDxH)	63.5 x 118 x 18 mm
Receiver weight	170 g
Transmitter dimensions (WxDxH)	63.5 x 118 x 18 mm
Package width	196 mm
Package depth	243 mm
Package height	60 mm
