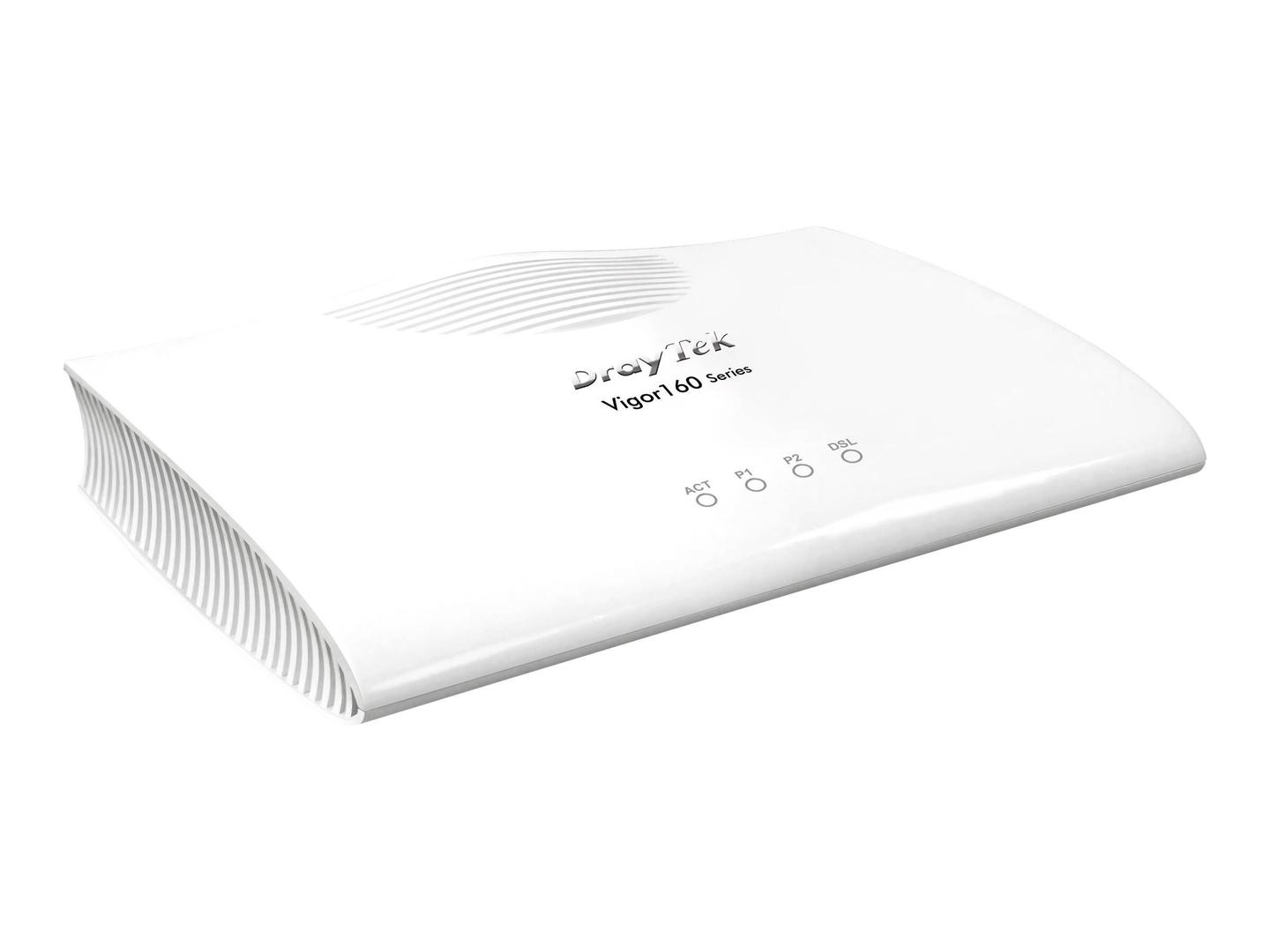

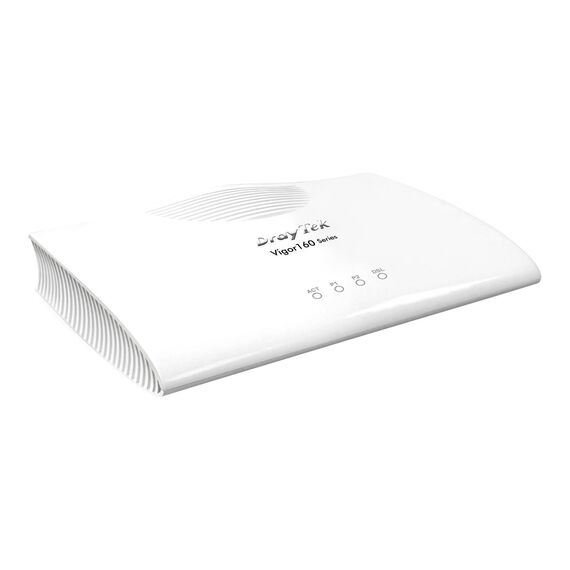

Draytek Vigor 167 / Router / DSL modem / 2-port switch / GigE | V167-DE-AT-CH
V167-DE-AT-CH
Find similar
Delivery
Payment options
Συνδεθείτε για να μπορέσουμε να σας ειδοποιήσουμε σχετικά με μια απάντηση
Special Features
- Supports VDSL2 35b Super Vectoring/ADSL2+
- Multi-PVC for triple-play applications
Product Specification
| Device Type | Router - 2-port switch (integrated) |
| Enclosure Type | Desktop |
| Connectivity Technology | Wired |
| Data Link Protocol | Ethernet, Fast Ethernet, Gigabit Ethernet |
| Network / Transport Protocol | PPTP, L2TP, IPSec, PPPoE, PPPoA, AAL5, FTP, DHCP, DDNS, DHCPv6, RTSP, IPv4, IPv6 |
| Routing Protocol | RIP-1, RIP-2, IGMP, MPOA, static IPv4 routing, static IPv6 routing |
| Remote Management Protocol | SNMP 1, Telnet, SNMP 2c, HTTP, HTTPS, TFTP, SSH, CLI, TR-069 |
| Features | DHCP support, NAT support, VLAN support, IGMP snooping, Syslog support, Stateful Packet Inspection (SPI), DoS attack prevention, content filtering, ALG support, MAC address filtering, URL filtering, firmware upgradable, DHCP server, DNS proxy, port forwarding, reset button, DHCP relay, anti-spoofing protection, DHCP client, e-mail notification, static routing, DNS caching, IGMP proxy, PPPoE passthrough, scheduler, NTP client, DMZ support, Triple Play ready, multiple PVC support, DynDNS, bridge mode |
| Compliant Standards | IEEE 802.1Q, ANSI T1.413, UPnP |
| Built-in Devices | Led panel |
| Status Indicators | Active, LAN, ADSL |
| Line Properties | Line Properties |
| Framing Format | ANSI T1.413 |
| Communications | Communications |
| Type | DSL modem |
| Digital Signaling Protocol | ADSL2, ADSL2+, VDSL2, Vplus 35b |
| Protocols & Specifications | ITU G.997.1, ITU G.993.1, ITU G.993.2 |
| Max Transfer Rate | 300 Mbps |
| IP Telephony | IP Telephony |
| VoIP Protocols | H.323, SIP |
| Expansion / Connectivity | Expansion / Connectivity |

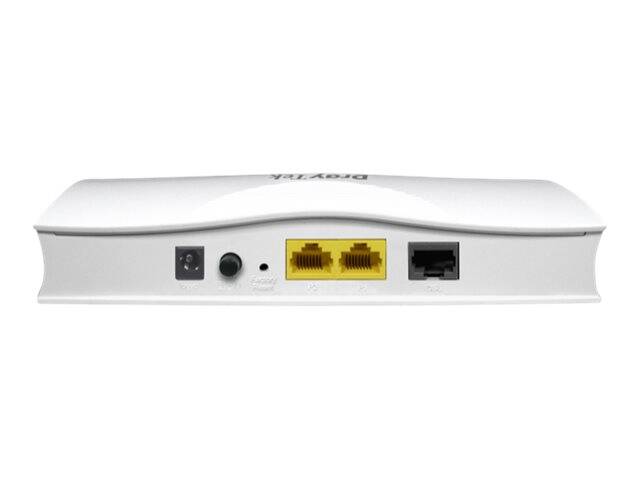

| Interfaces | LAN: 2 x 10Base-T/100Base-TX/1000Base-T - RJ-45 ¦ WAN: 1 x VDSL2 / ADSL2+ - RJ-11 |
| Power | Power |
| Power Device | External power adapter |
| Miscellaneous | Miscellaneous |
| Cables Included | 1 x RJ-11 phone cable ¦ 1 x network cable |
| Dimensions & Weight | Dimensions & Weight |
| Width | 18.1 cm |
| Depth | 12.5 cm |
| Height | 4 cm |
| Weight | 270 g |
