Draytek Vigor 2766ac / Wireless router / DSL modem / 4-port switch / GigE / WAN ports: 2 / Wi-Fi 5 / Dual Band / wall-mountable | V2766AC-DE-AT-CH
Please sign in so that we can notify you about a reply
Product Features
- G.Fast, VDSL and Ethernet router
Connect the Vigor 2766 to Ultrafast G.Fast and Superfast VDSL2 FTTC with integrated DSL modem. Or connect to VirginMedia cable and Ultrafast FTTP with Ethernet WAN. - AC1300 Wireless with Mesh
Connect DrayTek VigorAP Access Points to the router in a wireless Mesh. DrayTek's Self-Optimising Mesh ensures access points are always connecting through best path to your router. - Packed with features
Configure DrayTek's rich feature set to fit your network with Route Policy, Quality of Service, VPN Matcher, DrayDDNS and more. - Powerful SoHo VPN router
Connect remote locations with 2 VPN tunnels for Remote Dial-In User Teleworker and Dial-Out LAN to LAN VPN. Up to 200Mbps IPsec performance, with SSL and OpenVPN support. - 4 Gigabit LAN ports with VLANs
Attach Computers, Servers and Network Attached Storage. Use VLANs to provide a fully separated Guest network, with up to 4 LAN subnets. - VigorACS central management
Use the VigorACS central management platform to manage, monitor and configure the Vigor 2766 series routers remotely across multiple locations.
Special Features
- G.Fast, VDSL and Ethernet router
- AC1300 Wireless with Mesh
- Packed with features
- Powerful SoHo VPN router
- 4 Gigabit LAN ports with VLANs
- VigorACS central management
Product Specification
| Device Type | Wireless router - 4-port switch (integrated) |
| Enclosure Type | Desktop, wall-mountable |
| Connectivity Technology | Wireless, wired |
| Data Link Protocol | Ethernet, Fast Ethernet, Gigabit Ethernet, IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac |
| Frequency Band | 2.4 GHz / 5 GHz |
| Performance | NAT throughput (with G.fast): 1.3 Gbps ¦ NAT throughput (with VDSL2 35b): 300 Mbps ¦ NAT throughput (with VDSL2): 100 Mbps ¦ NAT throughput without hardware acceleration: 700 Mpps ¦ NAT throughput with hardware acceleration: 950 Mbps ¦ VPN throughput (SSL): 80 Mbps ¦ VPN throughput (256-bit AES IPSec): 200 Mbps |
| Capacity | Concurrent VPN tunnels: 2 ¦ NAT sessions: 50000 ¦ VLANs supported: 8 |
| Network / Transport Protocol | PPTP, L2TP, IPSec, PPPoE, PPPoA, DHCP, DNS, Bonjour, DDNS |
| Routing Protocol | RIP-1, RIP-2, static IP routing, MPOA, policy-based routing (PBR) |
| Remote Management Protocol | SNMP 2, Telnet, SNMP 3, SNMP 2c, HTTP, HTTPS, SSH, CLI, TR-069 |
| Encryption Algorithm | DES, Triple DES, MPPE, SSL, SHA-1, 128-bit AES, 192-bit AES, 256-bit AES, IKEv2, 256-bit SHA, IKEv1 |
| Authentication Method | X.509 certificates, XAUTH authentication |
| Features | NAT support, ARP support, IGMP snooping, Syslog support, Stateful Packet Inspection (SPI), DoS attack prevention, content filtering, ALG support, IPv6 support, Wi-Fi Multimedia (WMM) support, Quality of Service (QoS), Dead Peer Detection (DPD), IPSec NAT-Traversal (NAT-T), RADIUS support, Wi-Fi Protected Setup (WPS), DHCP server, Multiple SSID support, hidden SSID, reset button, IPv4 support, 3G/4G USB Dongle Support, DHCP client, tagged VLAN, IGMP proxy, band steering, WDS bridge, Wireless Scheduler, port-based VLAN, Air Time Fairness (ATF), WDS repeater mode |
| Compliant Standards | IEEE 802.1Q, UPnP |
| Communications | Communications |
| Type | DSL modem |
| Digital Signaling Protocol | ADSL, VDSL, ADSL2, ADSL2+, VDSL2, G.fast |
| Protocols & Specifications | ITU G.992.1 (G.DMT), ITU G.992.2 (G.Lite), ITU G.997.1, ITU G.992.5, ITU G.993.1, ITU G.993.2, ITU G.992.3 |
| Max Transfer Rate | 300 Mbps |
| Expansion / Connectivity | Expansion / Connectivity |

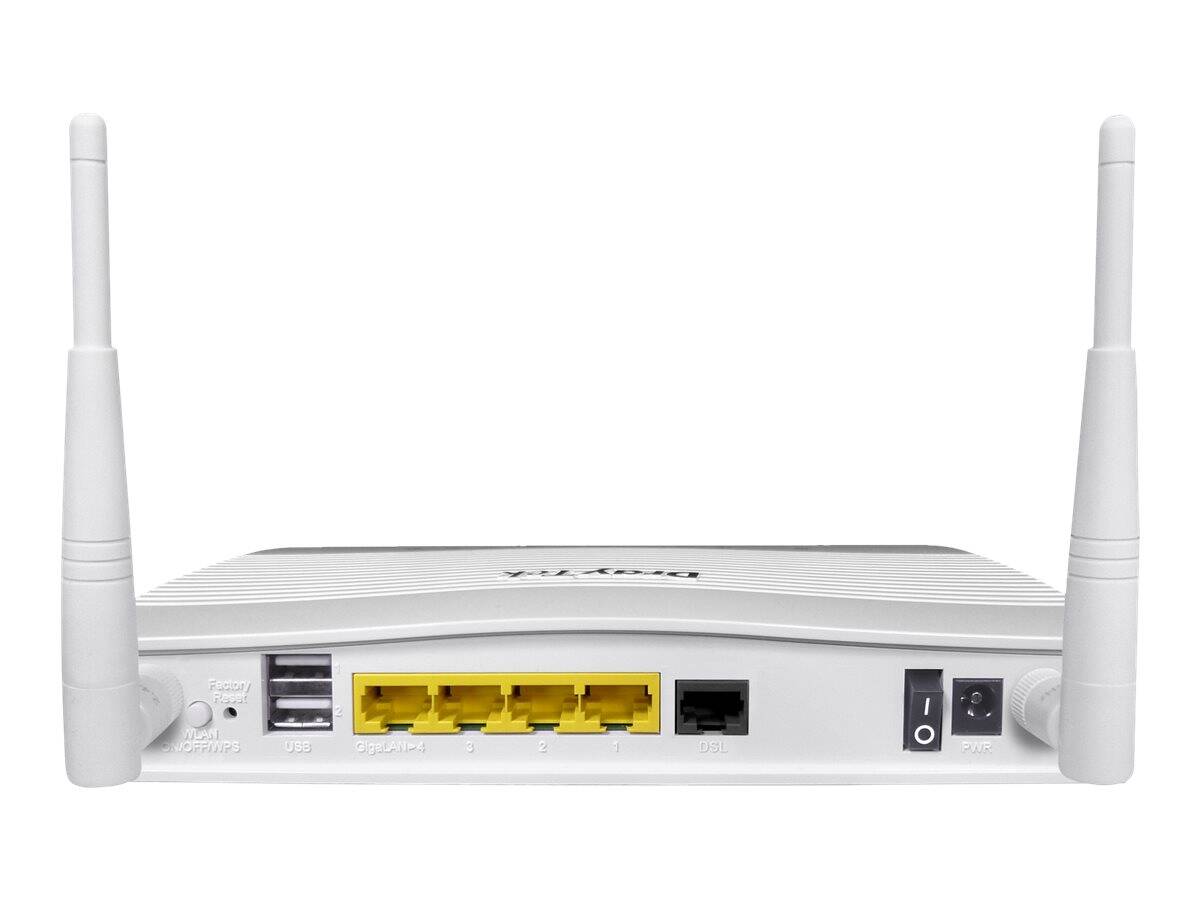

| Interfaces | LAN: 3 x 10Base-T/100Base-TX/1000Base-T - RJ-45 ¦ WAN: 1 x VDSL2 / ADSL2+ - RJ-11 ¦ WAN / LAN: 1 x 10Base-T/100Base-TX/1000Base-T - RJ-45 ¦ USB 2.0: 2 x 4 pin USB Type A |
| Aerial | Aerial |
| Aerial | External detachable |
| Antenna Qty | 2 |
| Power | Power |
| Power Device | External power adapter |
| Voltage Required | AC 200-240 V |
| Miscellaneous | Miscellaneous |
| Included Accessories | Wall mounting kit |
| Cables Included | 1 x network cable - 2 m |
| Dimensions & Weight | Dimensions & Weight |
| Width | 20.7 cm |
| Depth | 13.1 cm |
| Height | 3.9 cm |
| Manufacturer Warranty | Manufacturer Warranty |
| Service & Support | Limited warranty - 2 years |
| Environmental Parameters | Environmental Parameters |
| Min Operating Temperature | 0 °C |
| Max Operating Temperature | 45 °C |
| Humidity Range Operating | 10 - 90% (non-condensing) |
Features - Draytek - V2766AC-DE-AT-CH
More Details
Product Code
04:383290
EAN Code
4710484744081
Manufacturer
Draytek
