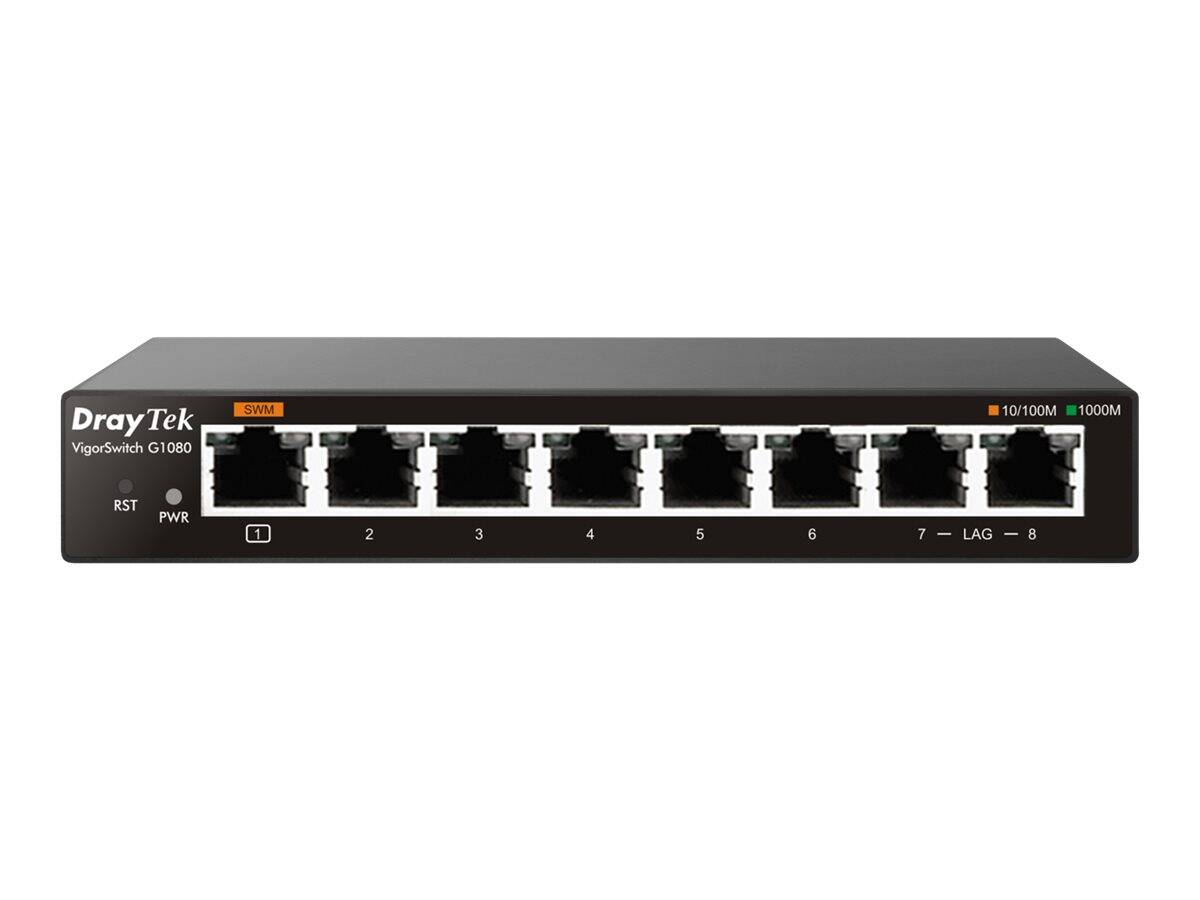

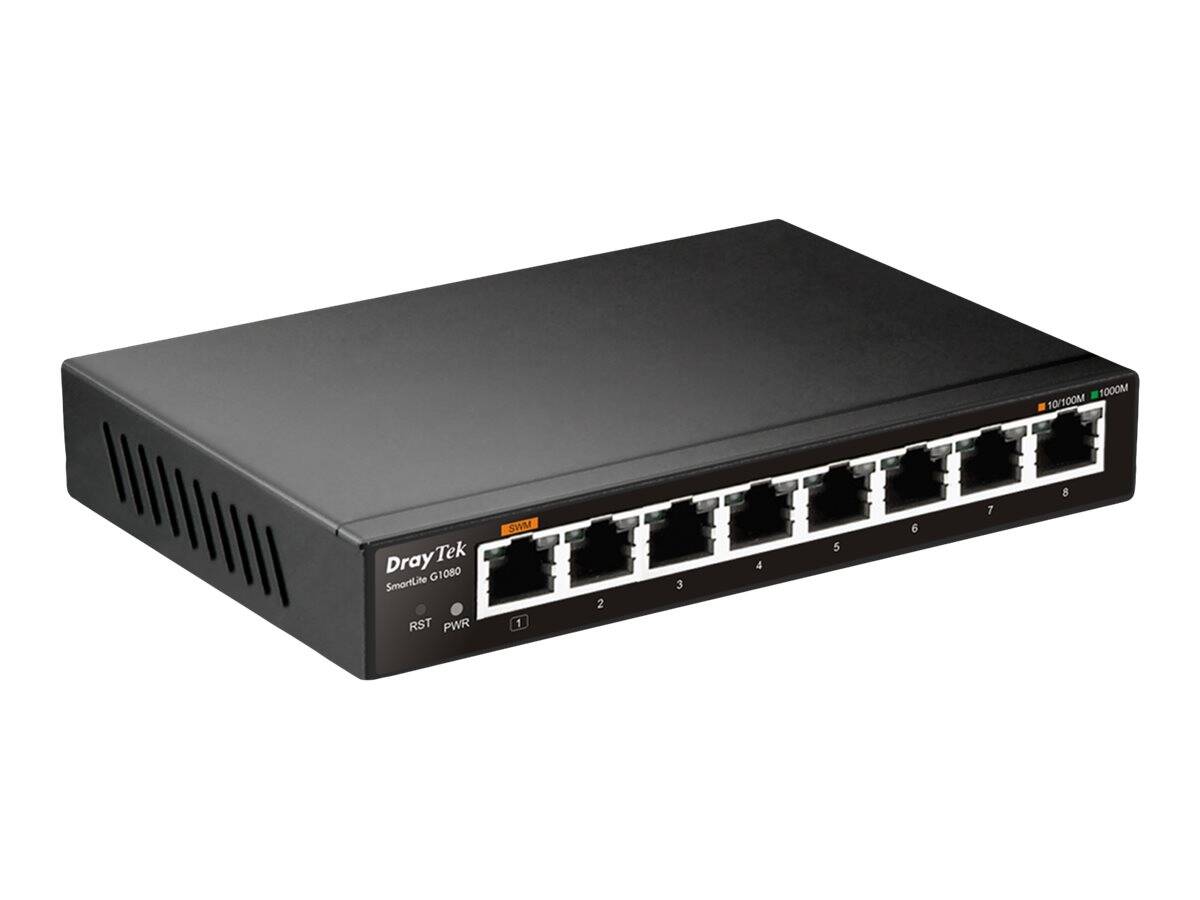

Draytek VigorSwitch G1080 - Switch - smart - 8 x 10/100/1000 - desktop | VSWITCHG1080-DE-AT-CH
Product Features
- LAN Management
VigorSwitch G1080 offers features that can build a secure business network, such as VLAN, Storm Control. While someone tries to connect to the network for Internet access, these features help to block the access to the business network resources and protect the network from being exhausted by malicious traffic. - Speed up the network by Link Aggregation
If cascading more switches are required, link aggregation will provide the network higher throughput and link redundancy. VigorSwitch G1080 supports link aggregation by LACP (Link Aggregation Control Protocol), 1 Link Aggregation Group can be set up on VigorSwitch G1080, and the group can have up to 2 port members. - Power-saving
The VigorSwitch G1080 helps you build a green networking by offering power-saving features, such as IEEE 802.3az (Energy-Efficient Ethernet), which allows the switch to dynamically adjust the power on each port according to the client activity and cable length, this can be an ideal power saving solution for your company.
Special Fetures
- 8 Gigabit capable ports
- Support HTTP Web Management
- QoS for application traffic prioritization
- Support 6 tag-based or port-based VLANs
- 1 Link Aggregation Group on Port 7 and 8
- Power saving by 802.3az Energy-Efficient Ethernet
- Support Loop Detection & Prevention
Product Specification
Device Type | Switch - 8 ports - smart |
Enclosure Type | Desktop |
Subtype | Gigabit Ethernet |
Ports | 8 x 10/100/1000 |
Performance | Switching capacity: 16 Gbps ¦ Forwarding rate (64-byte packets): 11.9 Mpps |
Capacity | Virtual interfaces (VLANs): 8 ¦ QoS queues: 4 ¦ IGMP multicast groups: 128 |
MAC Address Table Size | 4K entries |
Jumbo Frame Support | 9KB |
Routing Protocol | IGMPv2 |
Remote Management Protocol | HTTP |
Features | Flow control, VLAN support, IGMP snooping, Broadcast Storm Control, Multicast Storm Control, Unicast Storm Control, firmware upgradable, Weighted Fair Queuing (WFQ), Quality of Service (QoS), reset button, IPv4 support, Link Aggregation Control Protocol (LACP), Energy Efficient Ethernet, 96KB packet buffer, loop prevention, Class of Service (CoS), tagged VLAN, Link Aggregation, rate limit, Weighted Round Robin (WRR), DSCP based QoS |
Compliant Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.3az |
Status Indicators | Power, link/activity/speed |
Expansion / Connectivity | |
Interfaces | 8 x 1000Base-T RJ-45 |
Power | |
Power Device | External power adapter |
Power Provided | 5 V - 1 A |
Power Consumption Operational | 3.3 Watt |
Miscellaneous | |
Compliant Standards | FCC, RoHS |
Dimensions & Weight | |
Width | 15.4 cm |
Depth | 8.5 cm |
Height | 2.6 cm |
Weight | 325 g |
Environmental Parameters | |
Min Operating Temperature | 0 °C |
Max Operating Temperature | 45 °C |
Humidity Range Operating | 10 - 90% (non-condensing) |
Min Storage Temperature | -20 °C |
Max Storage Temperature | 70 °C |
Humidity Range Storage | 5 - 90% (non-condensing) |
