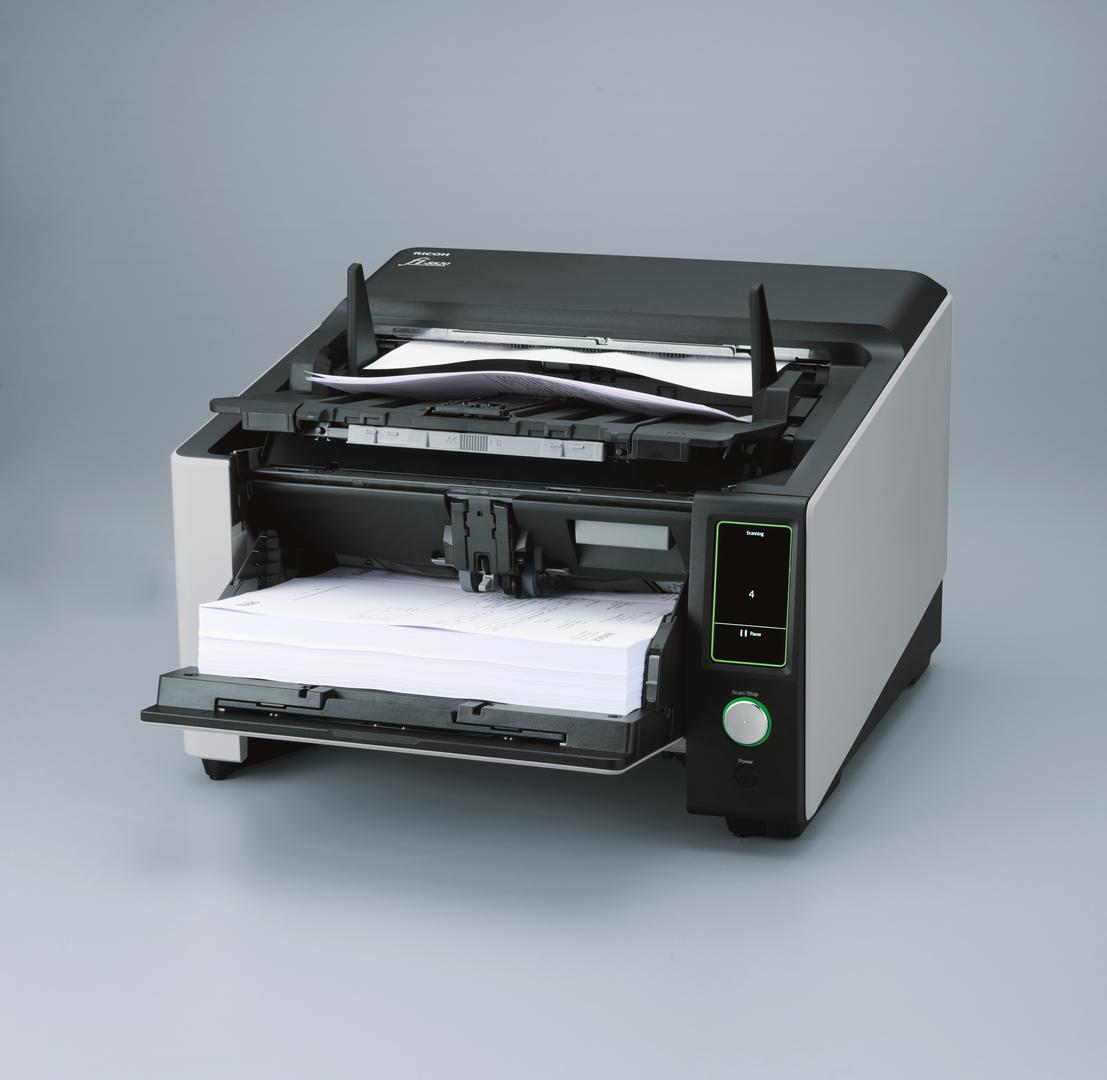

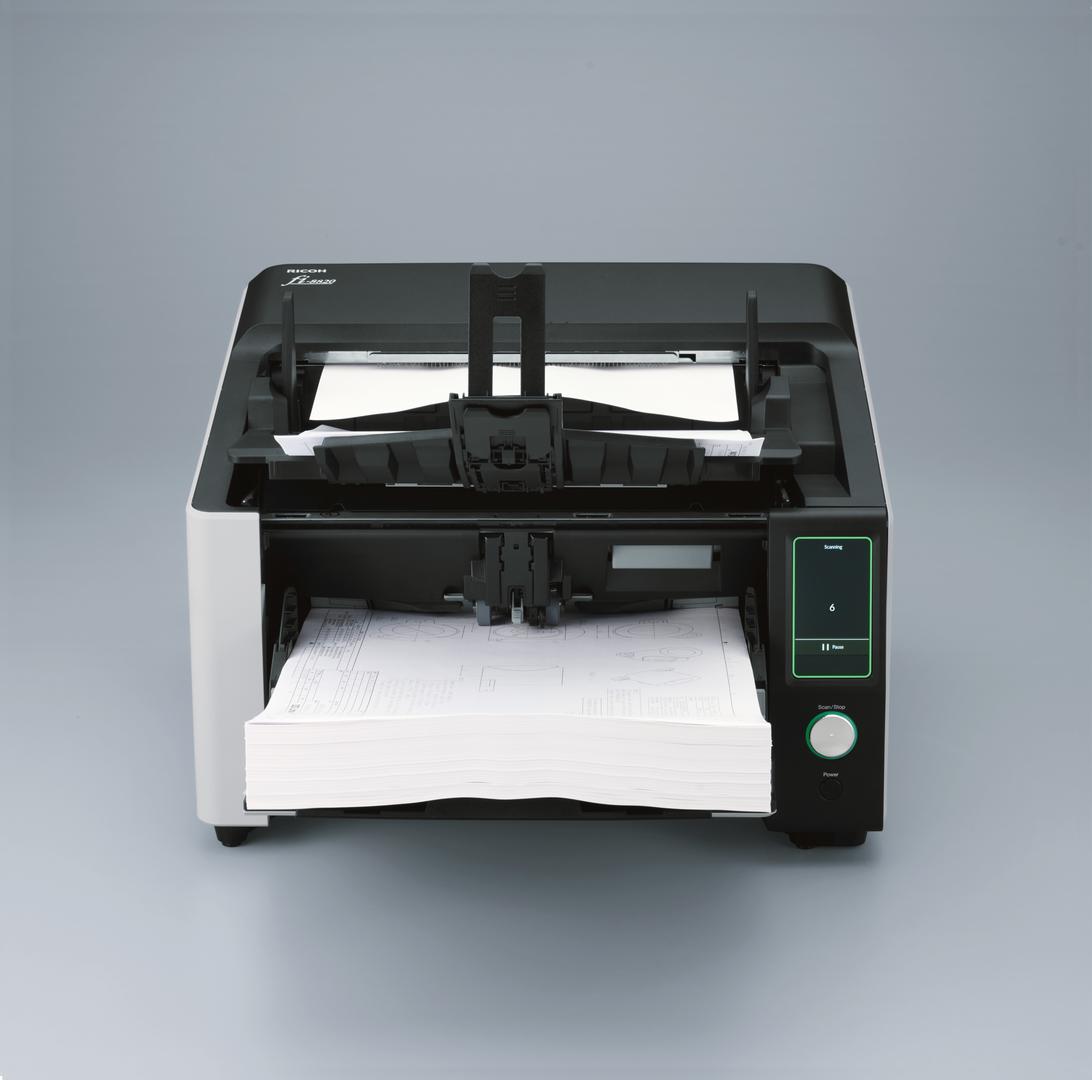

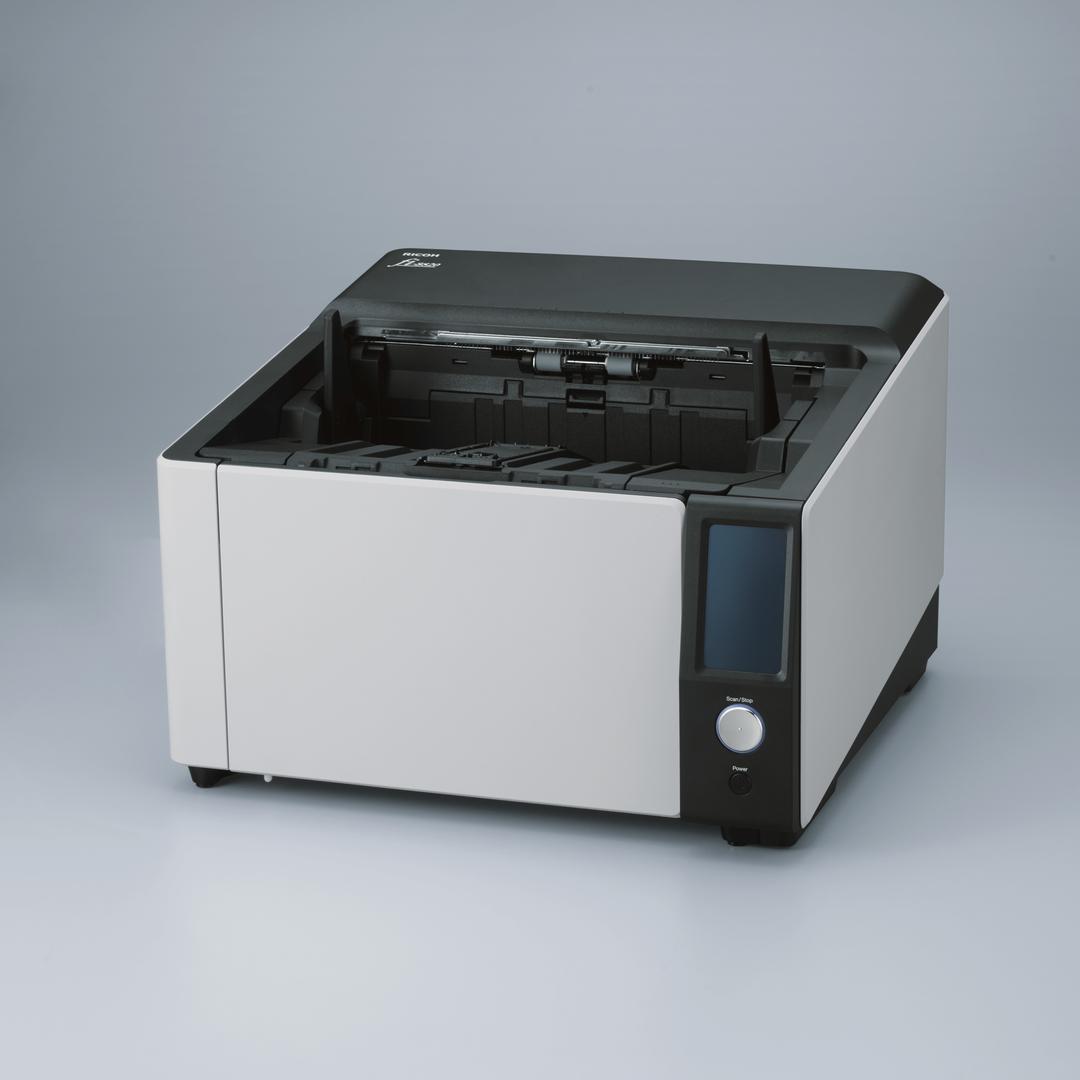

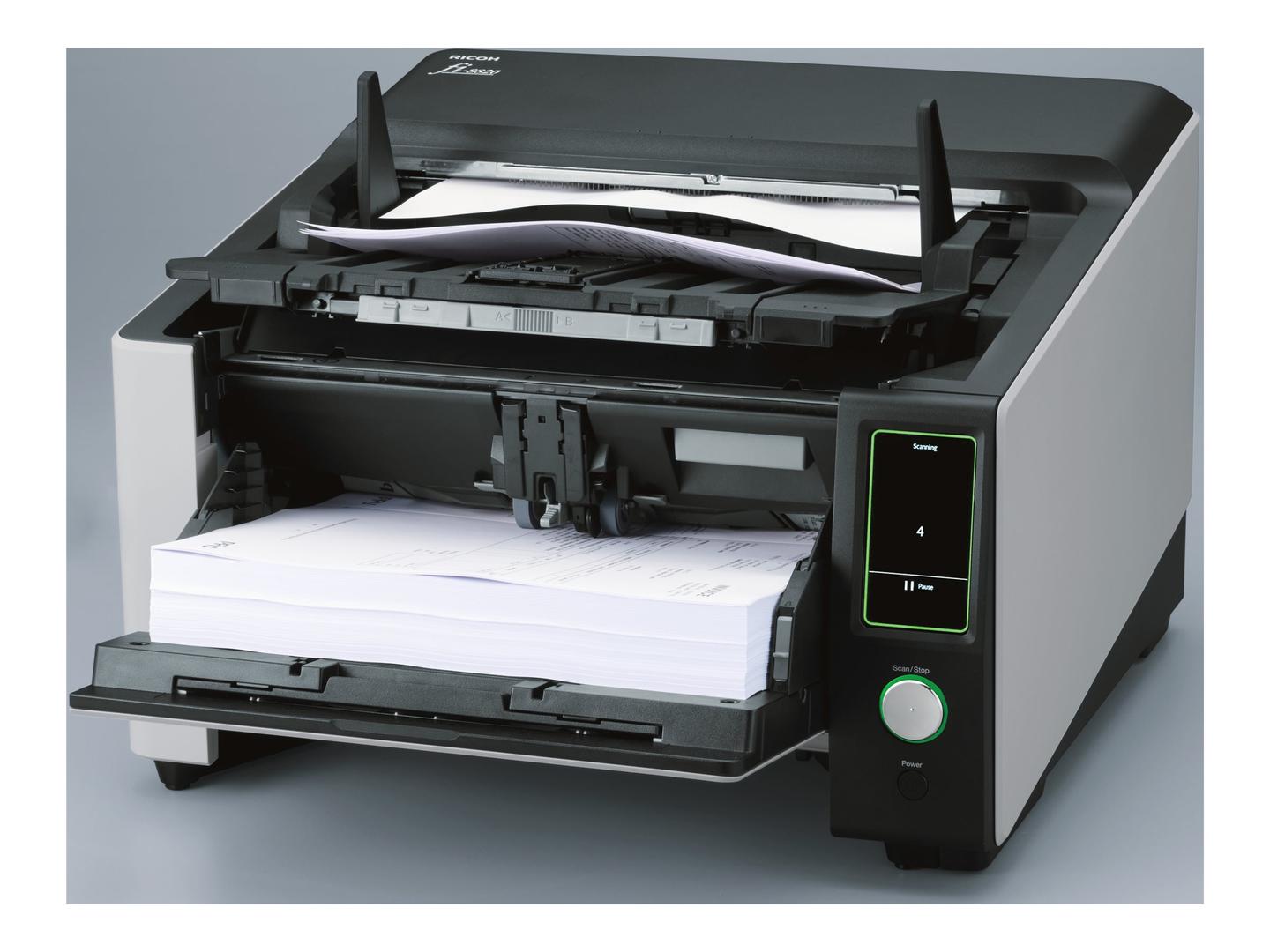

Dual CIS - Duplex - 305 x 431.8 mm - 600 dpi x 600 dpi - up to 120 ppm (mono) / up to 120 ppm (colour) - ADF (500 sheets) - up to 100000 scans per day - Gigabit LAN, USB 3.2 Gen 1 | PA03830-B301
Product Features
- Fast speed, large capacity

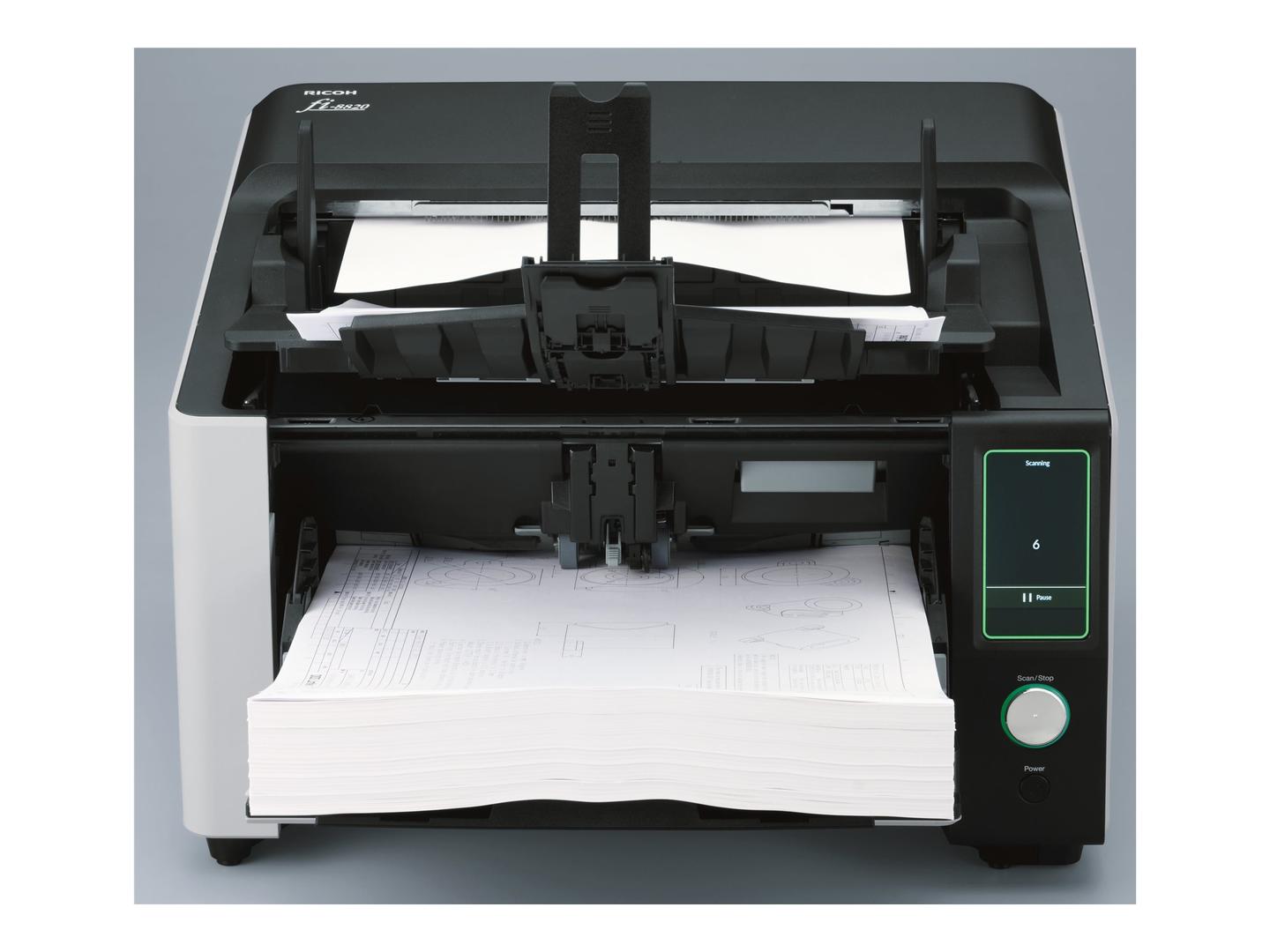

With a scanning speed up to 120 ppm and ADF capacity of 500 sheets this model is designed to handle the continuous scanning of large volumes of documents. - Tough, durable and easy to maintain
Durable, easy-to-maintain construction ensures consistent performance. Internal LED lights switch on automatically the moment the scanner is opened. And a 105° wide opening angle means servicing is quick and efficient. The daily cleaning mode ensures your scanner remains in peak condition. - Reliably fast connectivity
This scanner features both USB 3.2 and Gigabit LAN options - providing high-speed, reliable connectivity and ensuring data can be transferred quickly and accurately. - Easily handles different document types
Incorporating both U-turn and straight-path scanning, many different document types can be handled without fuss or delay. Even documents up to 1.25 mm in thickness can be accommodated via the straight-through path scanning option. - Advanced paper protection technology
Costly delays and potential damage are avoided thanks to advanced paper protection features such as Stapled Document Detection. - Intelligent Multi-Feed Function
The intelligent Multi-Feed Function (iMFF) assesses and understands both when to stop for stickers or photos attached to documents, and when to ignore them and continue the scan. - Eliminate mixed batch preparation
The Automatic Profile Selection feature can eliminate the time and effort needed to sort batches into different document types, by automatically applying the correct scan profile to recognized forms. - Reduce post-scan effort
Enhanced paper ejection and stacking control ensure scanned documents are neatly stacked and ready to be lifted from the tray with ease. - Excellent OCR accuracy
Ricoh's unique Clear Image Capture technology delivers excellent OCR accuracy rates and exceptional image quality. - Optimized file sizes for low-cost storage
Ricoh's PaperStream IP driver removes noise and optimizes file sizes for lower-cost storage. - Ergonomic design

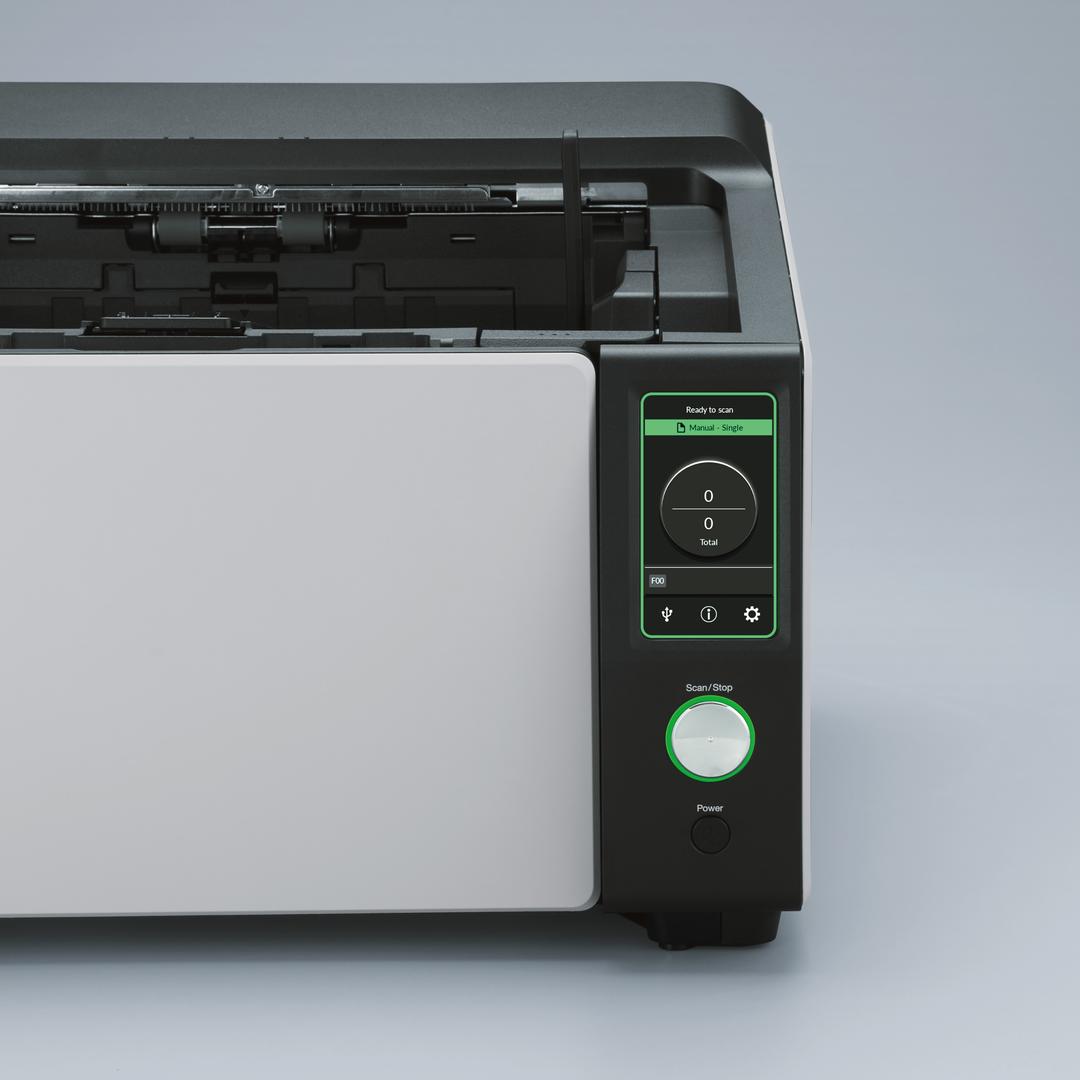

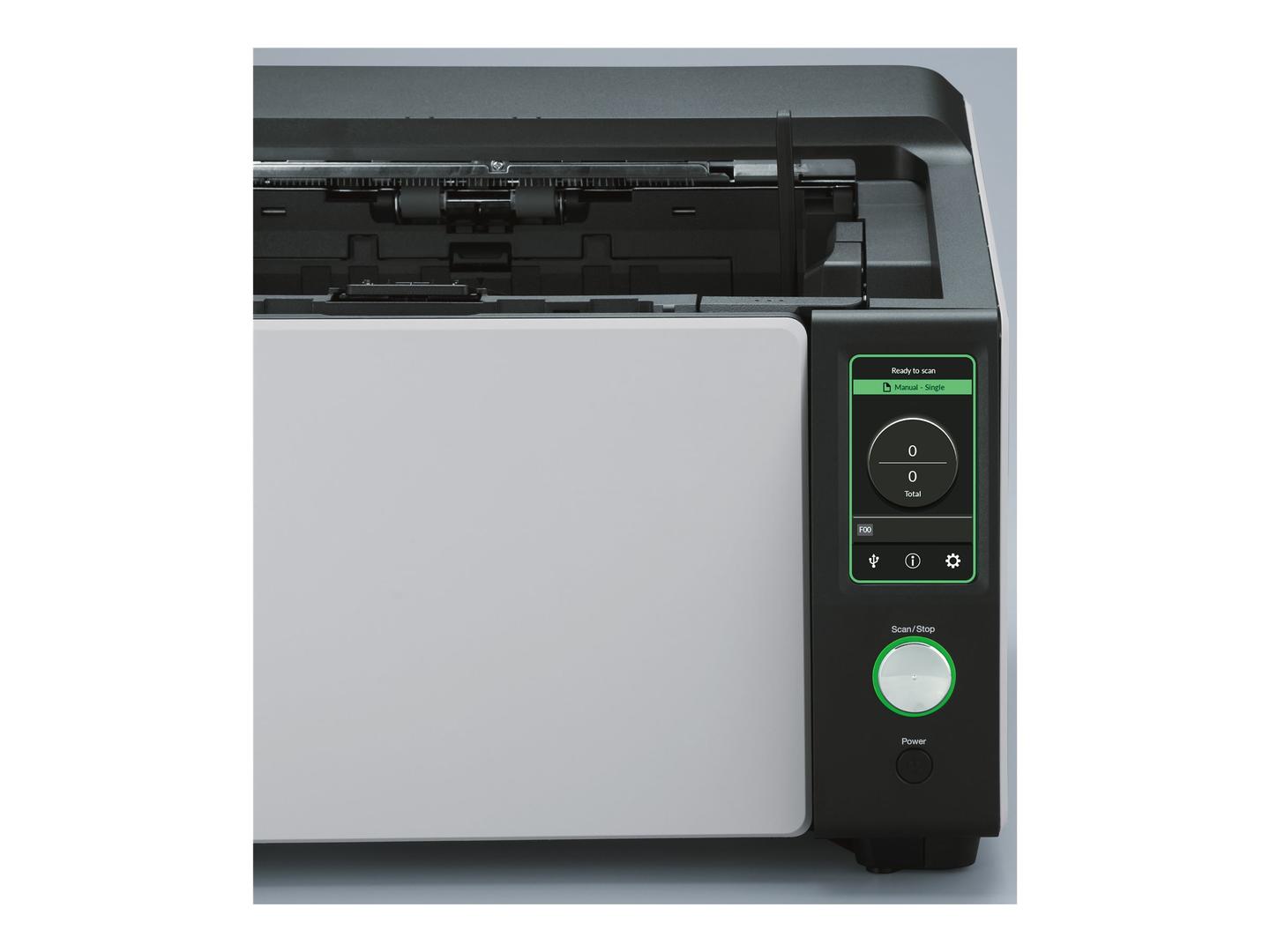

Ergonomic operator-centric design means control buttons are easy to access and the instrument panel is angled towards the user for greater efficiency. Featuring comfortable hand grips, this scanner is designed to be easily transportable.
Special Fetures
- 120 ppm scan speed
- 500-sheet ADF
- State-of-the-art paper protection
- U-turn or straight-through path
- Easily transportable
Product Specification
Type | Document scanner - desktop |
Interface Type | Gigabit LAN, USB 3.2 Gen 1 |
Max Supported Document Size | 305 x 431.8 mm |
Enclosure Colour | Black, light grey |
Scanner | |
Input Type | Colour |
Optical Resolution | 600 dpi x 600 dpi |
Interpolated Resolution | 1200 dpi x 1200 dpi |
Automatic Duplexing | Yes |
Scanning Sensor Type | Dual CIS |
Bulb / Light Source Type | RGB LED |
Max Document Scan Speed B/W | 120 ppm |
Max Document Scan Speed Colour | 120 ppm |
Duty Cycle | 100000 scans per day |
Scanner Speed Details | 120 ppm - landscape - A4 ¦ 95 ppm - portrait - A4 |
Scanner Features | Color Dropout, Intelligent Multi-Feed Function (iMFF), Paper Protection Function, Image Emphasis, Dynamic Threshold, Error Diffusion, automatic colour detection, automatic page size detection, Dither, Advanced DTC, Multi-Image Output, Ultrasonic Multi Feed Detection, Punch Hole Removal, Blank Page Detection, Background Color Switching, skewed document detection, auto image rotation, split image control, descreening, 4.3" touch screen TFT display, Automatic Crop & Deskew, halftone removal, background pattern removal, vertical streaks reduction, fixed threshold, character extraction, index tab cropping, SDTC, sRGB output |
Scan File Formats | BMP, JPEG, TIFF, PDF, JPEG 2000 |
Compliant Standards | TWAIN, ISIS |
Media Handling | |
Max Document Size | 305 mm x 6096 mm |
Supported Document Type | Plain paper, post card |
Supported Document Size Details | ADF - up to 305 x 431.8 mm ¦ Long document - up to 305 x 6096 mm |
Document Feeder Type | Automatic |
Document Storage Capacity | 500 sheets |
Expansion / Connectivity | |
Interfaces Details | USB 3.0 Gen 1 - Type B ¦ Gigabit LAN |
Miscellaneous | |
Cables Included | 1 x USB cable - 2 m |
Compliant Standards | RoHS |
Environmental Standards | |
ENERGY STAR Certified | Yes |
Power | |
Power Device | Internal power supply |
Voltage Required | AC 100-240 V (50/60 Hz) |
Power Consumption Operational (Standby) | 70 Watt |
Power Consumption Stand by | 0.2 Watt |
Power Consumption Sleep | 1.5 Watt |
Software / System Requirements | |
Software Included | Software Operation Panel, PaperStream Capture, Scanner Central Admin Agent, Error Recovery Guide, PaperStream ClickScan, Network Setup Tool for fi Series |
OS Required | Microsoft Windows Server 2012 x64 Edition, Microsoft Windows Server 2012 R2 x64 Edition, Windows 10 (32/64 bits), Microsoft Windows Server 2016 (64-bit), Microsoft Windows Server 2019 (64-bit), Microsoft Windows Server 2022, Windows 11 |
System Requirements Details | Windows 7 or later - Core i5 - 2.5 GHz - RAM 4 GB - HD 3.5 GB |
Dimensions & Weight | |
Width | 46 cm |
Depth | 43 cm |
Height | 31.5 cm |
Weight | 23 kg |
Manufacturer Warranty | |
Service & Support | - 1 year |
Environmental Parameters | |
Min Operating Temperature | 5 °C |
Max Operating Temperature | 35 °C |
Humidity Range Operating | 20 - 80% (non-condensing) |
Sound Emission | 59 dB |
Features - Ricoh - PA03830-B301
