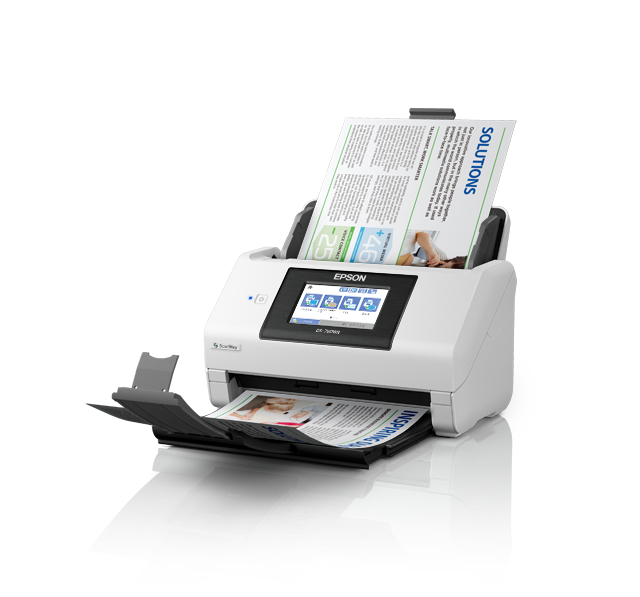

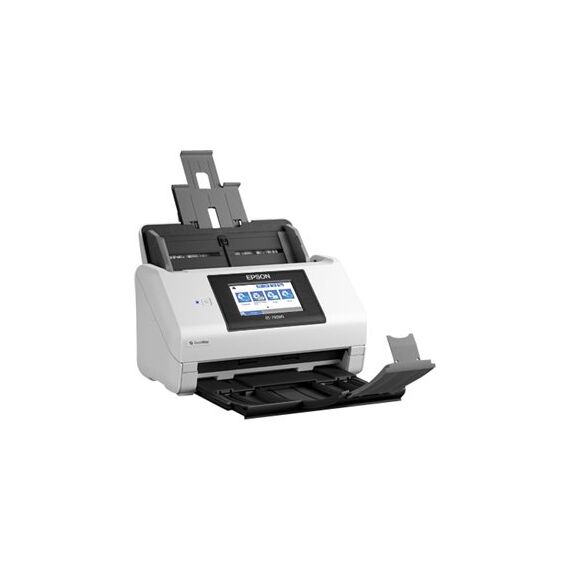

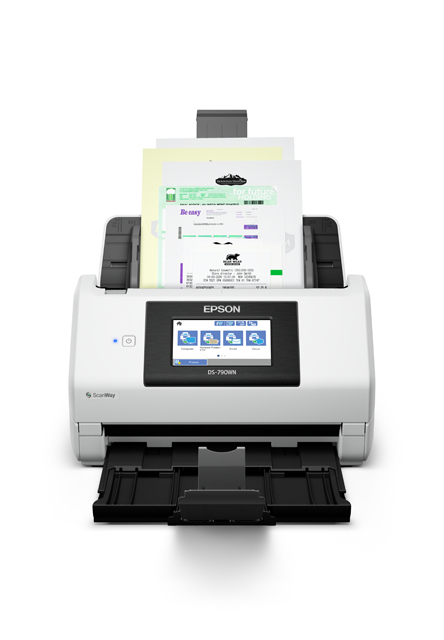

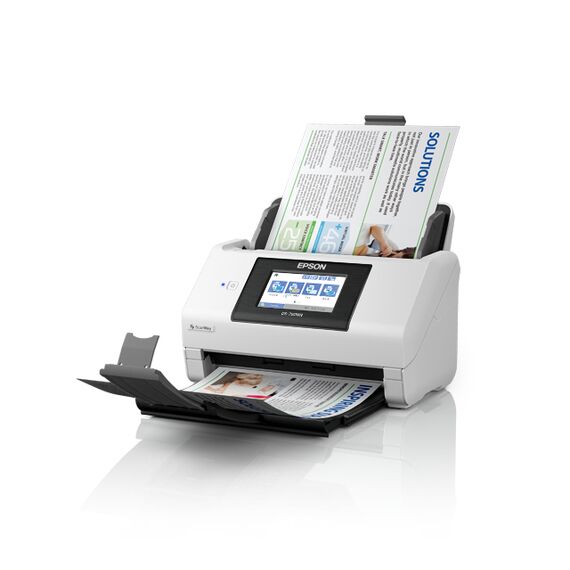

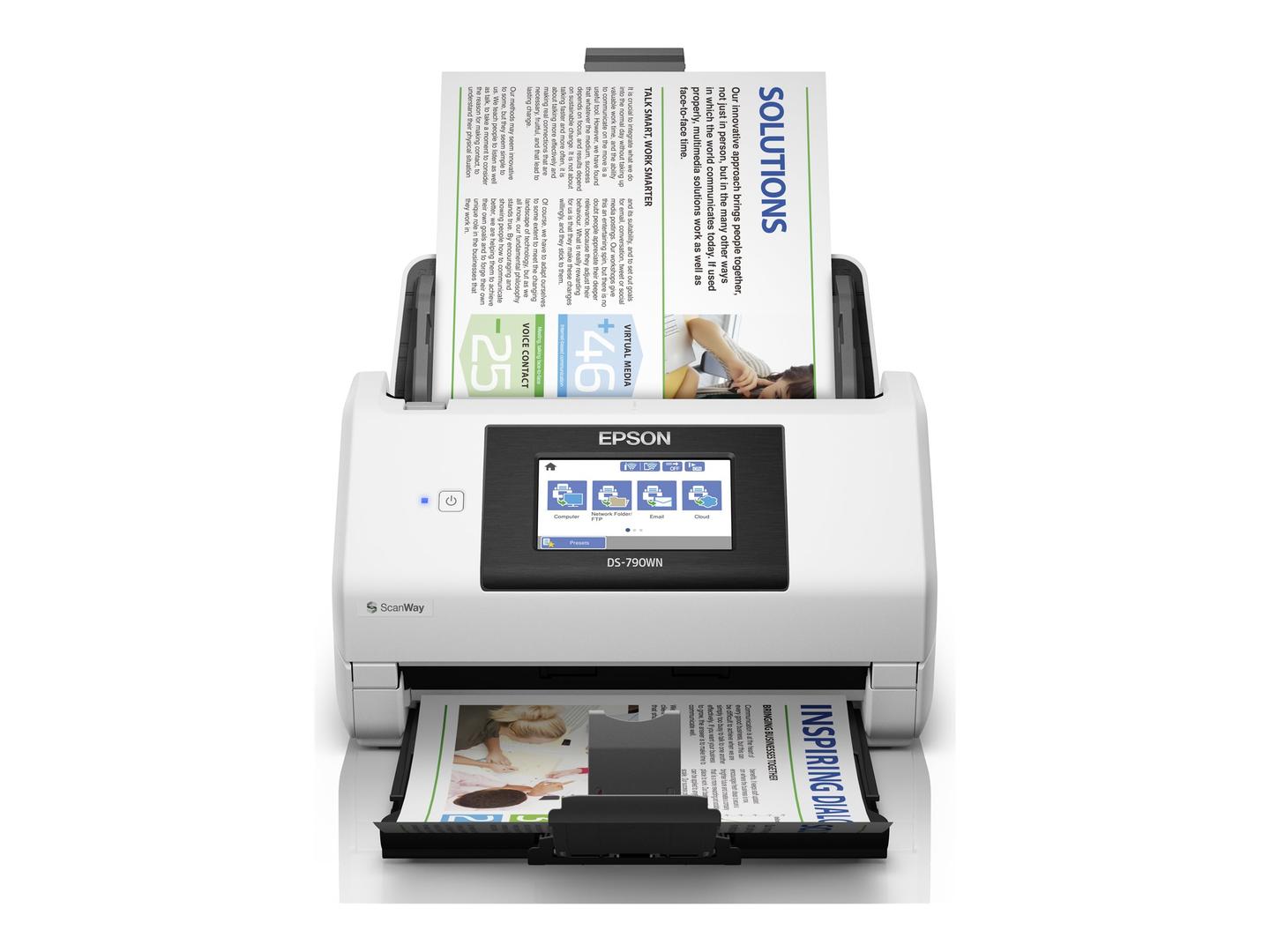

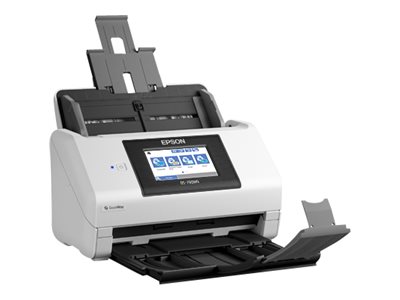

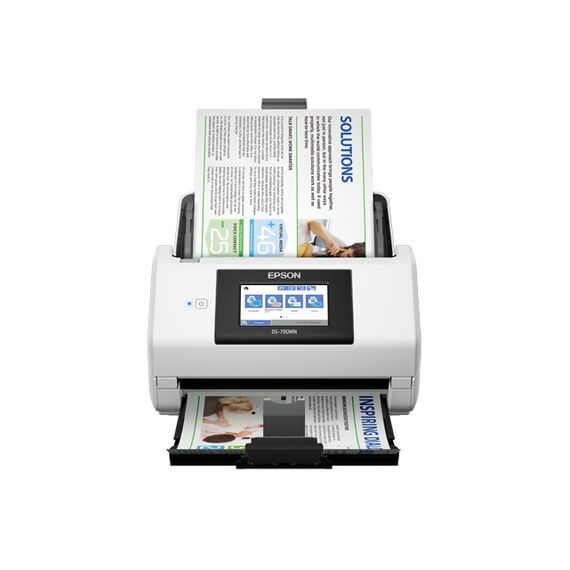

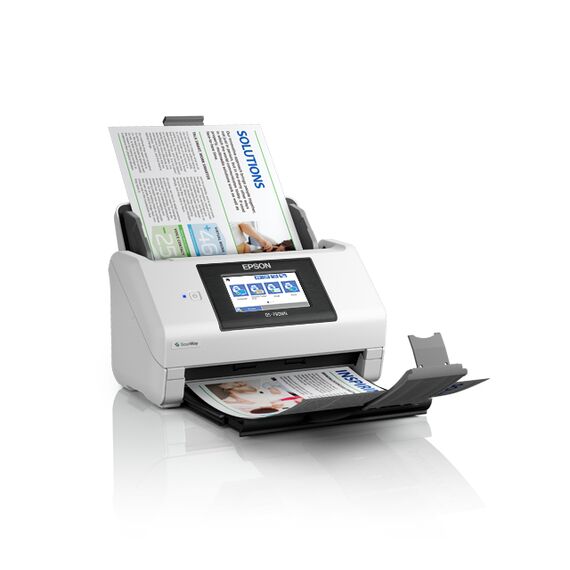

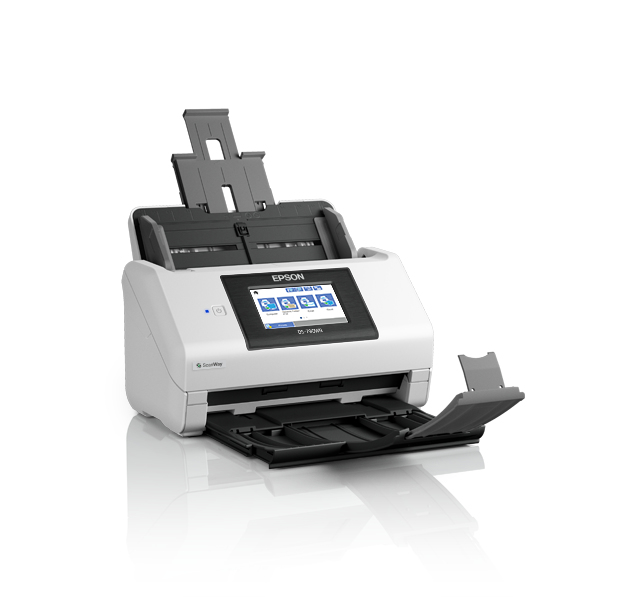

Duplex - A4/Legal - 600 dpi x 600 dpi - up to 45 ppm (mono) / up to 45 ppm (colour) - ADF (100 sheets) - up to 7000 scans per day - USB 3.0, Gigabit LAN, USB 2.0 (Host), Wi-Fi(n) | B11B265401
Please sign in so that we can notify you about a reply
Product Features
- Advanced authentication
Prevent unauthorized access to the scanner or use of unauthorized features with a range of authentication methods, including ID cards, login credentials or pin codes. - Connectivity

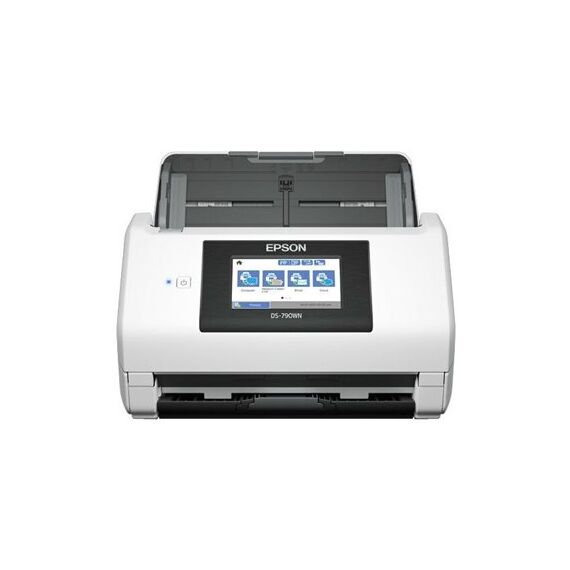

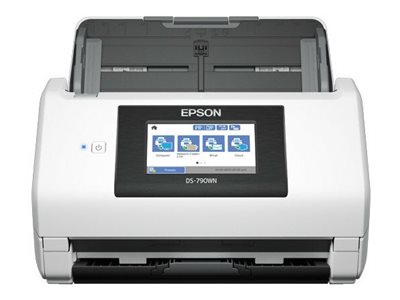

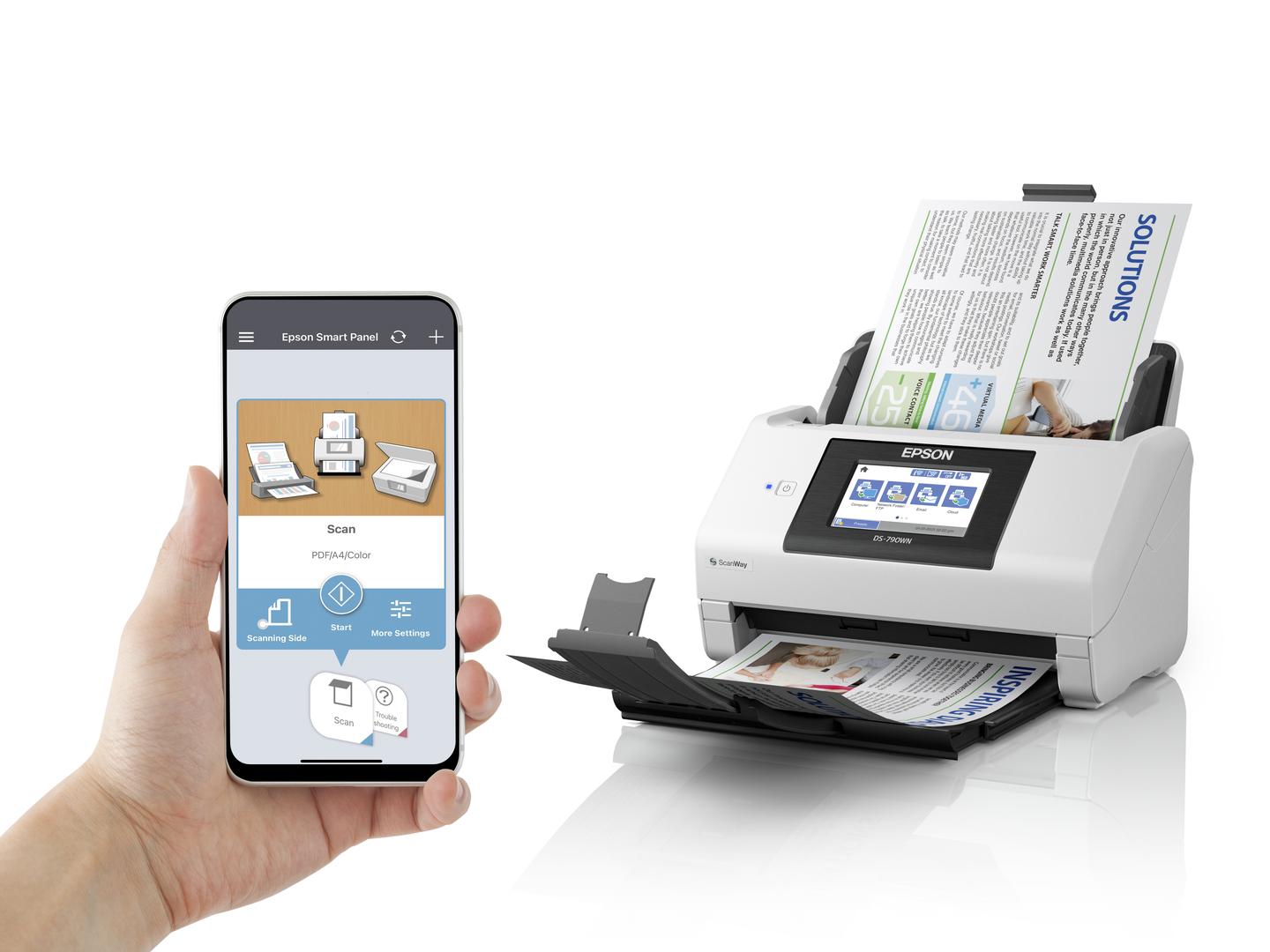

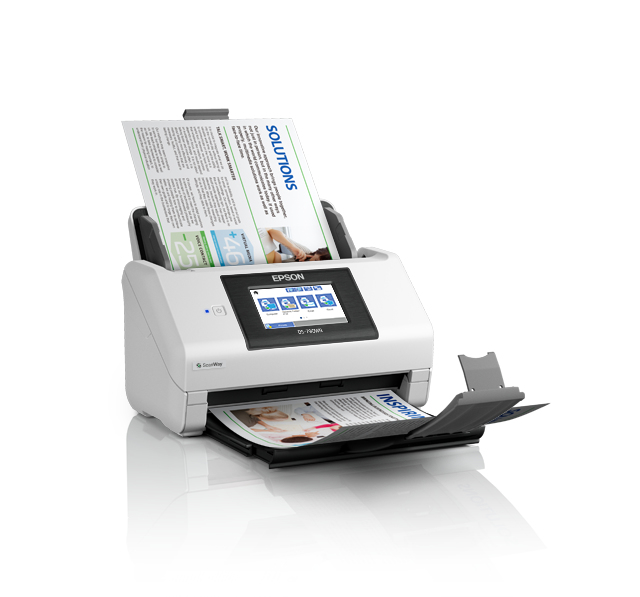

The DS-790WN offers a variety of connectivity options, such as USB 3.0, Wi-Fi and Gigabit Ethernet. In addition, it supports multiple platforms. - Reliability
With a 7000 pages-per-day duty cycle and inbuilt sensors for paper jams, double-feeding, and dirt-on-glass detection, all documents are kept safe and scanned to the highest quality.
Special Fetures
- Advanced authentication features - set up multiple user accounts locally or remotely (supports LDAP)
- Connectivity - USB 3.0, Wi-Fi, Gigabit Ethernet
- High speed - scan both sides at once up to 45 ppm for color and 90 ppm for black and white

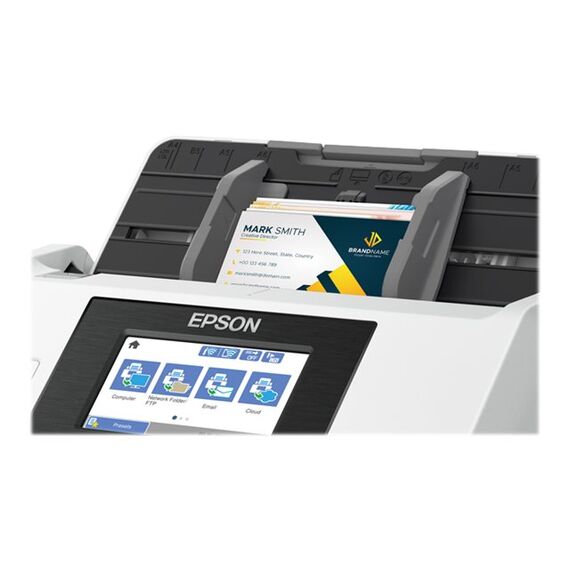

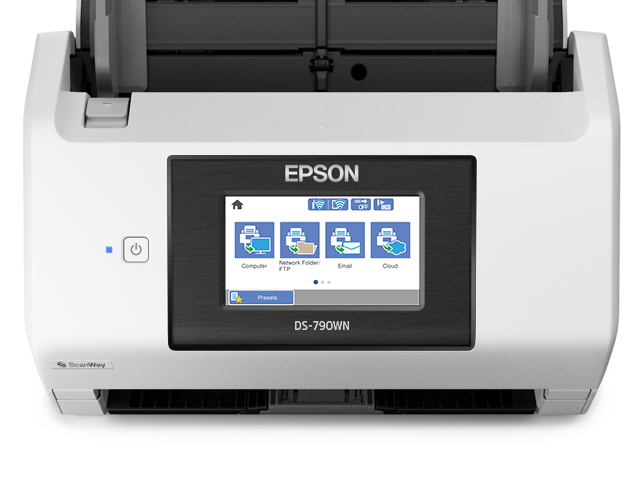

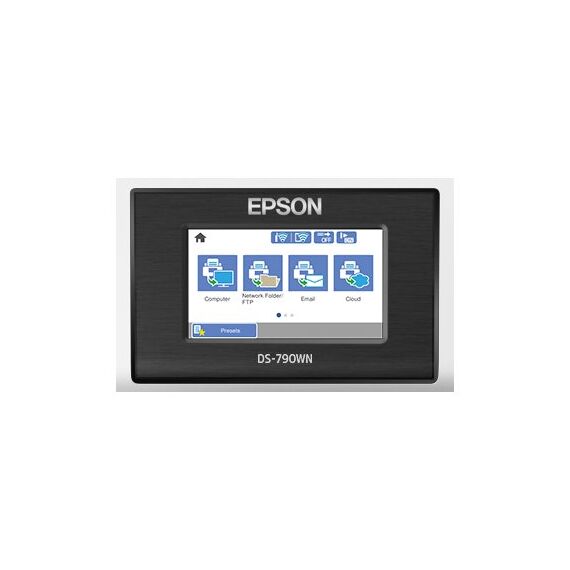

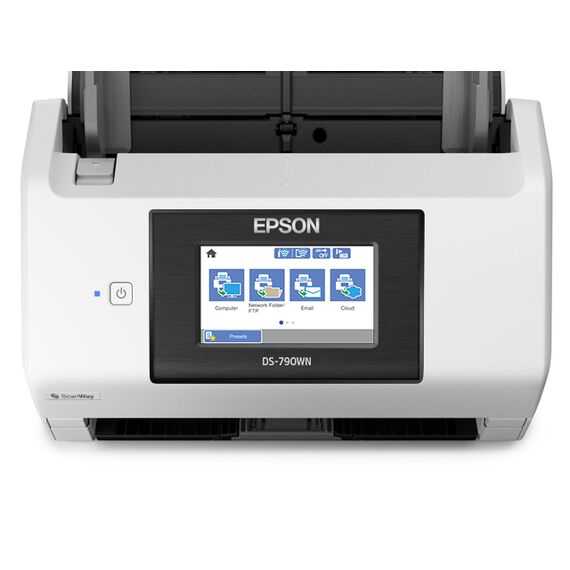

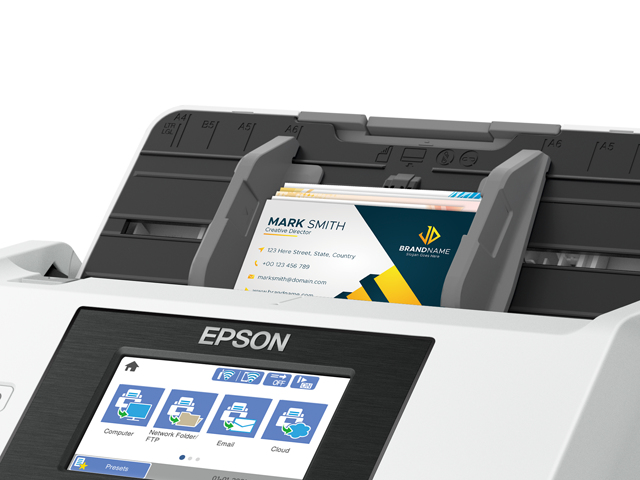

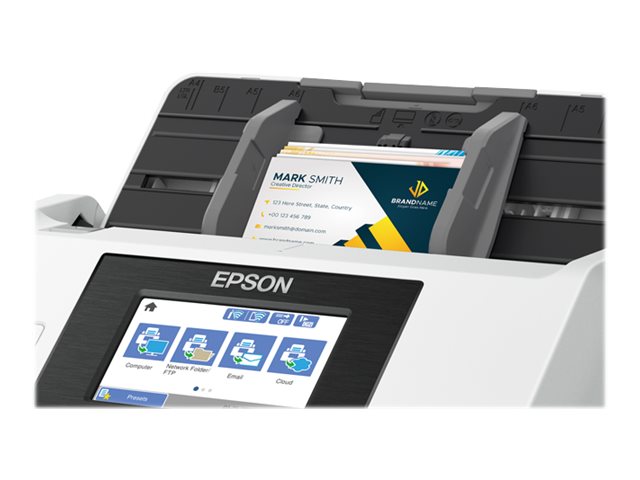

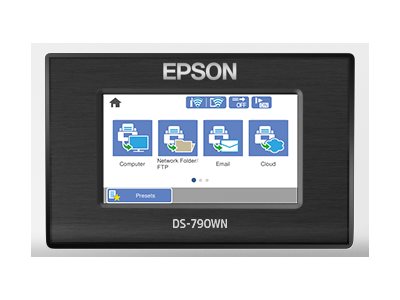

- Large built-in display - color touchscreen with customizable presets and layout
Product Specification
| Type | Document scanner - desktop |
| Interface Type | USB 3.0, Gigabit LAN, USB 2.0 (Host), Wi-Fi(n) |
| Additional Functions | Scan to email, scan to FTP, scan to SharePoint, scan to folder, scan to USB |

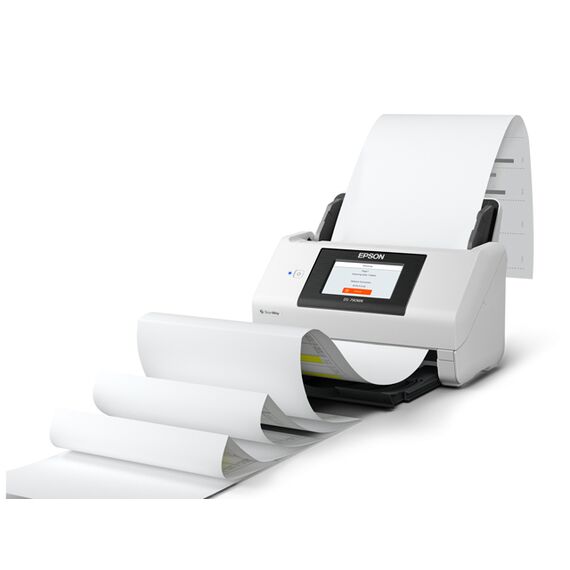

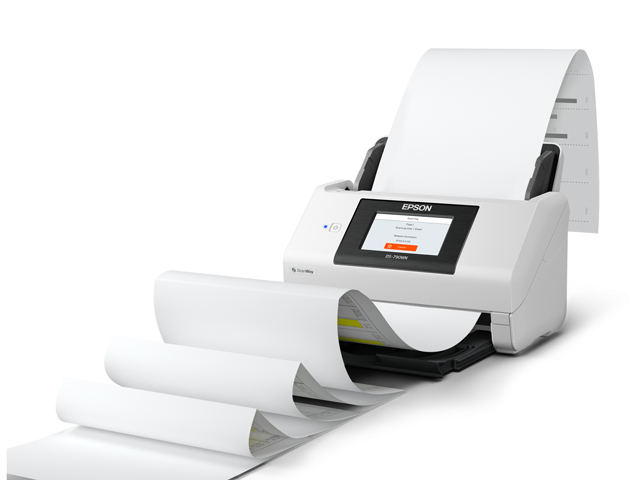

| Max Supported Document Size | 215.9 x 6096 mm |
| Scanner | |
| Input Type | Colour |
| Grayscale Depth (External) | 8-bit (256 grey levels) |
| Colour Depth | 30-bit colour |
| Colour Depth (External) | 24-bit (16.7 million colours) |
| Optical Resolution | 600 dpi x 600 dpi |
| Scan Mode | Single-pass |
| Automatic Duplexing | Yes |
| Max Document Scan Speed B/W | 45 ppm |
| Max Document Scan Speed Colour | 45 ppm |
| Duty Cycle | 7000 scans per day |
| Scanner Speed Details | 45 ppm - black & white - 300 dpi <br /> 90 ipm - duplex - black & white - 300 dpi <br /> 45 ppm - colour - 300 dpi <br /> 90 ipm - duplex - colour - 300 dpi |
| Scanner Features | 10.9 cm colour touch screen, Barcode Detection, Auto Document Rotation, LDAP supported, Wi-Fi Direct |
| Scan File Formats | BMP, JPEG, TIFF, Multi-TIFF, PDF, PNG |
| Compliant Standards | TWAIN, SANE, WIA, ICA, ISIS |
| Media Handling | |
| Supported Document Type | Plain paper |
| Document Feeder Type | Automatic |
| Document Storage Capacity | 100 sheets |
| Expansion / Connectivity | |
| Interfaces Details | USB 3.0 <br /> USB 2.0 (Host) <br /> Gigabit LAN |
| Miscellaneous | |
| Cables Included | 1 x SuperSpeed USB cable |
| Power | |
| Power Device | External power adapter |
| Voltage Required | AC 100-240 V (50/60 Hz) |
| Power Consumption Operational (Standby) | 15 Watt |
| Power Consumption Stand by | 1.5 Watt |
| Software / System Requirements | |
| Software Included | EPSON Document Capture Pro 2.0, EPSON Document Capture Pro Server 2.0, EPSON Document Capture Pro Server 2.0 Authentication Edition, EPSON Document Capture for Mac, EPSON Scan 2 |
| OS Required | Linux, Apple MacOS X 10.6.8 or later, Windows 10, Microsoft Windows 7, Windows 8, Windows 8.1, Microsoft Windows Vista, Microsoft Windows XP SP3, Android, Apple iOS |
| Dimensions & Weight | |
| Width | 29.6 cm |
| Depth | 21.2 cm |
| Height | 21.7 cm |
| Weight | 3.7 kg |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 1 year - on-site |
| Environmental Parameters | |
| Min Operating Temperature | 5 °C |
| Max Operating Temperature | 35 °C |
| Humidity Range Operating | 15 - 80% |
Features - Epson - B11B265401
More Details
Product Code
04:461298
EAN Code
8715946697635
Manufacturer
Epson
