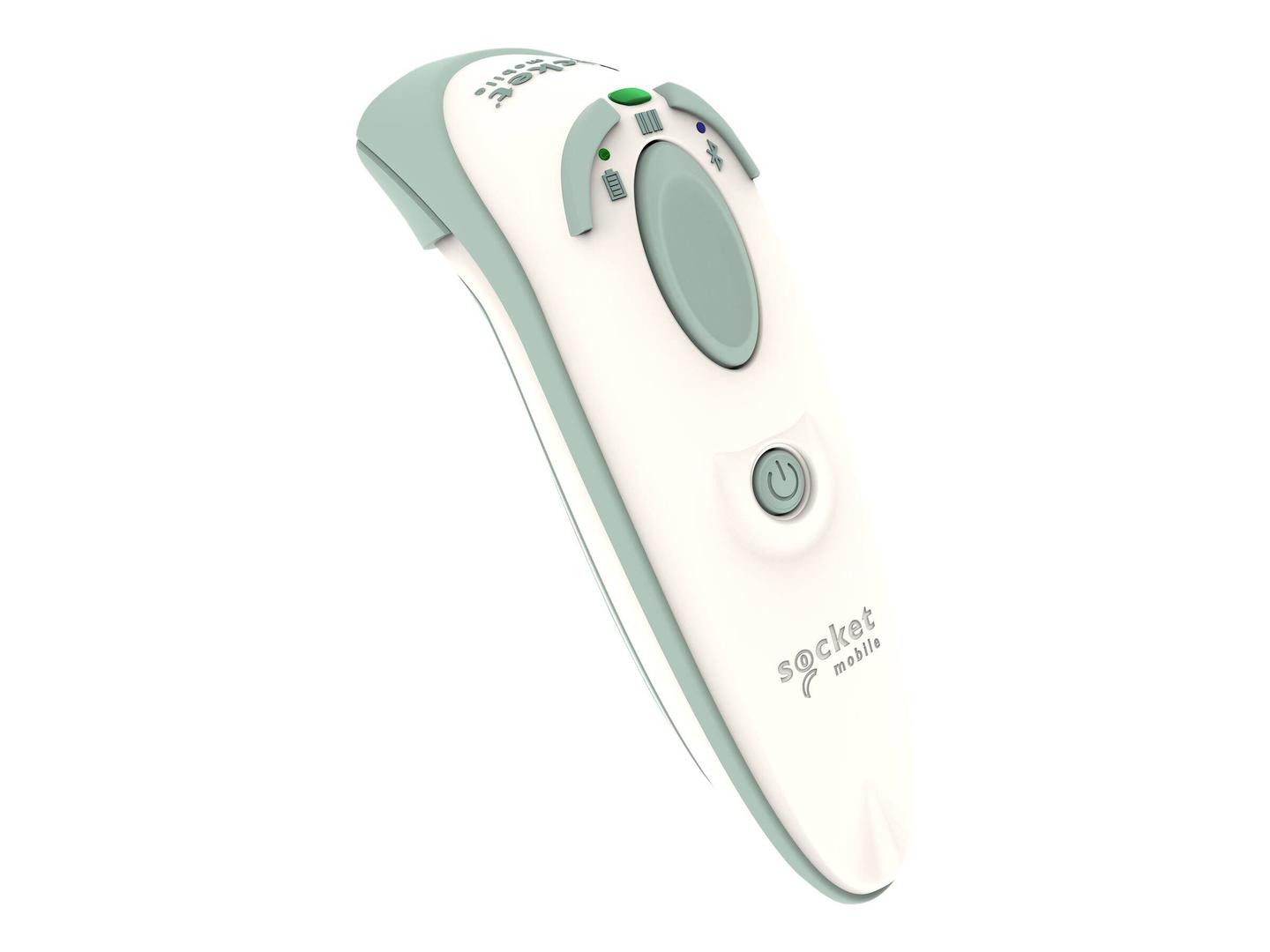

Socket Mobile DuraScan D745 - Healthcare - barcode scanner - portable - 2D imager - decoded - Bluetooth 2.1 EDR | CX3859-2890
Please sign in so that we can notify you about a reply
Product Features
- Medical grade housing
IP54 sealing and designed to resist the harmful effects of harsh cleaning agents. Allows safe wipe-down with a wide variety of harsh chemicals to help prevent the spread of germs. - Scanning
Fast 2D and 1D omni-directional barcode scanning with highly visible and safe LED aimer. Scans on paper or screen. - Native app support
Socket Mobile's Capture SDK enables easy native app integration in your applications to improve business productivity. - Exceptional ergonomics
Small, light and fits perfectly in the hand for comfortable use over extended periods of time. - User feedback
Audible tones and hand pulsation. Set the scanner hand pulsation only when you do not want to disturb others with scanning sounds. - User indicators

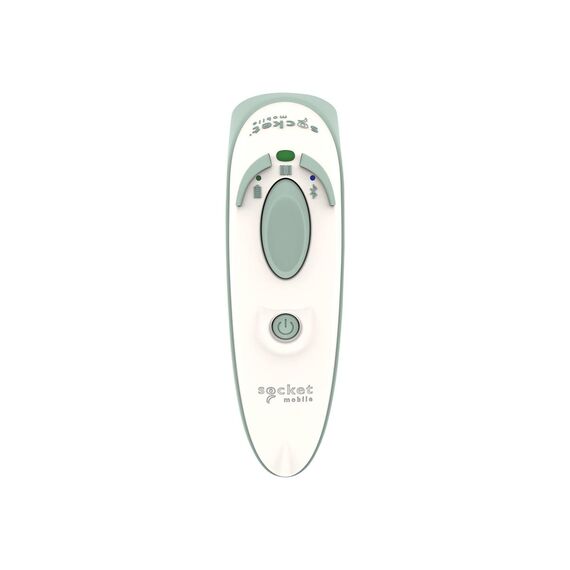

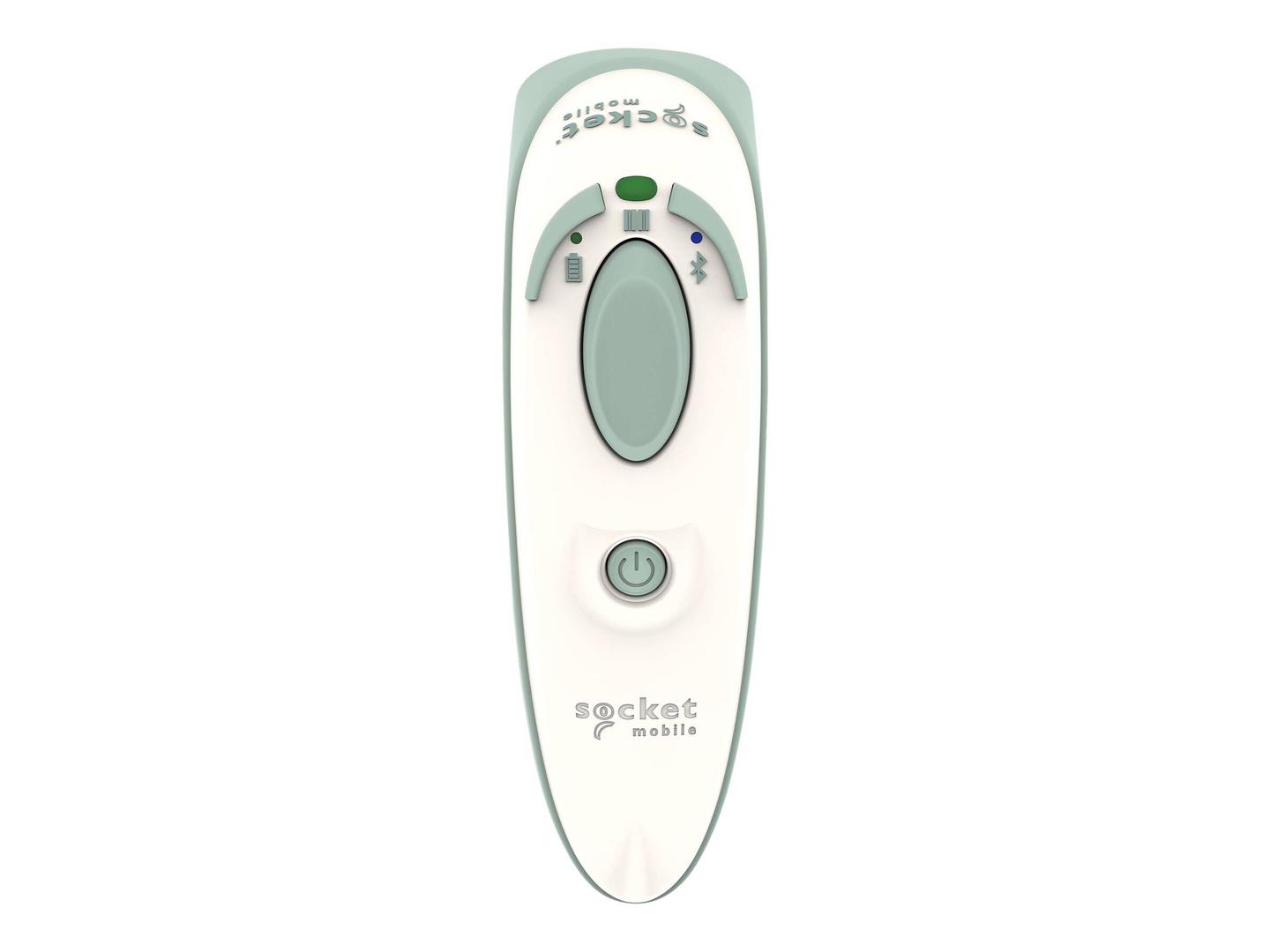

Intuitive LEDs, Bluetooth connection, battery level and scanning status. - Long-lasting, replaceable, rechargeable battery
Designed to last over an entire busy 12-hour shift, with an LED indicator that alerts the user when a battery charge is needed. - Rugged design
Rugged design - withstands 2,500 drops to Linoleum from 5' and 5,000,000 scan presses. - Bluetooth wireless technology
Dependable Bluetooth connection to iOS, Android and Windows 10 devices. Auto-reconnection maintains connection even in different environments.
Special Fetures
- Medical grade housing
- Native app support
- Exceptional ergonomics
- User feedback
- User indicators
- Long-lasting, replaceable, rechargeable battery
- Rugged design
- Bluetooth wireless technology
Product Specification
| Type | Barcode scanner - portable |
| Barcode | |
| Interface Type | Bluetooth 2.1 EDR |
| Minimum Bar Width | 5 mil |
| Scan Element Type | 2D imager - white LED |
| Sensor Resolution | 1280 x 800 |
| Light Source Wave Length | 525 nm |
| Scan Mode | Single-pass |
| Max Working Distance | 49.5 cm |
| Print Contrast Signal (PCS) | 20% |
| Decode Capability | Code 93, Matrix 2 of 5, Code 39, ISBT 128, GS1 DataBar, QR code, MaxiCode, Aztec code, Bookland, EAN/JAN-8, EAN/JAN-13, UPC-A, UPC-E, Discrete 2 of 5, MicroPDF417, Codabar, Code 128, Code 11, Interleaved 2 of 5, PDF417, Data Matrix, TLC39, Australian Post, Japanese Post, Kix (Netherlands) Post, UPC-E1, ISSN, UK Post, Micro QR code, CC-A, CC-B, CC-C, GS1 DataBar Expanded, GS1 DataBar Limited, Intelligent Mail Barcode, MSI, GS1-128, Chinese 2 of 5, UPU FICS, US Planet, US Postnet, USPS 4-state (US4CB), Han Xin, Code One |
| TTL Decoding | Decoded |
| Connectivity Technology | Wireless |
| OK Notification | Beeper, LED indicator, vibration |
| Features | Waterproof, dustproof, removable battery, OMNI-directional reading, Human Interface Device Profile (HID), Serial Port Profile (SPP), drop protection |
| Networking | |
| Wireless Connectivity | Bluetooth 2.1 EDR |
| Miscellaneous | |
| Included Accessories | Wrist strap |
| Cables Included | 1 x charging cable |
| Compliant Standards | C-Tick, EN55022, ICES-003, EN55024, Bluetooth Class 2, CISPR 22, RSS-210, FCC Part 15 C, RoHS, UL 60950-1, IEC 60950-1, WEEE, IEC 60068-2-32, TELEC, cTUVus, IP54, IEC 60068-2-31, EN 50581, EN 60529, EN 62471:2008, IEC 62471, CAN/CSA C22.2, SIG |
| Power | |
| Battery | 1 x Lithium Ion |
| System Requirements | |
| OS Required | Apple MacOS, Linux, Microsoft Windows 7, Android, Windows 8, Apple iOS, Windows 10 |
| Dimensions & Weight | |
| Width | 3.71 cm |
| Depth | 4.01 cm |
| Height | 13.22 cm |
| Weight | 109 g |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 1 year ¦ Limited warranty - cable - 90 days ¦ Limited warranty - battery - 90 days |
| Environmental Parameters | |
| Min Operating Temperature | 0 °C |
| Max Operating Temperature | 45 °C |
| Humidity Range Operating | 0 - 95% (non-condensing) |
| Drop Specification | 1.5 m |
