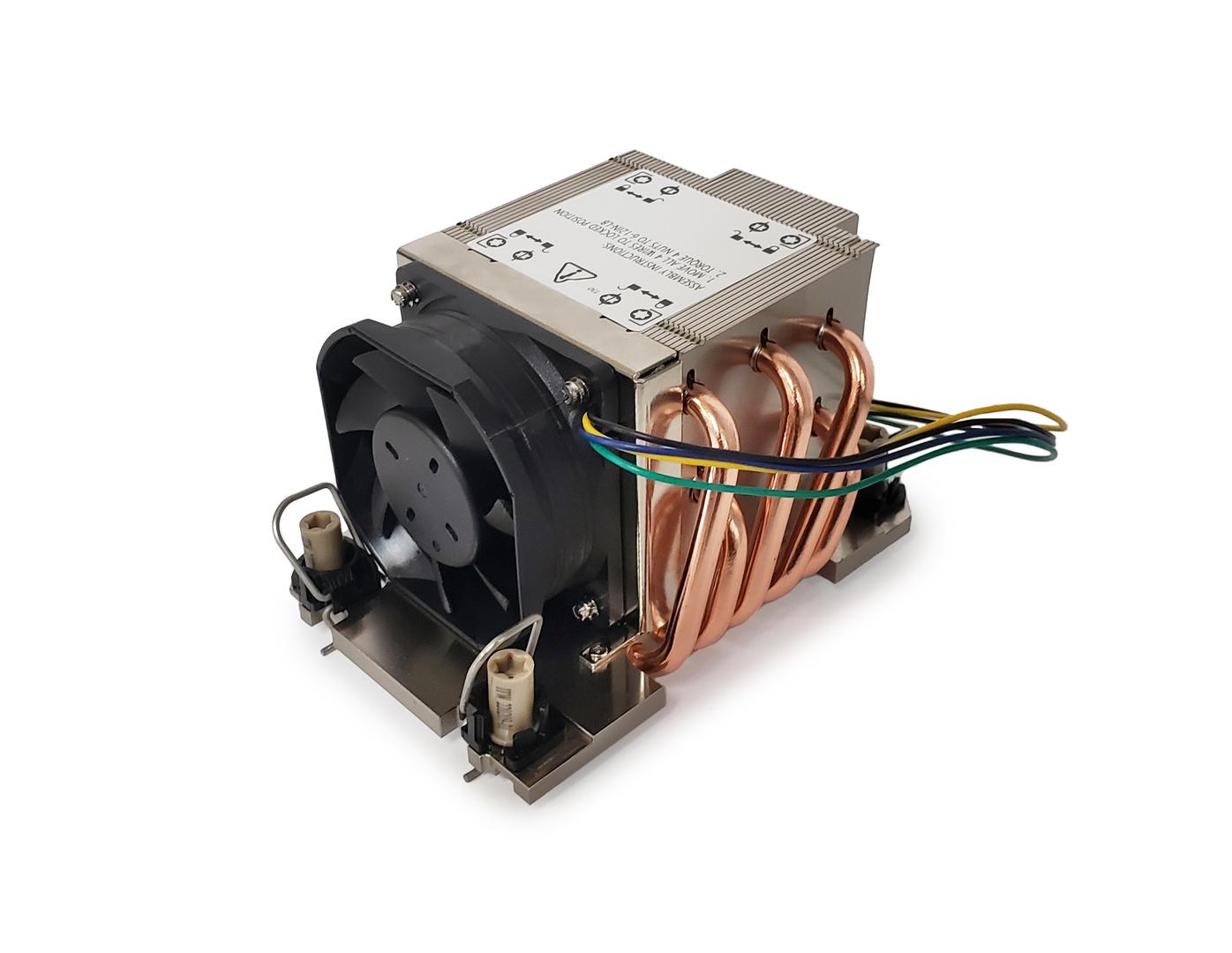

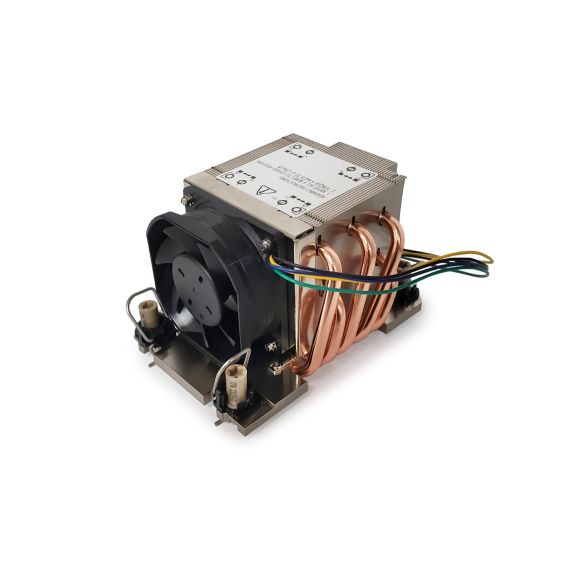

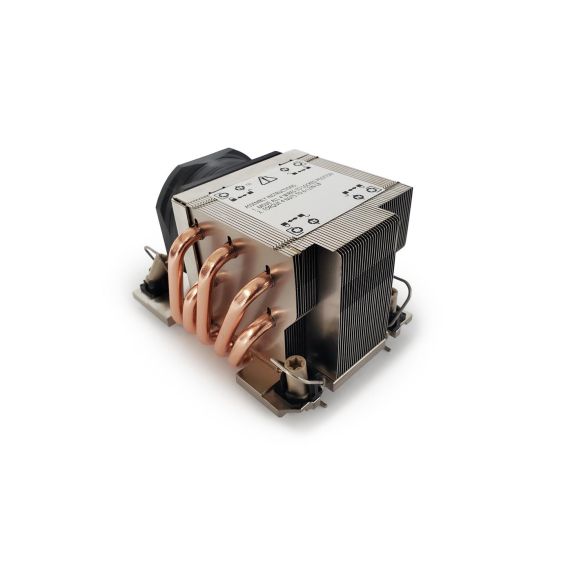

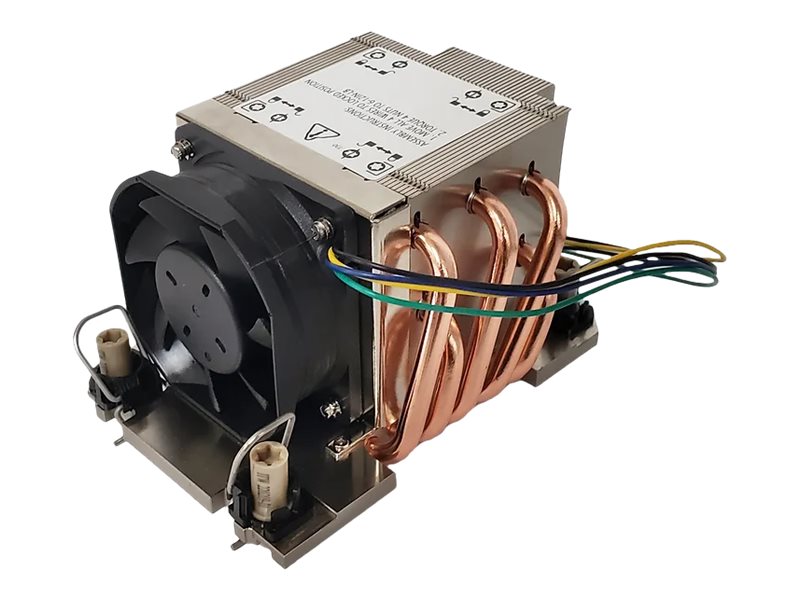

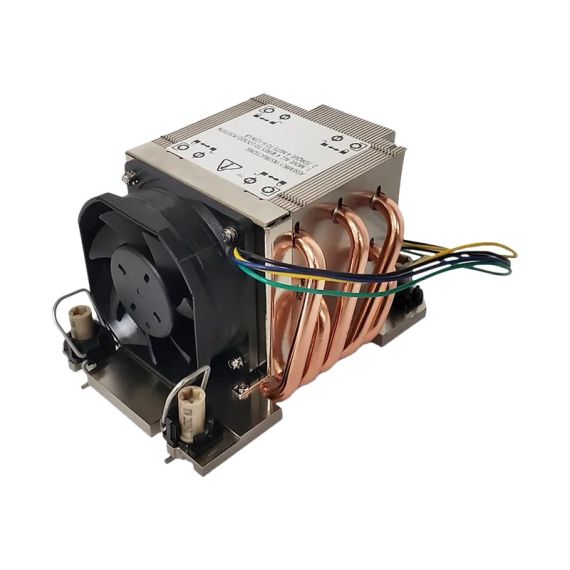

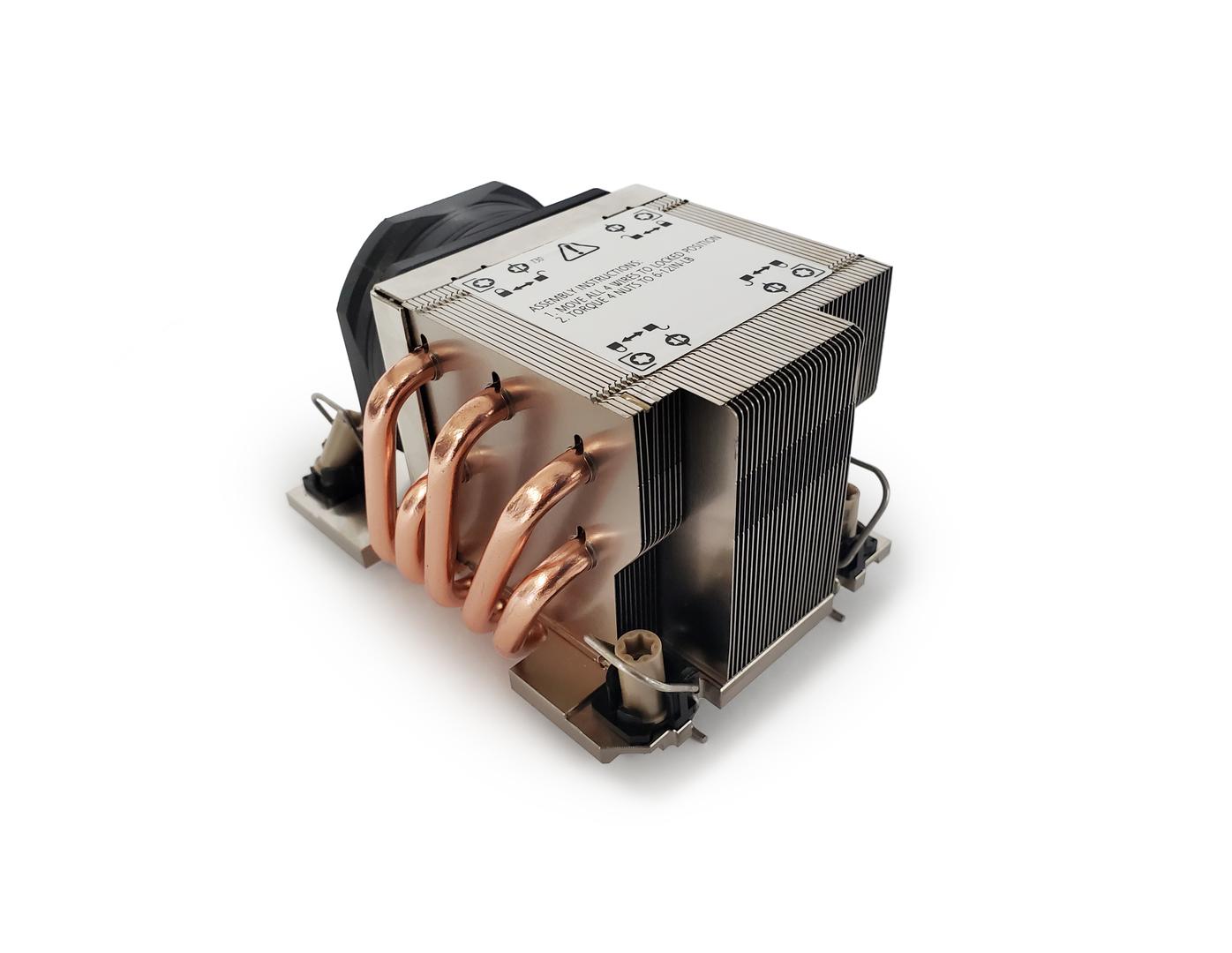

Dynatron S5 - Processor cooler - (for: LGA4677) - aluminium fin base with aluminium fin stack - 60 mm - 2U | 2735
Product Features
- Efficient cooling
The Dynatron S5 processor cooler is designed with a dual ball bearing fan and supports pulse-width modulation (PWM), ensuring efficient cooling and optimal performance for LGA4677 Socket processors. With an air flow range of 11.91-58.31 cfm and air pressure from 1.48-28.8 mm, it effectively dissipates heat, keeping your system running smoothly. - High thermal capacity
Capable of handling thermal design power (TDP) up to 350 W, the Dynatron S5 is equipped to cool high-performance processors. The inclusion of Thermal Grease Shin-Etsu 7762 pre-printed on the cooler enhances thermal conductivity, ensuring your CPU operates within safe temperatures under heavy loads. - Quiet operation
Despite its powerful cooling capabilities, the Dynatron S5 maintains a noise level between 25.8 and 59.8 dBA. This balance of performance and quiet operation makes it an ideal choice for both workstations and gaming setups, where noise minimization is appreciated.
Special Fetures
- Supports LGA4677 Socket, compatible with a wide range of processors
- Dual ball bearing fan design for long-lasting reliability
- PWM support for dynamic speed adjustment between 2300-11000 rpm
- TDP up to 350 W, suitable for high-performance CPUs

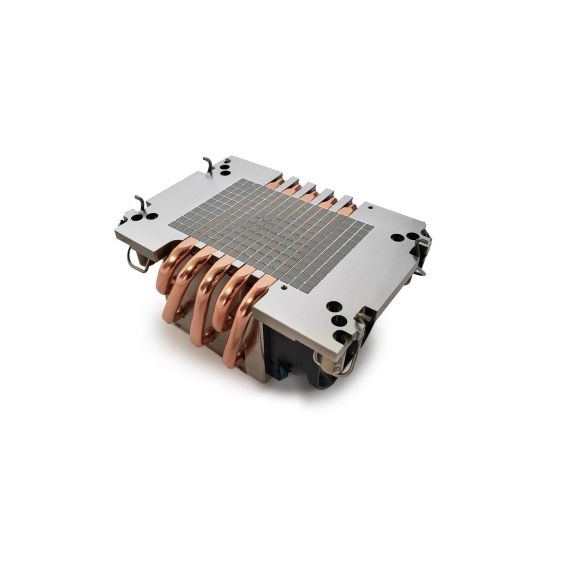

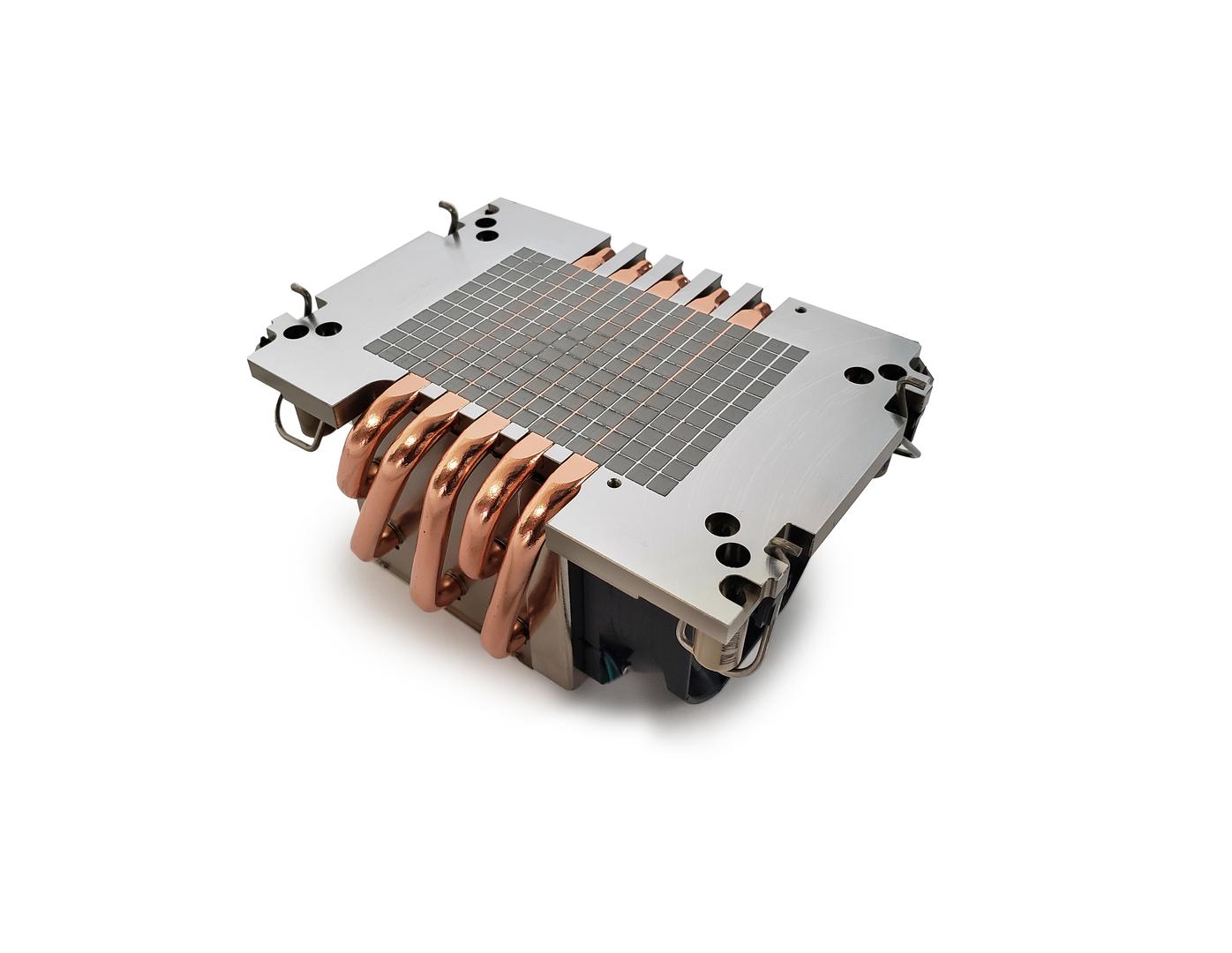

- Pre-printed with Thermal Grease Shin-Etsu 7762 for enhanced thermal conductivity
Product Specification
Product Type | Processor cooler |

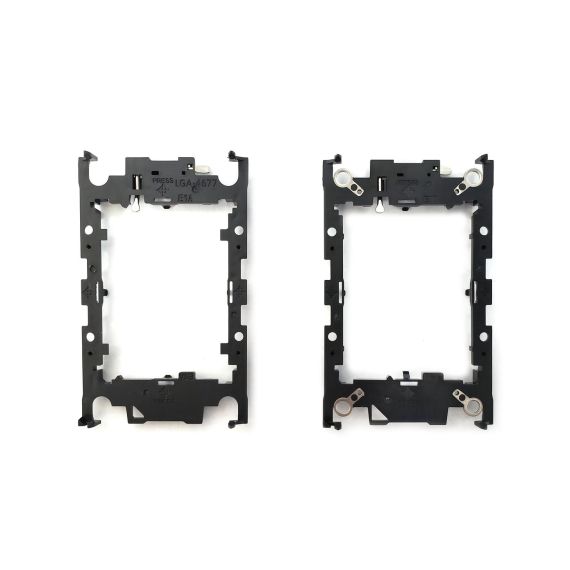

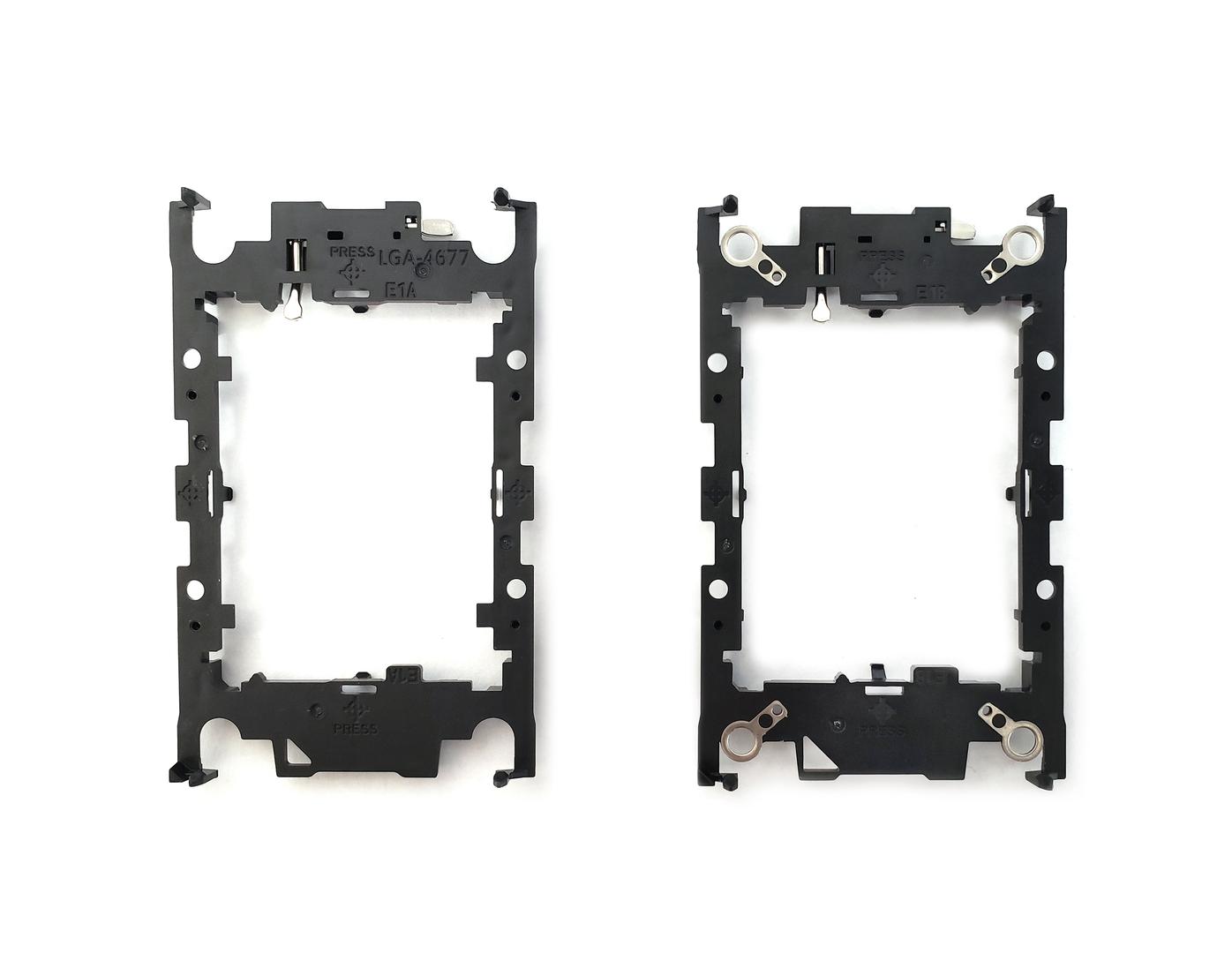

Package Content | E1B package carrier |
Height (Rack Units) | 2U |
Width | 6.7 cm |
Depth | 11.8 cm |
Height | 8.2 cm |
Weight | 470 g |
Heatsink & Fan | |
Compatible With | LGA4677 Socket |
Heatsink Material | Aluminium fin base with aluminium fin stack |
Fan Diameter | 60 mm |
Fan Height | 25 mm |
Fan Bearing | Dual ball bearing |
Rotation Speed | 2300-11000 rpm |
Air Flow | 11.91-58.31 cfm |
Air Pressure | 1.48-28.8 mm |
Noise Level | 25.8 - 59.8 dBA |
Power Connector | 4-pin fan connector |
Rated Voltage | 12 V |
Power Consumption | 0.84-18 W |
Features | Pulse-width modulation (PWM) support, 5 heatpipes, Thermal Grease Shin-Etsu 7762 pre-printed, TDP up to 350W |
