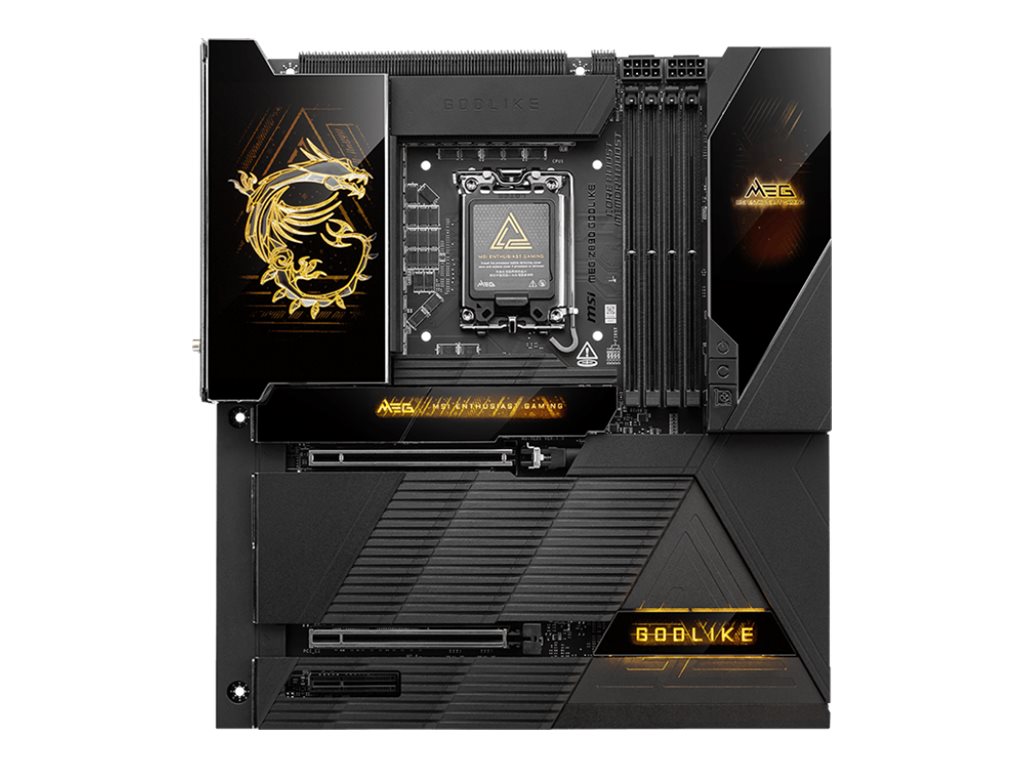

MSI MEG Z890 GODLIKE / Motherboard / extended ATX / LGA1851 Socket / Z890 Chipset / USB4, USB 3.2 Gen 1, USB 3.2 Gen 2, USB-C 3.2 Gen 2x2, USB-C 3.2 Gen2 / 10 Gigabit LAN, 5 Gigabit Ethernet, Wi-Fi 7, Bluetooth / onboard graphics (CPU require | 7E21-001R
Please sign in so that we can notify you about a reply
Product Features
- Robust power delivery
Features a 26+2+1+1 Phase Power Design that ensures efficient power distribution, maintaining system stability during demanding tasks and overclocking. - Versatile expansion options
Includes several M.2 slots and PCIe slots that allow for customized setups and the addition of high-speed storage solutions. - High-quality audio capabilities
Equipped with Realtek ALC4082 and ESS ES9219Q codecs, providing users with an 8-channel high definition audio output that enhances overall audio experiences. - Advanced connectivity features
Supports networking with 10 Gigabit Ethernet and Wi-Fi 7 technologies, ensuring fast and reliable connections. - User-friendly design
Includes features like clear CMOS button, flash BIOS button, and EZ M.2 Clip II for easier installation and maintenance.
Special Features
- Supports Intel Core Ultra processors for impressive performance
- Equipped with 4 DIMM slots for DDR5 RAM supporting speeds up to 4600 MHz
- High definition audio with 8-channel output for an immersive sound experience
- Multiple M.2 and PCIe slots for extensive expansion options
- Comprehensive networking support including Wi-Fi 7 and Bluetooth 5.4
Product Specification
| Product Type | Motherboard - extended ATX |
| Chipset Type | Intel Z890 |
| Processor Socket | LGA1851 Socket |
| Max Processors Qty | 1 |
| Compatible Processors | (supports Intel Core Ultra processors (Series 2)) |
| Supported RAM | Supported RAM |
| Max Size | 256 GB |
| Technology | DDR5 |
| Bus Clock | 2400 MHz, 3200 MHz, 3200 MHz (O.C.), 3600 MHz (O.C.), 4600 MHz (O.C.) |
| Supported RAM Integrity Check | Non-ECC |
| Registered or Buffered | Unbuffered |
| Features | Intel Extreme Memory Profiles (XMP) 3.0, dual channel memory architecture |
| Audio | Audio |
| Type | HD Audio (8-channel) |
| Audio Codec | Realtek ALC4082 / ESS ES9219Q |
| Compliant Standards | High Definition Audio |
| LAN | LAN |
| Network Controller | Marvell AQC113CS / Intel Killer E5000B |
| Network Interfaces | 10 Gigabit Ethernet, 5 Gigabit Ethernet, 802.11a/b/g/n/ac/ax/be (Wi-Fi 7), Bluetooth 5.4 |
| Expansion / Connectivity | Expansion / Connectivity |
| Expansion Slots | 1 x CPU 4 x DIMM 288-pin 1 x PCIe 5.0 x16 1 x PCIe 5.0 x8 (x8 mode) 1 x PCIe 4.0 x4 4 x M.2 socket (2260/2280 M.2 Key M slot) 2 x M.2 socket (2280 M.2 Key M slot) 1 x M.2 socket (2242/2280 M.2 Key M slot) 1 x M.2 socket (2280/22110 M.2 Key M slot) 1 x M.2 socket (Key E) |
| Storage Interfaces | SATA-600 -connectors: 4 x 7pin Serial ATA - RAID 0 / RAID 1 / RAID 10 / RAID 5 PCIe 4.0 -connectors: 3 x M.2 - RAID 0 / RAID 1 / RAID 10 / RAID 5 SATA-600 / PCIe 4.0 -connectors: 1 x M.2 - RAID 0 / RAID 1 / RAID 10 / RAID 5 PCIe 5.0 -connectors: 4 x M.2 - RAID 0 / RAID 1 / RAID 10 / RAID 5 |

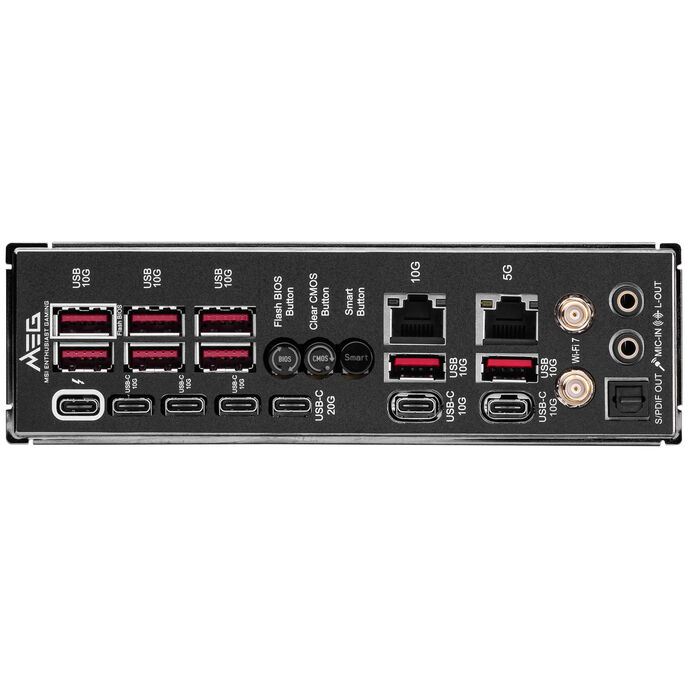

| Interfaces | 1 x Thunderbolt 4 1 x USB-C 3.2 Gen2x2 5 x USB-C 3.2 Gen 2 8 x USB 3.2 Gen 2 1 x LAN (10Gigabit Ethernet) 1 x LAN (5Gigabit Ethernet) 1 x audio line-out - mini-jack 1 x microphone - mini-jack 1 x SPDIF out 2 x aerial |
| Internal Interfaces | 4 x USB 2.0 - header 4 x USB 3.2 Gen 1 - header 1 x USB-C 3.2 Gen 2x2 - header 1 x Thunderbolt 4 - header 1 x SPI - header 1 x Thunderbolt 5 - header 1 x audio - header |
| Power Connectors | 24-pin main power connector, 2 x 8-pin ATX12V connectors, 8-pin PCI Express power connector |
| Features | Features |
| Hardware Features | Dynamic Dashboard III, 26+2+1+1 Phase Power Design, 110A Power Stage, OC Engine, MSI Core Boost, MSI Memory Boost, 10 Layer PCB, 2oz Copper PCB, Dr.MOS MOSFET, double side M.2 Shield FROZR, Frozr AI Cooling, DIY Friendly Design, EZ PCIe Release, EZ Magnetic M.2, EZ M.2 Sheild FROZR II, EZ M.2 Clip II, MSI Audio Boost 5, Frozr Heatsink Design, Debug LED, EZ LED control, flash BIOS button, Clear CMOS Button, Smart Button |
| Miscellaneous | Miscellaneous |
| Width | 27.7 cm |
| Depth | 30.48 cm |
| Package Details | Box |
Features - MSI - 7E21-001R
CPU Socket
- Socket 1851
More Details
Product Code
03:254290
EAN Code
4711377260770
Manufacturer
MSI
