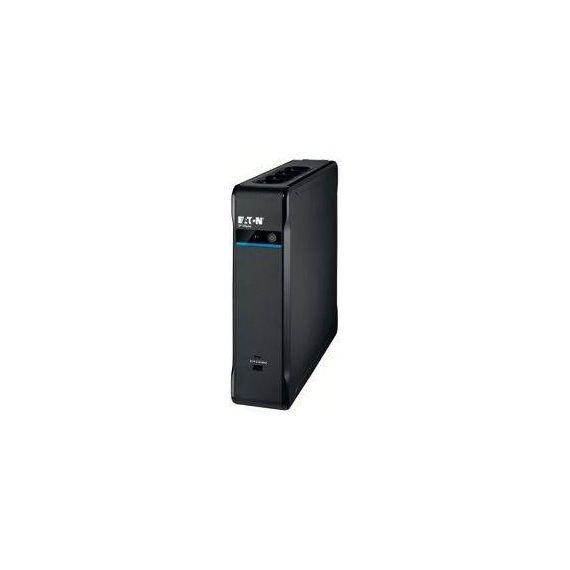

Eaton 3P Ellipse 700 USB DIN/IT / UPS / AC 220-240 V / 420 Watt / 700 VA / USB / output connectors: 4 | 3P700UD

3P700UD
167.53
(199.36 inc. VAT)
Available on order: 5 item(s)
Standard DeliveryStandard delivery within 4 to 8 business days.
Find similar
Delivery
Payment options
Product Code04:529316 EAN Code3553340621314 ManufacturerEaton Power Quality

Product Features

  • Power Capacity
    With a power capacity of 700 VA and a power output of 420 watts, the Eaton 3P Ellipse UPS ensures stable and efficient operation of connected devices, providing peace of mind against power interruptions.
  • Quiet Operation
    Operating at only 25 dB, this UPS maintains a low sound level, making it ideal for use in noise-sensitive environments, such as offices or home theaters.
  • Protection Features
    This UPS includes surge suppression, deep discharge protection, and a circuit breaker, enhancing the safety and reliability of the connected devices.
  • User-Friendly Maintenance
    The UPS is designed with a replaceable battery feature, allowing users to easily change the battery without requiring professional assistance, promoting convenience and cost-effectiveness.
  • Compliance with Standards
    This product meets various international compliance standards, including IEC 62040-1 and RoHS, ensuring it adheres to safety and environmental guidelines.

Special Features

  • Provides reliable power protection with a capacity of 700 VA
  • Features fanless operation for quiet performance
  • Includes a replaceable battery for easy maintenance
  • Equipped with deep discharge protection to safeguard devices
  • Complies with multiple safety and environmental standards

Product Specification

Device Type UPS - external
Power Device Power Device
UPS Technology Off-line
Input Voltage AC 220-240 V
Input Voltage Range AC 184 - 264 V
Input Voltage Range (Adjustable) AC 160 - 284 V
Frequency Required 50/60 Hz
Power Output Connectors Details 1 x DIN (surge) 3 x DIN (UPS and surge)
Output Voltage AC 230 V
Power Capacity 420 Watt / 700 VA
Surge Suppression Yes
Circuit Protection Circuit breaker
Battery Battery
Quantity 1
Networking Networking
Remote Management Interface USB
Expansion / Connectivity Expansion / Connectivity
Interfaces 1 x management (USB) - 4 pin USB Type B
Expansion Slots 1 (total) / 1 (free) x Expansion Slot
Miscellaneous Miscellaneous
Features Replaceable battery, fanless, 10 A circuit breaker, cold-start function, automatic battery test, deep discharge protection, reset breaker
Compliant Standards IEC 61643-11, IEC 62040-1, IEC 62040-2 C2, IEC 62040-3, RoHS, REACH, PEP Ecopassport, CM, UKCA, CB
Software / System Requirements Software / System Requirements
Software Included Eaton UPS Companion
Manufacturer Warranty Manufacturer Warranty
Service & Support Limited warranty - 3 years Limited warranty - battery - 2 years
Environmental Parameters Environmental Parameters
Min Operating Temperature 0 ‚°C
Max Operating Temperature 40 ‚°C
Sound Emission 25 dB
Dimensions & Weight Dimensions & Weight
Width 8.1 cm
Depth 23.5 cm
Height 26.3 cm
Weight 3.9 kg

Features - Eaton Power Quality - 3P700UD

More Details
Product Code
04:529316
EAN Code
3553340621314
Manufacturer
Eaton Power Quality
