Eaton 3S 550 - UPS - AC 220-240 V - 330 Watt - 550 VA - 1-phase - USB - output connectors: 6 | 3S550D
Please sign in so that we can notify you about a reply
Special Fetures
- Power: 550 VA / 330 watts

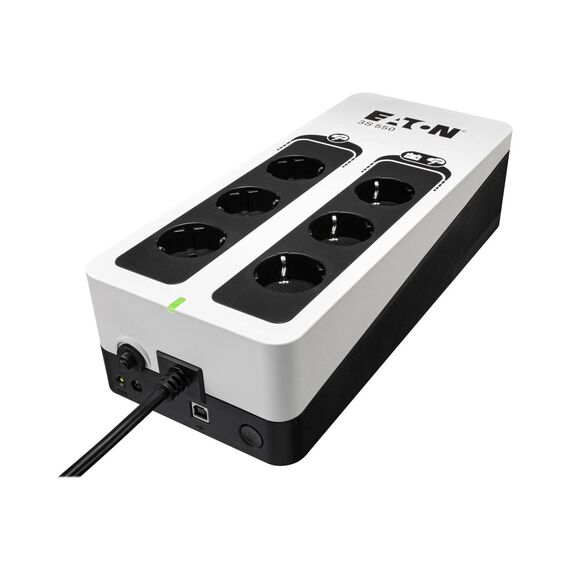

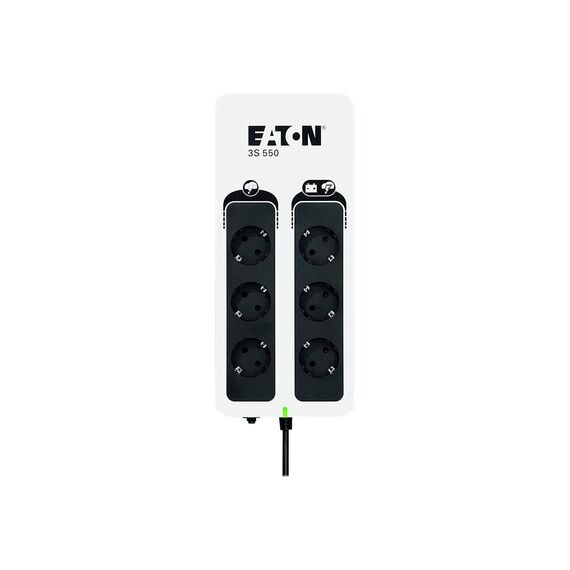

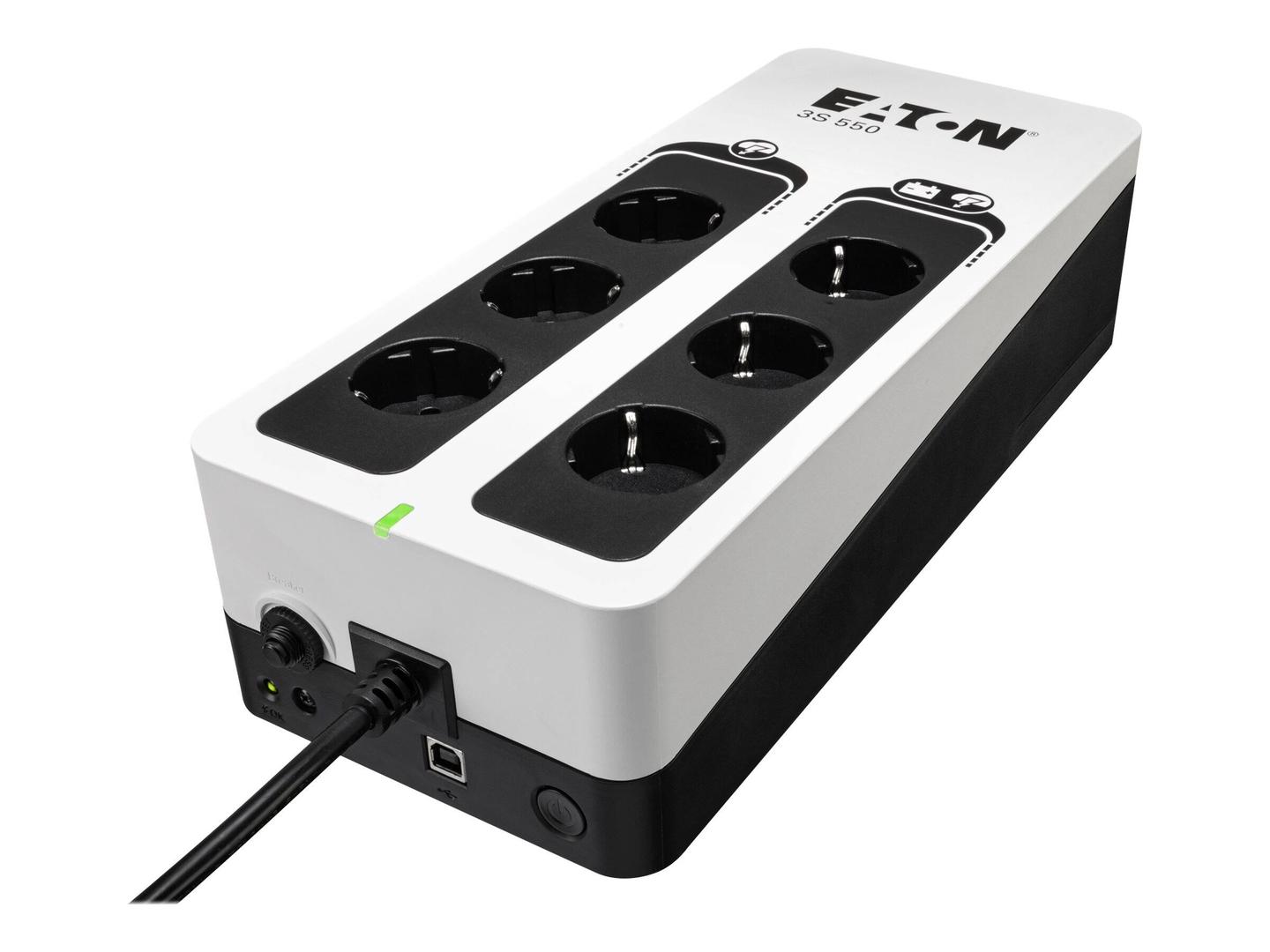

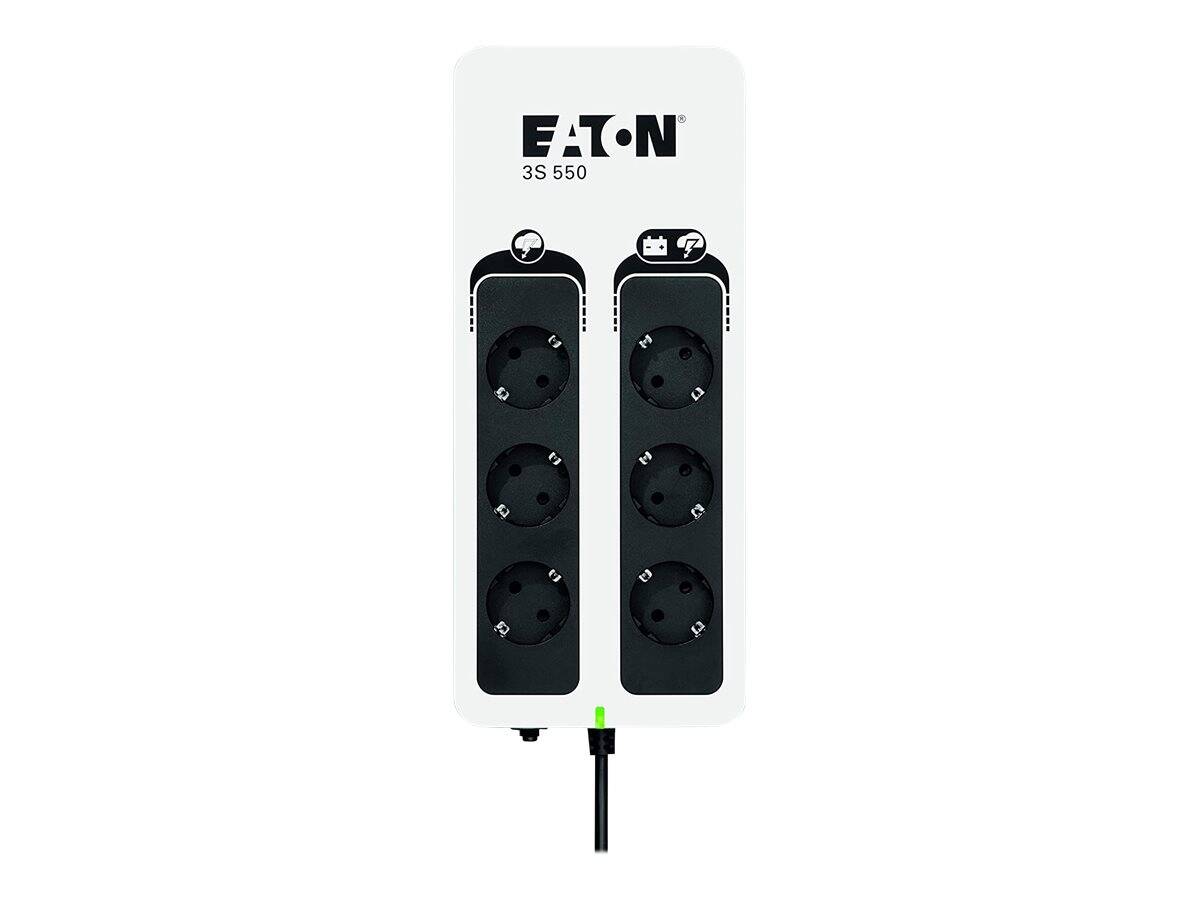

- 6 DIN output sockets: 3 sockets with autonomy and surge arrester + 3 sockets with surge arrester only
- Autonomy standard 10 minutes
- Inverter without fan, silent power surge protector (except audible alarm)

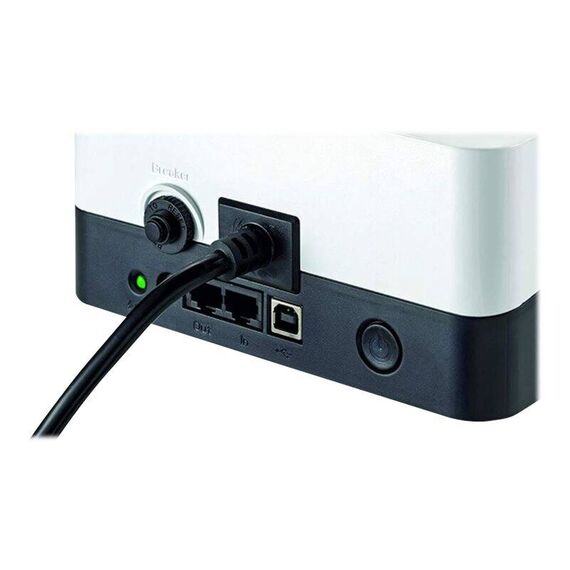

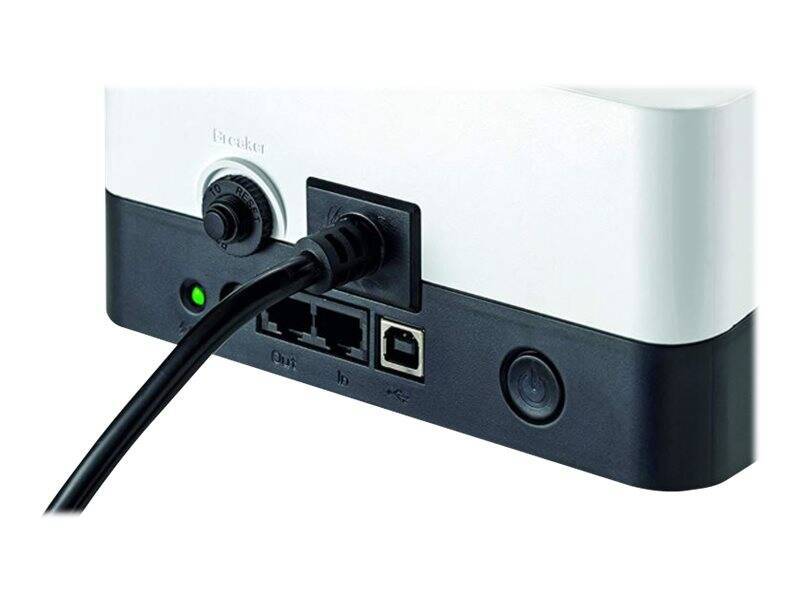

- 1 USB port for software communication
Product Specification
| Device Type | UPS - external |
| Power Device | |
| Input Voltage | AC 220-240 V |
| Input Voltage Range | AC 161 - 284 V |
| Frequency Provided | 50/60 Hz |
| Input Wiring | 1-phase |
| Frequency Required | 50/60 Hz |
| Input Connectors | 1 |
| Power Output Connectors Details | 3 x DIN (surge) ¦ 3 x DIN (UPS and surge) |
| Output Voltage | AC 220/230/240 V 50/60 Hz |
| Max Electric Current | 10 A |
| Power Capacity | 330 Watt / 550 VA |
| Surge Suppression | Yes |
| Circuit Protection | Circuit breaker |
| Battery | |
| Technology | Lead Acid |
| Networking | |
| Remote Management Interface | USB |
| Expansion / Connectivity | |
| Interfaces | 1 x management (USB) |
| Miscellaneous | |
| Cables Included | Power cable - integrated ¦ USB cable |
| Features | On/off switch, reset button, deep discharge protection, cold-start function |
| Compliant Standards | CB, IEC 62040-3, IEC 62040-2, EAC, IEC 62040-1, IEC 62040-4, IEC 61643-11, CM, Ukraine |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 2 years |
| Environmental Parameters | |
| Min Operating Temperature | 0 °C |
| Max Operating Temperature | 40 °C |
| Dimensions & Weight | |
| Width | 14 cm |
| Depth | 32.5 cm |
| Height | 8.6 cm |
| Weight | 3.2 kg |
Features - Eaton Power Quality - 3S550D
More Details
Product Code
03:135427
EAN Code
0743172101754
Manufacturer
Eaton Power Quality
