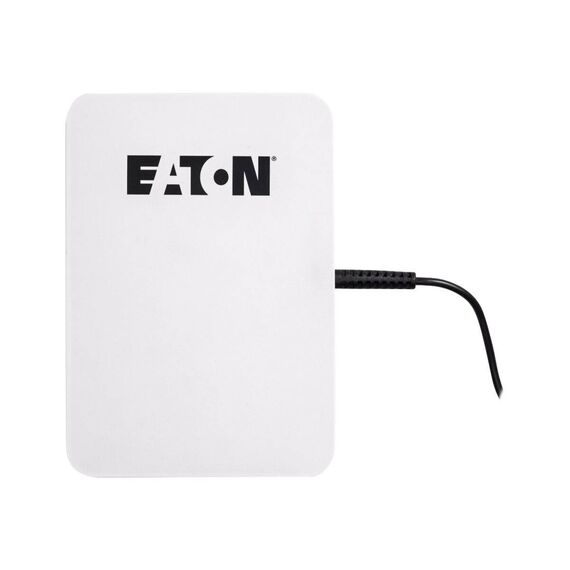

Eaton 3S Mini 3SM36 - UPS - AC 90-264 V - 36 Watt - 2.2 Ah - output connectors: 1 - France - black, white | 3SM36
Please sign in so that we can notify you about a reply
Special Fetures
- Attractive design and glossy finish make the 3S a perfect fit for the modern office environment
- Compact unit fits on or under your desk

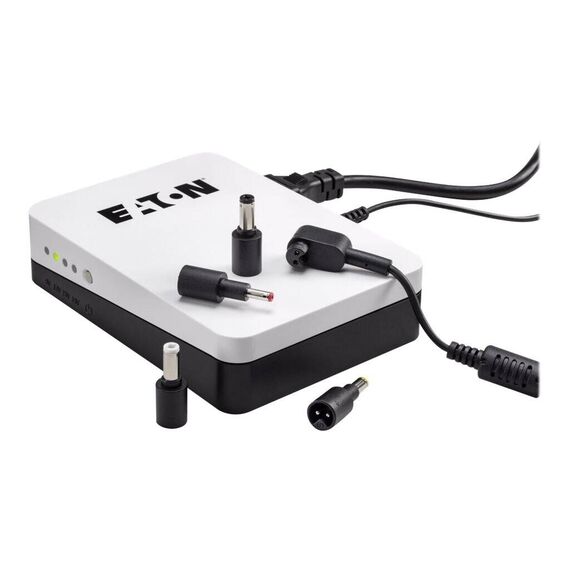

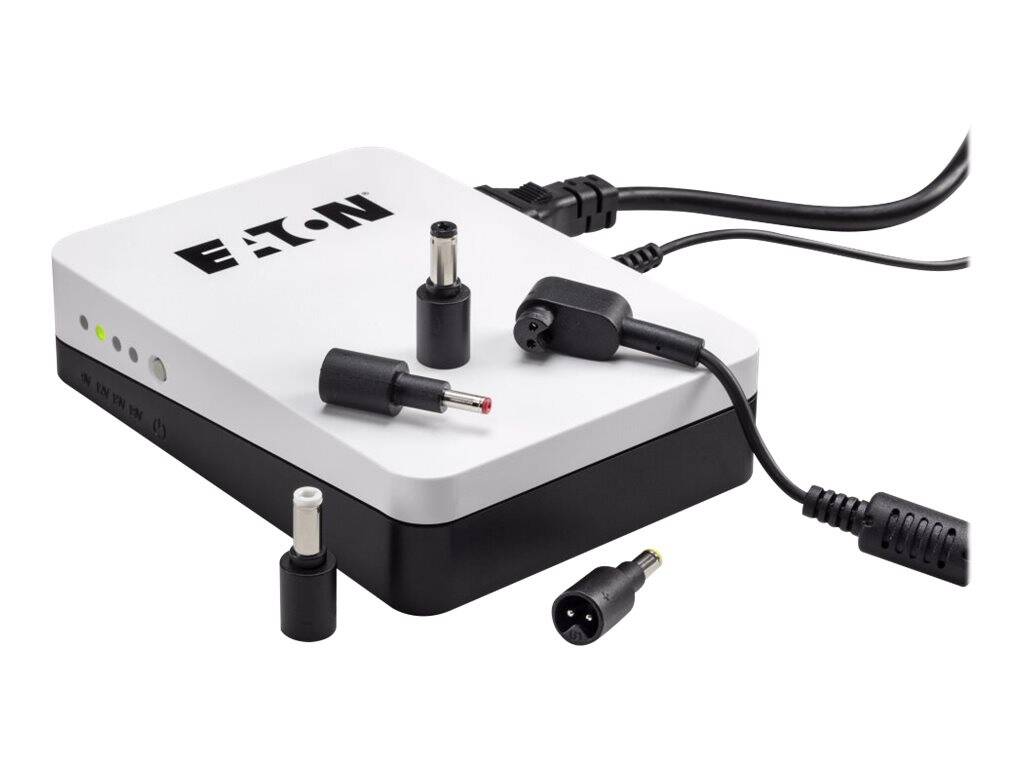

- 4 Barrel adaptators to connect your device

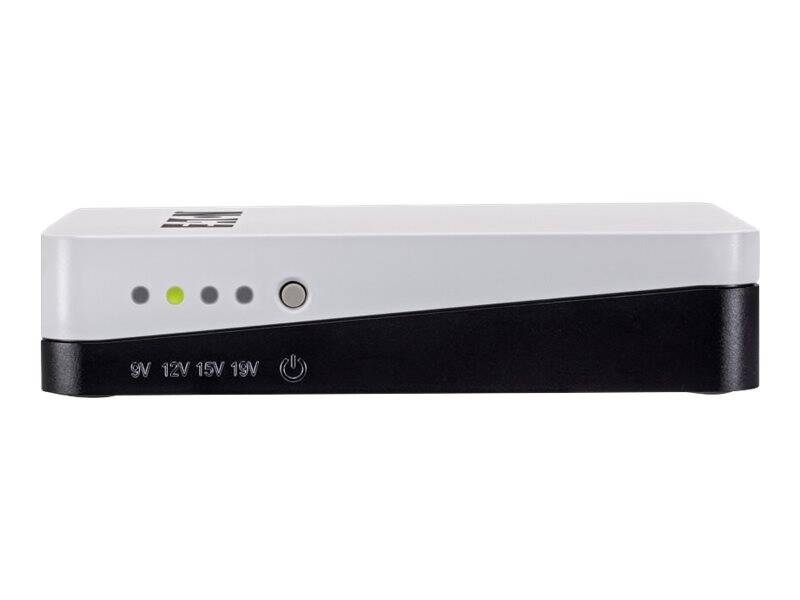

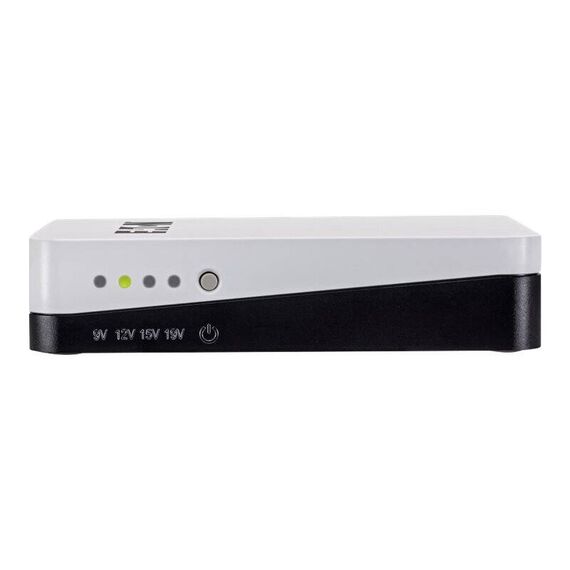

- LED indicator providing information about output voltage or remaining battery capacity
- 2200 mAh Battery (2 cells)
Product Specification
| Device Type | UPS - external |
| Colour | Black, white |
| Localisation | France |
| Power Device | |
| UPS Technology | On-line |
| Input Voltage | AC 90-264 V |
| Frequency Required | 50/60 Hz |
| Input Connectors | 1 x power |
| Power Output Connectors Details | 1 x power DC jack 3.5 mm (ID: 1.3 mm) ¦ 1 x power DC jack 5.5 mm (ID: 2.1 mm) ¦ 1 x power DC jack 4.75 mm (ID: 1.7 mm) ¦ 1 x power DC jack 5.5 mm (ID: 2.5 mm) |
| Output Voltage | DC 9 / 12 / 15 / 19 V |
| Power Capacity | 36 Watt |
| Surge Suppression | Yes |
| Battery | |
| Quantity | 2 |
| Technology | Lithium ion |
| Voltage Provided | 3.7 V |
| Capacity | 2.2 Ah |
| Miscellaneous | |
| Included Accessories | 4 connector tips |
| Cables Included | Power cable - external - 1 m |
| Features | On/off switch, LED indicators, cold-start function |
| Compliant Standards | CB, IEC 62040-2, EN 62040-2, IEC 62477-1, IEC 62040-5-3 |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 2 years |
| Environmental Parameters | |
| Min Operating Temperature | 0 °C |
| Max Operating Temperature | 35 °C |
| Dimensions & Weight | |
| Width | 9.5 cm |
| Depth | 13.6 cm |
| Height | 3 cm |
| Weight | 370 g |
Features - Eaton Power Quality - 3SM36
More Details
Product Code
03:193942
EAN Code
3553340705014
Manufacturer
Eaton Power Quality
