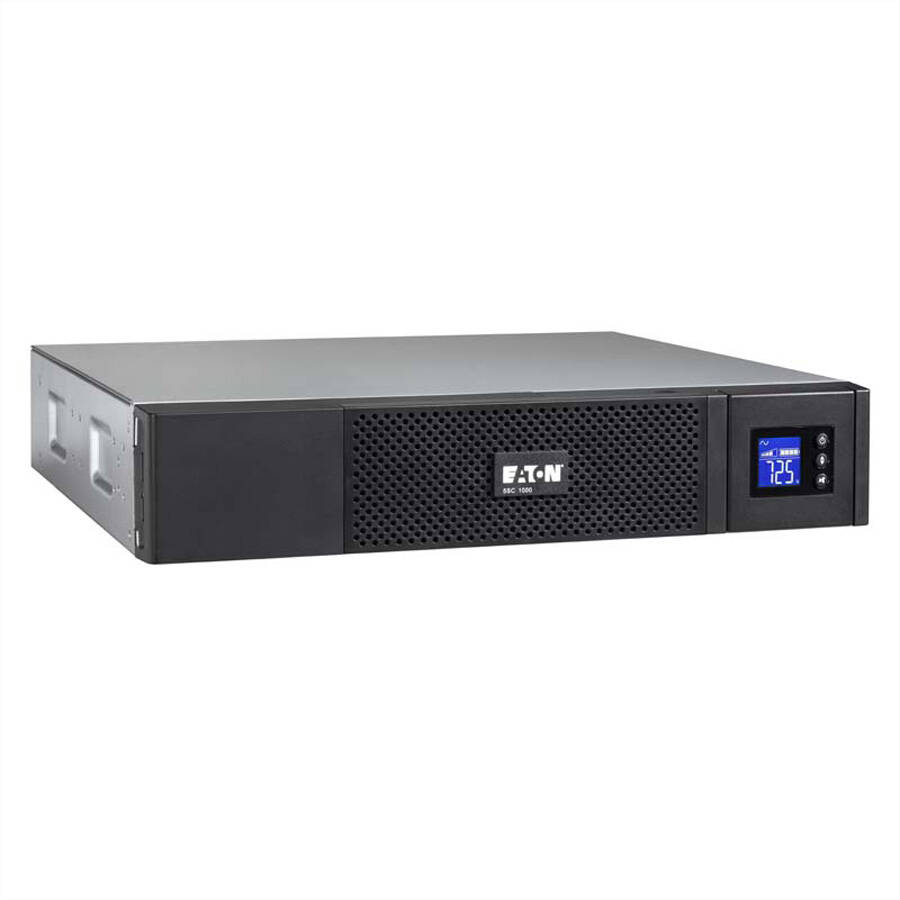

Eaton 5SC 1000 - UPS (rack-mountable) - AC 230 V - 700 Watt - 1000 VA - RS-232, USB - output connectors: 8 - 2U - black | 5SC1000IR
Please sign in so that we can notify you about a reply
Special Fetures
- LCD interface clearly shows key information
- Sinewave output for compatibility with today's small business servers
- Compact design for easy integration even with space constraints and up to eight outlets for better flexibility
- Reliable, long-lasting UPS with patented ABM technology that increases battery service life by up to 50%
- Serial and USB ports are HID compliant for automatic integration into major OS
- Eaton Intelligent Power software delivered as standard is compatible with all major operating systems
Product Specification
| Device Type | UPS - rack-mountable |
| Height (Rack Units) | 2U |
| Colour | Black |
| Power Device | |
| UPS Technology | Line interactive |
| Input Voltage | AC 230 V |
| Input Voltage Range | AC 184 - 276 V |
| Frequency Provided | 50/60 Hz ± 0.1% |
| Frequency Required | 50/60 Hz |
| Input Connectors | 1 x power IEC 60320 C14 |
| Power Output Connectors Details | 8 x power IEC 60320 C13 |
| Output Voltage | AC 230 V + 6% / - 10% - 50/60 Hz |
| Power Capacity | 700 Watt / 1000 VA |
| Battery | |
| Technology | Lead Acid |
| Run Time (Up To) | 5 min at full load ¦ 12 min at half load |
| Networking | |
| Remote Management Interface | RS-232, USB |
| Expansion / Connectivity | |
| Interfaces | 1 x management (USB) - 4 pin USB Type B ¦ 1 x management (RS-232) - 9 pin D-Sub (DB-9) |
| Miscellaneous | |
| Compliant Standards | UL 1778, CB, IEC 62040-2, EN 62040-2, IEC 62040-1, EN 62040-1 |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 2 years |
| Environmental Parameters | |
| Min Operating Temperature | 0 °C |
| Max Operating Temperature | 40 °C |
| Sound Emission | 45 dB |
| Dimensions & Weight | |
| Width | 44 cm |
| Depth | 40.5 cm |
| Height | 8.62 cm |
| Weight | 14.96 kg |
Features - Eaton Power Quality - 5SC1000IR
More Details
Product Code
03:132933
Manufacturer
Eaton Power Quality
