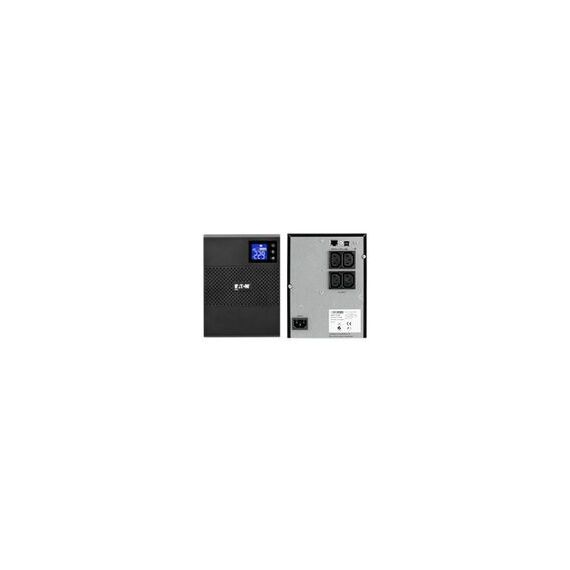

Eaton 5SC 500i UPS AC 230V 350Watt 500VA RS-232, USB
Please sign in so that we can notify you about a reply
Eaton Power Quality 5SC500I Eaton 5SC 500i UPS AC 230V 350Watt 500VA RS-232, USB
Eaton 5SC 500i UPS AC 230V 350Watt 500VA RS-232, USB
Eaton 5SC UPS provides line-interactive, affordable and reliable protection for small business servers. Complementing our range of industry leading UPSs, the 5SC includes an LCD interface for real-time status and measurements, and provides sinewave output for compatibility with todays most sensitive IT equipment.Feature list
| Output power capacity VA: | 500 VA |
| Output power: | 350 W |
| Input operation voltage min: | 184 V |
| Input operation voltage max: | 276 V |
| Output operation voltage min: | 220 V |
| Output operation voltage max: | 240 V |
| Power supply input frequency: | 50 Hz |
| Efficiency: | 97 % |
| AC outlets quantity: | 4 |
| AC outlet types: | C13 coupler |
| Power plug: | C14 coupler |
| USB 2.0 ports quantity: | 1 |
| RS-232 ports: | 1 |
| Form factor: | Tower |
| Power protection features: | Overload |
| Waveform: | Sine |
| Typical backup time at half load: | 13 min |
| Typical backup time at full load: | 5 min |
| Colour of product: | Black |
| Weight: | 6600 g |
| Width: | 150 mm |
| Depth: | 240 mm |
| Height: | 210 mm |
| Operating temperature range T-T: | 0 - 35 °C |
| Storage temperature range T-T: | -15 - 40 °C |
| Operating altitude: | 0 - 3000 m |
| Certification: | CE/GS/C-Tick |
| Safety: | IEC 62040-1, CB Report TUV |
| LED indicators: | Y |
| Audible alarms: | Y |
| Noise level: | 40 dB |
| Display: | LCD |
Eaton 5SC 500i UPS AC 230V 350Watt 500VA RS-232, USB
Features - Eaton Power Quality - 5SC500I
More Details
Product Code
03:135456
Manufacturer
Eaton Power Quality
