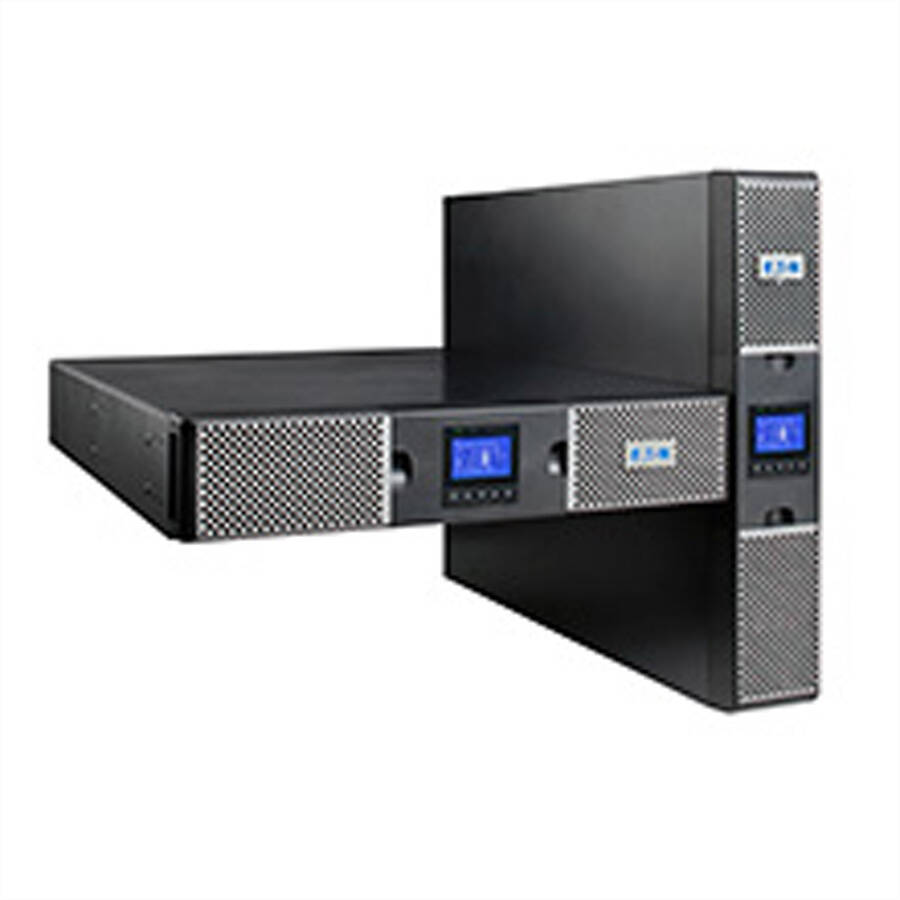

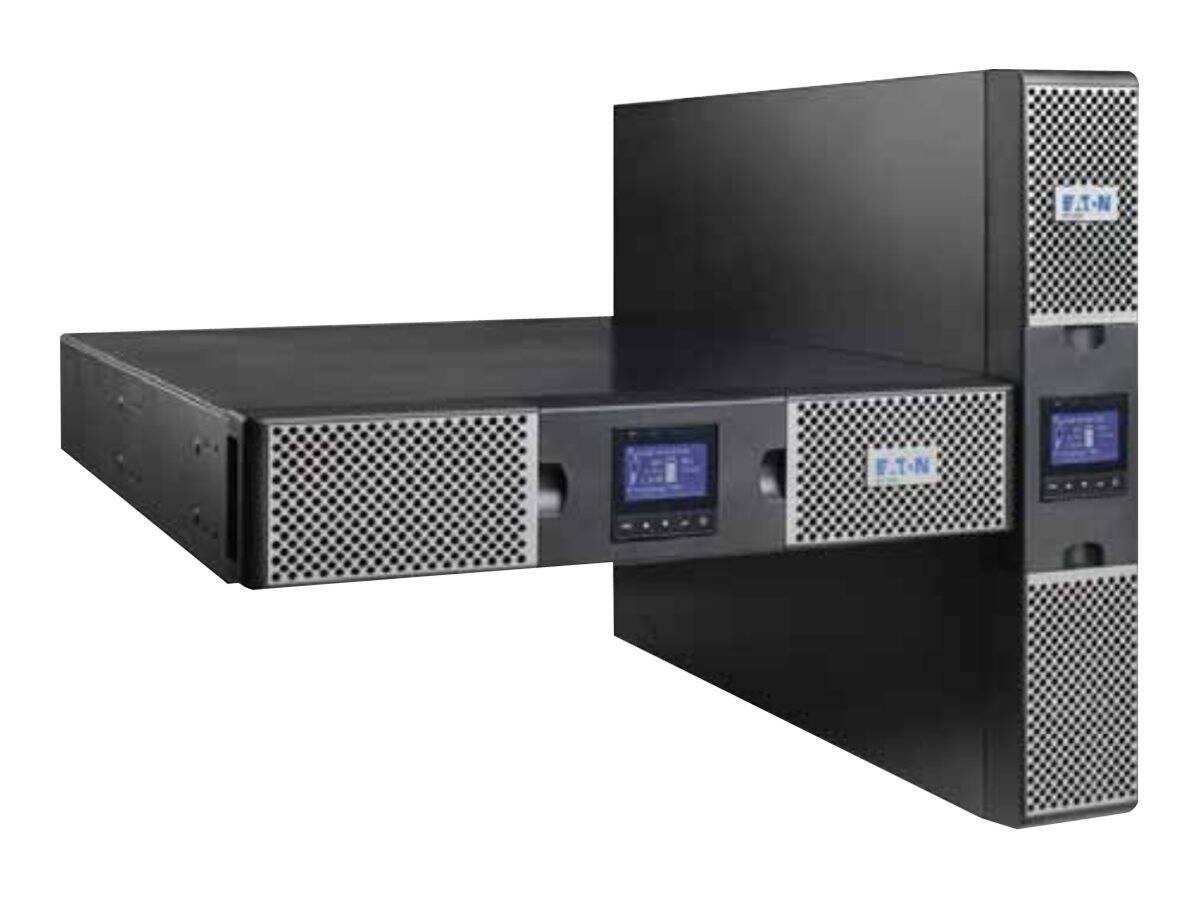

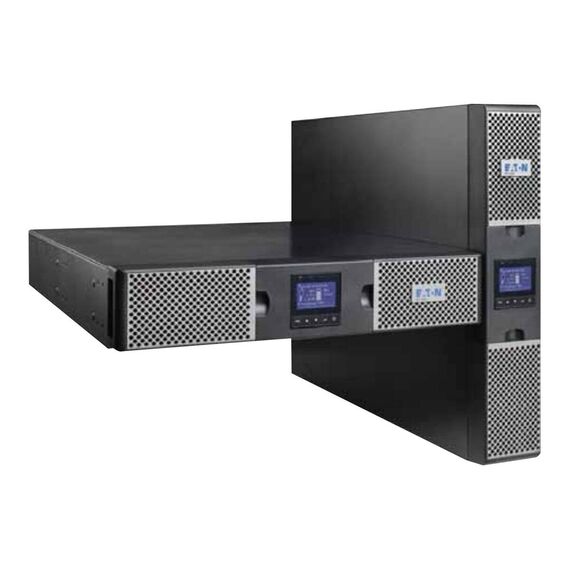

Eaton 9PX 2200i RT2U - UPS (rack-mountable / external) - AC 200/208/220/230/240 V - 2200 Watt - 2200 VA - 1-phase - RS-232, USB, Ethernet 10/100/1000 - output connectors: 10 - PFC - 2U | 9PX2200IRTN
Please sign in so that we can notify you about a reply
Product Features
- Graphical LCD display
It provides clear information on the UPS's status and measurements on a single screen which tilts 450 for ease-of-viewing. - Availability and flexibility
The internal bypass allows service continuity in case of internal fault, a maintenance bypass is also available for easy replacement of the UPS without powering down critical systems. - Paralleling functionality
Paralleling functionality to achieve twice the power of unitary products using Hot Sync technology! - Load segment control
It enables prioritized shut downs of nonessential equipment to maximize battery runtime for critical devices.
Special Fetures
- Enables you to customize UPS settings, view load and power consumption information through the graphical interactive LCD screen interface
- Energy efficient (up to 95% in Online mode, 98% in high-efficiency mode)
- Next-generation graphical LCD display (7 languages)
- Provides more real power (watts) to protect more equipment with a 0.9 power factor
- Parallel operation using HotSync technology
Product Specification
| Device Type | UPS - Power Factor Correction (PFC) - rack-mountable / external |
| Height (Rack Units) | 2U |
| Power Device | |
| UPS Technology | On-line |
| Input Voltage | AC 200/208/220/230/240 V |
| Input Voltage Range | AC 176 - 276 V |
| Input Wiring | 1-phase |
| Frequency Required | 40 - 70 Hz |
| Input Connectors | 1 |
| Power Output Connectors Details | 8 x power IEC 60320 C13 ¦ 2 x power IEC 60320 C19 16A |
| Output Voltage | AC 200/208/220/230/240 V |
| Power Capacity | 2200 Watt / 2200 VA |
| Efficiency | 98% |
| Battery | |
| Run Time (Up To) | 44 min at 300 Watts ¦ 23 min at 500 Watts ¦ 15 min at 800 Watts ¦ 9 min at 1200 Watts ¦ 5 min at 1800 Watts |
| Networking | |
| Remote Management Interface | RS-232, USB, Ethernet 10/100/1000 |
| Expansion / Connectivity | |
| Interfaces | 1 x management (USB) ¦ 1 x management (RS-232) ¦ 1 x management (Gigabit Ethernet) - RJ-45 |
| Expansion Slots | 1 (total) / 0 (free) x Expansion Slot |
| Miscellaneous | |
| Features | LCD display, internal bypass |
| Compliant Standards | FCC Class B certified, TUV, CISPR 22 Class B, UL 1778, CB, IEC 62040-2, cULus, CSA 22.2, KC, EN 62040-2, EAC, RCM, IEC 62040-1, EN 62040-1 |
| Software / System Requirements | |
| Software Included | Intelligent Power Software Suite |
| Environmental Standards | |
| ENERGY STAR | Yes |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 3 years ¦ Limited warranty - batteries - 2 years |
| Environmental Parameters | |
| Min Operating Temperature | 0 °C |
| Max Operating Temperature | 40 °C |
| Sound Emission | 40 dB |
| Dimensions & Weight | |
| Width | 44 cm |
| Depth | 60.5 cm |
| Height | 8.65 cm |
| Weight | 25 kg |
Features - Eaton Power Quality - 9PX2200IRTN
More Details
Product Code
03:132953
Manufacturer
Eaton Power Quality
