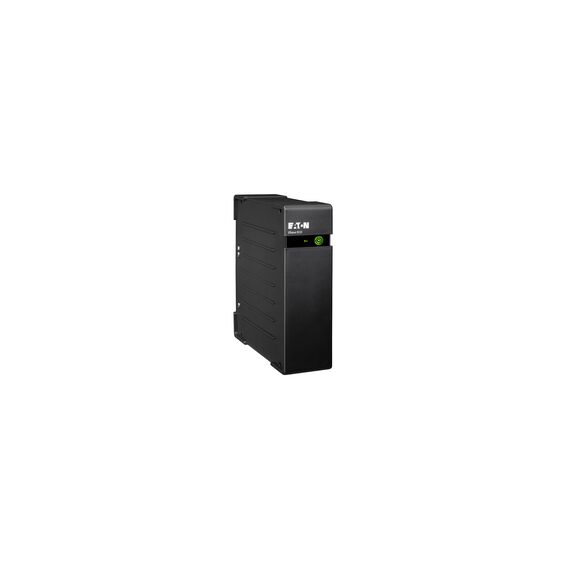

Eaton Ellipse ECO 650 IEC UPS, AC 230 V 400 Watt 650 VA 4 Output Connector(s) 2U 19" (EL650IEC)
Please sign in so that we can notify you about a reply
Eaton Power Quality EL650IEC Eaton Ellipse ECO 650 IEC UPS, AC 230 V 400 Watt 650 VA 4 Output Connector(s) 2U 19" (EL650IEC)
The Eaton Ellipse ECO is a slim-line power protection with built-in high performance surge-protection device compliant with IEC 61643-1 standard. With an efficient electrical design and the EcoControl function USB models the Eaton Ellipse ECO helps you make energy savings of up to 25 per cent compared to previous-generation UPSs.Feature list
| Output power capacity VA: | 650 VA |
| Output power: | 400 W |
| Input operation voltage min: | 161 V |
| Input operation voltage max: | 284 V |
| Output operation voltage min: | 220 V |
| Output operation voltage max: | 240 V |
| Power supply input frequency: | 50/60 Hz |
| Emergency Power Off EPO: | Y |
| AC outlets quantity: | 4 |
| AC outlet types: | C13 coupler |
| Power plug: | C14 coupler |
| Modem RJ-11 ports: | 1 |
| Ethernet LAN RJ-45 ports: | 1 |
| Battery technology: | Sealed Lead Acid VRLA |
| Hot-swap battery: | Y |
| Cold start: | Y |
| Automatic battery test: | Y |
| Battery replacement alarms: | Audible, LED |
| Form factor: | Rackmount |
| Rack mounting: | 2U |
| Colour of product: | Black |
| Surge protection: | Y |
| Surge protection features: | Fax, Modem, Network, Telephone |
| LED indicators: | Y |
| Audible alarms: | Y |
| Safety: | IEC 62040-1, IEC 60950-1, IEC 62040-2, CB Report, CE mark, IEC 61643-1 |
| Width: | 81 mm |
| Depth: | 235 mm |
| Height: | 263 mm |
| Weight: | 3600 g |
| Input connection type: | IEC |
| Nominal output voltage: | 220-240 V |
| Nominal input voltage: | 230 V |
| Overload protection: | Y |
Features - Eaton Power Quality - EL650IEC
More Details
Product Code
03:135439
EAN Code
3553340620638
Manufacturer
Eaton Power Quality
