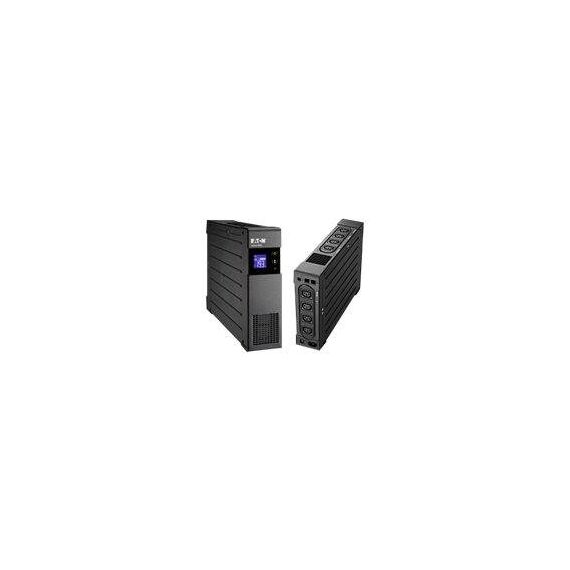

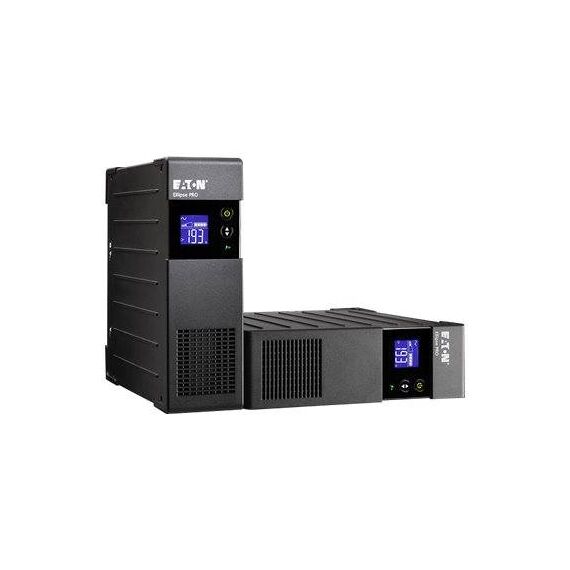

Eaton Ellipse PRO 1200 / UPS / AC 230 V / 750 Watt / 1200 VA / 7 Ah / USB / output connectors: 8 / 2U / 19" | ELP1200IEC
Please sign in so that we can notify you about a reply
Product Specification
| Device Type | UPS - external |
| Height (Rack Units) | 2U |
| Rack Size | 19" |
| Power Device | Power Device |
| UPS Technology | Line interactive |
| Input Voltage | AC 230 V |
| Input Voltage Range | AC 165 - 285 V |
| Input Voltage Range (Adjustable) | AC 150 - 285 V |
| Frequency Provided | 50/60 Hz |
| Frequency Required | 50/60 Hz |
| Input Connectors | 1 x power IEC 60320 C14 |
| Power Output Connectors Details | 4 x power IEC 60320 C13 (UPS and surge) ¦ 4 x power IEC 60320 C13 (surge) |
| Output Voltage | AC 220/230/240 V + 15% / - 20% - 50/60 Hz |
| Power Capacity | 750 Watt / 1200 VA |
| Dataline Surge Protection | Network/phone line - RJ-45/RJ-11 - 1 input line / 1 output line |
| Surge Suppression | Yes |
| Circuit Protection | Circuit breaker |

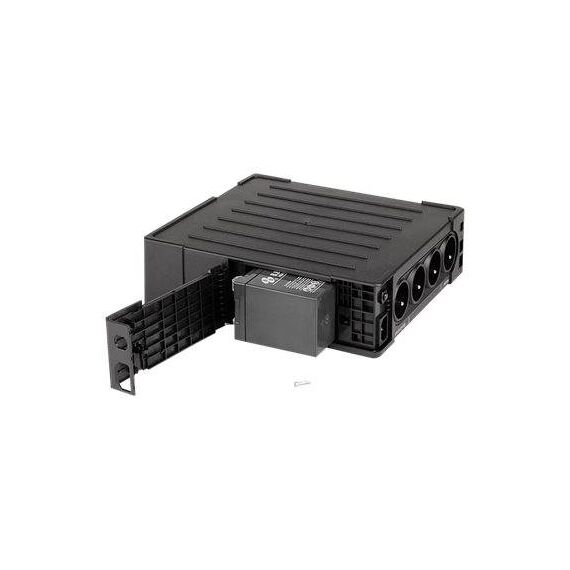

| Battery | Battery |
| Quantity | 2 |
| Technology | Lead Acid |
| Capacity | 7 Ah |
| Run Time (Up To) | 9 min at half load ¦ 5 min at 70% load |
| Networking | Networking |
| Remote Management Interface | USB |
| Expansion / Connectivity | Expansion / Connectivity |
| Interfaces | 1 x management (USB) - 4 pin USB Type B |
| Miscellaneous | Miscellaneous |
| Cables Included | USB cable - external |
| Rack Mounting Kit | Optional |

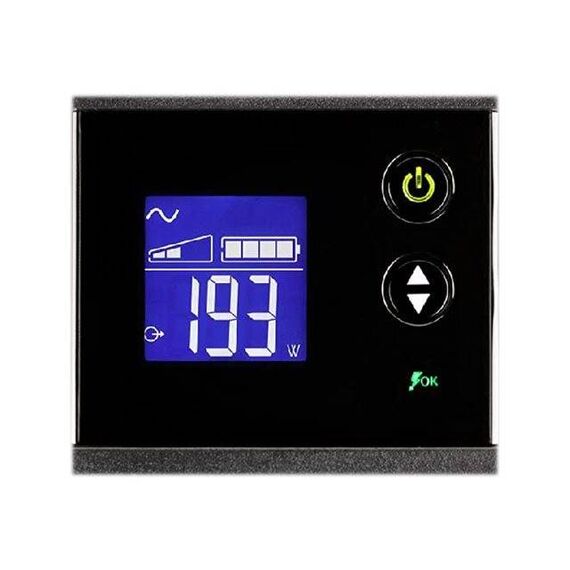

| Features | Wall mountable, LCD display, Automatic Voltage Regulation (AVR), deep discharge protection, cold-start function, EcoControl Master/Control outlets |
| Compliant Standards | CB, IEC 62040-1-1, IEC 62040-2, IEC 61643-1, EN 62040-1-1, EN 62040-2 |
| Software / System Requirements | Software / System Requirements |
| Software Included | Eaton UPS Companion |
| Manufacturer Warranty | Manufacturer Warranty |
| Service & Support | Limited warranty - 3 years ¦ Limited warranty - batteries - 3 years |
| Environmental Parameters | Environmental Parameters |
| Min Operating Temperature | 0 °C |
| Max Operating Temperature | 35 °C |
| Humidity Range Operating | 0 - 85% |
| Dimensions & Weight | Dimensions & Weight |
| Width | 8.2 cm |
| Depth | 39 cm |
| Height | 27.5 cm |
| Weight | 9.9 kg |
Features - Eaton Power Quality - ELP1200IEC
More Details
Product Code
Y711633
EAN Code
0743172437952
Manufacturer
Eaton Power Quality
