Eaton HotSwap MBP / Bypass switch (rack-mountable) / AC 220-240 V / 3000 VA / output connectors: 5 / 19" | MBP3KID
Please sign in so that we can notify you about a reply
Eaton HotSwap MBP / Bypass switch (rack-mountable) / AC 220-240 V / 3000 VA / output connectors: 5 / 19" | MBP3KID
Description

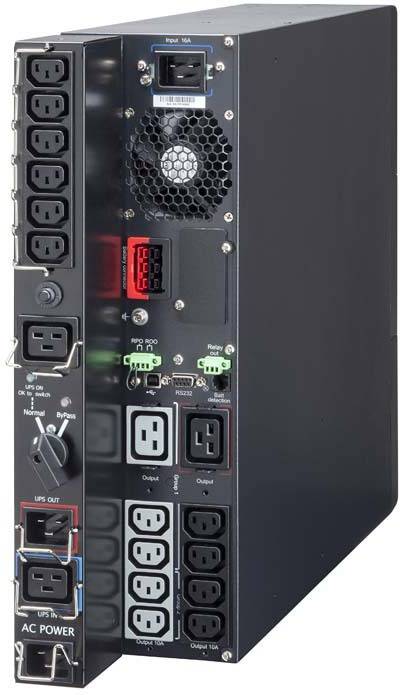

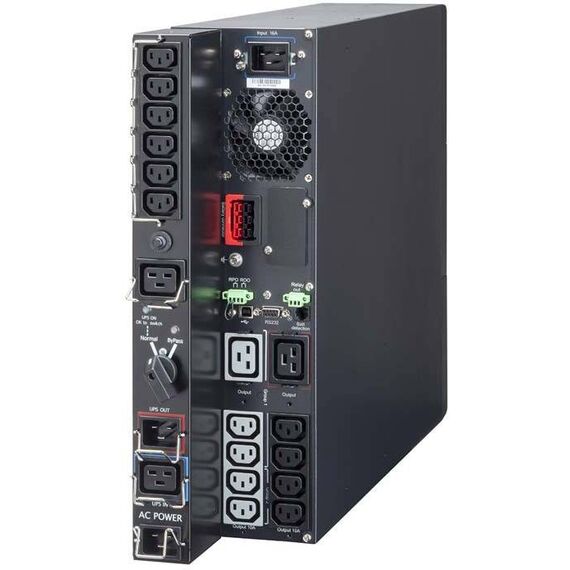

The Eaton HotSwap MBP series is made of versatile, flexible 2U PDUs designed to add high availability to UPSs up to 3,000 VA. Any UPS connected to a HotSwap MBP can be replaced for maintenance or upgrade purposes without interrupting the power supply to the protected devices. As a unique feature, they can be screwed at the back a Pulsar UPS, either front-facing or rear-facing, on the left or right hand side, for maximum versatility. They offers multiple mounting options for rack enclosures, wall mounting or connection at the rear of a UPS, whatever its brand.

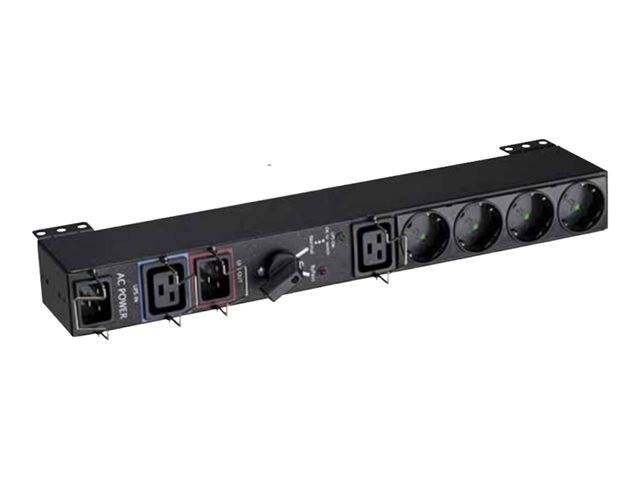

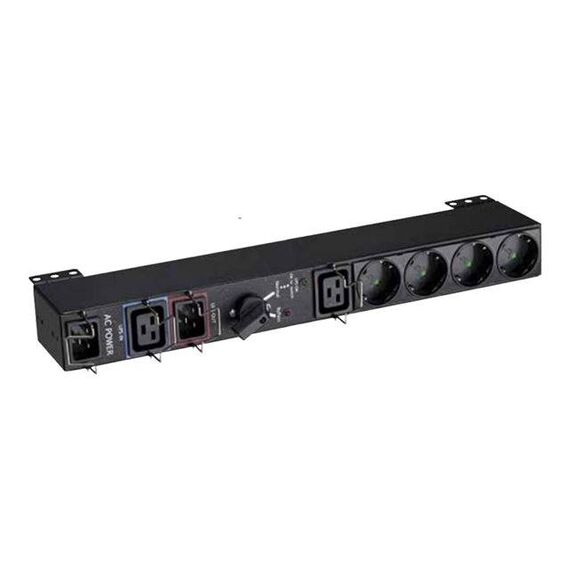

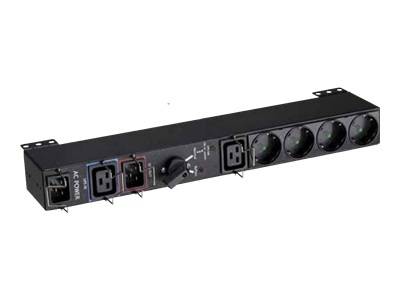

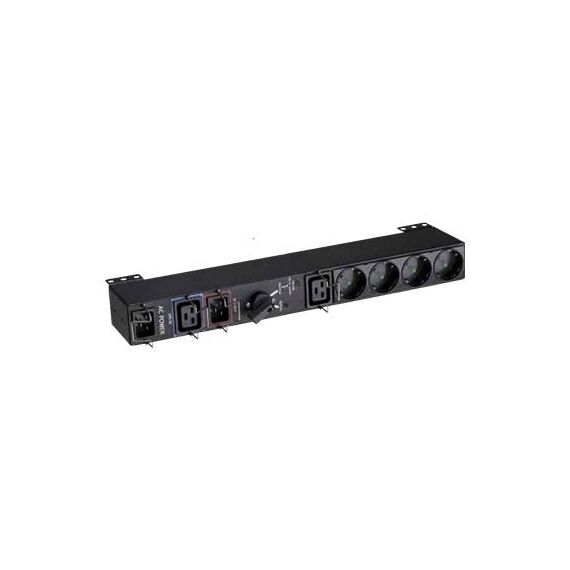

Eaton HotSwap MBP Bypass switch (rack-mountable)
Special Features
- Adds high availability to UPSs up to 3,000 VA
- Can be rackmounted, wallmounted or connected at the rear of an Eaton UPS in 3 different ways
- 2U versatile power distribution unit
- Easy plug-in connectivity
- Universal solution
Product Specification
| Device Type | Bypass switch - rack-mountable |
| Rack Size | 19" |
| Input Voltage | AC 220-240 V |
| Input Connectors | 1 x power IEC 60320 C20 16A |
| Power Output Connectors Details | 4 x power CEE 7/4 ¦ 1 x IEC connector |
| Power Capacity | 3000 VA |
| Cables Included | Power cable |
| Features | Built-in maintenance bypass |
| Min Operating Temperature | 0 °C |
| Max Operating Temperature | 45 °C |
| Width | 48.3 cm |
| Depth | 12 cm |
| Height | 5.2 cm |
Features - Eaton Power Quality - MBP3KID
More Details
Product Code
03:132958
EAN Code
3553340684203
Manufacturer
Eaton Power Quality
