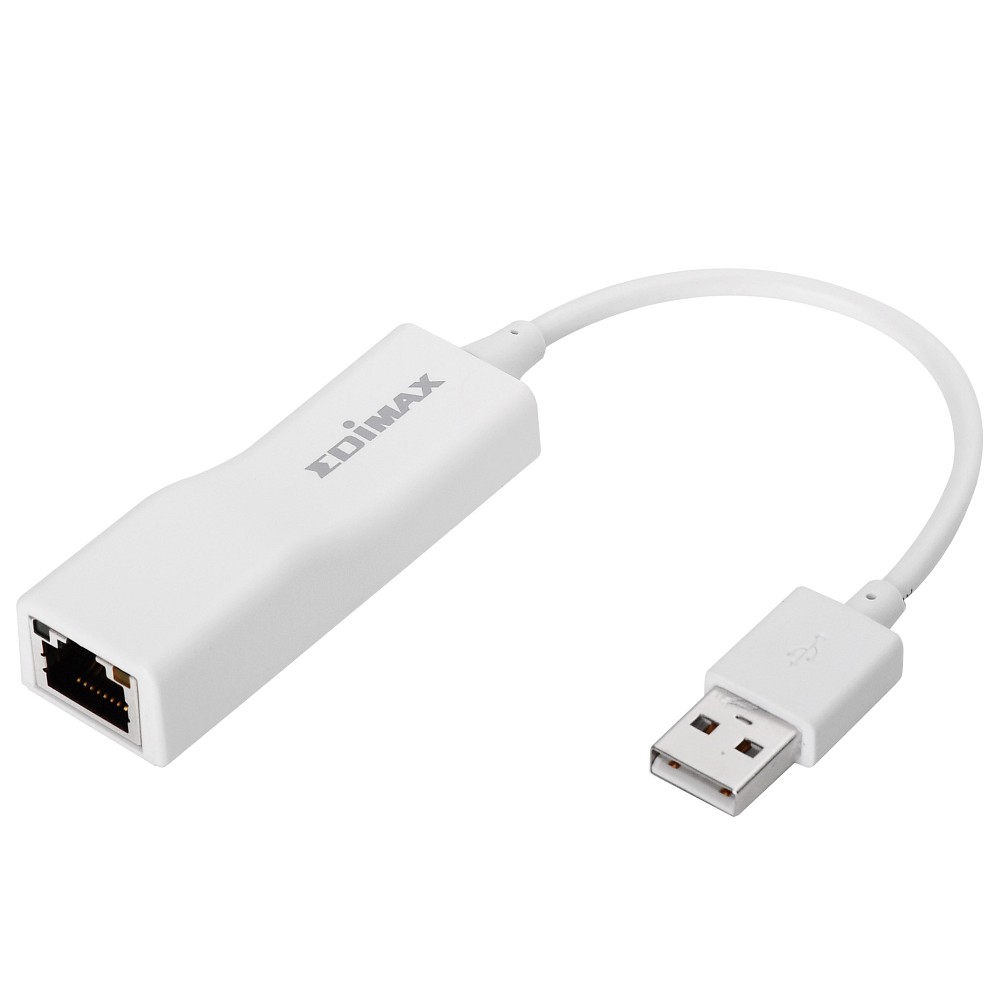

Edimax EU-4208 - Network adapter - USB 2.0 - 10/100 Ethernet | EU-4208
Product Features
- Made for the ultrabook
The Edimax EU-4208 USB 2.0 Fast Ethernet adapter is specifically designed to give Fast Ethernet connectivity to your ultrabook, or any computer without an Ethernet port. Simply plug this Fast Ethernet adapter into a USB 2.0 port on your ultrabook, and you can instantly gain access to a stable 10/100 Mbps Ethernet connection. The EU-4208 is also a quick and convenient way to add Ethernet connectivity to a desktop computer without the hassle of opening up the computer case. It is backward compatible with the USB 1.1 standard. - USB 2.0 for full 10/100 Mbps Ethernet performance
Compared to USB 1.1 adapters, which only offer 12 Mbps transmission speed via USB, the EU-4208 is designed with the USB 2.0 standard and able to transfer data at 480 Mbps, ensuring full 10/100 Mbps Ethernet performance without any compromise. - Compact design and power over USB
The Edimax EU-4208 comes in a compact design, making it easy to use in a crowded workspace. With power over USB support, this Ethernet adapter can work without an additional power adapter. - Low power consumption
The Edimax EU-4208 is designed to use power efficiently and prevent unnecessary waste of power. It can dynamically lower its power supply for low power consumption in idle mode and low traffic conditions.
Special Fetures
- Complies with IEEE 802.3/802.3u standards
- Complies with USB 2.0/1.1 specifications
- Supports 10/100 Mbps auto-negotiation
- Low power consumption in idle mode and low traffic conditions
- No external power adapter required
Product Specification
Device Type | Network adapter |
Form Factor | External |
Interface (Bus) Type | USB 2.0 |
Networking | |
Ports | 10/100 Ethernet |
Connectivity Technology | Wired |
Cabling Type | Ethernet 10Base-T, Ethernet 100Base-TX |
Data Link Protocol | Ethernet, Fast Ethernet |
Data Transfer Rate | 100 Mbps |
Status Indicators | Link/activity |
Features | Auto-negotiation, USB powered |
Compliant Standards | IEEE 802.3, IEEE 802.3u, USB 1.1, USB 2.0 |
Processor / Memory | |
RAM | 20 KB |
Expansion / Connectivity | |
Interfaces | 1 x 100Base-TX - RJ-45 |
Connections | 1 x USB 2.0 - 4 pin USB Type A |
Miscellaneous | |
Compliant Standards | FCC |
Power | |
Power Consumption Operational | 600 mW |
Software / System Requirements | |
OS Required | Apple MacOS X 10.x, Microsoft Windows 2000/XP/Vista/7 |
Dimensions & Weight | |
Width | 2.2 cm |
Depth | 6.6 cm |
Height | 1.5 cm |
Weight | 25 g |
Environmental Parameters | |
Min Operating Temperature | 0 °C |
Max Operating Temperature | 70 °C |
