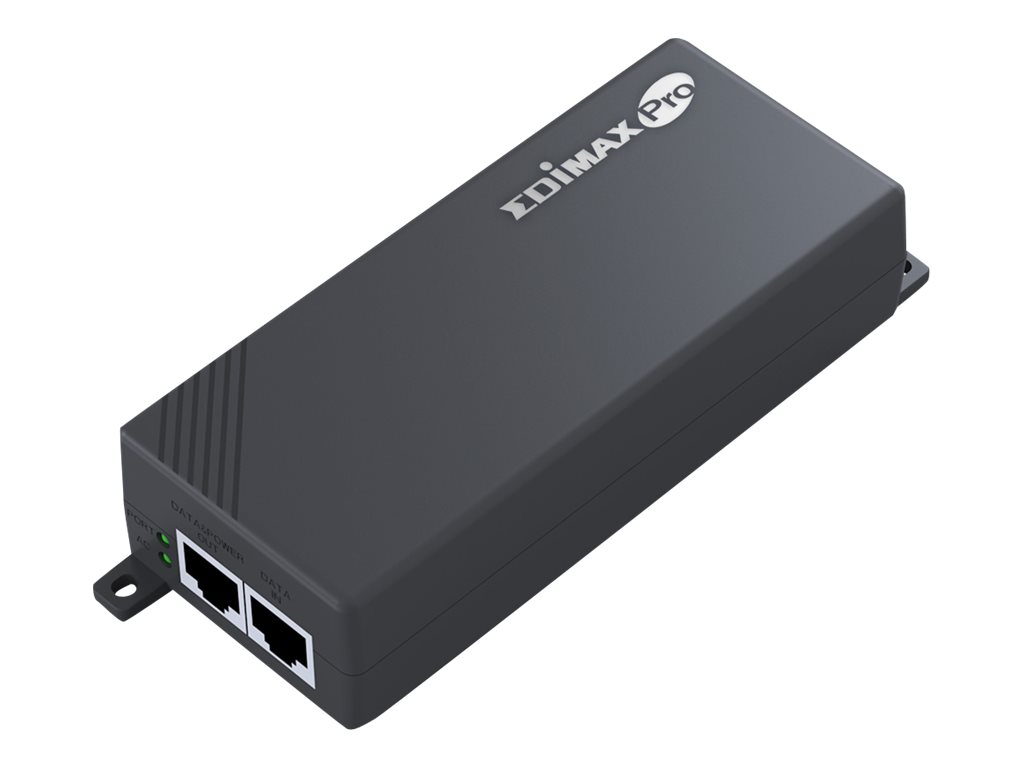

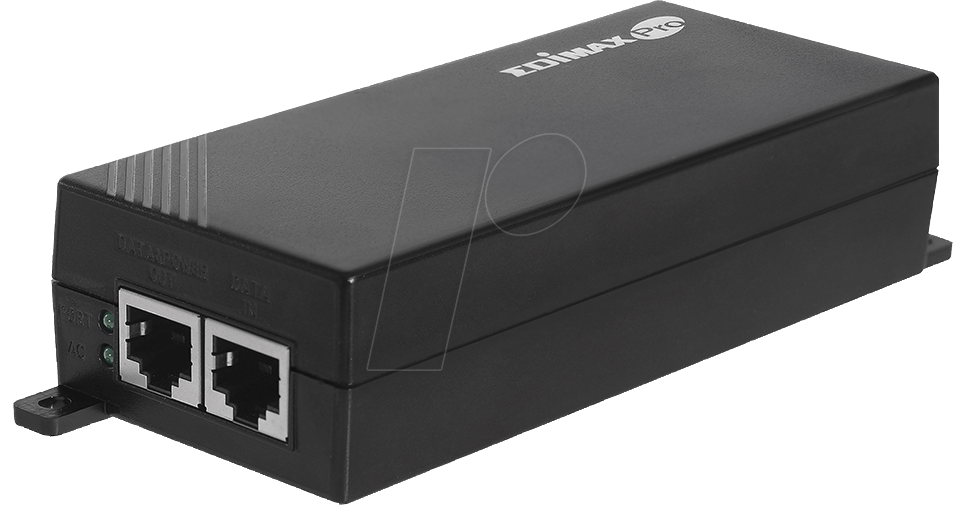

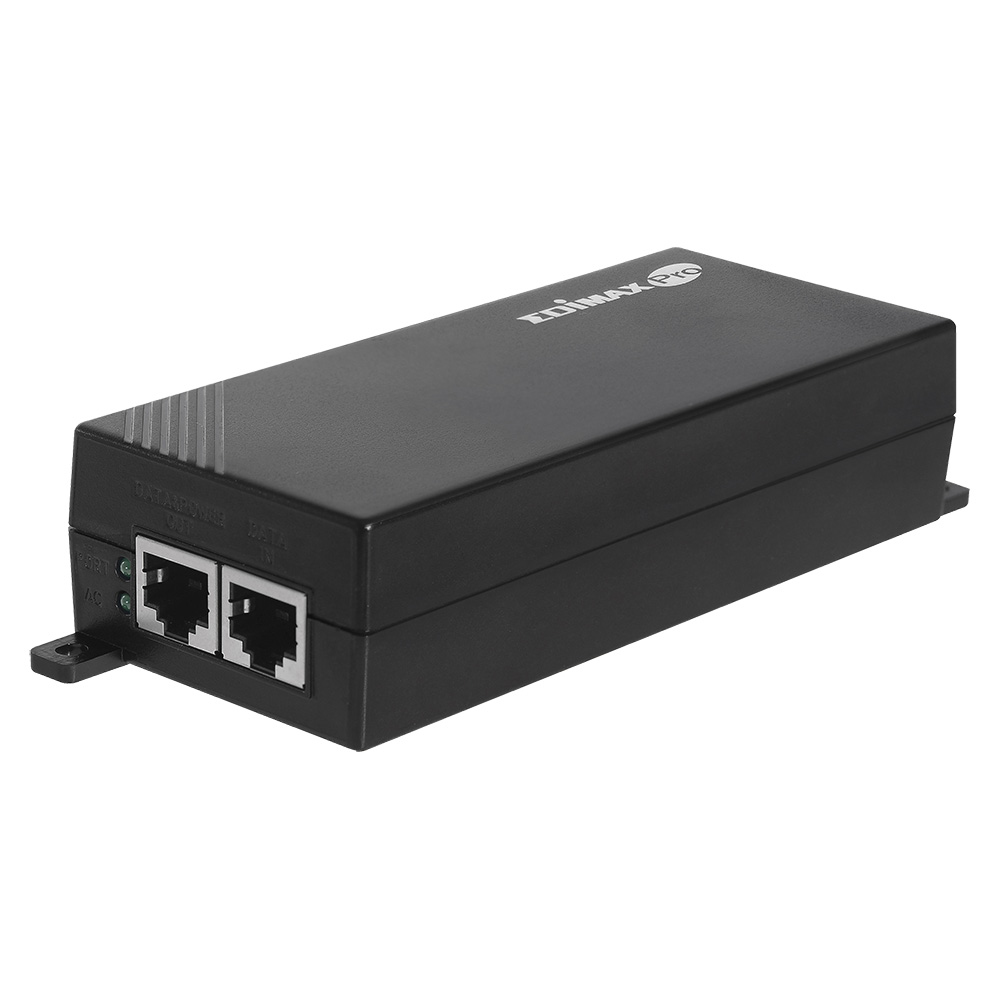

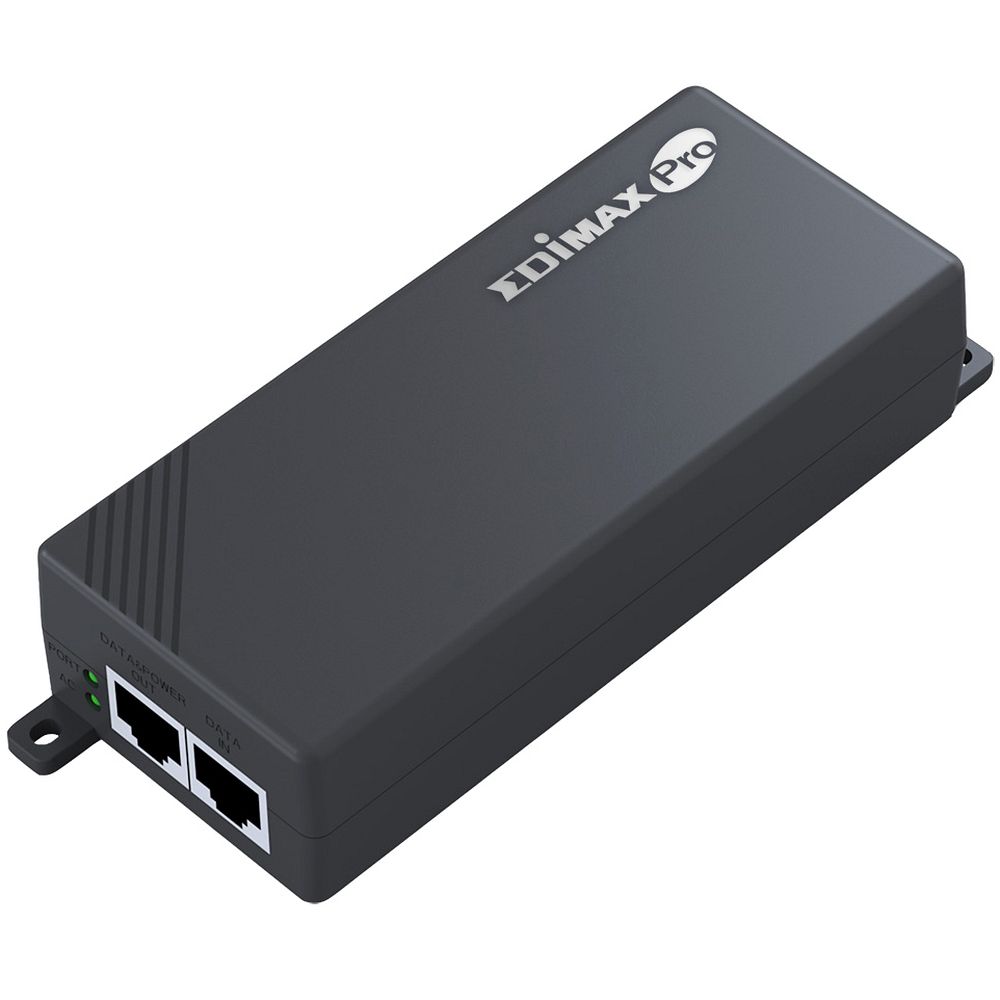

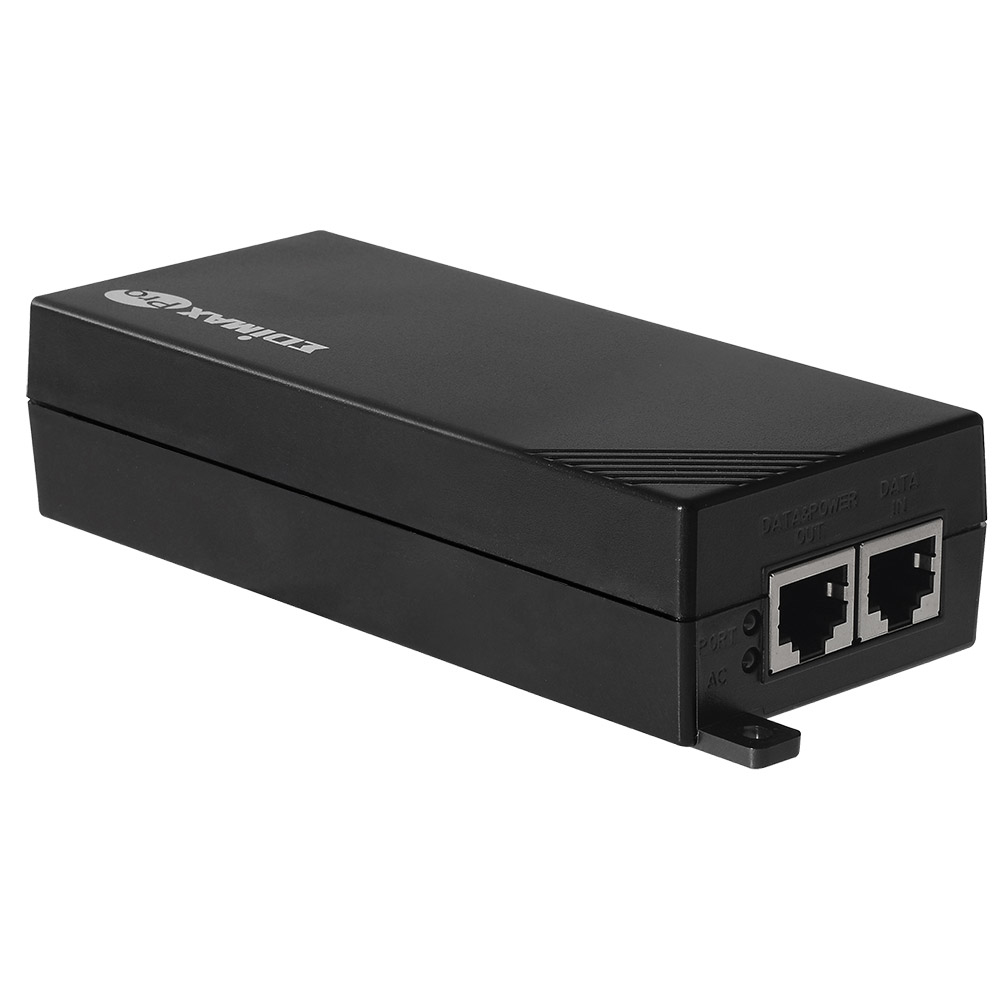

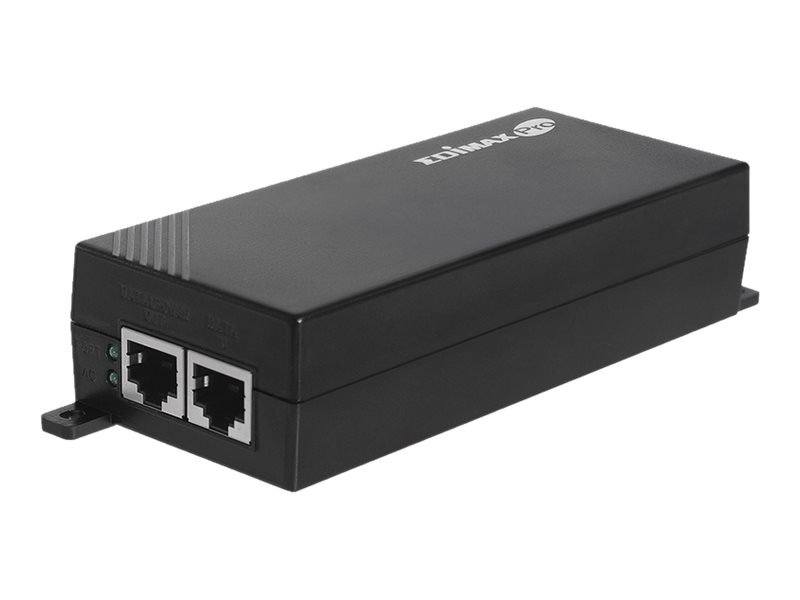

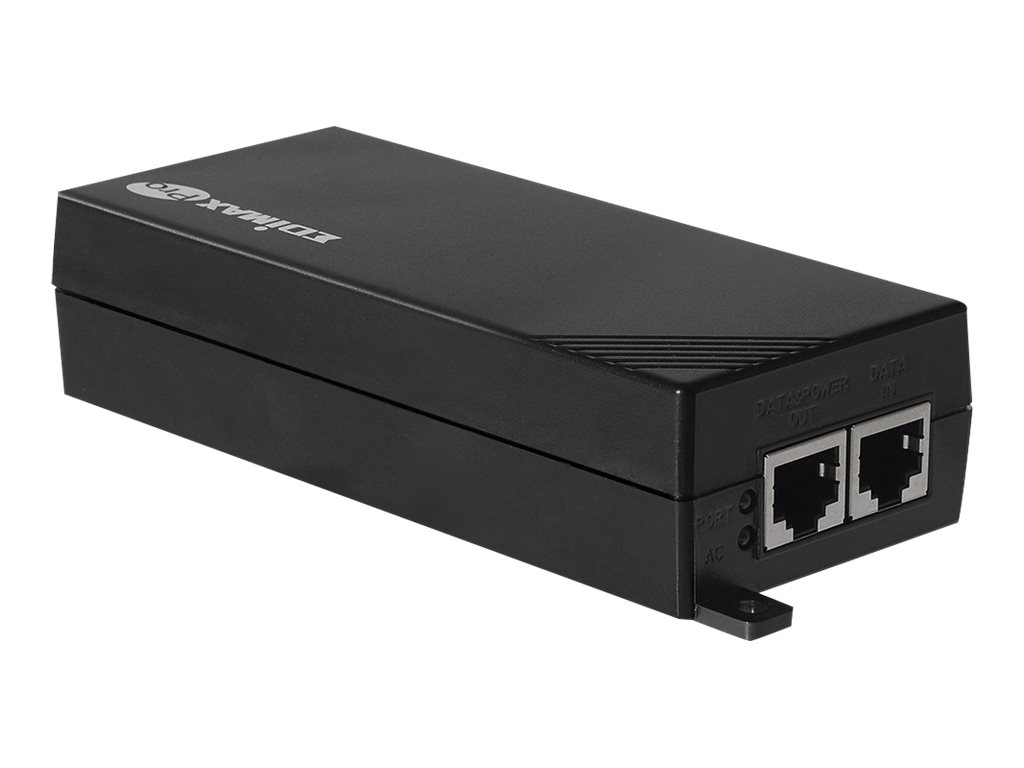

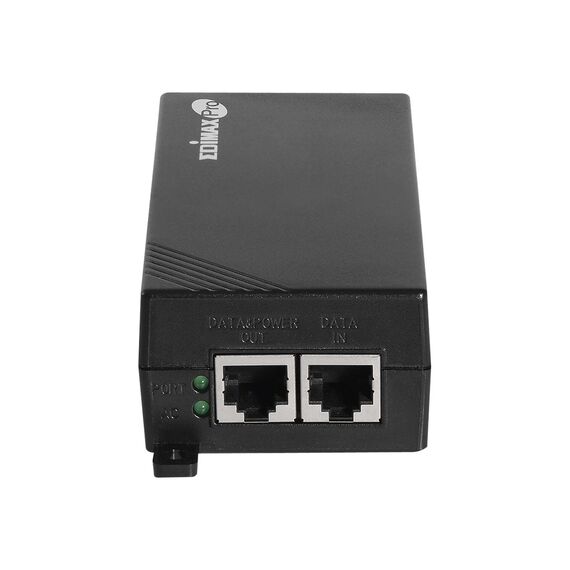

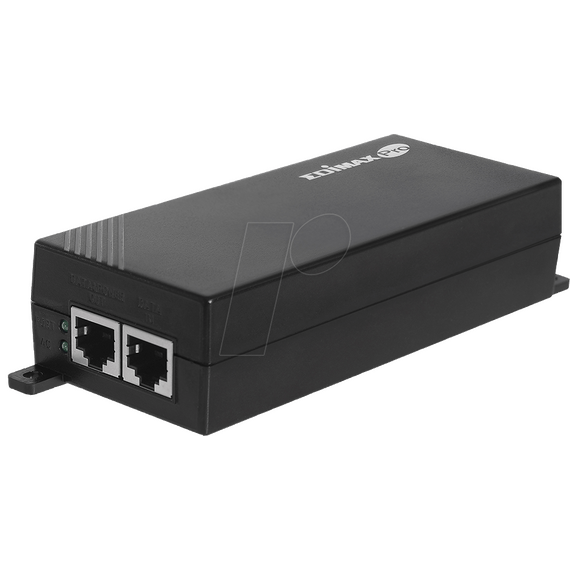

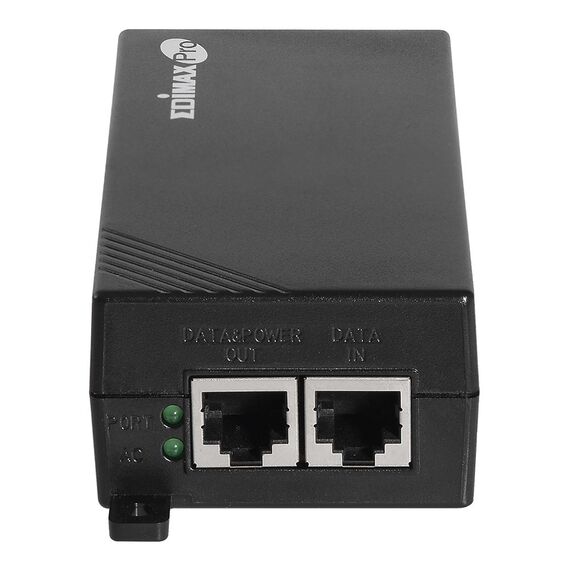

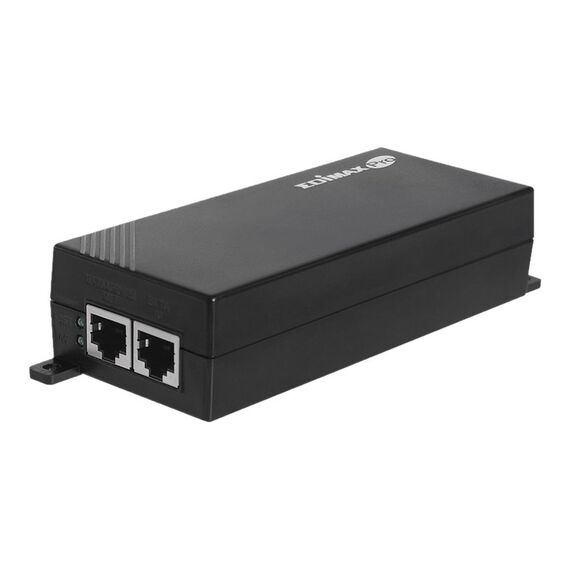

Edimax GP-101IT - PoE injector - AC 100-240 V - 30 Watt | GP-101IT
Please sign in so that we can notify you about a reply
Product Features
- IEEE 802.3at/af Power over Ethernet standard
Because of adding the capability of IEEE 802.3at/af Power over Ethernet to a non-PoE Ethernet switch or router, the GP-101IT can directly be connected to any IEEE 802.3at/af end-nodes such as PTZ (Pan, Tilt, Zoom) network cameras, PTZ speed dome, color touch-screen Voice over IP (VoIP) telephones and multi-channel wireless LAN access points where the IEEE 802.3at/af in-line Power over Ethernet port is supported. - Higher cost efficiency and easy installation
The Power over Ethernet technology enables the Ethernet wire to carry both data and power. Thus, the GP-101IT reduces the need for cable installation and eliminates the need for extension cords or electrical outlets on the wall, ceiling or any unreachable place. In all, it lowers the installation costs and simplifies the deployment effort. - Flexible & reliable power supply
Featuring PoE short circuit protection to safeguard network devices and protect against damage.
Special Fetures
- Complies with IEEE 802.3af and IEEE 802.3at Power over Ethernet (PoE) standards
- Adds PoE capability to a non-PoE Ethernet switch or router
- Gigabit LAN ports provide high-speed connectivity
- Supports PoE PSE (Power Sourcing Equipment) devices up to 30 W
- PoE short circuit protection to safeguard network devices
- Delivers power and data to PoE devices up to 100 meters (328 feet) over a single Ethernet cable
- Reduces installation and equipment costs
- Easy Plug-and-Play desktop or wall-mounted installation
Product Specification
| Device Type | PoE injector - external |
| Power Over Ethernet (PoE) | PoE+ (IEEE 802.3at) |
| Power Device | |

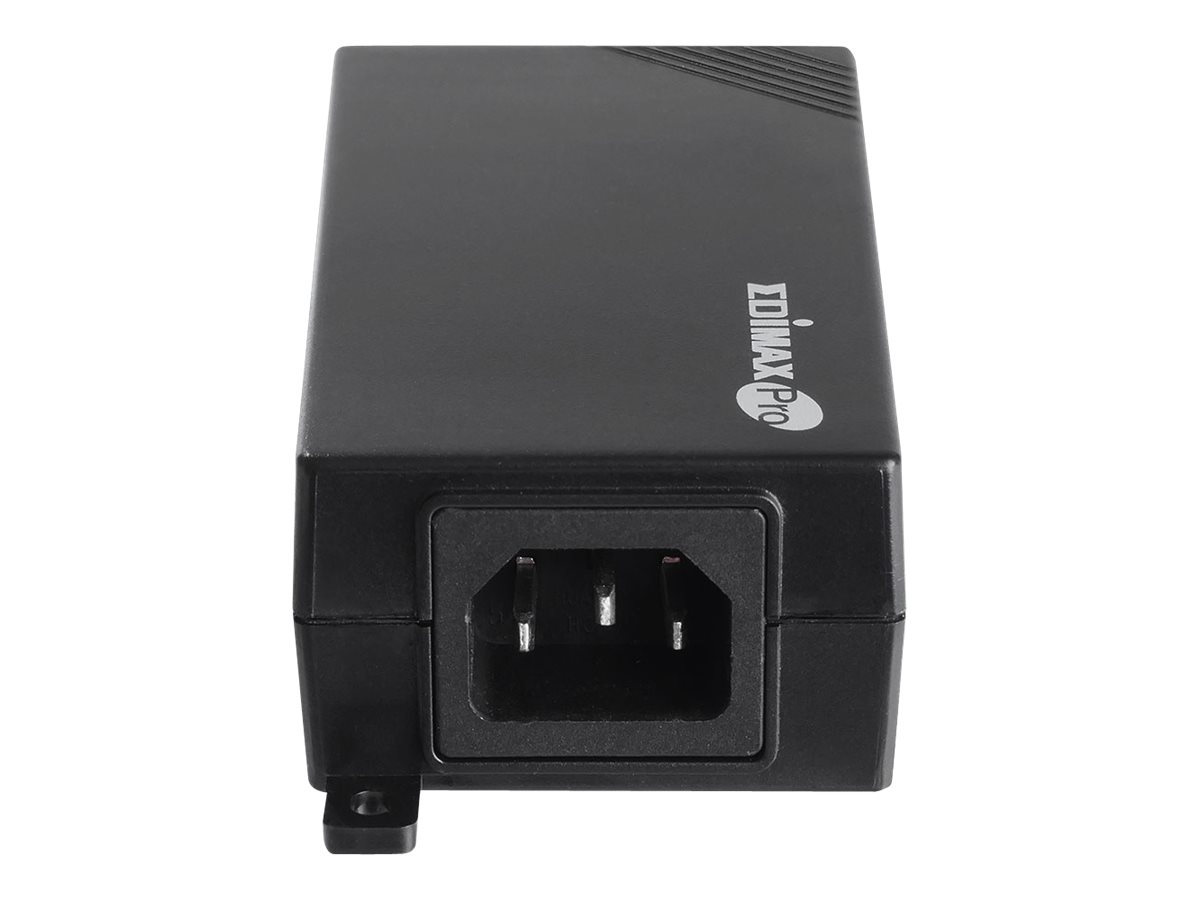

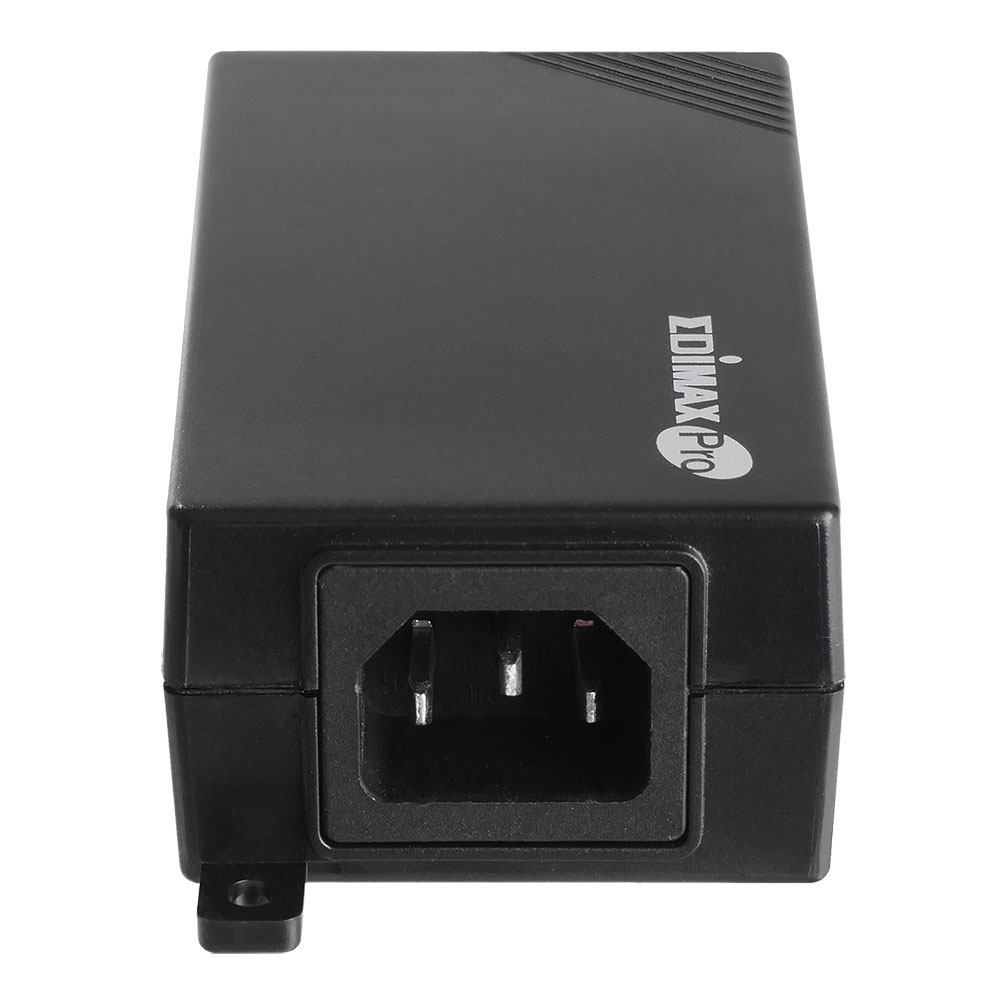

| Input Voltage | AC 100-240 V |
| Frequency Required | 50 - 60 Hz |
| Power Output Connectors Details | 1 x RJ-45 |
| Power Capacity | 30 Watt |
| Expansion / Connectivity | |

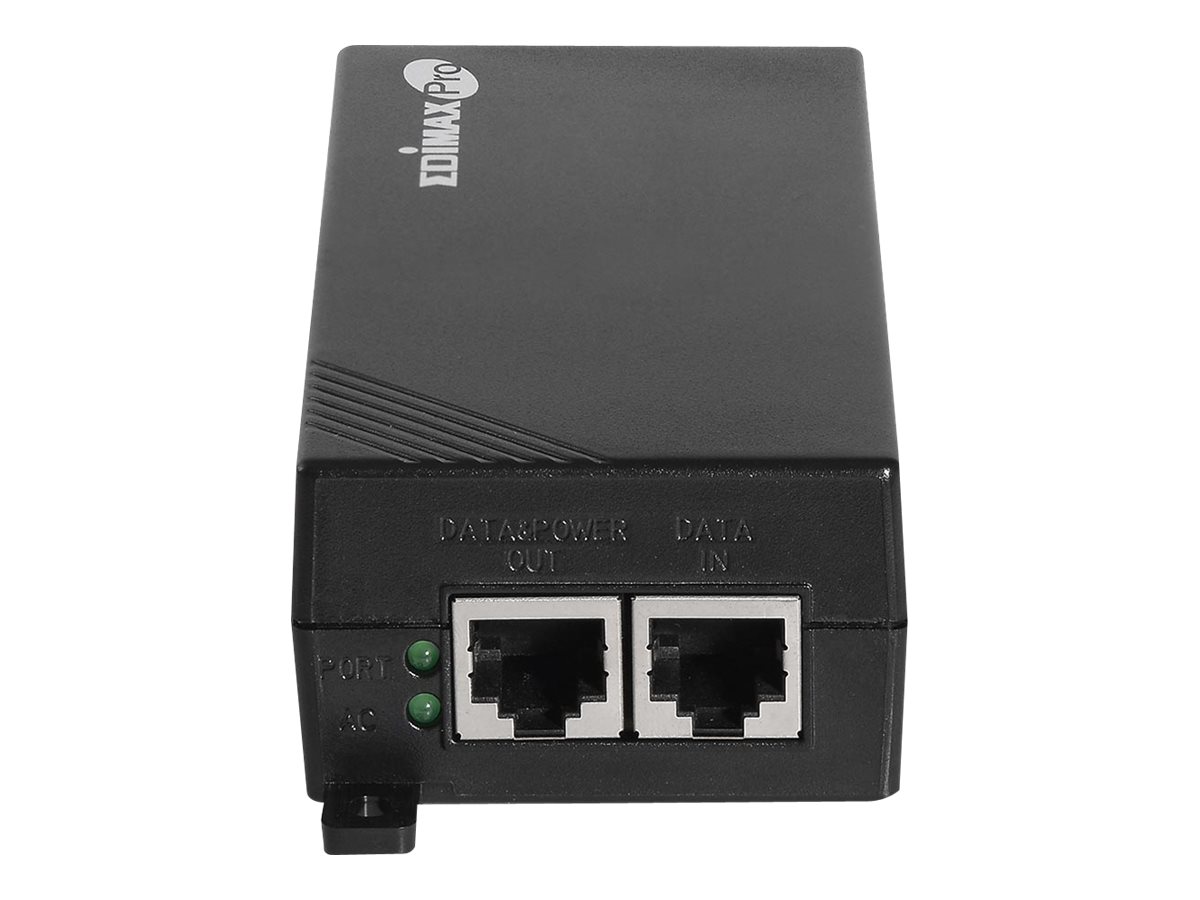

| Interfaces | 1 x Gigabit LAN - RJ-45 |
| Miscellaneous | |
| Cables Included | Power cable - external |
| Features | Short-circuit protection |
| Compliant Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, FCC, RoHS |
| Environmental Parameters | |
| Min Operating Temperature | 0 °C |
| Max Operating Temperature | 40 °C |
| Humidity Range Operating | 10 - 90% (non-condensing) |
| Dimensions & Weight | |
| Width | 5.8 cm |
| Depth | 15.5 cm |
| Height | 3.6 cm |
| Weight | 185 g |
Features - Edimax - GP-101IT
More Details
Product Code
04:180516
EAN Code
4717964700827
Manufacturer
Edimax
