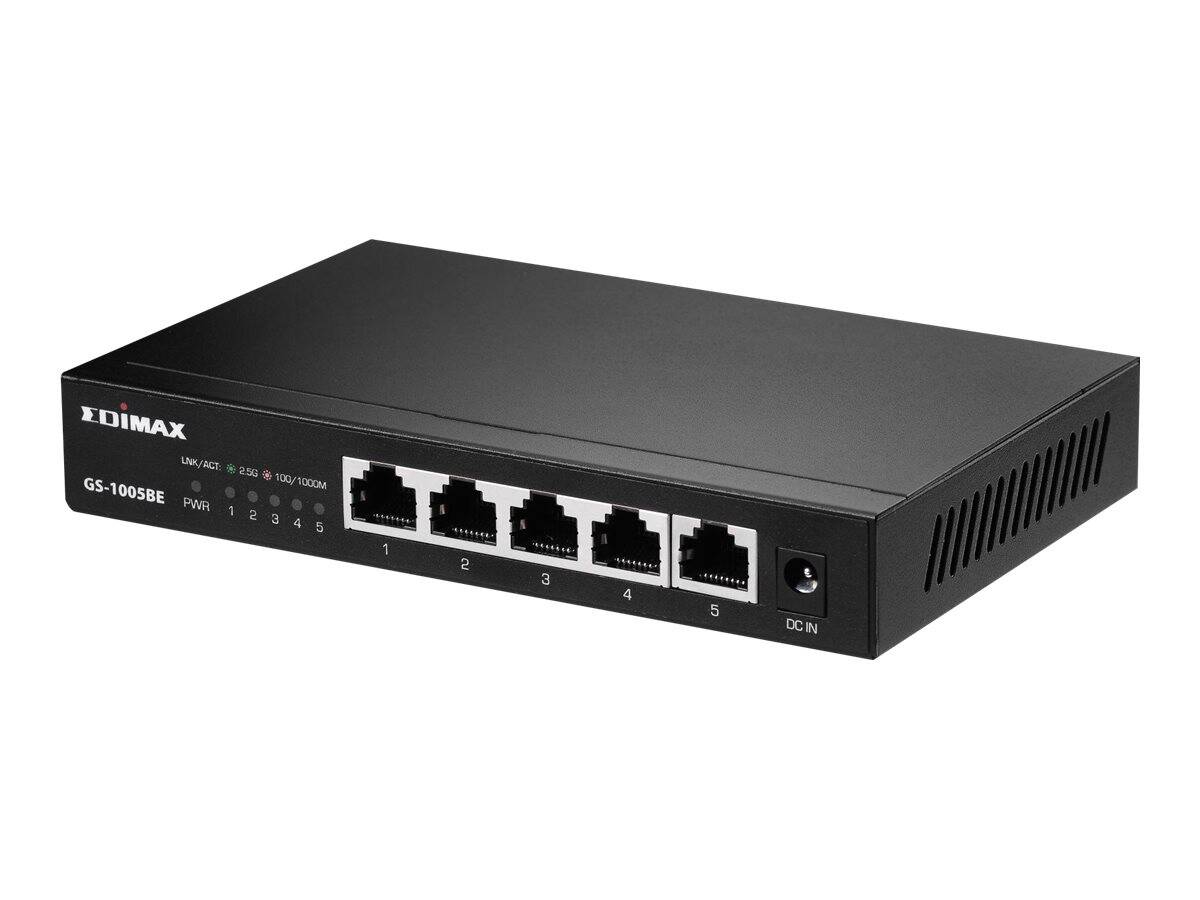

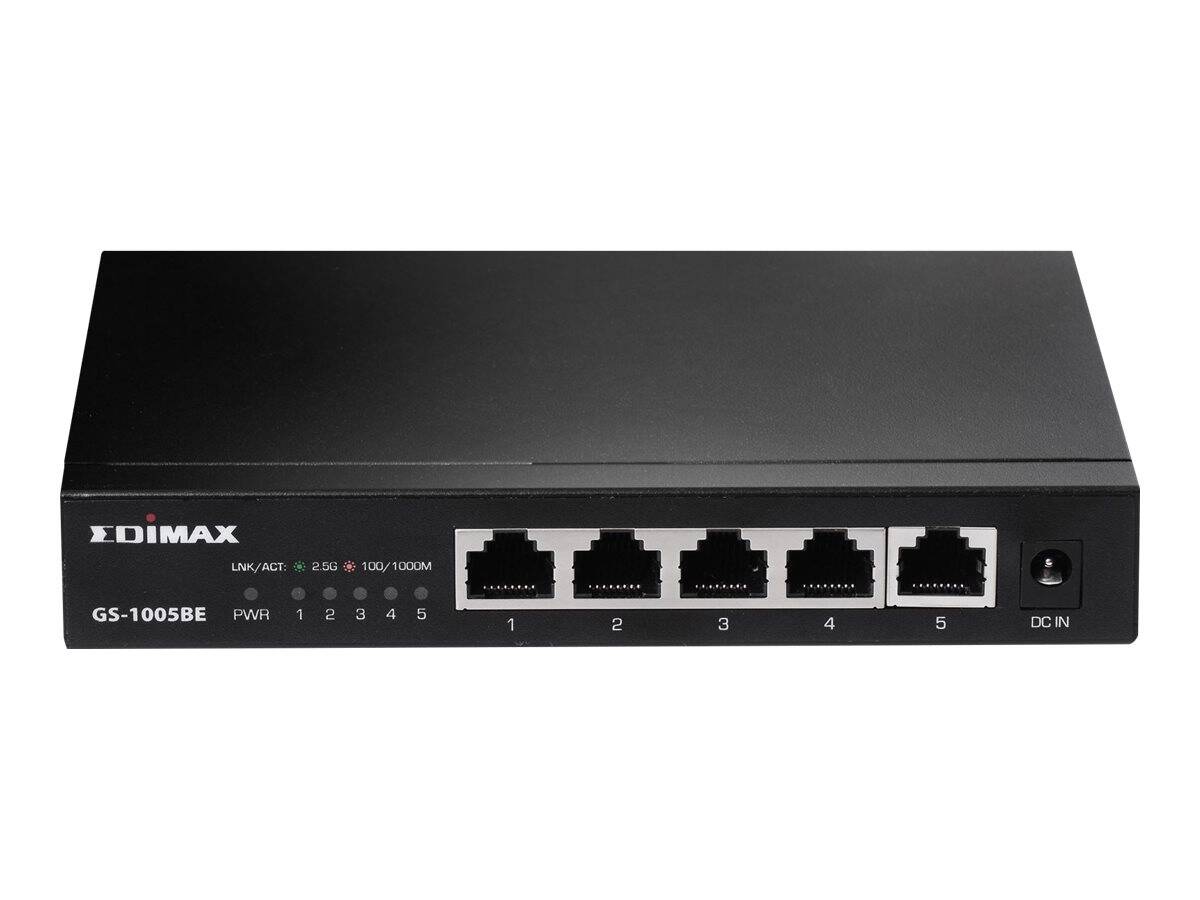

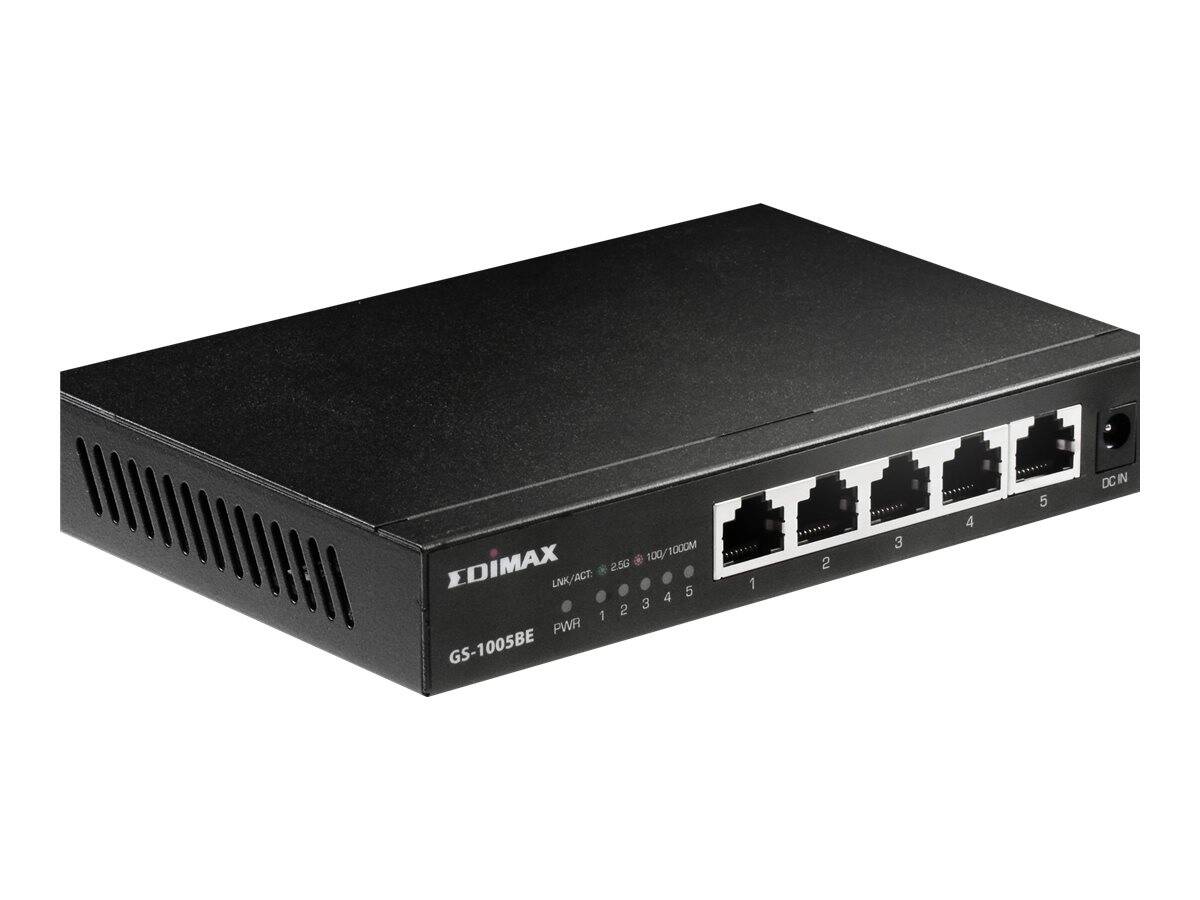

Edimax GS-1005BE - Switch - unmanaged - 5 x 100/1000/2.5G - desktop | GS-1005BE
Product Features
- Keep your current network infrastructure
Just plug the Ethernet enabled device into GS-1005BE. It doubles the network bandwidth while leveraging existing CAT-5E cabling infrastructure with no additional cables, software setup or configuration required. - High performance and reliable connection
Offering ultra-high performance for each device connected to your network with features, such as IEEE 802.3x Flow Control, Auto-Negotiation, No-Blocking Wire Speed, Auto-MDI/MDI-X, Auto-Correction, Loop Detection, Store-and-Forward Architecture and more. - Quiet fanless, flexible wall-mount design
Flexible deployment options for desktop or wall mounting with a quiet fanless, durable metal case design to meet the network environment requirement. - Energy-efficient and power-saving
To comply with the IEEE802.3az Energy Efficient Ethernet standard, GS-1005BE provides power-saving functionality to reduce energy consumption and save costs.
Special Fetures
- Five 2.5 Gigabit Ethernet ports with full-duplex and 12K jumbo frames support
- No need to upgrade cabling infrastructure: doubles network bandwidth by leveraging existing CAT-5E cabling infrastructure
- High performance and reliable connection: supports IEEE 802.3x Flow Control, Auto-Negotiation, Auto-MDI/MDI-X, Auto-Correction and loop detection
- Complies with IEEE 802.3az energy-efficient Ethernet, Inactive Link Detection and Cable Length Detection for power saving
Product Specification
Device Type | Switch - 5 ports - unmanaged |
Enclosure Type | Desktop |
Subtype | 2.5 Gigabit Ethernet |
Ports | 5 x 100/1000/2.5G |
Performance | Switching capacity: 25 Gbps ¦ Forwarding rate (1000Mbps): 1488000 pps ¦ Forwarding rate (100Mbps): 148800 pps ¦ Forwarding rate: 18.6 Mpps |
MAC Address Table Size | 16000 entries |
Jumbo Frame Support | 12KB |
Features | Flow control, full duplex capability, auto-negotiation, auto-uplink (auto MDI/MDI-X), store and forward, wall mountable, fanless, Energy Efficient Ethernet, loop prevention, auto-correction, metal housing, 12Mbit packet buffer |
Compliant Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x, IEEE 802.3an, IEEE 802.3az |
Status Indicators | Power, link/activity, speed |
Expansion / Connectivity | |
Interfaces | 5 x 1/2.5GBase-T RJ-45 |
Power | |
Power Device | External power adapter |
Power Provided | 12 V - 1 A |
Miscellaneous | |
Compliant Standards | FCC |
Dimensions & Weight | |
Width | 16 cm |
Depth | 11 cm |
Height | 2.6 cm |
Weight | 446 g |
Environmental Parameters | |
Min Operating Temperature | 0 °C |
Max Operating Temperature | 40 °C |
Humidity Range Operating | 10 - 90% (non-condensing) |
Min Storage Temperature | -40 °C |
Max Storage Temperature | 70 °C |
Humidity Range Storage | 5 - 90% (non-condensing) |
