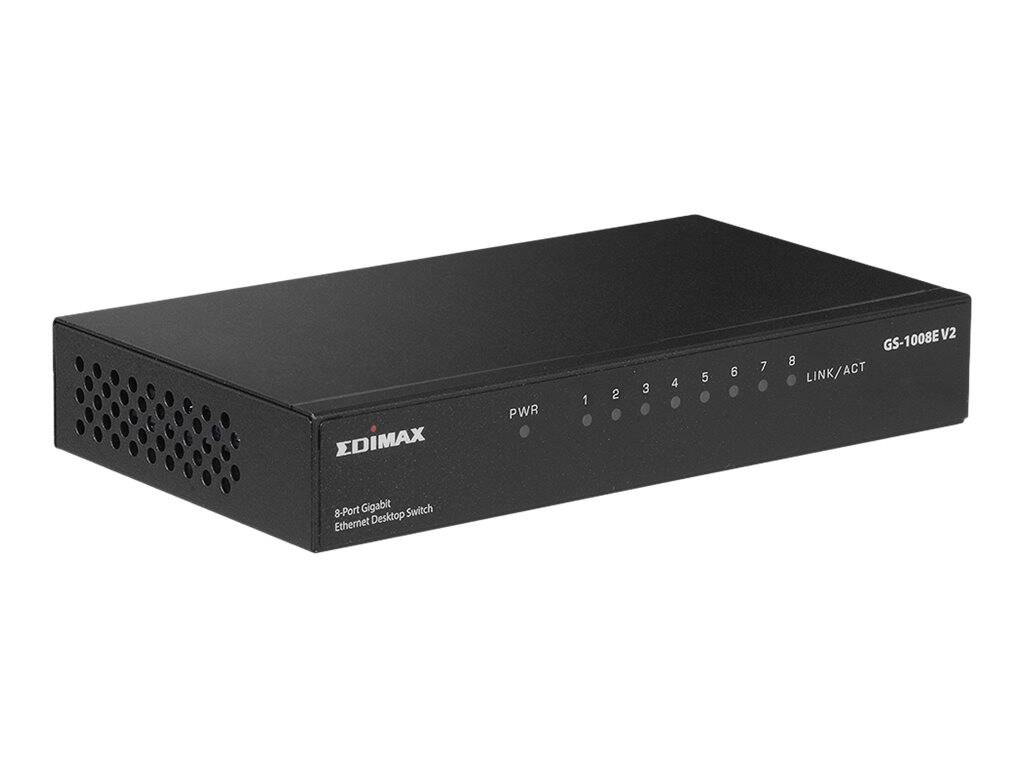

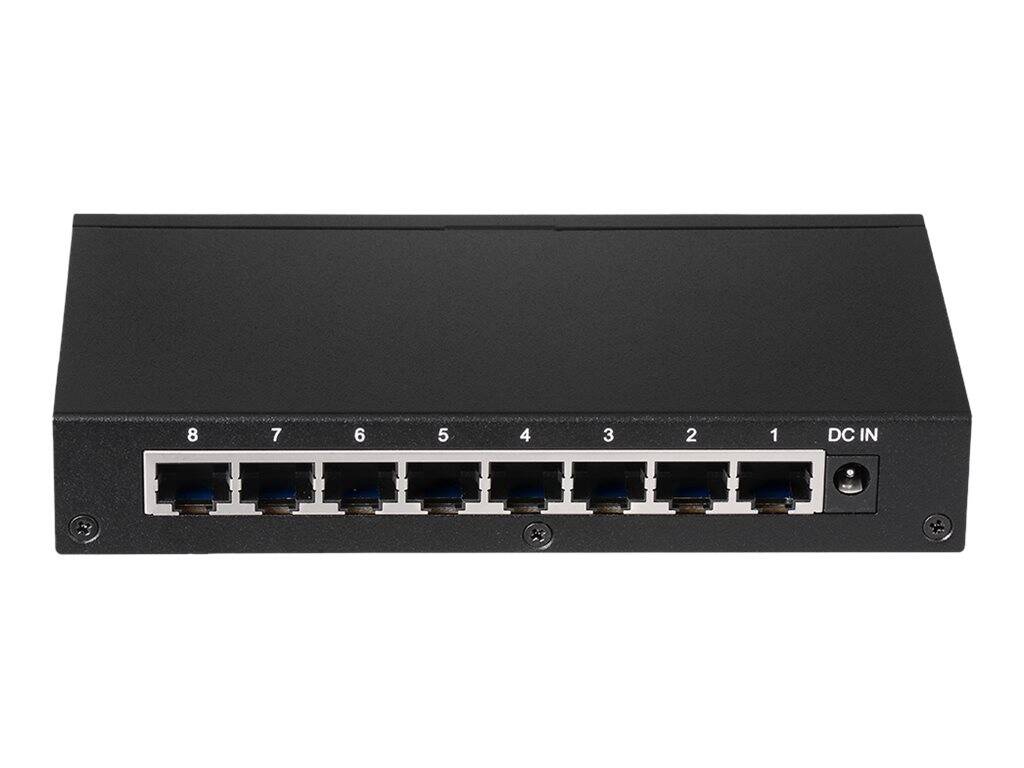

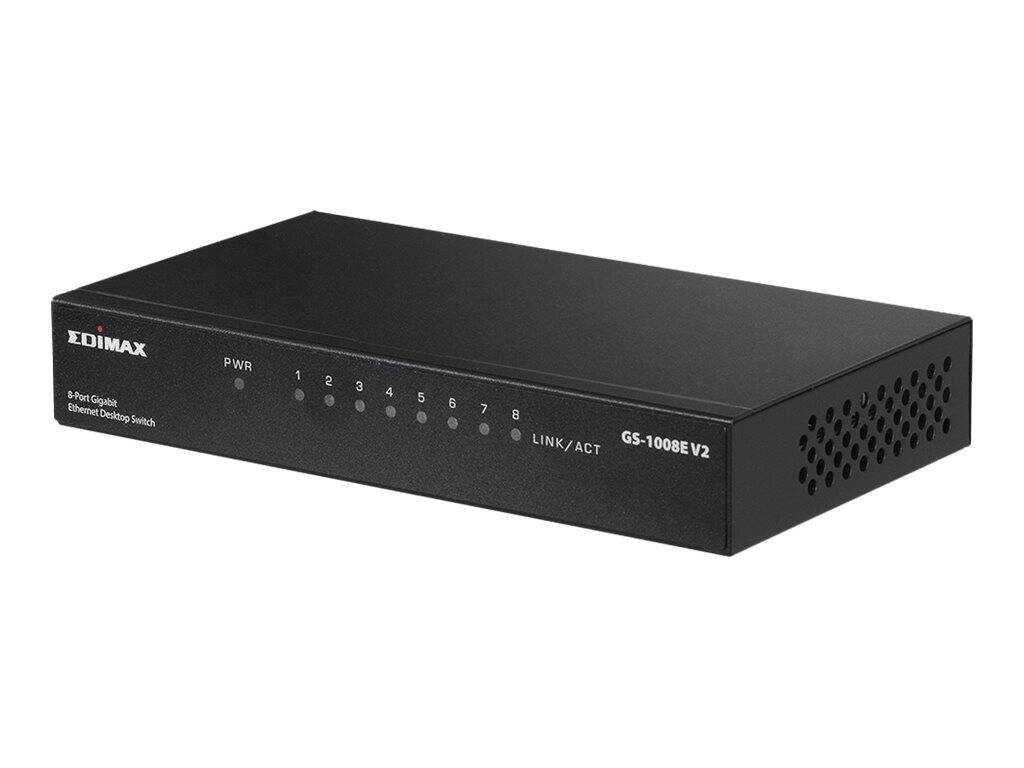

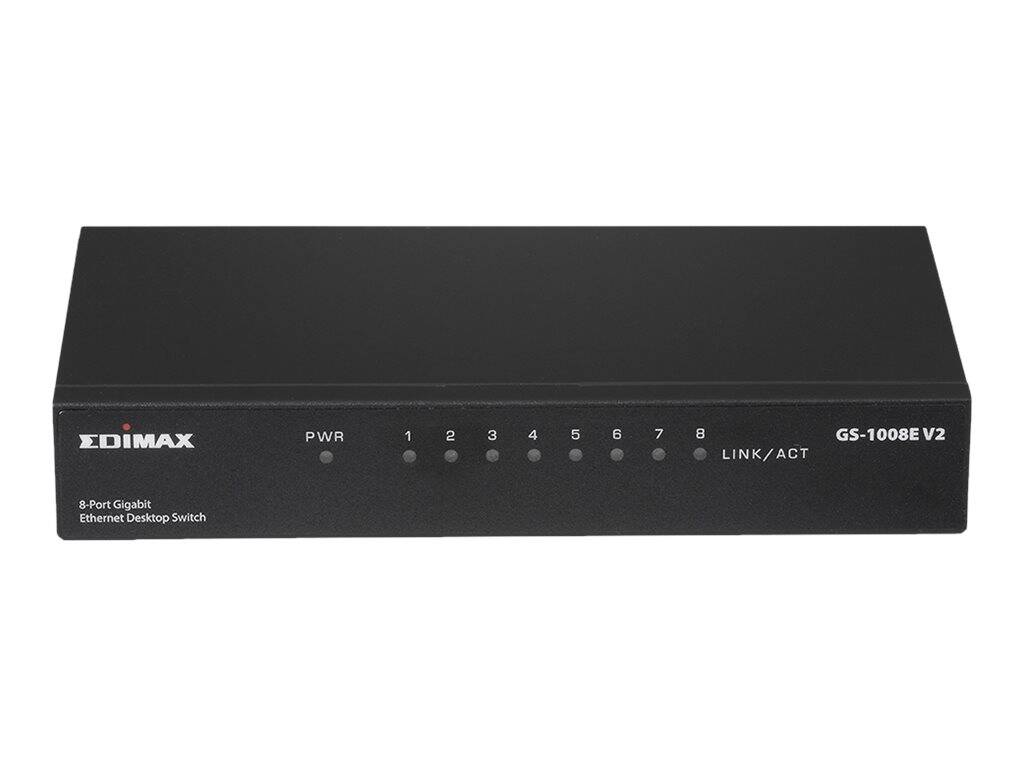

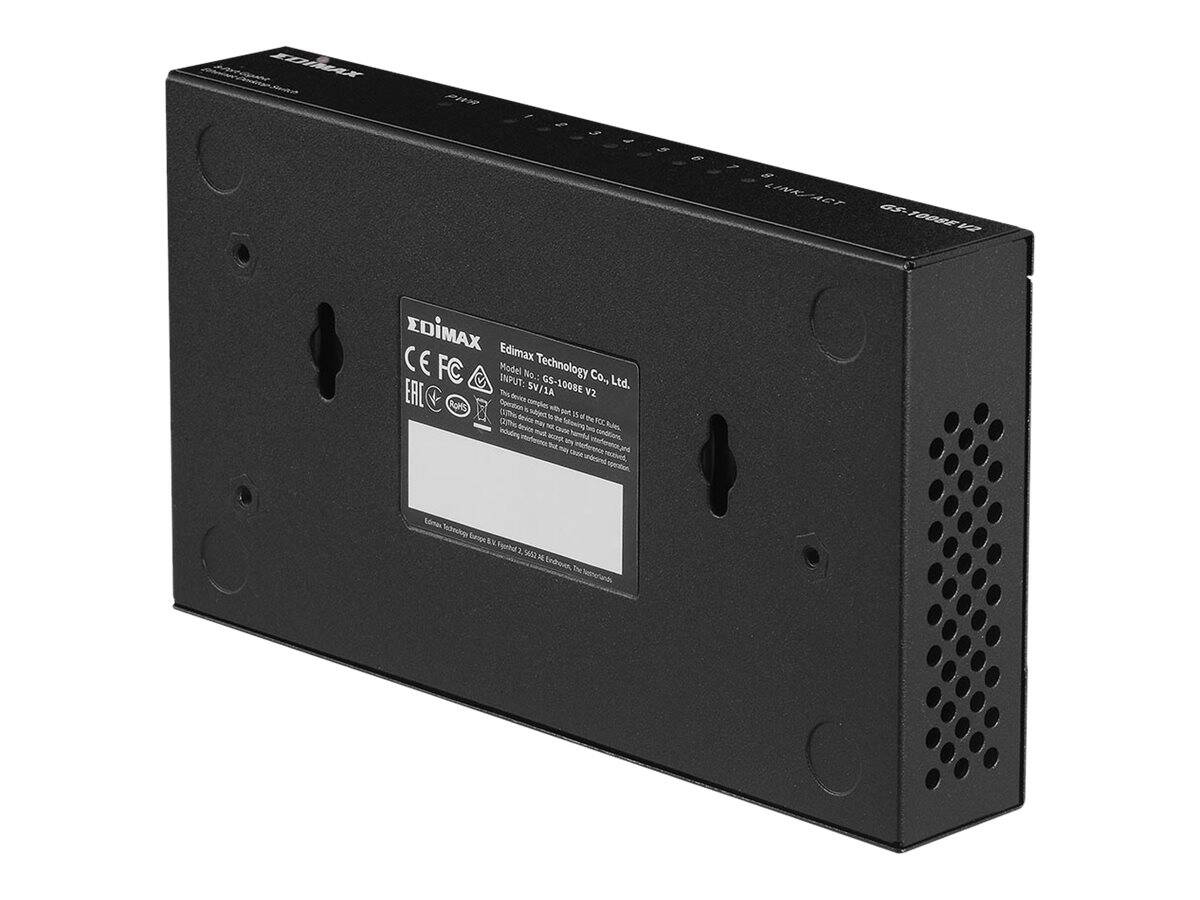

Edimax GS-1008E V2 - Switch - unmanaged - 8 x 10/100/1000 - desktop | GS-1008E V2
Product Features
- Easy plug and play, no installation required
The Gigabit switch features with Flow Control, Full-Duplex, Auto-Negotiation, No-Blocking Wire Speed, Auto-MDI/MDI-X, Store-and-Forward Architecture filters fragment and CRC error packets, maximizing network performance while offering reliable connection. - Energy efficient and power saving
To comply with the IEEE802.3az Energy Efficient Ethernet standard and feature with Inactive Link Detection and Cable Length Detection, the GS-1008E V2 provides power-saving functionality to reduce energy consumption and save power usage costs. - Quiet fanless, flexible wall-mount design
Flexible deployment options for desktop or wall-mount with quiet fanless, durable metal case design to meet the network environment requirement. - Designed to meet your network needs
Easily upgrade or expand your network with Gigabit high-speed and with cost efficiency.
Special Fetures
- Easy plug-and-play: simple setup with no software to install or configuration required
- High performance and reliable connection: supports IEEE 802.3x Flow Control, Auto-Negotiation, No-Blocking Wire Speed, Auto-MDI/MDI-X, Auto-Correction and loop detection
- Energy-efficient and power saving: complies with IEEE 802.3az Energy Efficient Ethernet, Inactive Link Detection and Cable Length Detection for power saving
- Quiet fanless, wall-mount, durable design: fanless, wall-mounted design quietly integrates into your environment with durable metal casing
Product Specification
Device Type | Switch - 8 ports - unmanaged |
Enclosure Type | Desktop |
Subtype | Gigabit Ethernet |
Ports | 8 x 10/100/1000 |
Performance | Switching capacity: 16 Gbps |
MAC Address Table Size | 4K entries |
Jumbo Frame Support | 9KB |
Features | Flow control, auto-negotiation, auto-uplink (auto MDI/MDI-X), store and forward, full duplex mode, wall mountable, fanless, 192KB packet buffer, auto-correction, metal housing, Energy-Efficient Ethernet (EEE), loopback detection, Cyclic Redundancy Check (CRC) support, cable length detection |
Compliant Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x, IEEE 802.3az |
Status Indicators | Power, link/activity |
Expansion / Connectivity | |
Interfaces | 8 x 1000Base-T RJ-45 |
Power | |
Power Device | External power adapter |
Power Provided | 5 V - 1 A |
Power Consumption Operational | 3 Watt |
Miscellaneous | |
Compliant Standards | FCC |
Dimensions & Weight | |
Width | 15.4 cm |
Depth | 8.5 cm |
Height | 2.6 cm |
Weight | 325 g |
Environmental Parameters | |
Min Operating Temperature | 0 °C |
Max Operating Temperature | 40 °C |
Humidity Range Operating | 10 - 90% (non-condensing) |
Min Storage Temperature | -40 °C |
Max Storage Temperature | 70 °C |
Humidity Range Storage | 5 - 90% (non-condensing) |
